Enders Brisbane 2-Burner CampІнструкція з експлуатації плити

1. Вступ

Thank you for choosing the Enders Brisbane 2-Burner Camping Stove. This manual provides essential information for the safe and efficient operation, setup, and maintenance of your new camping stove. Please read these instructions carefully before use and retain them for future reference.

The Enders Brisbane 2-Burner Camping Stove is designed for outdoor cooking, offering reliable performance with its two powerful, continuously adjustable burners. Its robust stainless steel construction ensures durability and ease of cleaning, making it an ideal companion for your campшукати пригоди.

2. Інформація про безпеку

УВАГА: Failure to follow these instructions could result in fire, explosion, or carbon monoxide poisoning, which could cause property damage, personal injury, or death.

• Тільки для зовнішнього використання: Цей прилад призначений лише для використання на відкритому повітрі. Не використовуйте його в приміщенні або в закритих приміщеннях.
• Вентиляція: Забезпечте достатню вентиляцію під час роботи печі.
• Підключення газу: Use only the specified gas type (LPG) and connection pressure (50 mbar). Ensure all gas connections are tight and leak-free before ignition.
• Безпека займання: The stove is equipped with ignition safety features. Always follow the ignition procedure carefully.
• оформлення: Дотримуйтеся безпечної відстані від горючих матеріалів.
• Стабільність: Always place the stove on a stable, level, non-combustible surface.
• Діти та домашні тварини: Тримайте дітей та домашніх тварин подалі від печі під час роботи та під час її охолодження.
• Гарячі поверхні: The stove and cooking surfaces will become very hot during use. Allow to cool completely before handling or cleaning.
• Not Authorized in Switzerland: This product is not authorized for use in Switzerland.

3. Особливості продукту

• Two powerful 2.3 kW burners, continuously adjustable for precise cooking control.
• Robust, chrome-plated, and removable grill for easy cleaning.
• Removable lid and smooth surfaces facilitate effortless cleaning.
• Integrated ignition safety system for secure operation.
• High-quality stainless steel burner cover and casinг для довговічності.

4. Налаштування

1. Розпакувати: Carefully remove the stove and all components from the packaging. Check for any damage.
2. Розміщення: Place the stove on a firm, level, and non-combustible surface outdoors, away from any flammable materials or structures. Ensure good ventilation.
3. Відрегулюйте ніжки: The stove features height-adjustable feet. Turn the feet clockwise or counter-clockwise to ensure the stove is perfectly horizontal and stable. This is crucial for safe cooking.

Image: Adjustable feet for stable placement.

4. Підключення до газопостачання: Ensure the gas cylinder valve is closed. Connect the provided connection hose to the stove's gas inlet and then to the gas cylinder regulator. Tighten all connections securely. Perform a leak test using soapy water on all connections; bubbles indicate a leak. Do not proceed if a leak is detected.
5. Install Grill: Place the chrome-plated grill securely over the burners.

5. Інструкція з експлуатації

1. Відкрите постачання газу: Slowly open the valve on the gas cylinder.
2. запалювання: Push down and turn the desired burner control knob counter-clockwise to the ignition position (usually marked with a flame symbol). You should hear the igniter click. Hold the knob down for a few seconds after ignition to allow the safety device to activate. If the burner does not ignite, return the knob to the 'OFF' position, wait a few moments, and repeat the process.

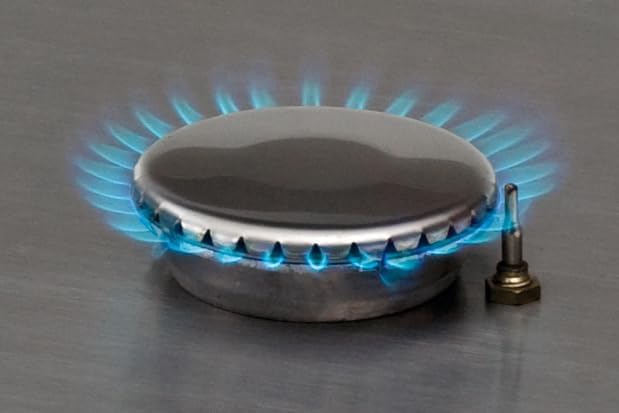

Image: Burner with an active flame.

3. Налаштувати полум'я: Once ignited, release the control knob. You can then adjust the flame intensity by turning the knob between the high and low settings. The 2.3 kW burners offer continuous adjustment for precise heat control.
4. Кулінарія: Place your cookware on the grill over the lit burner.

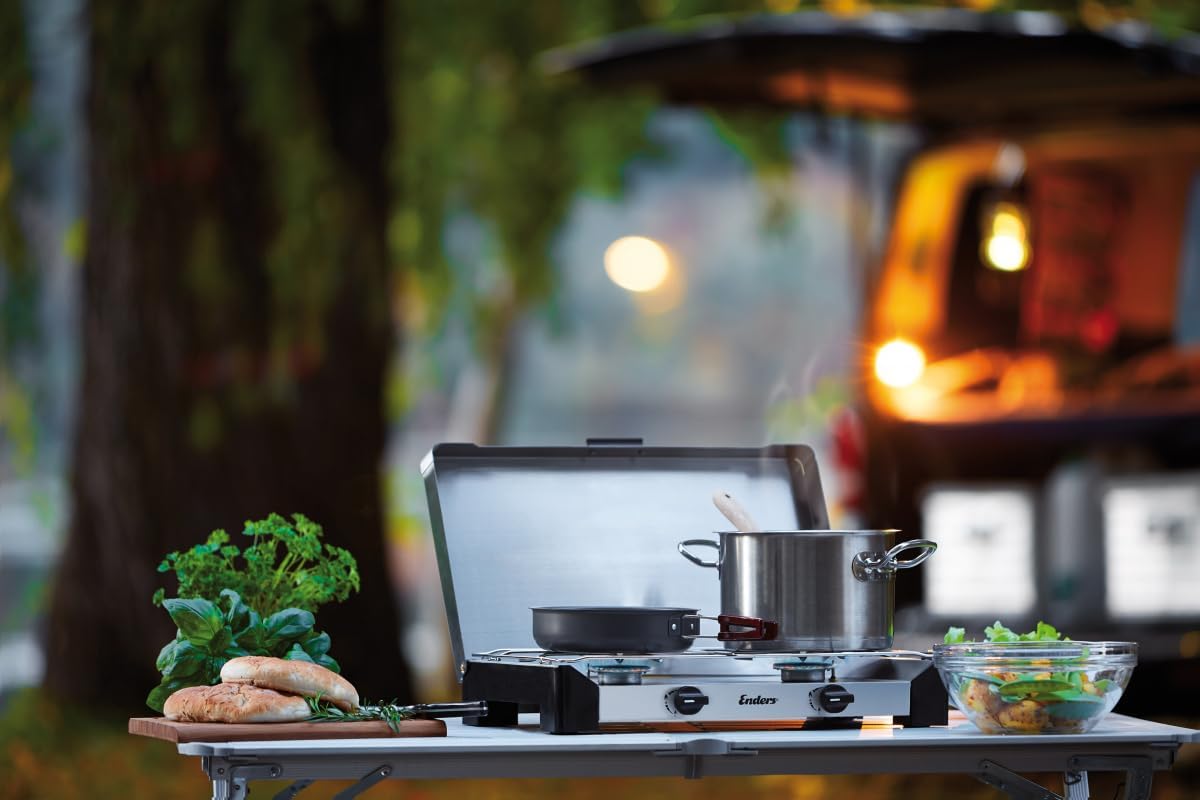

Image: Enders Brisbane stove in use for outdoor cooking.

5. Вимкнення: To turn off a burner, turn its control knob clockwise to the 'OFF' position. Once all burners are off, close the valve on the gas cylinder.

6. Технічне обслуговування

Regular cleaning and maintenance will ensure the longevity and safe operation of your campплита.

• Прибирання: Allow the stove to cool completely before cleaning. The lid and chrome-plated grill are removable for easy cleaning. Wipe down the stainless steel surfaces with a damp cloth and mild detergent. Avoid abrasive cleaners or scouring pads that could scratch the surface. Ensure all parts are dry before reassembly or storage.
• Технічне обслуговування пальника: Periodically check the burner ports for any blockages. Use a soft brush to clear any debris.
• Перевірка газового шланга: Regularly inspect the gas hose for cracks, cuts, or wear. Replace immediately if any damage is found.
• Зберігання: Store the stove in a dry, protected area when not in use. Disconnect the gas cylinder and store it separately according to its manufacturer's instructions.

7. Вирішення проблем

If you encounter issues with your Enders Brisbane camping stove, refer to the following common troubleshooting tips:

• Пальник не запалюється:
  • Переконайтеся, що вентиль газового балона повністю відкритий.
  • Check that the gas hose is securely connected and there are no leaks.
  • Verify that the control knob is pushed down and turned to the ignition position correctly.
  • Check if the igniter spark is visible. If not, the igniter may need cleaning or adjustment.
  • Ensure there is sufficient gas in the cylinder.
• Weak or Irregular Flame:
  • Check the gas cylinder for low gas levels.
  • Inspect burner ports for blockages (e.g., food debris). Clean if necessary.
  • Ensure the gas regulator is functioning correctly and the pressure is adequate (50 mbar).
• Запах витоку газу:
  • Immediately turn off the gas supply at the cylinder.
  • Do not ignite any flames or operate electrical switches.
  • Проведіть перевірку на герметичність усіх з'єднань мильною водою.
  • If the leak persists or cannot be identified, do not use the stove and contact a qualified technician or the manufacturer.

8. Технічні характеристики

9. Гарантія та підтримка

For warranty information, technical support, or spare parts, please contact Enders customer service. Details can typically be found on the manufacturer's official webсайті або на упаковці продукту.

When contacting support, please have your product model name (Brisbane 2 Z) and model number (FRA310452 or 1860) available.
