TRUSTSTONE 2BBPLPYSTC Wireless Charging Station and Digital Alarm Clock

OVERVIEWS

1. Qi®Certified Wireless Phone Charger
2. Silicone Stopper
3. Adjustable-Angle Bracket
4. Digital Alarm Clock
5. Charger Holder for Apple Watch®
6. AirPods® Wireless Charger
7. Easy-Access Buttons
8. Type-C Charging Port
9. EVA foam pad


FUNCTIONS OVERVIEW

• Wireless charger
• Alarm clock/Time

WIRELESS CHARGING OPERATION

1. For best charging results, use the QC3.0 adapter
2. Lift the bracket in the wireless charging plate to a position suitable for your mobile phone. You can charge your phone wirelessly, sanding up or flat, by laying it on the charging plate. A light indicator will turn on when charging and off when fully charged.
3. When charging the AirPods~ align the wireless charging case(AirPods® inside) to the charging base. When charging the indicator light turns on and off when fully charged.
4. Insert the USB-C end of the watch wireless charger into the charger holder first and plug it into a charger cube to wirelessly charge your watch. The stand can be set tilted or flat to charge your Apple Watch® ( wireless charger and charging cube not included).

EVA foam pad: If you are using a second- generation wireless watch charger, please wear a sponge pad.

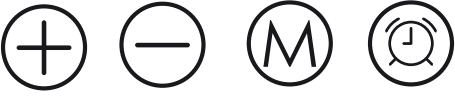

BUTTON ARRANGEMENT

SETTING TIME

1. Press in the display time interface to enhance the clock brightness. Press the for the clock brightness to decrease.
2. Tap in the display time interface to access 24H and 12H Settings. If AM/PM is not displayed, it is 24H.lf AM/PM is displayed, it is 12H.
3. Long press to set minutes, Short press  to add minute, and short press to reduce minute.
   Then short press again to set hour. Short press to add hour, and short press to reduce hour.

ALARM SETTINGS

1. Press on the time display screen to turn on the alarm clock. When the alarm clock icon lights up, press again to turn it off. Long press to enter the minute setting, short press to add minutes, and short press to reduce minutes; Short Press again to enter the hour setting, press to add hours, and press to reduce hours.
2. When the alarm clock rings, press any key to turn it off.

SPECIFICATIONS

Material: ABS
Size: 7″W x4.5″ Hx3.26″D
lnput: DC5V-9V3A
Output: 5W(AirPods® charging) 15W /l0W /7.5W /5W(Mobile phone wireless charging)
Working distance: < 8mm
Charge efficiency: 75%,-85%
Compatibility: Supports all Qi® enabled smartphone devices
FCC ID: 2BBPLPYSTCT

ATTENTION

• Avoid direct sunlight exposure or high temperatures for an extend period
• Do not disassemble or modify this product
• Please put this product away from water or other liquids
• If you want to clean this product, please disconnect the power supply first

Note: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by funning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help

This equipment must be installed and operated with a minimum distance of 15 cm between the radiator and user body.

iPhone® and AirPods® are trademarks of Apple Inc. and used herein for descriptive purposes only. Apple is not affiliated with this product.

This product is not manufactured, approved, endorsed, or affiliated with Apple, Inc. Al company product and service names used on this packaging or product are for identification purposes only. Using these names, logos, and brands do not imply endorsement.

WARNING: Cancer risk from Lead Exposure
www.P65Warnings.ca.gov
Distributed by Truststone Group LLC.
1370 Broadway, 9th floor, New York, NY 10018 United States
