Electactic Nugget Ice Maker Countertop

1. Giriş

Thank you for choosing the Electactic Nugget Ice Maker Countertop. This appliance is designed to produce soft, chewable nugget ice, perfect for various beverages. Please read this manual thoroughly before operation to ensure safe and efficient use of your ice maker.

2. Güvenlik Talimatları

• ETL Sertifikalı: This ice maker is ETL-certified, ensuring it meets safety standards for reliable home use.
• Elektriksel Güvenlik: Ensure the appliance is plugged into a grounded 110-Volt outlet. Do not operate with a damaged cord or plug.
• Havalandırma: Maintain at least 6 inches of clearance around the ice maker's vents to ensure proper airflow and prevent overheating.
• Su Kalitesi: Sadece içilebilir su kullanın.
• Atama: Place the ice maker on a stable, level surface away from direct sunlight or heat sources.
• Çocuklar: Çalışma sırasında çocukları cihazdan uzak tutun.

3. Ürün Bittiview

The Electactic Nugget Ice Maker is designed for convenience and efficiency. Key components include:

• Şeffaf Kapak: Allows you to monitor ice production without opening.
• Kontrol Paneli: Features LED indicators for 'Ice Full', 'Add Water', and an 'Ice/Clean' button.
• Buz Sepeti: Buz toplamak ve servis etmek için çıkarılabilir sepet.
• Su deposu: Located beneath the ice basket, for water storage.
• Halletmek: For portable transport of the unit.
• Boşaltma tapası: Temizlik sırasında suyun kolay boşaltılabilmesi için alt kısımda yer almaktadır.

Figure 3.1: Electactic Nugget Ice Maker with its components.

4. Kurulum

4.1 Kutudan Çıkarma ve İlk Yerleştirme

1. Carefully remove the ice maker and all packaging materials from the box.
2. Place the unit on a flat, stable surface. Ensure there is at least 6 inches of space around the sides and back for proper ventilation.
3. Remove any protective tapes from the unit, including those inside the ice basket and on the control panel.

4.2 Kulp Montajı

The portable handle can be easily installed by sliding it over the designated slots on the sides of the ice maker until it locks securely into place.

4.3 İlk Temizlik

Before first use, it is recommended to run a self-cleaning cycle:

1. Fill the water reservoir with clean, potable water up to the MAX fill line.
2. Press and hold the 'Ice/Clean' button for 5 seconds. The blue light will illuminate, indicating the self-cleaning cycle has started.
3. The cycle takes approximately 15 minutes. Once complete, drain the water using the drain plug at the bottom of the unit.
4. İç yüzeyi yumuşak bir bezle kurulayın.

Figure 4.1: Quick start guide for the ice maker.

5. Kullanım Talimatları

5.1 Buz Yapımı

1. Ensure the unit is clean and the water reservoir is filled with potable water up to the MAX line.
2. Press the 'Ice/Clean' button briefly to enter the ice-making mode. The white light will illuminate.
3. The first batch of nugget ice will be ready in approximately 6 minutes.
4. The ice maker can produce up to 35 lbs of ice per day.

Figure 5.1: The ice maker's efficient production capabilities.

5.2 Gösterge Işığı

• 'Ice Full' (Green LED): Illuminates when the ice basket is full, and the machine will automatically pause ice production.
• 'Add Water' (Red LED): Illuminates when the water level in the reservoir is low, and the machine will pause. Refill the reservoir to resume operation.
• 'Ice Making' (White LED): Indicates the machine is actively producing ice.
• 'Self-Cleaning' (Blue LED): Indicates the machine is running a cleaning cycle.

Figure 5.2: The intuitive one-touch control panel.

6. Bakım

6.1 Düzenli Temizlik

Regular cleaning ensures optimal performance and hygiene. It is recommended to clean the unit weekly or monthly, depending on usage.

1. Kendi Kendini Temizleme Döngüsü: Follow the steps in Section 4.3 for a quick automated clean.
2. Derin temizlik: For a more thorough clean, remove the ice basket and manually wipe down the interior with a soft cloth and mild detergent. Rinse thoroughly.
3. boşaltma: To completely empty the water reservoir, locate the drain plug at the bottom of the unit. Place a container underneath and remove the plug to drain the water. Reinsert the plug firmly after draining.

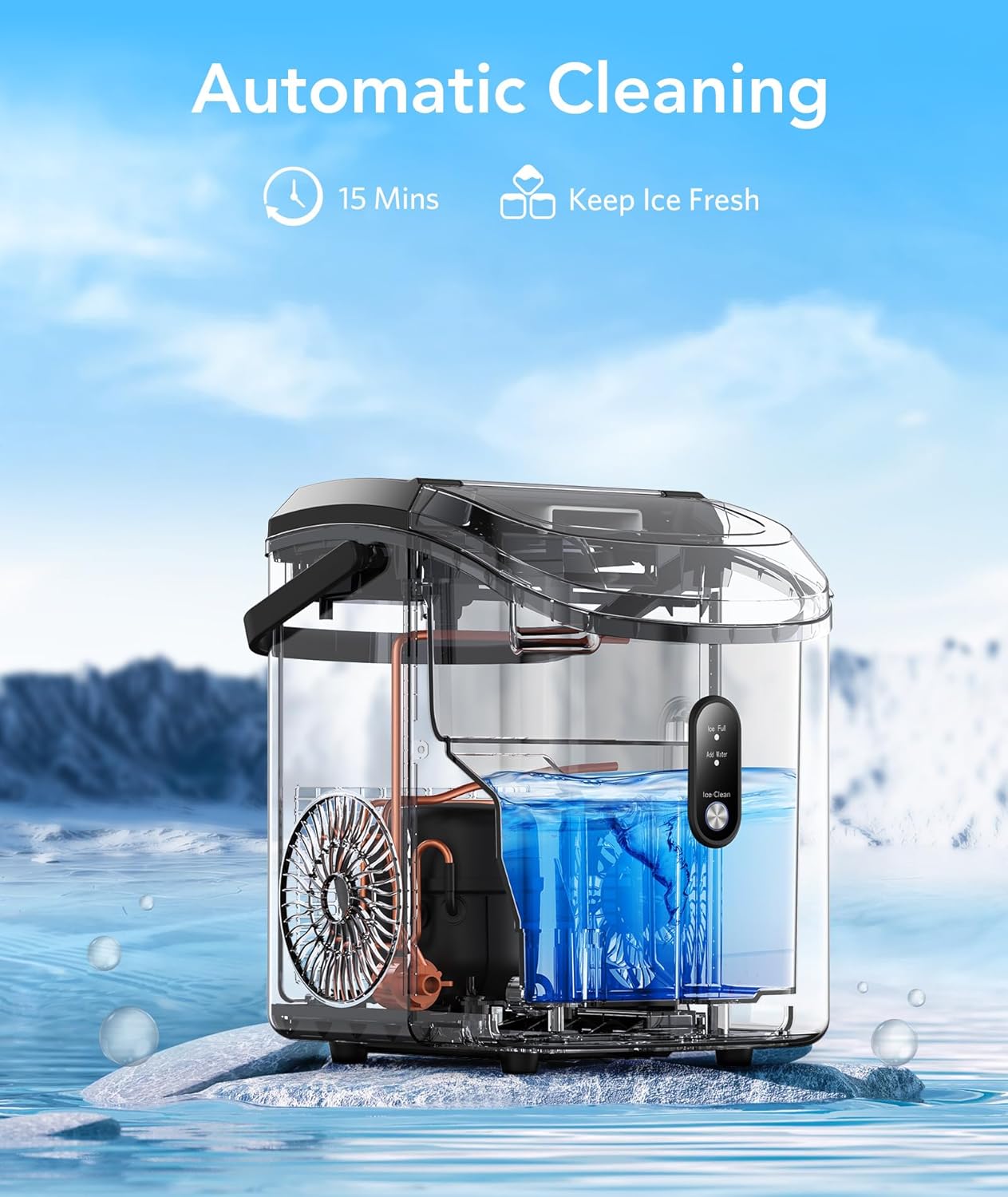

Figure 6.1: The automatic cleaning process in action.

6.2 Kireç çözme

Over time, mineral deposits can build up in the ice maker. Use citric acid descaling powder (8 packs included with some models) to remove these deposits. Follow the instructions provided with the descaling powder for proper use.

7. Sorun Giderme

8. Özellikler

9. Resmi Ürün Videosu

10. Garanti ve Destek

For warranty information, technical support, or any inquiries regarding your Electactic Nugget Ice Maker, please refer to the contact details provided in your product packaging or visit the official Electactic webalan.
