Electactic Countertop Ice Cube Maker Machine Z5813AF User Manual

1. Giriş

Thank you for choosing the Electactic Countertop Ice Cube Maker Machine. This appliance is designed to provide a convenient and efficient way to produce ice cubes for various uses. Please read this manual thoroughly before operating the machine to ensure safe and optimal performance. Keep this manual for future reference.

Figure 1: Electactic Countertop Ice Cube Maker Machine.

2. Güvenlik Talimatları

Yangın, elektrik çarpması veya yaralanma riskini azaltmak için, bu cihazı kullanırken her zaman temel güvenlik önlemlerine uyun:

• Kullanmadan önce tüm talimatları okuyunuz.
• Güç çıkışının ses seviyesini kontrol edintage cihazın gereksinimlerine uygundur.
• Hasarlı kablosu veya fişi olan hiçbir cihazı çalıştırmayın.
• Cihazı, kablosunu veya fişini suya veya başka sıvılara batırmayın.
• Cihazı ısı kaynaklarından ve doğrudan güneş ışığından uzak tutun.
• Cihazı temizlemeden önce veya kullanmadığınız zamanlarda daima fişini çekin.
• Cihaz kullanılırken çocukları denetleyin.
• Buz makinesinde sadece içilebilir su kullanın.
• Allow the unit to stand upright for at least 2 hours before plugging in to allow the refrigerant fluid to settle.

3. Ürün Özellikleri

• Fast & Efficient Ice Making: Produces 16 ice cubes in approximately 5 minutes, with a daily capacity of up to 34 lbs. Includes a 1.65 lbs ice basket.
• Two Convenient Water Fill Options: Features a 1.5L external removable water tank and a 0.5L top-opening reservoir for flexible water addition.
• Simple & User-Friendly Operation: Equipped with three intuitive mechanical buttons and bright indicator lights for 'ice full' and 'water needed' alerts. Operating noise is below 45dB.
• Perfect Hard & Slow-Melting Cube Ice: Produces clear, classic square ice cubes (5-10g/pcs) that melt slowly to prevent beverage dilution.
• 24 Saatlik Zamanlayıcı İşlevi: Allows scheduling of ice production to start or stop at desired times, optimizing energy use.

Figure 2: Key features of the ice maker, including production capacity and water tank size.

4. Paket İçeriği

Paket şunları içerir:

• Electactic Countertop Ice Cube Maker Machine
• Buz Kaşık
• Kullanıcı Kılavuzu

5. Kurulum

5.1 Paketten Çıkarma ve Yerleştirme

1. Buz makinesini ambalajından dikkatlice çıkarın.
2. Place the unit on a flat, stable surface away from direct sunlight and heat sources.
3. Allow the ice maker to stand upright for at least 2 hours before plugging it in. This allows the refrigerant fluid to settle, ensuring proper operation.

5.2 İlk Temizlik

1. Before first use, clean the interior of the ice maker with a mild detergent solution and warm water.
2. Rinse the interior parts thoroughly with clean water.
3. Drain the water by unplugging the drain cap located on the front bottom side.
4. Dry the interior completely with a soft cloth.

5.3 Su Ekleme

The ice maker offers two ways to add water:

• Harici Su Deposu: Fill the 1.5L external removable water tank and place it securely on top of the unit.
• Built-in Reservoir: Open the top lid and pour water directly into the 0.5L built-in reservoir. Ensure water level does not exceed the MAX fill line.

Figure 3: Illustration of the dual water filling options.

6. Kullanım Talimatları

6.1 Powering On and Ice Production

1. Buz makinesini topraklı bir elektrik prizine takın.
2. Basın AÇIK/KAPALI button to start the ice production cycle. The machine will begin making ice automatically.
3. The display panel will show the estimated time remaining for the current ice-making cycle.

6.2 Buz Küpü Kalınlığının Ayarlanması

Kullanın + Ve - buttons on the control panel to adjust the thickness of the ice cubes. Thicker cubes take longer to produce but melt slower.

Figure 4: Options for controlling ice cube thickness and corresponding production times.

6.3 Gösterge Işığı

• BUZ DOLU: A light will illuminate when the ice basket is full. The machine will pause production until ice is removed.
• SU EKLE: A light will illuminate when the water reservoir is low. Refill the water tank to resume ice production.

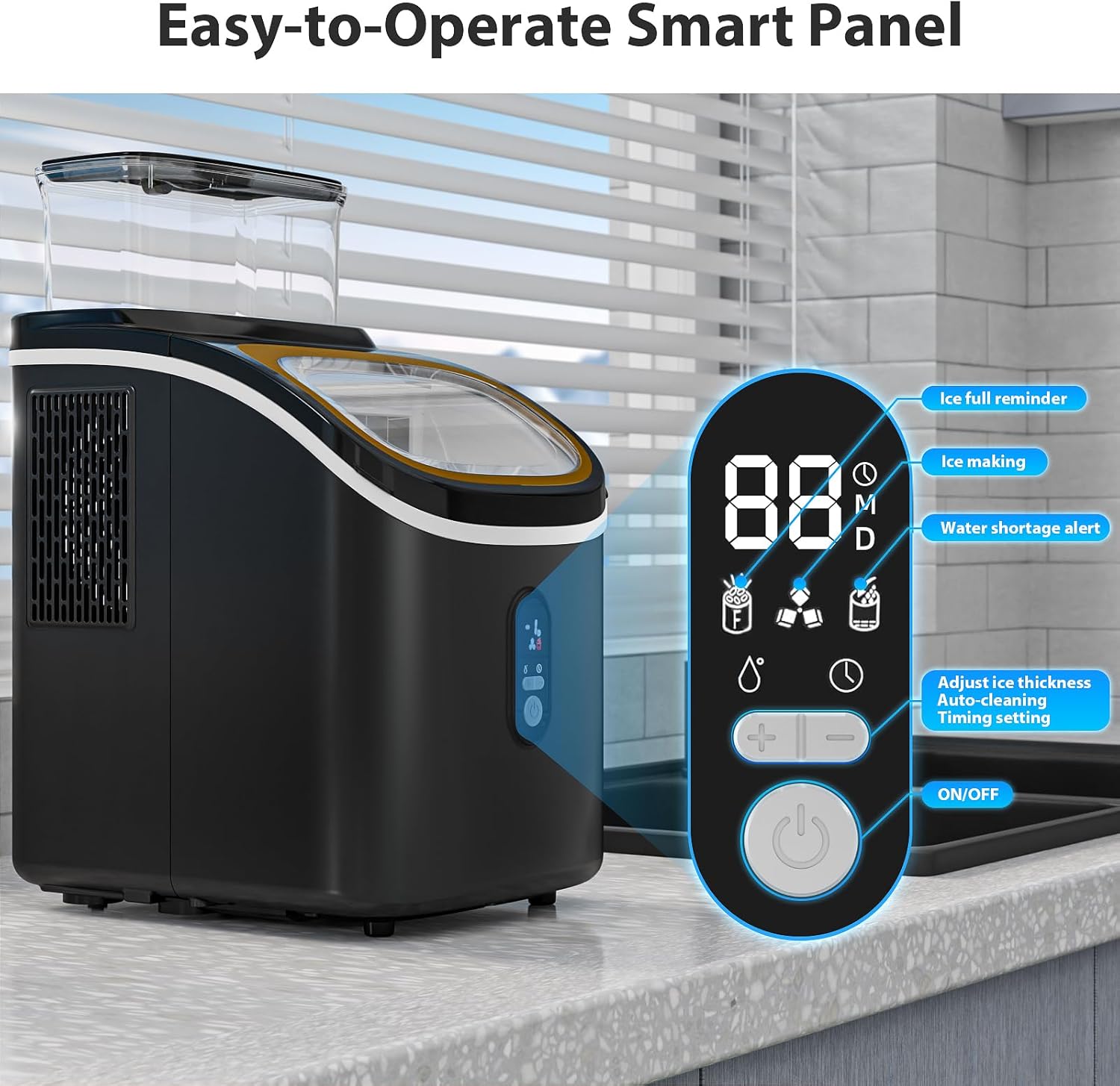

Figure 5: Control panel with intuitive buttons and indicator lights.

6.4 24 Saatlik Zamanlayıcı

Zamanlayıcıyı ayarlamak için Zamanlayıcı düğmesine basın ve kullanın + Ve - buttons to set the desired ON/OFF time. This allows you to schedule ice production in advance.

7. Bakım ve Temizlik

7.1 Otomatik Temizleme Fonksiyonu

The ice maker features a built-in auto-cleaning mode:

1. Cihazın içinde buz ve su olmadığından emin olun.
2. Add clean water to the reservoir.
3. Basılı tutun "+" button for 5 seconds to activate the auto-cleaning cycle.
4. The cleaning process will take approximately 20 minutes.
5. Once complete, drain the water and dry the interior.

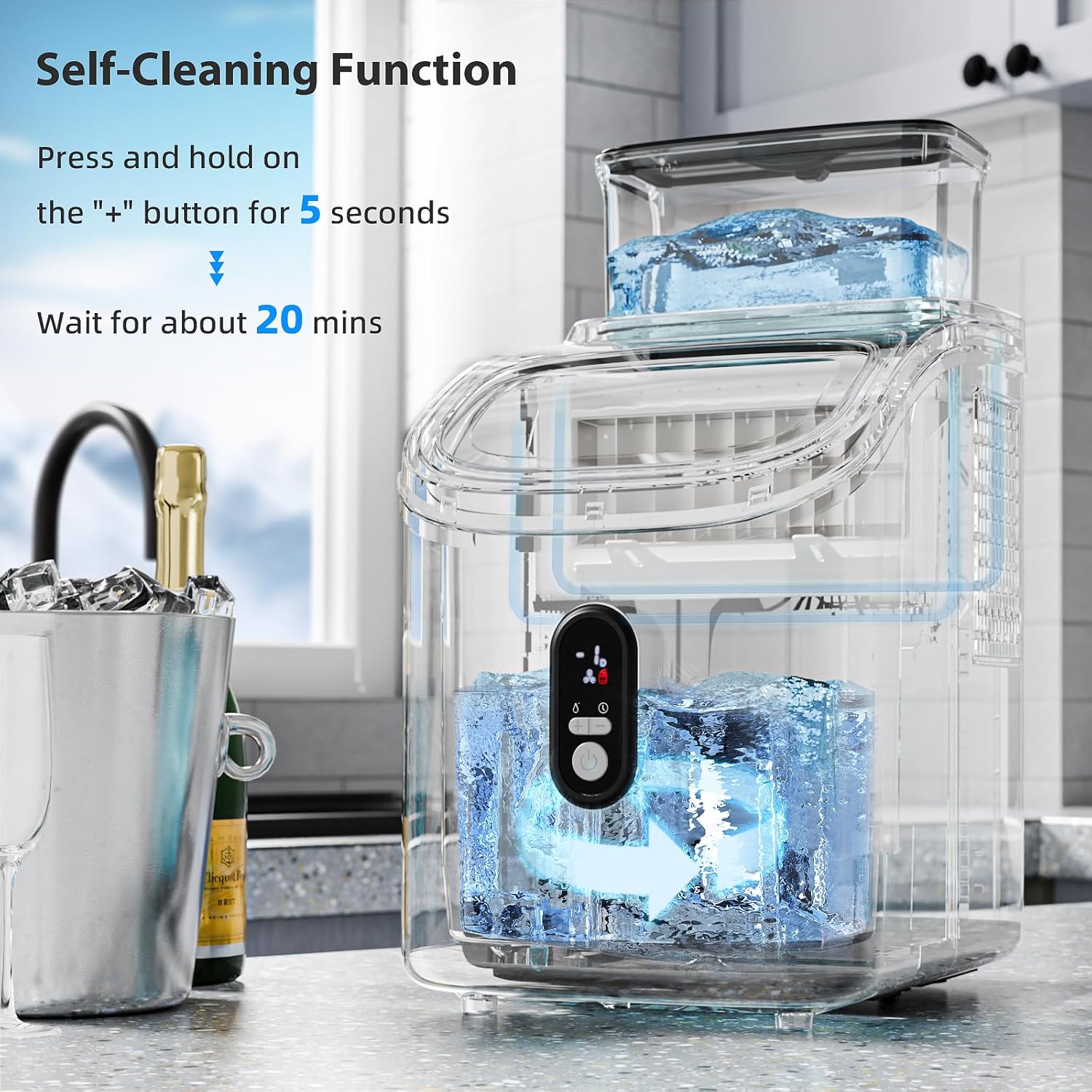

Figure 6: Activating the self-cleaning function.

7.2 Düzenli Temizlik

• Regularly clean the exterior of the ice maker with a mild detergent solution and a soft cloth.
• Descaling: If you live in an area with hard water, descale your ice maker once a month or more frequently. Refer to the user manual for specific descaling instructions.
• When the machine is not to be used for a long time, drain the water completely and dry the interior.

8. Sorun Giderme

If the ice maker is not functioning correctly, please check the following common issues before contacting support:

• Güç Yok: Güç kablosunun çalışan bir elektrik prizine güvenli bir şekilde takıldığından emin olun.
• Buz Üretimi Yok: Check if the water reservoir is filled and if the 'ADD WATER' indicator is off. Ensure the ambient temperature is within the recommended operating range.
• Buz Düzgün Oluşmuyor: Verify that the water temperature is appropriate (cold water is recommended). Ensure the unit has proper ventilation.
• 'ICE FULL' Indicator On, but Basket Not Full: The ice sensor might be obstructed. Clean the sensor area.

For more detailed troubleshooting steps, please refer to the comprehensive user manual provided with your product.

9. Özellikler

10. Garanti ve Destek

For warranty information and customer support, please refer to the warranty card included in your product packaging or visit the official Electactic website. You may also contact Electactic customer service directly for assistance with any product-related inquiries or issues.
