VAUNO Digital Mirror Alarm Clock

giriiş

The VAUNO Digital Mirror Alarm Clock EN8835 is designed for accurate timekeeping and versatile use in various settings such as bedrooms, offices, and classrooms. It features a stable LED display, adjustable brightness, and a compact size for portability and aesthetic integration into any space.

This manual provides detailed instructions for setting up and operating your alarm clock, ensuring you can utilize all its features effectively.

Ürün Bittiview

Familiarize yourself with the components and display features of your VAUNO Digital Mirror Alarm Clock.

Figure 1: Top, Front, and Back View of the VAUNO Digital Alarm Clock with labeled controls and features.

Kontroller ve Ekran:

• ERTELEME/IŞIK Düğmesi: Activates snooze function during an alarm, adjusts display brightness.
• M (Mod) Düğmesi: Enters setting modes for time, alarm, and night mode.
• + Düğme: Increases values during setting, adjusts brightness.
• - Düğme: Decreases values during setting, adjusts brightness.
• AL (Alarm) Düğmesi: Selects and confirms alarm settings, turns alarms on/off.
• Zaman Göstergesi: Shows current time in 12-hour (AM/PM) or 24-hour format.
• Alarm Göstergeleri: Alarm 1 ve Alarm 2 için simgeler.
• Memory Battery Compartment: Holds AAA batteries for settings backup.
• Supply Hub: For DC 5V power cable connection.
• Loudspeaker Box: Alarm sound output.

Setup and Power Supply

The VAUNO Digital Mirror Alarm Clock offers two power supply modes: DC power via USB cable and 3x AAA batteries (not included) for backup. For continuous display and optimal performance, it is highly recommended to use both power sources simultaneously.

Figure 2: Power supply options for the alarm clock.

İlk Güç Açma:

1. Connect the provided 1-meter/40-inch power cord into the DC 5V jack on the back of the clock.
2. Plug the other end of the power cable into a USB power adapter (not included) and then into a wall socket.
3. Open the battery compartment and insert three AAA batteries, ensuring correct polarity. These batteries will store time and alarm settings in case of a power outage.
4. The LED display will turn on. If powered by batteries only, the display will automatically turn off after 10 seconds without operation to conserve power.

Operasyon

Zamanın Ayarlanması:

1. In time display mode, press and hold the M (Mod) button for 3 seconds to enter the time setting mode. The hour digits will flash.
2. Kullanın + or - Saati ayarlamak için düğmeler.
3. Basın M button once to move to minute setting. The minute digits will flash.
4. Kullanın + or - Dakikaları ayarlamak için düğmeler.
5. Basın M button again to cycle through 12/24-hour format setting. Use + or - seçmek için.
6. Basın M button once more to exit time setting mode.

Alarm Saatini Ayarlama:

The clock supports two separate alarms.

Figure 3: Dual alarm function allows setting two distinct wake-up times.

1. Zaman görüntüleme modunda, tuşuna basın. AL (Alarm) button once to select Alarm 1. The Alarm 1 icon will appear. Press again for Alarm 2.
2. Basılı tutun AL button for 3 seconds to enter alarm time setting mode. The hour digits for the selected alarm will flash.
3. Kullanın + or - alarm saatini ayarlamak için düğmeler.
4. Basın AL button once to move to minute setting. The minute digits will flash.
5. Kullanın + or - Alarm dakikalarını ayarlamak için düğmeler.
6. Basın AL button once more to confirm the alarm time and exit setting mode.
7. To turn an alarm on or off, press the AL button once in time display mode to select the alarm, then press AL again to toggle its status. The alarm icon will appear when active.

Erteleme İşlevi:

Alarm çaldığında, tuşuna basın. ERTELEME / IŞIK button once to activate the snooze function. The alarm will temporarily silence and sound again after the preset snooze duration (typically 5-60 minutes, depending on model configuration). To stop the alarm completely for the day, press any other button except ERTELEME / IŞIK.

Gece Modu Ayarı:

Night mode automatically dims the display during a preset period to avoid disturbing sleep. You can customize the start and end times for this mode.

1. Zaman görüntüleme modunda, tuşuna basın. M (Mod) button once to enter night mode setting. The display will show "ON" or "OFF".
2. Kullanın + or - buttons to toggle night mode ON or OFF.
3. If night mode is ON, press and hold the M button for 3 seconds to enter the interval time setting mode. The start hour will flash.
4. Kullanın + or - buttons to set the start hour.
5. Basın M button once to set the start minute. Use + or - Ayarlamak.
6. Repeat for the end hour and end minute.
7. Basın M button once more to exit night mode setting.

Parlaklık Kontrolü:

The LED display has 3 levels of brightness (Bright, Medium, Dim) to suit your preference and environment.

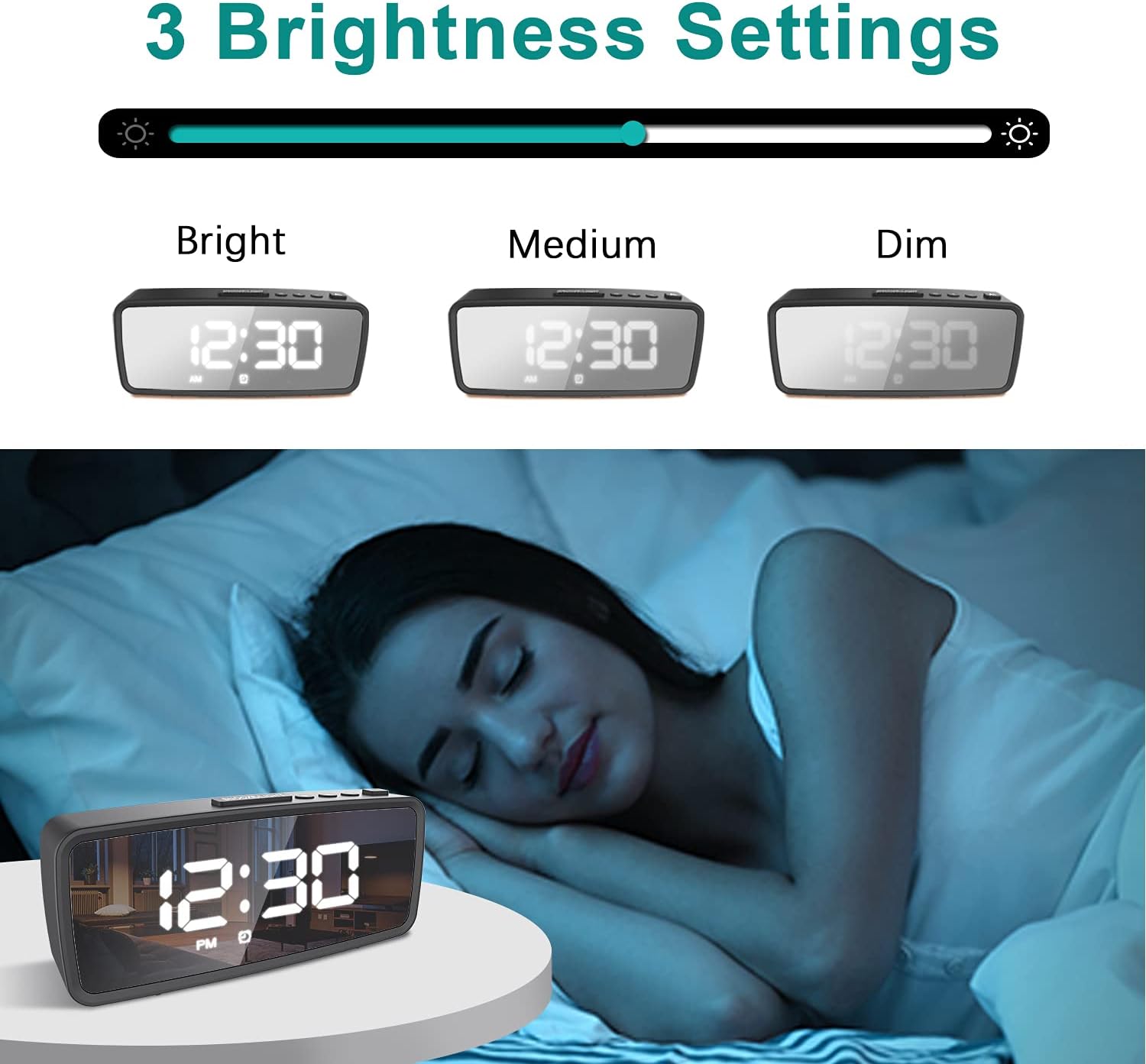

Figure 4: Adjustable brightness settings for optimal viewIng.

Zaman görüntüleme modunda, tuşuna basın. ERTELEME / IŞIK button repeatedly to cycle through the brightness levels: Bright > Medium > Dim.

Ek Özellikler

Mirror Display:

The clock features a reflective surface that can also function as a makeup mirror, adding practicality to its design.

Figure 5: The clock's display doubles as a functional mirror.

Ürün Video Rehberi

For a visual demonstration of the setup and operation, please refer to the official product video below.

Özellikler

Bakım

To ensure the longevity and optimal performance of your VAUNO Digital Mirror Alarm Clock, follow these maintenance guidelines:

• Temizlik: Use a soft, dry cloth to wipe the display and exterior. Avoid abrasive cleaners or solvents that may damage the surface.
• Pil Değişimi: Replace AAA batteries annually or when the clock's settings are no longer retained during power outagYeni pilleri takarken doğru kutuplara dikkat edin.
• Atama: Saati, doğrudan güneş ışığından, aşırı sıcaklıklardan ve yüksek nemden uzak, sabit ve düz bir yüzeye yerleştirin.
• Güç Bağlantısı: Ensure the USB power cable is securely connected to prevent intermittent power supply.

Sorun giderme

If you encounter any issues with your VAUNO Digital Mirror Alarm Clock, refer to the following common troubleshooting steps:

• Ekran boş veya titriyor:
  • Check if the USB power cable is securely connected and the power adapter is working.
  • Ensure AAA batteries are correctly installed and not depleted.
  • If running on batteries only, the display turns off after 10 seconds to save power. Press any button to reactivate.
• Alarm çalmıyor:
  • Verify that the alarm is turned ON (alarm icon visible on display).
  • Check if the alarm time is correctly set (AM/PM if in 12-hour format).
• Cannot set time/alarm:
  • Ensure you are pressing and holding the correct button (M for time, AL for alarm) for 3 seconds to enter setting mode.
  • Follow the steps precisely as outlined in the "Setting the Time" and "Setting the Alarm Time" sections.
• Display is too bright/dim:
  • Basın ERTELEME / IŞIK button repeatedly to cycle through the 3 brightness levels.
  • Check if Night Mode is active and adjust its settings if necessary.

Bu adımları denedikten sonra sorun devam ederse, daha fazla yardım için lütfen müşteri desteğiyle iletişime geçin.

Garanti ve Destek

Your VAUNO Digital Mirror Alarm Clock is covered by a standard manufacturer's warranty. Please refer to your purchase documentation for specific warranty terms and conditions.

For technical support, troubleshooting assistance, or warranty claims, please contact VAUNO customer service through the retailer where you purchased the product or visit the official VAUNO webiletişim bilgileri için site.
