SKMEI Dijital Saat Model 1888 Kullanım Kılavuzu

1. Üzeriview

The SKMEI Digital Watch Model 1888 is an ultra-thin digital sports watch designed for men, featuring an LED screen and super waterproof capabilities. It combines style with functionality, offering various features for daily use and sports activities.

Şekil 1: Ön view of the SKMEI Digital Watch Model 1888, displaying time, date, and pedometer functions.

Temel Özellikler:

• Çift Zaman Göstergesi: Track time in two different zones simultaneously.
• Chronograph & Stopwatch: Precise timing for sports and activities.
• Çalar Saat: Hatırlatıcılar veya uyandırma çağrıları için alarmlar ayarlayın.
• Date & Day of the Week: Always stay updated with the current date and day.
• LED Işık: Illuminates the screen for clear visibility in low-light conditions.
• 12/24 Saat Formatı: Tercih ettiğiniz zaman görüntüleme biçimini seçin.
• Geri sayım saati: Useful for timed tasks.
• 3D Adımsayar: Adım sayısını, kalori yakımını ve mesafeyi takip eder.
• Suya Dayanıklılık: Rated 5 ATM, suitable for hand washing, rain, and sweating.
• Dayanıklı Yapı: Features a stainless steel strap and ABS case.

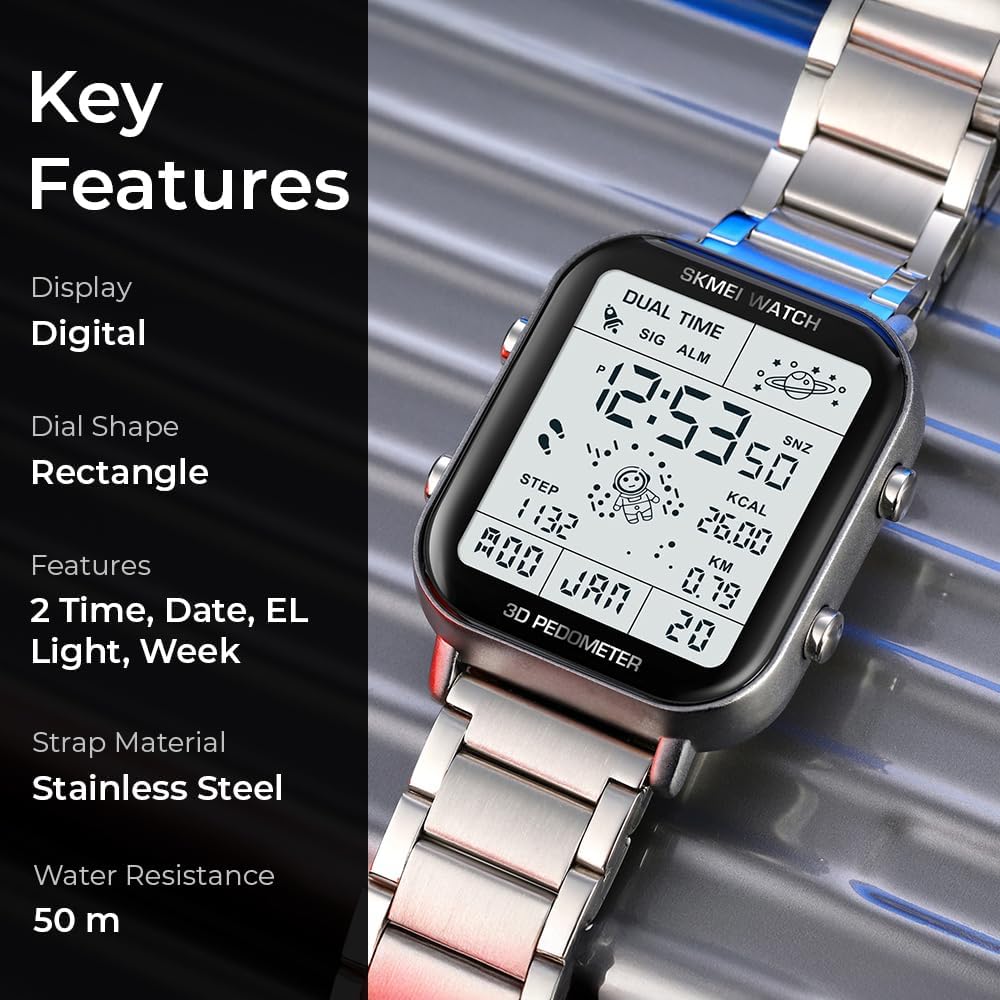

Figure 2: Visual representation of key features including digital display, rectangle dial, 2 time, date, EL light, week, stainless steel strap, and 50m water resistance.

2. Kurulum

2.1 Kutudan Çıkarma ve İlk İnceleme

Upon receiving your SKMEI Digital Watch, carefully open the packaging. Inspect the watch for any visible damage or defects. Ensure all components are present.

Figure 3: The SKMEI watch comes in a branded box, ensuring safe delivery and presentation.

2.2 Pil Bilgileri

The SKMEI Model 1888 watch uses a CR2025 button cell battery. The watch comes with a pre-installed battery. If the display is dim or not functioning, the battery may need replacement. Refer to the Maintenance section for battery replacement instructions.

Şekil 4: Arka view of the watch case, indicating "WATER RESISTANT 3ATM", model "1888", and battery type "CR2025".

3. Kullanım Talimatları

Your SKMEI Digital Watch features multiple buttons for various functions. Familiarize yourself with the button layout and their respective operations.

3.1 Düğme Fonksiyonları

• MOD Düğmesi (Sol Alt): Cycles through different modes (Time, Chronograph, Alarm, Countdown, Dual Time, Pedometer).
• IŞIK Düğmesi (Sol Üst): Activates the LED backlight for the display.
• BAŞLAT/DURDUR Düğmesi (Sağ Üst): Used to start/stop functions in Chronograph, Countdown, and adjust settings.
• RESET/ADJUST Button (Bottom Right): Used to reset values or confirm settings in various modes.

Figure 5: The watch display illuminated by the LED backlight, showing clear visibility in low light.

3.2 Saat ve Tarihin Ayarlanması

1. Zaman Modunda, tuşuna basın ve basılı tutun MOD Saniyeler yanıp sönmeye başlayana kadar düğmeye basın.
2. Basın BAŞLAT/DURDUR button to adjust the flashing value (seconds, hours, minutes, year, month, day).
3. Basın SIFIRLA/AYARLA düğmesine basarak sonraki ayara geçin.
4. Tüm ayarlar yapıldıktan sonra, MOD Ayar modundan çıkmak için düğmeye basın.

3.3 Kronografın (Kronometre) Kullanımı

1. Basın MOD button repeatedly until you reach Chronograph Mode (indicated by "CHRONO" or similar icon).
2. Basın BAŞLAT/DURDUR Kronometreyi başlatmak için düğmeye basın.
3. Basın BAŞLAT/DURDUR Kronometreyi duraklatmak için tekrar düğmeye basın.
4. Basın SIFIRLA/AYARLA Kronometreyi sıfırlamak için kullanılan düğme.

3.4 Alarmı Ayarlama

1. Basın MOD button repeatedly until you reach Alarm Mode (indicated by "ALARM" or bell icon).
2. Basılı tutun BAŞLAT/DURDUR Alarm saati yanıp sönene kadar düğmeye basın.
3. Kullanın SIFIRLA/AYARLA Saati ayarlamak için düğmesine basın.
4. Basın BAŞLAT/DURDUR Dakika ayarına geçmek için düğme.
5. Kullanın SIFIRLA/AYARLA Dakikayı ayarlamak için
6. Basın BAŞLAT/DURDUR Alarm ayarından çıkmak için düğmeye basın.
7. Alarmı AÇMAK/KAPATMAK için, SIFIRLA/AYARLA Alarm Modunda düğmesine basın.

3.5 Adımsayarın Kullanımı

The watch features a 3D pedometer to track your steps, distance, and calories burned. Ensure the watch is worn securely on your wrist for accurate readings.

1. Basın MOD button until you reach Pedometer Mode (indicated by "STEP" or foot icon).
2. The display will show your current step count, distance (KM), and calories (KCAL).
3. The pedometer automatically resets at midnight.

Figure 6: The SKMEI watch worn on a wrist, demonstrating its fit and display visibility during use.

4. Bakım

4.1 Suya Dayanıklılık

The SKMEI Digital Watch Model 1888 is water resistant to 5 ATM (50 meters / 165 feet). This means it is suitable for:

• El yıkama
• Rainy days
• Terleme

IMPORTANT: Do NOT press any buttons while the watch is submerged in water. It is NOT suitable for diving, swimming, snorkeling, or any water-related work where the watch would be continuously submerged or subjected to high-pressure water.

4.2 Saatinizi Temizleme

Saatinizin görünümünü korumak için düzenli olarak yumuşak ve kuru bir bezle silin. İnatçı kirler için hafifçe silin.amp cloth can be used, followed by immediate drying. Avoid using chemical cleaners, solvents, or abrasive materials, as these can damage the watch's finish.

4.3 Pil Değişimi

The watch uses a CR2025 button cell battery. When the display becomes dim or the watch stops functioning, it's time to replace the battery. Battery replacement should ideally be performed by a qualified watch technician to ensure proper sealing and water resistance. If attempting yourself, use a precision screwdriver to open the back case, carefully replace the battery, and ensure the gasket is properly seated before closing the case.

5. Sorun Giderme

• Saat ekranı boş veya soluk:

  This usually indicates a low battery. Replace the CR2025 battery. If the issue persists after battery replacement, contact customer support.

• Zaman yanlış:

  Re-set the time following the instructions in Section 3.2. If the time continues to drift significantly, the watch module may require service.
• Düğmeler tepkisiz:

  Ensure the watch is not in a locked mode (if applicable, though this model typically doesn't have one). If buttons remain unresponsive, there might be an internal issue. Avoid forcing buttons.

• Saatin içine su kaçmış:

  If moisture appears inside the watch, immediately stop using it and seek professional service. This indicates a breach in the water resistance seal, likely due to improper handling (e.g., pressing buttons underwater) or damage.

• Adım sayacı adımları doğru saymıyor:

  Ensure the watch is worn snugly on your wrist. Loose wearing can affect sensor accuracy. Movement patterns can also influence readings; consistent arm swings are best for step detection.

6. Özellikler

Figure 7: Diagram illustrating the dimensions of the SKMEI watch, including case height, strap/lug width, case width, strap material, and case thickness.

7. Garanti ve Destek

7.1 Garanti Bilgileri

SKMEI products are manufactured with high standards of quality. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or contact the retailer where the watch was purchased. Typically, warranties cover manufacturing defects but do not cover damage caused by misuse, accidents, or unauthorized repairs.

7.2 Müşteri Desteği

If you encounter any issues not covered in this manual or require further assistance, please contact SKMEI customer support or the authorized dealer from whom you purchased the watch. Provide your model number (1888) and a detailed description of the issue for efficient service.
