Electactic 39-inch Electric Fireplace Insert User Manual

giriiş

Thank you for choosing the Electactic 39-inch Electric Fireplace Insert. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new electric fireplace. Please read all instructions carefully before use and retain this manual for future reference.

Image: Electactic 39-inch Electric Fireplace Insert, showcasing its design and flame effect.

Güvenlik Bilgileri

Always adhere to the following safety guidelines to prevent fire, electric shock, or injury:

• ÖRTMEYİN the fireplace vents. Obstruction can lead to overheating and fire hazards.
• Ensure the power supply is 120V and matches the product requirements.
• Keep flammable materials at least 3 feet (0.9 meters) away from the front of the fireplace.
• Şömineyi hasarlı kablo veya fişle çalıştırmayın.
• Bu cihaz yalnızca iç mekanlarda kullanıma uygundur.
• Şömineyi temizlemeden veya bakım yapmadan önce daima fişini çekin.
• The fireplace features overheat protection, which automatically shuts off the unit if it reaches an unsafe temperature.

Paket İçeriği

Paketin içinde tüm öğelerin mevcut olduğundan emin olun:

• Electric Fireplace (1 unit)
• Kullanım Kılavuzu (1 birim)
• Uzaktan Kumanda (1 adet)
• Decorative Stuff (Varies)
• Simulated Charcoal (3 units)

Image: Package contents, showing the electric fireplace, remote, manual, decorative crystals, and simulated logs.

Kurulum ve Yükleme

The Electactic 39-inch Electric Fireplace Insert is designed for both freestanding and recessed installation. Ensure proper ventilation and clearance around the unit.

Boyutlar

The unit measures 38.98 inches (W) x 27.05 inches (H) x 6.61 inches (D). For recessed installation, ensure the opening is appropriately sized to accommodate these dimensions.

Resim: Montaj planlaması için ürün boyutları.

Atama

Choose a location that is dry, level, and away from direct sunlight or heat sources. Ensure the 70-inch power cable can reach a grounded 120V outlet without strain.

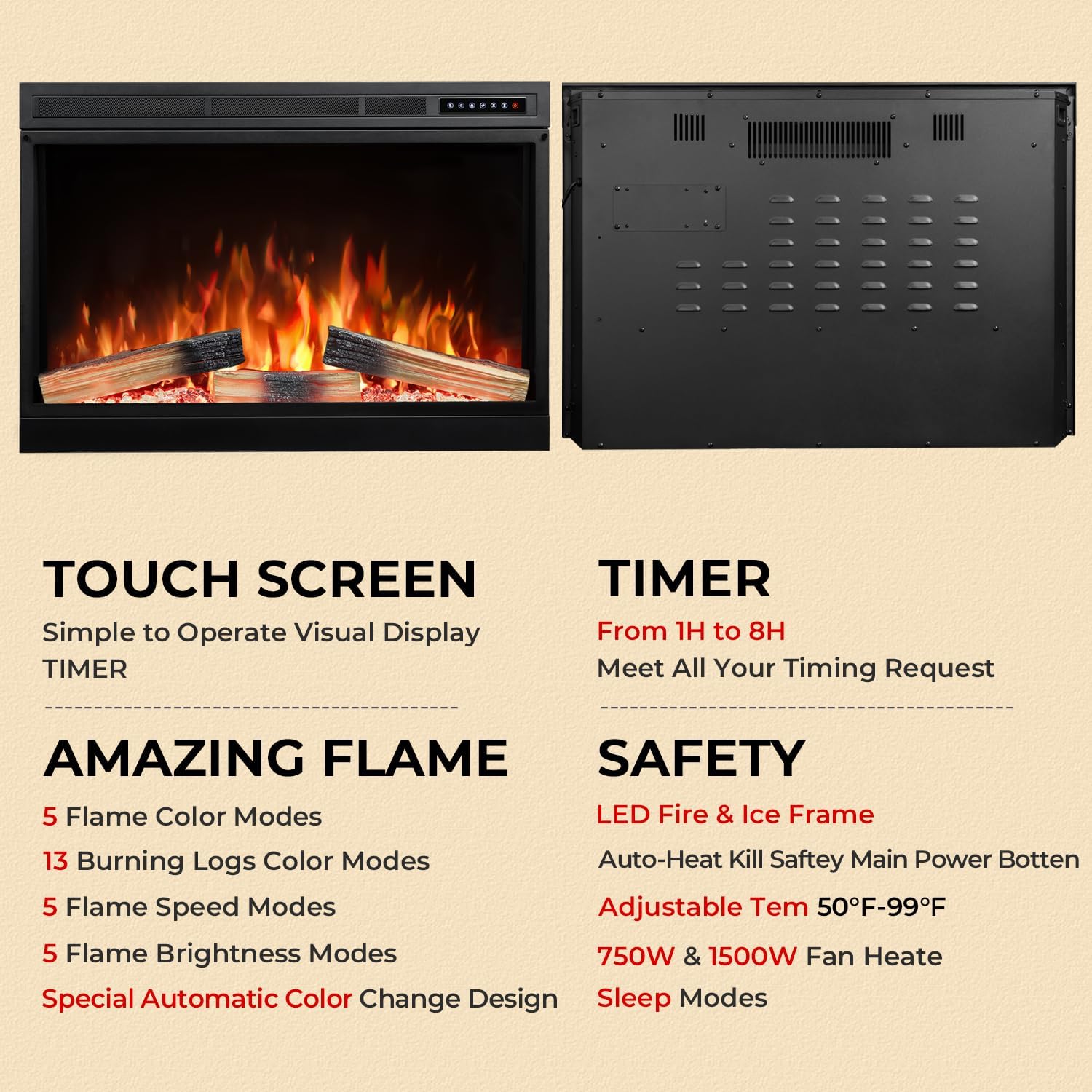

Resim: Ön view of the fireplace insert.

Resim: Yan view of the fireplace insert.

Resim: Arka view of the fireplace insert.

Kullanım Talimatları

Your electric fireplace can be operated using the integrated touchscreen panel or the included remote control.

Dokunmatik Ekran Kontrolleri

The touchscreen panel is located on the front of the unit. It allows direct control over power, heat, flame speed, flame color, flame bed color, and timer settings.

Image: Touchscreen control panel details.

Uzaktan kumanda

The remote control provides convenient access to all functions from a distance of up to 8 meters.

• Güç Düğmesi: Üniteyi açar veya kapatır.
• Isıtma Düğmesi: Toggles between 750W and 1500W heat settings.
• Alev Rengi: Cycles through 5 flame color modes.
• Log Color: Cycles through 13 burning log color modes.
• Parlaklık: Adjusts flame brightness (5 levels).
• Hız: Adjusts flame speed (5 levels).
• Zamanlayıcı: Otomatik kapanma zamanlayıcısını 1 ila 8 saat arasında ayarlar.

Image: Remote control for the fireplace.

Flame and Log Color Options

Customize your ambiance with a variety of flame and log color combinations. The unit also features an auto color/brightness change option.

Image: Available flame and log color modes.

Özellikler

• Isıtma Gücü: Two heat settings (750W and 1500W) capable of heating areas up to 400 sq ft.
• Enerji Verimliliği: Utilizes LED technology for energy-saving operation.
• Alev Efektleri: 5 flame color modes, 13 burning log color modes, 5 flame speed modes, and 5 flame brightness modes.
• Zamanlayıcı Fonksiyonu: Adjustable timer from 1 to 8 hours for automatic shut-off.
• Uyku modu: Features a sleep mode with heat for comfortable overnight use.
• Tasarım: 7mm tempered glass with a black finish, offering a realistic flame and log effect.
• Hava Nemi: Designed to maintain air humidity, preventing dry air.

Bakım

To ensure the longevity and optimal performance of your electric fireplace, follow these maintenance steps:

• Temizlik: Temizlemeden önce cihazın fişinin çekili ve soğumuş olduğundan emin olun. Yumuşak bir bez kullanın.amp cloth to wipe surfaces. Avoid abrasive cleaners.
• Havalandırma: Periodically check that the air vents are clear of dust and debris to maintain proper airflow.
• Depolamak: If storing the unit for an extended period, ensure it is clean, dry, and stored in a safe place.

Sorun giderme

Herhangi bir sorunla karşılaşırsanız, aşağıdaki yaygın sorun giderme ipuçlarına bakın:

• Güç Yok: Check if the power cord is securely plugged into a grounded outlet. Verify the wall switch is on and the circuit breaker has not tripped.
• Isı yok: Ensure the heat function is activated via the touchscreen or remote. Check if the thermostat setting is higher than the room temperature.
• Alevler Çalışmıyor: Confirm the flame effect is turned on. If the unit has been recently moved, ensure no internal components have been dislodged.
• Uzaktan Çalışmıyor: Replace the remote control batteries. Ensure there are no obstructions between the remote and the fireplace sensor.

Kalıcı sorunlar için müşteri desteğiyle iletişime geçin.

Özellikler

Garanti ve Destek

This Electactic Electric Fireplace Insert comes with a Limited Warranty. For specific warranty details, please refer to the warranty card included in your package or contact Electactic customer support.

For any questions, technical assistance, or support, please refer to the contact information provided in your instruction manual or visit the official Electactic webalan.
