Ürün Bittiview
The LcFun Torch Lighter is a refillable butane lighter designed for various uses, featuring a windproof adjustable jet flame and a visible fuel window. This manual provides essential information for safe and effective use.
Figure 1: LcFun Torch Lighter components. (1) Jet Burner, (2) Ignition Button, (3) Gas Window, (4) Flame Adjuster, (5) Gas Refill Valve.
Important Note: All lighters are shipped without butane. Please fill with fuel before use.
Kurmak
1. Butane Refilling Instructions
To ensure proper function and safety, follow these steps for refilling your LcFun Torch Lighter:
- Drain Residual Gas: Use a small screwdriver or similar tool to press the refill valve at the bottom of the lighter to release any remaining gas. This prevents overfilling and ensures a clean refill.
- Adjust Flame to Lowest: Turn the flame adjuster at the bottom of the lighter to the lowest setting (towards the '-' sign). This minimizes gas flow during refilling.
- Yeniden Doldurma: Turn the lighter upside down. Firmly insert the nozzle of a butane gas canister (ensure it has a long nozzle) into the lighter's refill valve. Press down vertically for several seconds. Repeat 2-3 times until the visible fuel window indicates the lighter is approximately 85% full. Avoid overfilling.
- Beklemek: After refilling, wait at least 4 minutes before attempting to ignite the lighter. This allows the butane to stabilize and reach room temperature.
Figure 2: Step-by-step guide for refilling the torch lighter with butane fuel.
The visible fuel window (Figure 1, part 3) allows you to monitor the butane level, making it easy to know when a refill is needed.
Figure 3: Visible fuel window for easy monitoring of butane levels.
Kullanım Talimatları
1. Ateşleme
To ignite the lighter, slide the safety switch (if present) to the 'unlocked' position, then press the ignition button (Figure 1, part 2) firmly. A powerful jet flame will appear from the jet burner (Figure 1, part 1).
2. Alev Ayarı
The flame height can be adjusted using the flame adjuster located at the bottom of the lighter (Figure 1, part 4). Lift the recessed semi-circular handle and turn it towards '+' for a larger flame or towards '-' for a smaller flame. No tools are required for this adjustment.
Figure 4: Adjusting the flame height for various applications.
3. Windproof Feature
The LcFun Torch Lighter is designed with a windproof jet flame, making it suitable for outdoor use in various conditions.
Figure 5: The windproof design ensures reliable ignition outdoors.
4. Uygulamalar
This versatile lighter is ideal for a range of tasks, including lighting candles, grills, gas stoves, fireplaces, and for camping or fireworks.
Figure 6: Multipurpose use of the LcFun Torch Lighter.
5. Resmi Ürün Videoları
Video 1: Demonstrates the LcFun Torch Lighter's use for grills, gas stoves, BBQs, and camping. This video highlights the powerful jet flame and ease of use for various applications.
Video 2: Showcases the LcFun Torch Lighter's effectiveness for lighting candles, BBQs, and kitchen use. This video emphasizes its versatility and strong flame.
Bakım
1. Temizlik
Regularly inspect the jet burner for any debris or blockages. Use a soft cloth to wipe the exterior of the lighter. Do not use abrasive cleaners or immerse the lighter in water.
2. Depolama
Store the lighter in a cool, dry place, away from direct sunlight and heat sources. Ensure the flame adjuster is set to the lowest position and the safety switch (if applicable) is engaged before storage.
3. Ceramic Port
The lighter features a ceramic port, a heat-resistant material designed for durability and long service life. Keep this area clean and free from obstruction.
Figure 7: The durable ceramic port ensures consistent performance.
Sorun giderme
- Lighter not igniting:
- Check if the lighter has sufficient butane. Refill if necessary (refer to "Butane Refilling Instructions").
- Ensure the flame adjuster is not set too low. Adjust it slightly towards '+' and try again.
- Verify that the spark clip is in the correct position. If the spark is weak or absent, it may be due to incorrect positioning of the spark clip.
- Weak or inconsistent flame:
- This often indicates low butane levels. Refill the lighter.
- Ensure the flame adjuster is set to an appropriate level.
- Allow the lighter to rest for a few minutes after refilling to allow the fuel to reach room temperature.
- Butane splatter during refilling:
- This can occur if the lighter is overfilled. The tank is designed to accept only about 85% of its capacity for safety.
- Ensure the refill valve is pressed firmly and vertically when refilling.
Özellikler
| Özellik | Detay |
|---|---|
| Marka | LcEğlenceli |
| Model Numarası | B0DF7B45SP |
| Renk | Rose Gold & Black (as per current variant) |
| Malzeme | Bakır |
| Yakıt Türü | Sıvılaştırılmış Petrol Gazı (Bütan) |
| Ürün Ölçüleri (Uzunluk x Genişlik x Kalınlık) | 6.53" x 0.63" x 0.63" |
| Öğe Sayısı | 2 |
| Özel Özellikler | Windproof, Adjustable Jet Flame, Visible Fuel Window |

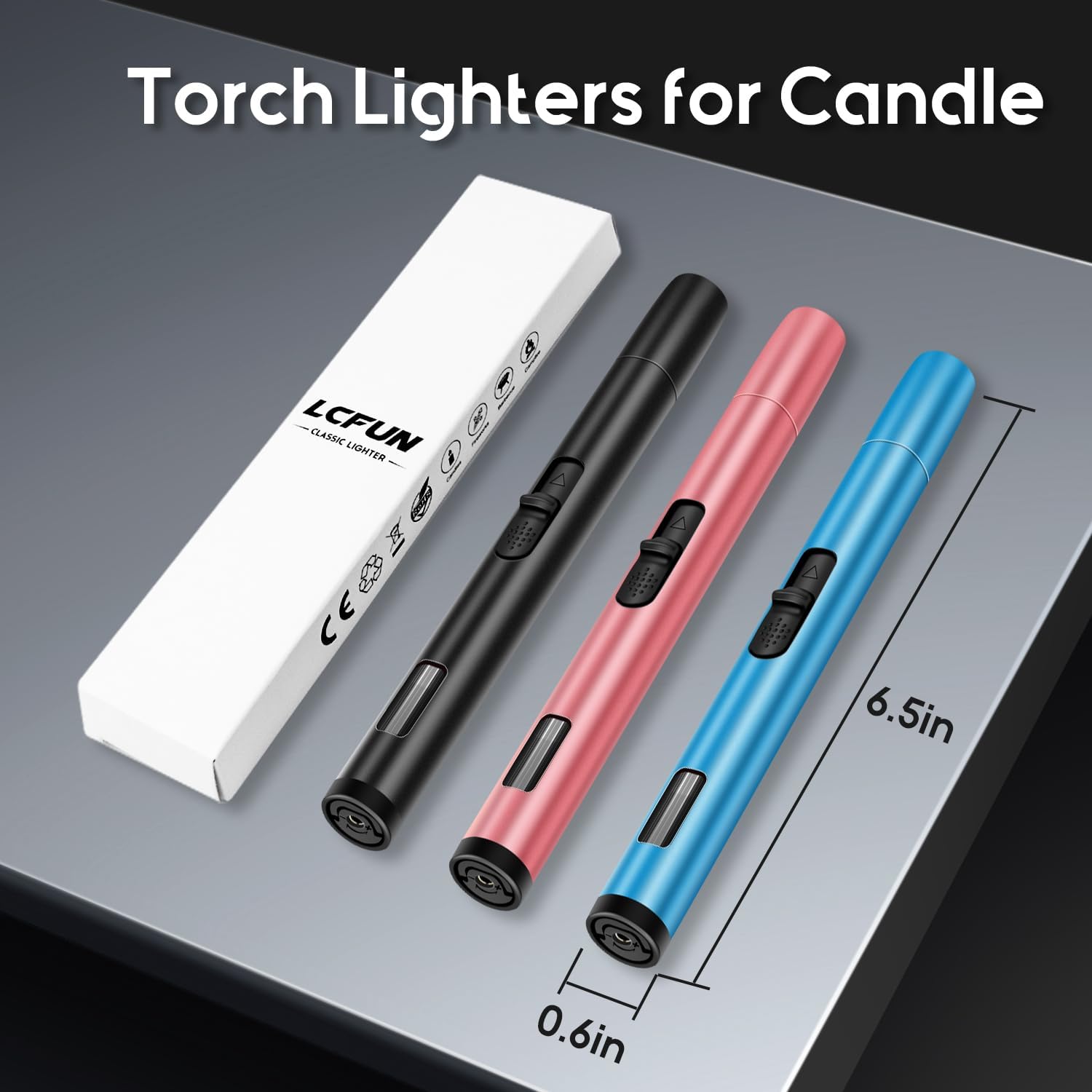

Figure 8: Lighter dimensions for reference.
Garanti ve Destek
LcFun provides a 120 günlük garanti for this product, ensuring a worry-free shopping experience.
If you encounter any issues or require assistance with your LcFun Torch Lighter, please do not hesitate to contact our customer support. We are committed to providing prompt and helpful service.
For support, please refer to the contact information provided with your product packaging or visit the official LcFun store on Amazon: LcFun Store.
Güvenlik Bilgileri
- Çocukların erişemeyeceği yerde saklayınız.
- Do not puncture or incinerate the lighter.
- 120°F (49°C) üzerindeki sıcaklıklara maruz bırakmayın.
- Doğrudan güneş ışığına uzun süre maruz kalmaktan kaçının.
- Sadece iyi havalandırılan yerlerde kullanın.
- Ensure the flame is extinguished before storing.
- Use only high-quality butane fuel for refilling.
