OUBO DY-105 Binocular Loupes with Head Light User Manual

1. Giriş

This manual provides comprehensive instructions for the safe and effective use of the OUBO DY-105 Binocular Loupes with Head Light. This device is designed to provide magnification and illumination for various precision tasks, enhancing visibility and comfort during extended use. Please read this manual thoroughly before operating the device and retain it for future reference.

2. Ürün İçeriği

Upon unboxing, please verify that all components listed below are present and in good condition.

• 1 x Binocular Loupe Assembly
• 1 x Head Light (5W)
• 1 x Kafa bandı
• 1 x Mercek Kapağı
• 1 x Grip Cap
• 1 x Tornavida
• 1 x Kullanım Kılavuzu (bu belge)
• 1 x Power Adapter (Input: 100-240V/50-60Hz)

Image: The OUBO DY-105 Binocular Loupes and its packaging box, illustrating the product's appearance upon delivery.

3. Özellikler

Key technical specifications of the OUBO DY-105 Binocular Loupes with Head Light:

4. Güvenlik Bilgileri

Yaralanmayı veya cihaza zarar gelmesini önlemek için lütfen aşağıdaki güvenlik önlemlerine uyun:

• Do not look directly into the LED light source, as it can cause eye damage.
• Cihazınızı sudan ve aşırı nemden uzak tutunuz.
• Cihazı sökmeyin veya değiştirmeyin. Tüm bakım işlemlerini yetkili personele yaptırın.
• Şarj için yalnızca verilen güç adaptörünü kullanın.
• Cihazı kullanılmadığında serin ve kuru bir yerde saklayın.
• Cihazı düşürmekten veya güçlü darbelere maruz bırakmaktan kaçının.
• Ensure the headband is securely fitted to prevent the device from falling during use.

5. Kurulum ve Montaj

Follow these steps to assemble and prepare your binocular loupes for use:

1. Attach the Headband: Ensure the headband is correctly oriented with the adjustment knob at the back.


   Image: The headband component with its removable comfort pad, ready for assembly.
2. Mount the Loupe Assembly: Slide the binocular loupe assembly onto the front of the headband. Secure it using the provided screws or locking mechanism.


   Resim: Yan view of the assembled binocular loupes and headband, showing the connection points.

3. Adjust Head Girth: Place the assembled unit on your head. Use the size adjustor knob at the back of the headband to achieve a comfortable and secure fit.


   Image: Diagram illustrating the LED light source, magnifying lens, interpupillary distance adjustor, and the head girth adjustor on the headband.

4. Adjust Interpupillary Distance (IPD): While looking through the loupes, adjust the interpupillary distance adjustor until the two circular fields of view merge into a single, clear image.
5. Adjust Working Distance: The loupes have a fixed working distance (280-380mm). Position yourself at the appropriate distance from your subject to achieve optimal focus.
6. Pili Şarj Edin: Before first use, fully charge the integrated battery using the provided power adapter. Connect the adapter to the charging port on the device and plug it into a standard electrical outlet. The charging indicator will show status. Charging time is approximately 4 hours.

Image: A detailed diagram highlighting key features such as the headband-mounted power pack, adjustment points for perfect fit, shadow-free image design, adjustable spot size, and the i-View Loupe Mount with flip-up function.

6. Kullanım Talimatları

Once assembled and charged, your OUBO DY-105 is ready for operation.

1. Güç Açma/Kapatma: Locate the power button on the head light unit. Press and hold for a few seconds to turn the light on or off.
2. Parlaklığı Ayarla: Rotate the brightness control knob on the head light unit to increase or decrease the light intensity. The light intensity can reach up to 65000 lux.

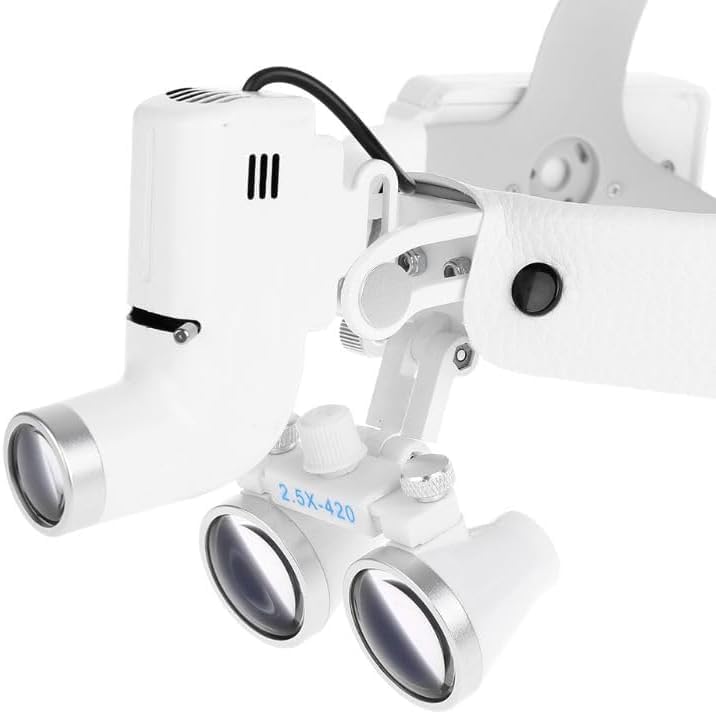

   Resim: Yakın çekim view of the loupes and the integrated head light unit, showing the controls.
3. Adjust Spot Size: The light features an adjustable spot size (1-9mm at 420mm working distance). Rotate the spot size adjustment ring on the light head to modify the illuminated area.

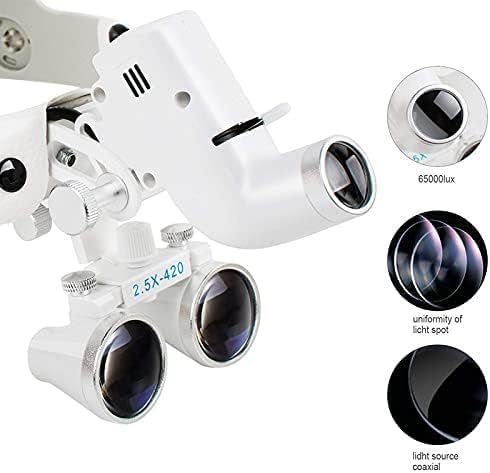

   Resim: Ayrıntılı view of the light source and lens components, illustrating the uniformity of the light spot and the coaxial light source design.

4. Using the Loupes: Position your head at the optimal working distance from your subject. The 2.5X magnification will provide a clear, enlarged view. The Galilean optical system ensures a wide field of view minimum bozulma ile.
5. Flip-up Function: The i-View Loupe Mount allows the loupes to be flipped up and out of the way when magnification is not required, without needing to remove the entire unit.

Image: The OUBO DY-105 Binocular Loupes worn on a mannequin head, demonstrating proper fit and positioning.

7. Bakım

Doğru bakım, cihazınızın uzun ömürlü olmasını ve optimum performans göstermesini sağlar.

• Lens Temizliği: Use a soft, lint-free cloth specifically designed for optical lenses. For stubborn smudges, a small amount of lens cleaning solution can be applied to the cloth (not directly to the lens). Avoid abrasive materials or harsh chemicals.
• Dış Cephe Temizliği: Dış yüzeyleri yumuşak, damp Cihazı suya batırmayın.
• Pil Bakım: To maximize battery life, avoid fully discharging the battery frequently. Recharge the battery when the light dims or indicates low power. If storing for extended periods, charge the battery to approximately 50% every few months.
• Depolamak: Store the loupes in their original box or a protective case when not in use to prevent dust accumulation and physical damage. Keep away from extreme temperatures and direct sunlight.

8. Sorun Giderme

If you encounter issues with your OUBO DY-105, refer to the following common problems and solutions:

Bu çözümleri denedikten sonra sorun devam ederse lütfen müşteri desteğiyle iletişime geçin.

9. Garanti ve Destek

OUBO products are manufactured to high quality standards. While specific warranty details are not provided in this manual, please retain your purchase receipt as proof of purchase. For any product inquiries, technical support, or warranty claims, please contact your retailer or the manufacturer directly through their official website veya müşteri hizmetleri kanalları.
