MAXDONE B-FN333 4-in-1 Laminator Instruction Manual

1. Giriş

Satın aldığınız için teşekkür ederizasing the MAXDONE B-FN333 4-in-1 Laminator. This device is designed for both hot and cold laminating of documents up to A4 size, and includes a built-in paper cutter and corner rounder for enhanced versatility. Please read this manual thoroughly before operation to ensure safe and efficient use of the product.

2. Güvenlik Talimatları

• Laminasyon cihazını daima topraklı bir elektrik prizine bağlayın.
• Laminasyon cihazını ıslak ellerle veya su yakınında çalıştırmayın.
• Laminasyon makinesi çalışırken çocukları ve evcil hayvanları makineden uzak tutun.
• Do not insert objects other than laminating pouches into the feed slot.
• Kullanılmadığı zaman veya temizlemeden önce laminatörün fişini çekin.
• Allow the laminator to cool down completely before storing.
• Do not attempt to open or repair the laminator yourself. Contact qualified service personnel.
• Ensure proper ventilation around the laminator during use.

3. Paket İçeriği

Paketin içinde tüm öğelerin mevcut olduğundan emin olun:

• MAXDONE B-FN333 Laminator
• Güç kablosu
• Kağıt kesici
• Köşe Yuvarlayıcı
• Laminating Films (various sizes: A4, A5, A6)
• Kullanıcı Kılavuzu

4. Ürün Bittiview

Familiarize yourself with the components of your laminator.

Şekil 4.1: The MAXDONE B-FN333 laminator shown with its included accessories: a paper cutter, a corner rounder, and various sizes of laminating films. This image provides a comprehensive view of the product and its accompanying tools.

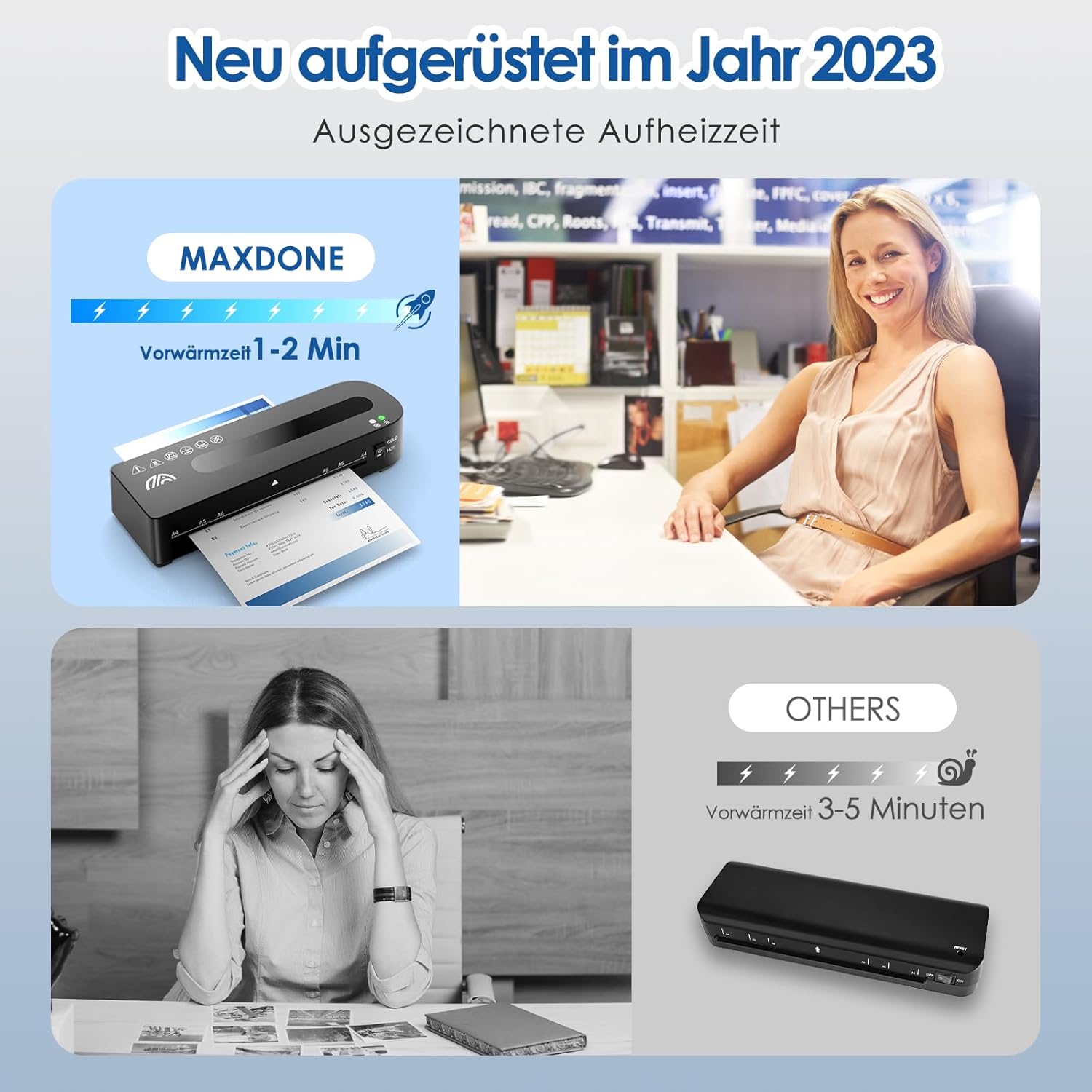

Şekil 4.2: The MAXDONE B-FN333 laminator highlighting its rapid warm-up time of 1-2 minutes. The image shows the device ready for use, emphasizing efficiency.

5. Kurulum

1. Place the laminator on a stable, flat surface with adequate space for document feeding and exit.
2. Güç anahtarının "KAPALI" konumunda olduğundan emin olun.
3. Plug the power cable into the laminator's power port and then into a suitable electrical outlet.
4. Güç anahtarını "AÇIK" konumuna getirin.

6. Kullanım Talimatları

6.1. Hot Laminating

1. Turn on the laminator and select the "HOT" mode. The indicator light will illuminate.
2. Allow the laminator to warm up for approximately 1-2 minutes until the ready indicator light turns green.
3. Belgenizi laminasyon poşetinin içine yerleştirin, poşetin ortalandığından ve belgenin etrafında eşit bir kenarlık olduğundan emin olun.
4. Insert the sealed edge of the laminating pouch straight into the feed slot until the rollers catch it.
5. The laminator will automatically feed the pouch through. Do not pull or push the pouch.
6. Once the pouch exits the rear, allow it to cool on a flat surface.

Şekil 6.1: A visual guide demonstrating the four key steps for operating the laminator: A) Switching to HOT mode, B) Waiting for 1-2 minutes for warm-up, C) Selecting the correct laminating pouch size, and D) Inserting the pouch into the device.

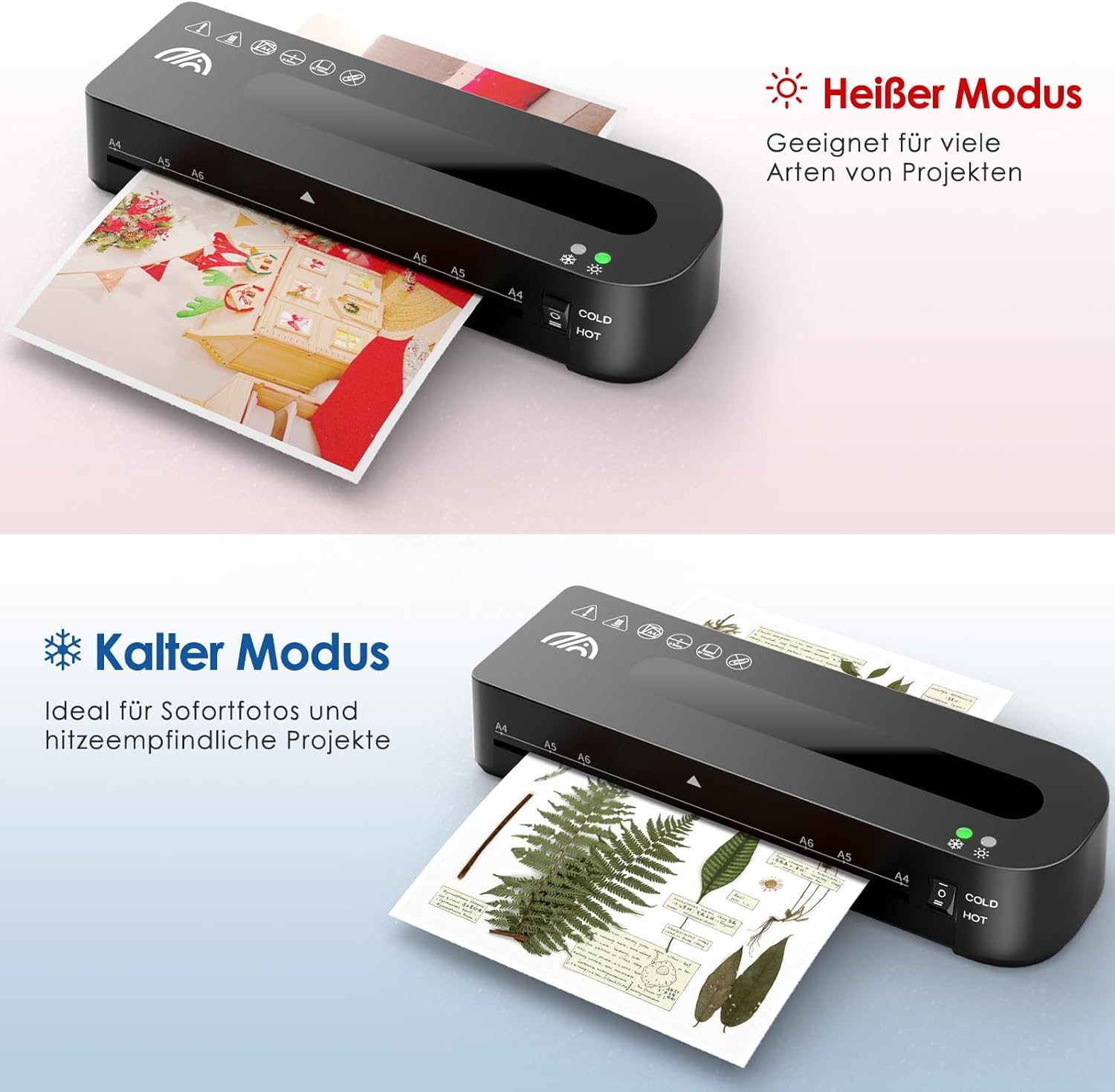

Şekil 6.2: Illustration of the Hot and Cold laminating modes. The Hot mode is suitable for various projects, while the Cold mode is ideal for instant photos and heat-sensitive materials.

6.2. Cold Laminating

1. Turn on the laminator and select the "COLD" mode. No warm-up time is required.
2. Use self-adhesive cold laminating pouches.
3. Place your document inside the cold laminating pouch.
4. Insert the sealed edge of the pouch straight into the feed slot.
5. Laminasyon makinesi poşeti içinden geçirecek ve basınç uygulayarak kapatacaktır.

6.3. ABS Release Function

In case of a paper jam or misfeed, use the ABS release lever to safely remove the pouch.

1. Immediately press and hold the "ABS" release lever located on the side of the laminator.
2. Gently pull the jammed pouch out of the feed slot.
3. Release the "ABS" lever once the pouch is clear.

Şekil 6.3: Ayrıntılı view of the ABS release lever. To use, push the lever to the left and hold it until the jammed paper or pouch can be safely pulled out from the laminator.

7. Using the Paper Cutter

The included paper cutter allows for precise trimming of documents before or after laminating.

1. Place the document on the cutter's base, aligning it with the desired measurement marks.
2. Hold the document firmly in place.
3. Slide the cutting blade along the guide rail to trim the document.
4. Exercise caution when using the paper cutter as the blade is sharp.

Şekil 7.1: The included paper cutter and corner rounder. The paper cutter is shown in use, trimming a photo, while the corner rounder demonstrates how to achieve smooth, rounded edges on laminated documents.

8. Using the Corner Rounder

The corner rounder provides a professional finish by smoothing sharp corners of laminated documents.

1. Insert one corner of the laminated document into the corner rounder slot.
2. Kesmek ve köşeyi yuvarlatmak için sıkıca bastırın.
3. İstediğiniz tüm köşeler için işlemi tekrarlayın.

9. Bakım

• Temizlik: Ensure the laminator is unplugged and cool before cleaning. Wipe the exterior with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Silindir Temizliği: Periodically run a cleaning sheet (not included) through the laminator to remove adhesive residue from the rollers.
• Depolamak: Store the laminator in a dry, dust-free environment when not in use.

10. Sorun Giderme

11. Özellikler

• Modeli: B-FN333
• Laminating Width Maximum: 21 cm (A4 size)
• Laminating Modes: Sıcak ve Soğuk
• Isınma Süresi: 1-2 dakika
• Silindir Sayısı: 2
• Desteklenen Sac Levha Boyutları: A4, A5, A6
• Boyutlar: 34x13.1x9.1 cm
• Ağırlık: 1.17 kilo
• Renk: Siyah
• Üretici: MAXDONE

12. Garanti ve Destek

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official MAXDONE webSite. Satın alma belgenizi garanti talepleriniz için saklayın.
