VAUNO EN001 Alarm Clock with Wireless Charging User Manual

Ürün Özellikleri

The VAUNO EN001 Alarm Clock is a versatile device designed to enhance your bedside or desk experience. It integrates multiple functionalities into a single unit, aiming for convenience and organization.

• 5-in-1 Smart Design: Combines 10W wireless fast charging, an alarm clock, one-key lifting for the charging panel, indoor temperature display, and ambient lighting.
• 10W Wireless Charging & USB Port: Supports 10W wireless charging for compatible smartphones and includes an additional USB-A charging port for other devices.
• Innovative One-Key Lifting Design: The wireless charging panel can be raised with a single button, providing an optimized viewing angle for media consumption while charging.
• 7 Colors Ambient Lighting: Features a color-changing ambient light with 7 regular colors and a dynamic changing color cycle, controllable manually or automatically.
• Kullanımı Kolay: Equipped with 3 function buttons and 1 touch button for straightforward operation. The display includes a charging indicator light.

Başlarken ve Çalıştırma

Paket İçeriği

Before setup, ensure all items are present:

• VAUNO EN001 Alarm Clock
• USB Güç Kablosu
• Kullanıcı Kılavuzu

Image: Package contents of the VAUNO EN001 Alarm Clock.

Güç Bağlantısı

To power the alarm clock, connect the provided USB cable to the Mini USB port on the back of the device and plug the other end into a 5V 2A (minimum) or 9V 3A (maximum) power adapter (not always included). The display will illuminate upon successful connection.

Zamanı ve Alarmı Ayarlama

The clock features 3 function buttons and 1 touch button for adjustments. Refer to the detailed instructions in the included paper manual for specific steps on setting the time and alarm. Typically, a 'SET' or 'MODE' button is used to enter setting mode, and '+'/'–' buttons adjust values.

Ekran Parlaklığı Ayarı

The display offers 5 levels of brightness. Press the designated brightness button (often marked with a sun icon or similar) to cycle through the brightness levels (100%, 70%, 50%, 20%, 0%). The clock also supports an automatic dimming mode, which adjusts brightness based on ambient light conditions. To activate automatic dimming, press the brightness button until the 'AUTO DIMMING' indicator appears.

Image: Clock display showing time and temperature, highlighting brightness adjustment.

Kablosuz Şarj Fonksiyonu

Place your Qi-compatible smartphone on the wireless charging pad. The charging indicator light on the display will show the charging status. The charging panel features a one-key lifting function. Press the designated button (often integrated with the snooze bar) to raise the panel to a 60-degree angle, allowing for comfortable viewing of videos or video calls while your device charges.

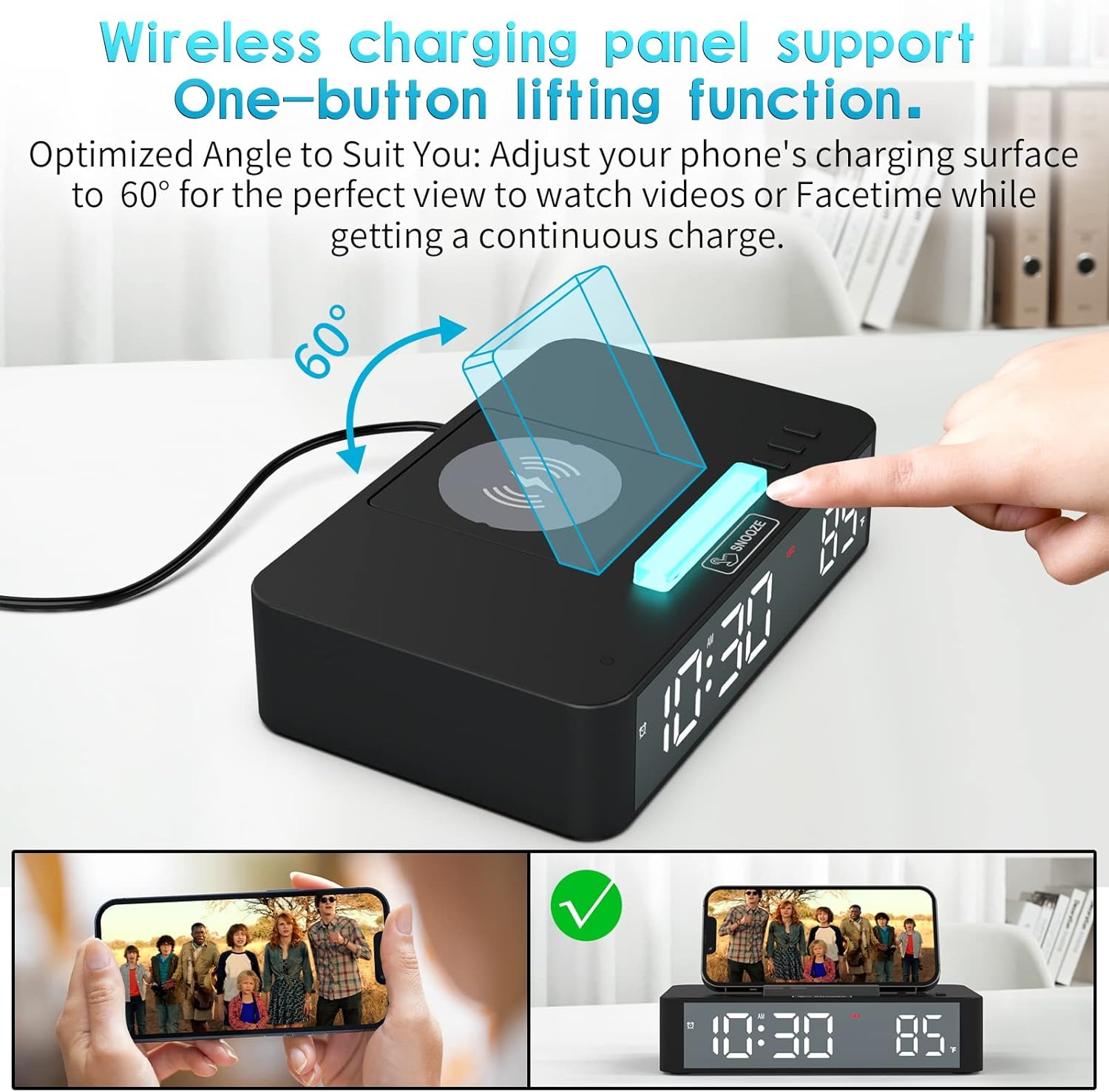

Image: Wireless charging panel with one-button lifting function, showing a phone charging at an optimized viewaçı.

Image: Watching videos while receiving a continuous charge on the VAUNO EN001 Alarm Clock.

USB Şarj Portu

An additional USB-A port is located on the side or back of the alarm clock. Use this port to charge other devices that are not Qi-compatible or require a wired connection.

Image: The alarm clock with an extra USB output charger in use.

Ortam Aydınlatması

The alarm clock features a 7-color ambient light. You can cycle through the colors manually or set it to an automatic color-changing mode. When an alarm sounds, the light automatically turns on and returns to its previous setting after the alarm is dismissed.

Image: Dynamic Night Light with 7 regular colors and dynamic changing color mode.

Sıcaklık Göstergesi

The clock displays the indoor temperature in either Celsius or Fahrenheit. The unit for temperature can typically be switched by pressing a dedicated button or a combination of buttons.

Image: Clock with indoor temperature display.

Bakım

To ensure the longevity and optimal performance of your VAUNO EN001 Alarm Clock, follow these maintenance guidelines:

• Temizlik: Use a soft, dry cloth to wipe the surface of the clock. Avoid abrasive cleaners, solvents, or chemical sprays that may damage the finish or electronic components.
• Atama: Saati, doğrudan güneş ışığından, aşırı sıcaktan, nemden veya güçlü manyetik alanlardan uzak, sabit ve düz bir yüzeye yerleştirin.
• Güç: Always use the recommended power adapter (5V 2A minimum, 9V 3A maximum) to prevent damage. Unplug the device during electrical storms or when not in use for extended periods.
• İşleme: Cihazı düşürmekten veya güçlü darbelere maruz bırakmaktan kaçının.

Sorun giderme

If you encounter issues with your VAUNO EN001 Alarm Clock, please refer to the following common problems and solutions:

• Saat açılmıyor: Ensure the power cable is securely connected to both the clock and a functional power outlet. Verify that the power adapter meets the specified voltagve amperage requirements (5V 2A minimum).
• Kablosuz şarj çalışmıyor:
  • Cihazınızın Qi uyumlu olduğundan emin olun.
  • Remove any thick phone cases or metallic objects between the phone and the charging pad.
  • Ensure the phone is centered correctly on the charging pad.
  • Check if the power adapter provides sufficient power (at least 5V 2A).
• Zamanlayıcı/alarm ayarlamada zorluk: The clock uses 3 function buttons and 1 touch button. If the display numbers are not flashing when attempting to set, you may not be in the correct setting mode. Consult the detailed instructions in the included paper manual for the precise button sequence.
• Ekran çok parlak/loş: Press the brightness adjustment button to cycle through the 5 manual brightness levels. If in automatic dimming mode, ensure the ambient light sensor (a small dot on the front) is not obstructed.
• Lifting mechanism is loud: The one-key lifting mechanism operates with a motor. A slight mechanical sound during operation is normal.

Sorun devam ederse lütfen müşteri desteğiyle iletişime geçin.

Özellikler

Garanti ve Destek

For warranty information and customer support, please refer to the contact details provided with your purchase or visit the official VAUNO webSite. Satın alma belgenizi herhangi bir garanti talebi için saklayın.
