INFANTI LOCK-IT Lifestyle Travel System User Manual

giriiş

Welcome to the INFANTI LOCK-IT Lifestyle Travel System. This innovative system is designed to provide convenience, safety, and style for parents and their babies, from newborn up to 15 kg. Featuring an ultra-compact fold and a luggage-style transport handle, it is an ideal solution for active parents and frequent travelers. The lightweight aluminum frame and leatherette finishes ensure durability and ease of use, adding a touch of sophistication to your journeys. This manual provides essential information for the safe and proper use, assembly, and maintenance of your travel system.

Güvenlik Bilgileri

Always prioritize your child's safety. Read and understand all instructions before using the product. Failure to follow these instructions could result in serious injury or death.

• Çocuğunuzu asla bebek arabasında veya oto koltuğunda gözetimsiz bırakmayın.
• Always use the 5-point harness system to secure your child. Ensure it is properly adjusted and snug.
• Bebek arabasını veya saklama sepetini aşırı yüklemeyin. Ağırlık sınırları için teknik özelliklere bakın.
• Çocuğunuzu bebek arabasına yerleştirmeden önce, arabanın tamamen kilitlendiğinden ve sabitlendiğinden emin olun.
• Bebek arabası hareketsizken frenleri devreye alın.
• Keep hands and fingers clear of moving parts when folding or unfolding the stroller.
• The infant car seat is designed for children from newborn up to 13 kg. The stroller is suitable for children up to 15 kg.
• Do not use accessories or replacement parts other than those approved by Infanti.
• Avoid placing hot liquids or heavy objects on the stroller handle.

Bileşenler Listesi

Montajdan önce tüm bileşenlerin mevcut olduğundan emin olun:

• Stroller Frame with Seat and Canopy
• Infant Car Seat / Auto Seat
• Ön Tekerlekler (2)
• Arka Tekerlekler (2)
• Accessory Basket (pre-attached)
• Safety Bar (removable)

Figure 1: Complete Travel System - Stroller and Infant Car Seat.

Kurulum ve Montaj

1. Bebek Arabasının Açılması

1. Katlanmış bebek arabasını düz bir yüzeye yerleştirin.
2. Çerçeve kenarında bulunan katlanır mandalı açın.
3. Lift the handle upwards until the stroller frame clicks into its fully open and locked position. Ensure all locking mechanisms are engaged.

2. Tekerleklerin Takılması

• Ön tekerlekler: Ön tekerlek aksamlarını, yerine oturana kadar bebek arabasının ön ayaklarındaki belirlenmiş yuvalara yerleştirin.
• Arka tekerlekler: Slide the rear wheel assemblies onto the rear axle until they lock.
• Pull on each wheel to ensure it is firmly attached.

3. Attaching the Safety Bar

Align the safety bar with the attachment points on both sides of the stroller seat and push until it clicks into place. It is removable for easier child placement.

Figure 2: Key features of the LOCK-IT Travel System, including the 5-point harness and ultra-compact fold.

Kullanım Talimatları

1. Using the 5-Point Harness

Çocuğunuzu her zaman 5 noktalı emniyet kemeriyle bağlayın.

1. Çocuğunuzu koltuğa yerleştirin.
2. Bring the shoulder straps over the child's shoulders and the waist straps around their hips.
3. Connect the two buckle prongs into the central buckle until they click.
4. Adjust the straps to ensure a snug fit, leaving no more than one finger's width between the strap and your child's collarbone.

Figure 3: Stroller features including the 5-point harness and adjustable leg rest.

2. Koltuğu Yatırmak

The stroller seat offers multiple recline positions for your child's comfort. Locate the recline mechanism (usually a strap or lever) behind the seat and adjust to the desired angle.

3. Folding the Stroller (Ultra-Compact One-Hand Fold)

The LOCK-IT Travel System features an ultra-compact one-hand fold for easy storage and transport.

1. Ensure the canopy is fully retracted and the seat is in an upright position.
2. Locate the folding mechanism on the handle or frame (refer to product specific instructions if needed).
3. Activate the mechanism and push the handle forward and down until the stroller folds compactly.
4. Bebek arabasını katlanmış pozisyonda tutmak için katlama mandalını sıkıca kapatın.
5. Extend the luggage-style transport handle for easy pulling.

Figure 4: Ultra-compact fold and luggage-style transport handle.

4. Using the Infant Car Seat / Auto Seat

The included infant car seat is suitable for newborns up to 13 kg and can be used as a car seat or attached to the stroller frame.

• Bebek arabasına takma: Align the car seat with the stroller's attachment points (usually where the safety bar connects) and press down firmly until it clicks into place. Ensure it is securely fastened by gently pulling upwards.
• Bebek arabasından çıkarma: Locate the release levers (typically on the sides or back of the car seat) and lift the car seat off the stroller frame.
• Araçta: Always refer to the separate car seat manual for detailed installation instructions in a vehicle. Ensure the car seat is installed correctly using the vehicle's seat belt system.

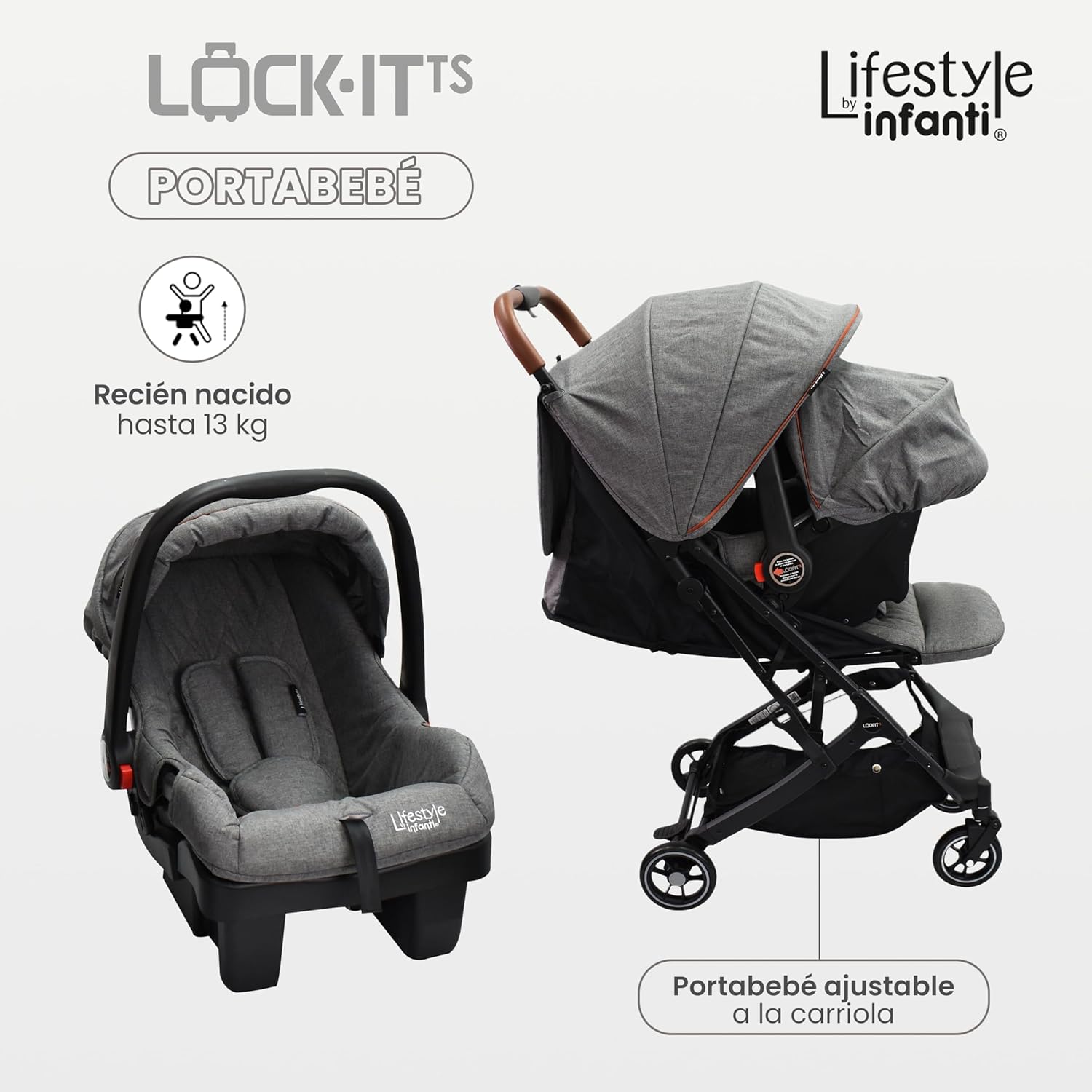

Figure 5: Infant car seat attached to the stroller.

Bakım ve Özen

• Kumaş Temizliği: Use a mild soap and cold water solution to spot clean fabric parts. Do not use bleach. Air dry completely.
• Çerçeve Temizleme: Alüminyum çerçeveyi yumuşak bir bezle silin.amp Kumaş. Paslanmayı önlemek için iyice kurutun.
• Tekerlekler: Regularly check wheels for debris and clean as needed. Lubricate moving parts with a silicone-based lubricant if they become stiff.
• Depolamak: Store the travel system in a dry place, away from direct sunlight and extreme temperatures.
• Denetimler: Periodically check all fasteners, rivets, and stitching to ensure they are secure and undamaged.

Sorun giderme

Özellikler

Figure 6: Stroller dimensions in folded and assembled states.

Garanti ve Destek

For warranty information, product support, or to purchase replacement parts, please contact Infanti customer service. Keep your proof of purchase for warranty claims.

İletişim Bilgileri: Please refer to the Infanti official webEn güncel iletişim bilgileri için lütfen siteye veya ambalaja bakın.
