PROFESSIONAL VARIABLE SPEED FAN
DMX/MANUAL CONTROL

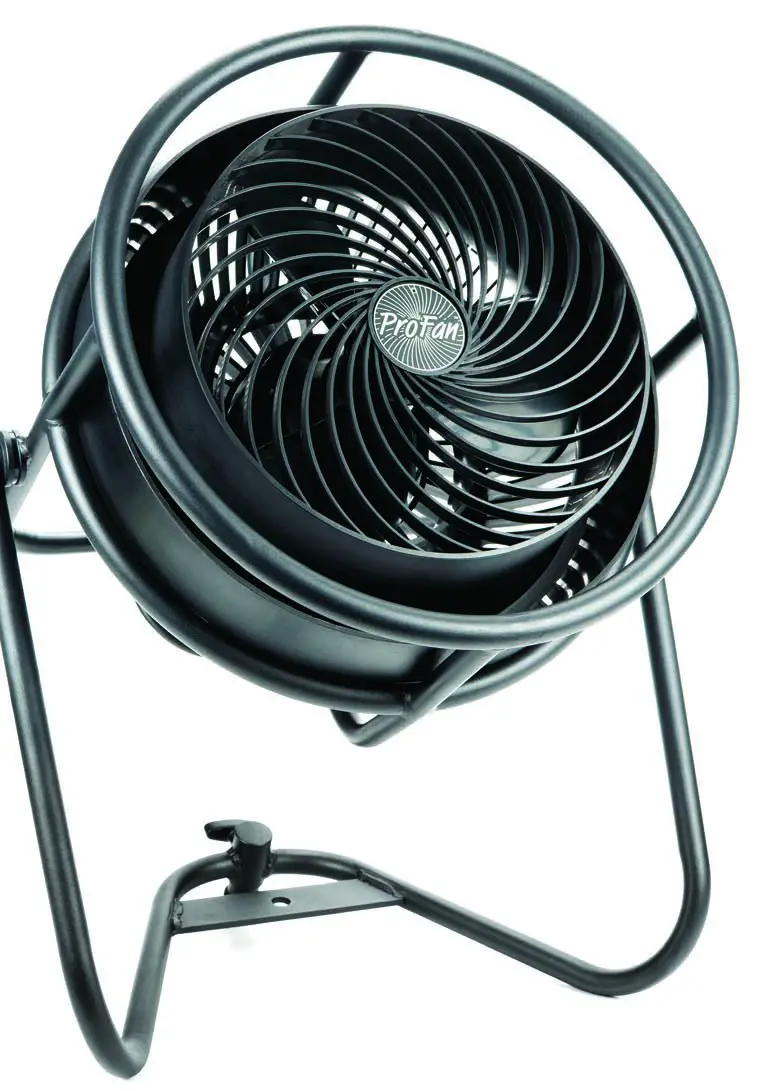

Powerful Variable Speed Professional Fan with Remote for DMX or Manual Control
ProFan is a powerful and versatile fan designed for a variety of professional applications: Studios,
Theatres, Theme Parks, Touring, Photographic and more. ProFan is perfect for filling large areas with smoke and haze, creating special wind effects, blowing confetti, snow or bubbles, cooling performers and general ventilation.
- Back Pack remote control with DMX and Manual Modes.
- Versatile yoke for floor mount, stand mount, or overhead rigging.
- 100-240VAC power input. ·Powerful, concentrated air flow.
- Compact. Rugged. Lightweight.
Worldwide Exclusive Distribution

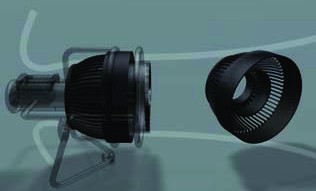

The Versatile Vortex Machine!
 |  |  |

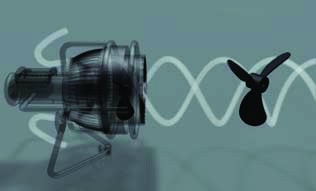

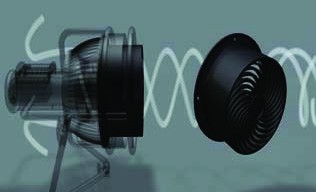

| 11″ deep-pitch blades maximize the volume of the air moved with each revolution. | Special grille design spirals the air stream for greater impact over greater distances. | The cylindrical air duct encompassing the blades creates a narrow, focused “beam” of air. |
 |  |
Specifications

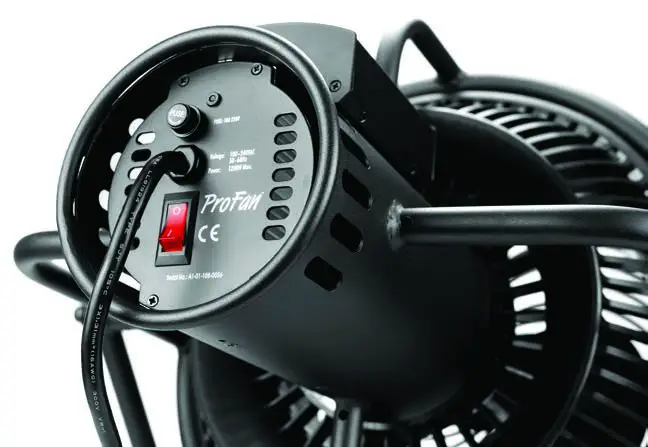

| Power | 100-240 VAC, 1200 W (max) |
| Modes | DMX and Manual |
| One-Touch Turbo Function | 0-3500 RPM within 5 sec. |
| Air Volume | 1700 CBM/HR [1000.5 CFM] |
| Wind Speed | 0-60 KM/HR [37.5 MPH] variable |
| Dimensions | 19 x 22 x 18 in [480 x 560 x 460 mm] |
| Weight | 27.6 lb [12.5 kg] |

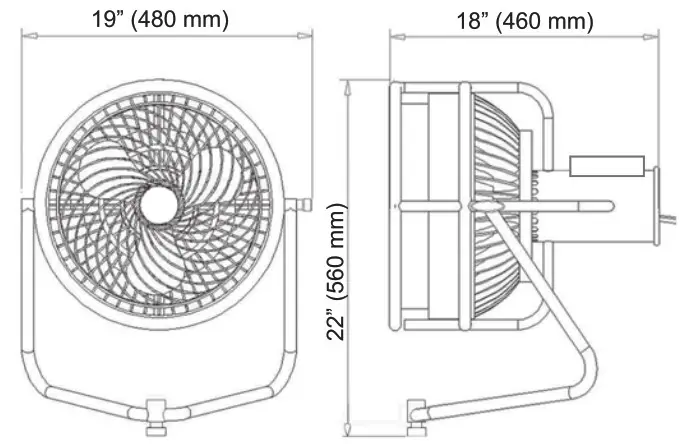

Dimensions

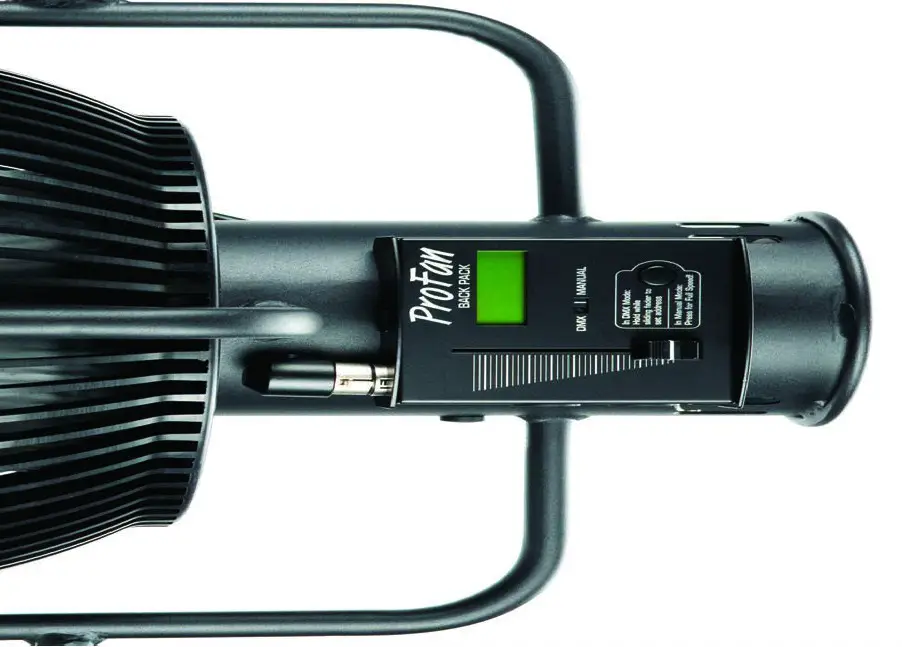

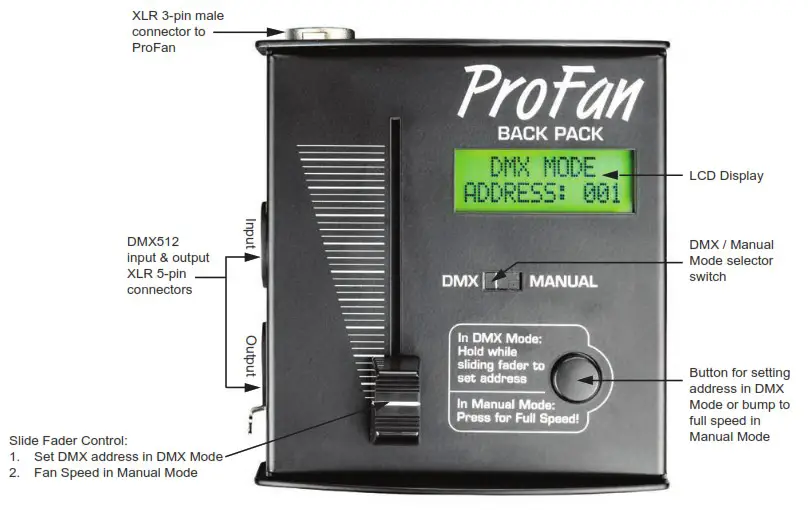

Back Pack Controller

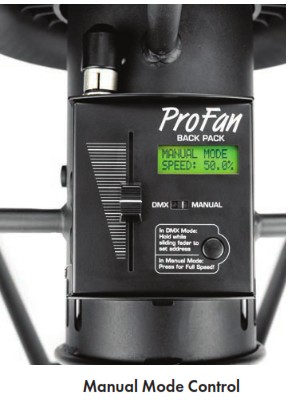

Manual Control Options
Back Pack Controller can be detached and extended up to 60ft / 20m from ProFan with a 3-Pin XLR cable.

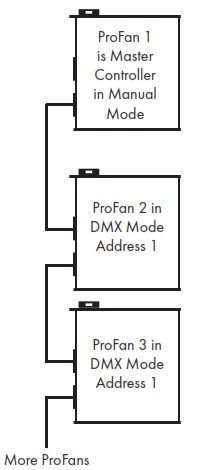

Manually controlling daisy-chained fans
In Manual Mode the DMX512 output connector automatically transmits the speed setting on address 1.
Manually control a bank of ProFans by setting the first unit to Manual Mode and all sebsequent units to DMX Mode address 1.
The first controller will control all of the ProFans.

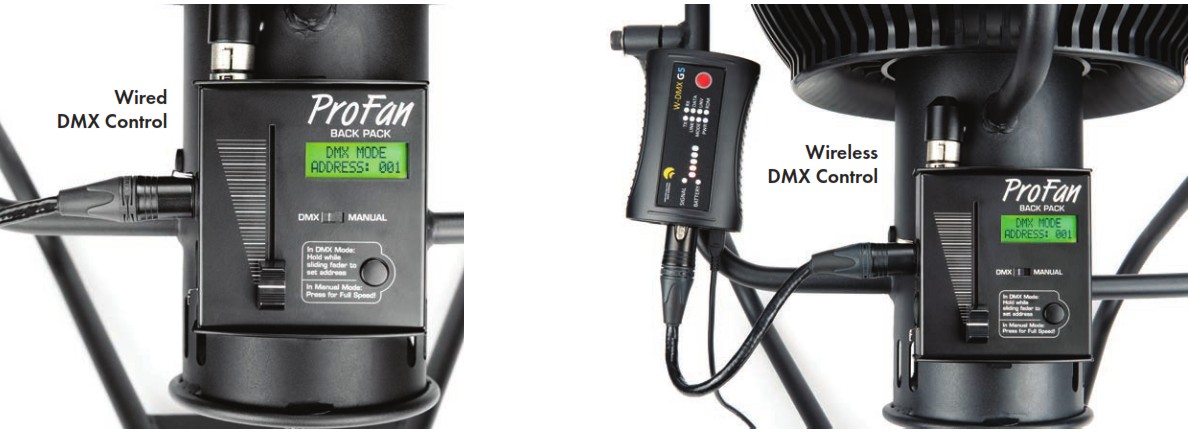

DMX Control Options
Los Angeles +1 818.899.8818
London +44 (0)20.8574.9700
New York +1 201.896.8600
Beijing +86 10.8492.1587
Toronto +1 519.538.0888
© 2021, TMB. All rights reserved. LITPROFANA4 Effective: 14 April 2021 Specifications are subject to change without notice. This information supersedes all previously supplied information.
