Funsicle Deluxe Pool Cleaning Maintenance Kit User Manual

การแนะนำ

This manual provides detailed instructions for the assembly, operation, and maintenance of your Funsicle Deluxe Pool Cleaning Maintenance Kit. Designed for efficient pool care, this kit helps keep your pool water clean and clear by effectively removing debris from the surface and floor. Please read these instructions carefully before first use to ensure proper function and longevity of your product.

เนื้อหาแพ็คเกจ

ตรวจสอบว่าส่วนประกอบทั้งหมดที่ระบุไว้ด้านล่างมีอยู่ในแพ็คเกจของคุณ:

• ตาข่ายสกิมเมอร์ 1 อัน
• 1 Vacuum Head with Debris Bag
• 1 Telescopic Aluminum Pole
• 1 Vacuum Adapter
• 1 252" (6.4 m) Water Hose

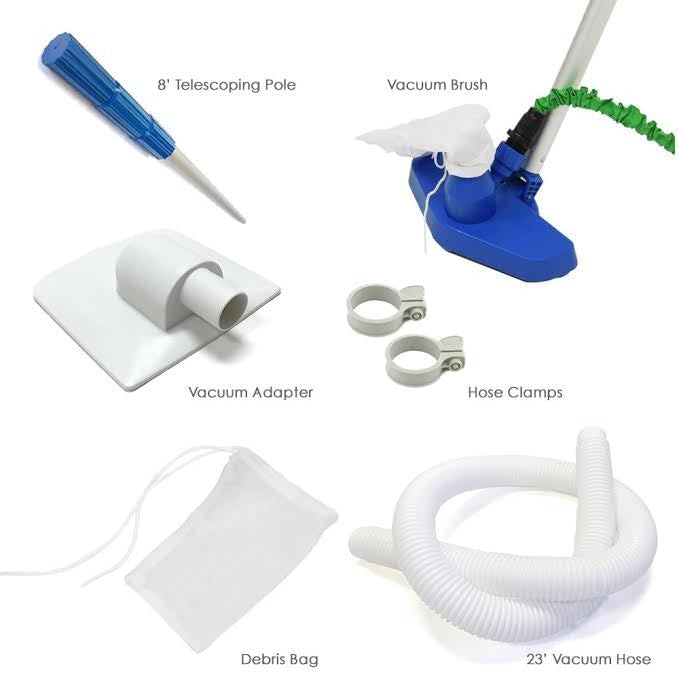

This image displays the complete Funsicle Deluxe Pool Cleaning Maintenance Kit. It includes an 8-foot telescoping pole, a vacuum brush, a vacuum adapter, hose clamps, a debris bag, and a 23-foot vacuum hose.

คำแนะนำการตั้งค่า

Follow these steps to assemble and prepare your pool cleaning kit for use:

1. ประกอบเสาแบบยืดหดได้: Extend the aluminum pole to your desired length and secure it.
2. Attach Vacuum Head or Skimmer Net: Connect either the vacuum head or the skimmer net to the end of the telescopic pole. Ensure it is securely fastened.
3. Prepare the Vacuum Head: If using the vacuum head, ensure the debris bag is properly attached.
4. Connect Vacuum Hose: Attach one end of the 252-inch (6.4 m) water hose to the vacuum head.
5. Submerge the Hose: Slowly submerge the entire vacuum hose into the pool water, allowing it to fill completely with water. This removes all air from the hose, which is crucial for proper suction.
6. Install Vacuum Adapter: Place the vacuum adapter into your pool's skimmer opening.
7. เชื่อมต่อสายยางเข้ากับอะแดปเตอร์: While keeping the vacuum head and hose submerged, connect the other end of the water hose to the vacuum adapter in the skimmer. Ensure a tight seal to prevent air from entering the system.

ภาพนี้แสดงรายละเอียด view of the vacuum head with the corrugated vacuum hose securely attached, ready for use.

This image illustrates the vacuum head with its debris bag in place and the water hose connected, demonstrating the setup for collecting debris.

คำแนะนำการใช้งาน

Using the Pool Vacuum

Once the vacuum head and hose are properly connected and submerged, and the hose is attached to the skimmer adapter:

1. เริ่มการดูดฝุ่น: Gently move the vacuum head across the bottom of your pool in slow, overlapping strokes. Avoid lifting the vacuum head out of the water to maintain suction.
2. Monitor Debris Bag: Periodically check the debris bag on the vacuum head. If it becomes full, suction may decrease. Remove and empty the bag as needed.
3. ตรวจสอบการดูด: If suction appears weak, ensure there are no air leaks in the hose connections and that the hose remains fully submerged.

Using the Skimmer Net

For surface debris, attach the skimmer net to the telescopic pole:

1. Skim Surface: Gently sweep the skimmer net across the water surface to collect leaves, insects, and other floating debris.
2. Empty Net: Regularly empty the collected debris from the net to maintain efficiency.

การซ่อมบำรุง

Regular maintenance ensures the longevity and effectiveness of your cleaning kit:

• Clean Debris Bag: After each vacuuming session, remove and thoroughly clean the debris bag. Rinse it with a garden hose to remove all trapped particles.
• ส่วนประกอบของการล้าง: Rinse the vacuum head, skimmer net, and hose with fresh water after each use to remove pool chemicals and debris.
• ตรวจสอบความเสียหาย: Periodically inspect the hose for cracks or punctures, and check the pole and attachments for any signs of wear or damage. Replace damaged parts as necessary.
• พื้นที่จัดเก็บ: Store all components in a clean, dry, and shaded area when not in use. Avoid direct sunlight exposure for prolonged periods to prevent material degradation.

การแก้ไขปัญหา

If you encounter issues with your pool cleaning kit, refer to the following common solutions:

• Weak or No Suction:
  • Ensure the vacuum hose is completely filled with water and free of air bubbles before connecting to the skimmer.
  • Check all hose connections for tightness. Any loose connection can cause air leaks and reduce suction.
  • Verify that the debris bag on the vacuum head is not full or clogged. Clean if necessary.
  • Confirm that your pool pump is operating correctly and providing adequate suction.
• Vacuum Head Not Moving Smoothly:
  • Check the bottom of the vacuum head for any obstructions or damage.
  • Ensure the pool floor is free of large debris that could impede movement.

ข้อมูลจำเพาะ

การรับประกันและการสนับสนุน

For warranty information or technical support regarding your Funsicle Deluxe Pool Cleaning Maintenance Kit, please refer to the documentation included with your purchase or contact the manufacturer directly. Keep your purchase receipt for warranty claims.
