REL Acoustics HT/1003 Subwoofer Instruction Manual

สินค้าเกินview

The REL Acoustics HT/1003 Subwoofer is engineered for high-performance home theater and immersive gaming environments. Featuring a 10-inch high-powered, long-throw driver and a 300W amplifier, this unit is designed to deliver robust and precise low-frequency effects. Its compact design allows for versatile placement while providing significant acoustic output. The HT/1003 is also compatible with the HT-Air Wireless system (sold separately) for enhanced setup flexibility.

มีอะไรอยู่ในกล่อง

เมื่อแกะกล่องแล้ว โปรดตรวจสอบให้แน่ใจว่ามีส่วนประกอบทั้งหมดดังต่อไปนี้:

• REL Acoustics HT/1003 Subwoofer Unit
• คู่มือการใช้งาน (เอกสารนี้)
• สายไฟ
• Set of Optional Rubber Feet
• HT-Air MKII (sold separately, not included in the standard package)

การตั้งค่า

1 การวาง

Optimal placement of the HT/1003 subwoofer is crucial for achieving the best sound performance in your home theater or gaming setup. Consider corners or along walls for enhanced bass response. Experiment with different positions to find the ideal balance for your listening environment.

ภาพ: The REL Acoustics HT/1003 Subwoofer positioned in a typical living room setting, demonstrating a common placement option.

2. มิติทางกายภาพ

Before final placement, ensure adequate space for the subwoofer. The dimensions are approximately 12.5 inches (D) x 13.8 inches (W) x 13.7 inches (H).

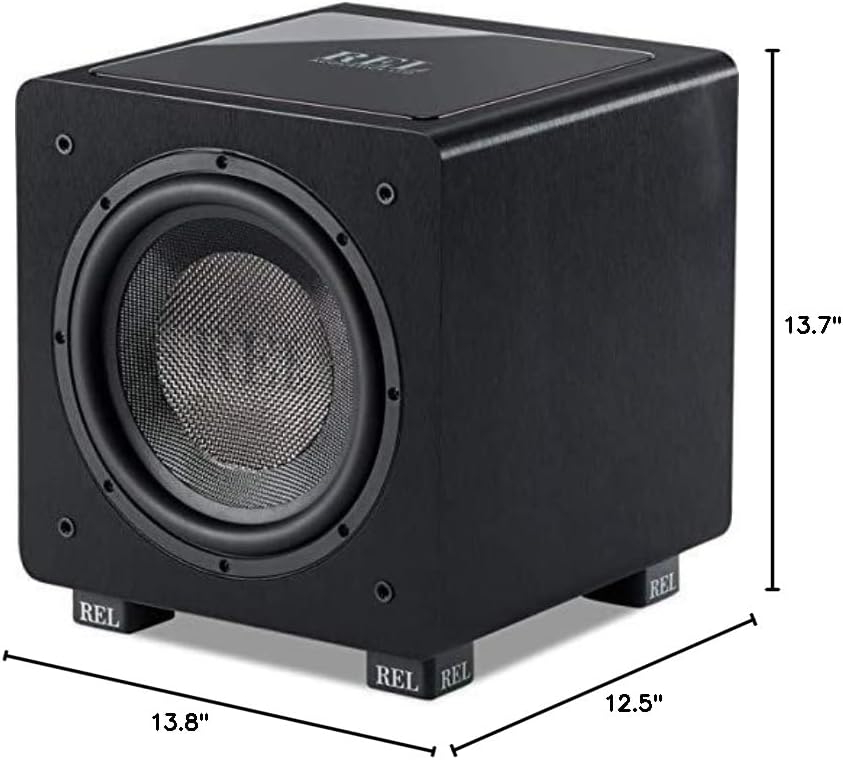

ภาพ: A diagram illustrating the physical dimensions of the HT/1003 Subwoofer for precise placement planning.

3. การเชื่อมต่อ

The HT/1003 Subwoofer primarily uses wired RCA connectivity. For wireless operation, the optional HT-Air Wireless system is required. Refer to the HT-Air Wireless manual for specific setup instructions if using this accessory.

เชื่อมต่อซับวูฟเฟอร์เข้ากับเครื่องรับสัญญาณเสียงของคุณ หรือ amplifier's LFE (Low-Frequency Effects) output using a high-quality RCA cable. Ensure all connections are secure before powering on the unit.

4. การเปิดเครื่องครั้งแรก

Once connected, plug the power cord into the subwoofer and then into a wall outlet. Turn on the subwoofer using the power switch, typically located on the rear panel. The status indicator should illuminate.

5. สูงกว่าview วีดีโอ

For a visual guide to the HT/1003 Subwoofer, including its features and setup, please watch the official overview วิดีโอ:

คำแนะนำการใช้งาน

1. การควบคุมระดับเสียง

Adjust the volume knob on the rear panel of the subwoofer to blend its output seamlessly with your main speakers. Start with a low volume and gradually increase it until the bass sounds natural and integrated, not overpowering.

2. ความถี่ครอสโอเวอร์

The crossover control determines the highest frequency the subwoofer will reproduce. Set this based on the low-frequency capabilities of your main speakers. A common starting point is around 80Hz, but adjust to achieve the smoothest transition between your subwoofer and main speakers.

3. การควบคุมเฟส

The phase switch (0 or 180 degrees) helps ensure the subwoofer's output is in sync with your main speakers. Listen to a familiar piece of music or movie scene and switch between 0 and 180 degrees. Choose the setting that provides the most impactful and coherent bass.

4. HT-Air Wireless Operation (Optional)

If you are using the optional HT-Air Wireless system, ensure it is properly paired and configured according to its dedicated instruction manual. This allows for wireless signal transmission to the subwoofer, offering greater flexibility in placement.

การซ่อมบำรุง

To ensure the longevity and optimal performance of your REL Acoustics HT/1003 Subwoofer, follow these maintenance guidelines:

• การทำความสะอาด: Use a soft, dry cloth to wipe the exterior surfaces. Avoid abrasive cleaners, solvents, or chemical sprays, as these can damage the finish.
• การระบายอากาศ : Ensure the subwoofer has adequate ventilation. Do not block any vents or place the unit in an enclosed space without proper airflow.
• สิ่งแวดล้อม: Keep the subwoofer away from direct sunlight, heat sources, and excessive moisture.
• พลัง: If the subwoofer will not be used for an extended period, it is advisable to unplug it from the power outlet.

การแก้ไขปัญหา

If you encounter issues with your HT/1003 Subwoofer, please refer to the following common troubleshooting steps:

• ไม่มีไฟฟ้า:
  • Check if the power cord is securely plugged into both the subwoofer and a working wall outlet.
  • Verify that the power switch on the subwoofer is in the 'ON' position.
  • ทดสอบปลั๊กไฟด้วยอุปกรณ์อื่นเพื่อให้แน่ใจว่ามีกระแสไฟไหลผ่าน
• ไม่มีเสียง:
  • Ensure the RCA audio cable is securely connected to both the subwoofer and your receiver/ampชีวิต.
  • Check the volume setting on the subwoofer and your receiver/ampชีวิต.
  • Verify that the LFE output on your receiver/amplifier is enabled and configured correctly.
  • If using HT-Air Wireless, ensure the transmitter and receiver are properly paired and functioning.
• เสียงผิดเพี้ยน:
  • Reduce the volume level on the subwoofer and/or your receiver/ampชีวิต.
  • ตรวจสอบการเชื่อมต่อที่หลวมหรือสายเคเบิลเสียหาย
  • ตรวจสอบให้แน่ใจว่าไม่ได้วางซับวูฟเฟอร์ไว้ใกล้กับอุปกรณ์อิเล็กทรอนิกส์อื่นๆ ที่อาจก่อให้เกิดการรบกวน
• เบสอ่อน:
  • Adjust the volume and crossover frequency settings.
  • Experiment with the phase switch (0/180 degrees).
  • Try repositioning the subwoofer in your room.

If these steps do not resolve the issue, please contact REL Acoustics customer support for further assistance.

ข้อมูลจำเพาะ

การรับประกันและการสนับสนุน

The REL Acoustics HT/1003 Subwoofer comes with a Full Warranty. For specific details regarding the warranty period, coverage, and terms, please refer to the warranty card included with your product or visit the official REL Acoustics webเว็บไซต์.

For technical support, service, or any inquiries not covered in this manual, please contact REL Acoustics customer support. Contact information can typically be found on the manufacturer's webเว็บไซต์หรือในบรรจุภัณฑ์ของผลิตภัณฑ์
