Tractel Minifor Portable Electric Hoist Instruction Manual

1. บทนำ

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of the Tractel Minifor TR30 Portable Electric Hoist. Please read this manual thoroughly before operating the hoist to ensure proper usage and to prevent injury or damage.

The Minifor TR Series hoists are professional-grade lifting devices designed for heavy-duty applications. They feature a powerful motor, durable aluminum alloy body, and support an unlimited length of lifting wire rope, offering significant flexibility and capability for various tasks.

2. ข้อมูลด้านความปลอดภัย

คำเตือน: การไม่ปฏิบัติตามคำแนะนำด้านความปลอดภัยเหล่านี้อาจส่งผลให้ได้รับบาดเจ็บสาหัสหรือเสียชีวิตได้

• Always inspect the hoist, wire rope, and all rigging components before each use. Do not use if any damage is observed.
• Ensure the hoist is securely anchored to a structure capable of supporting the maximum rated load plus the weight of the hoist.
• Never exceed the rated load capacity of 300 kg (660 lbs). If using a sheaving kit to double the capacity, ensure all components are rated for the increased load.
• Keep hands and clothing clear of moving parts, especially the wire rope and drum.
• Do not operate the hoist if you are fatigued or under the influence of drugs or alcohol.
• Ensure the power supply matches the hoist's requirements (115 V, single phase).
• In case of emergency, immediately cut power to the hoist.
• Refer to local regulations and safety standards for lifting operations.

3. การตั้งค่า

Proper setup is crucial for safe and efficient operation of your Minifor hoist.

3.1 การแกะบรรจุภัณฑ์และการตรวจสอบ

Carefully remove the hoist from its packaging. Inspect the unit for any signs of shipping damage. Verify that all components listed in the packing slip are present. If any damage or missing parts are found, contact your supplier immediately.

3.2 การติดตั้งรอก

The Minifor hoist is designed for easy transport and quick installation. It features an integrated handle for portability. Mount the hoist to a secure overhead anchor point or support structure using appropriate rigging hardware (e.g., shackles, slings) that are rated for the intended load. Ensure the mounting point is stable and capable of supporting the hoist and its maximum load.

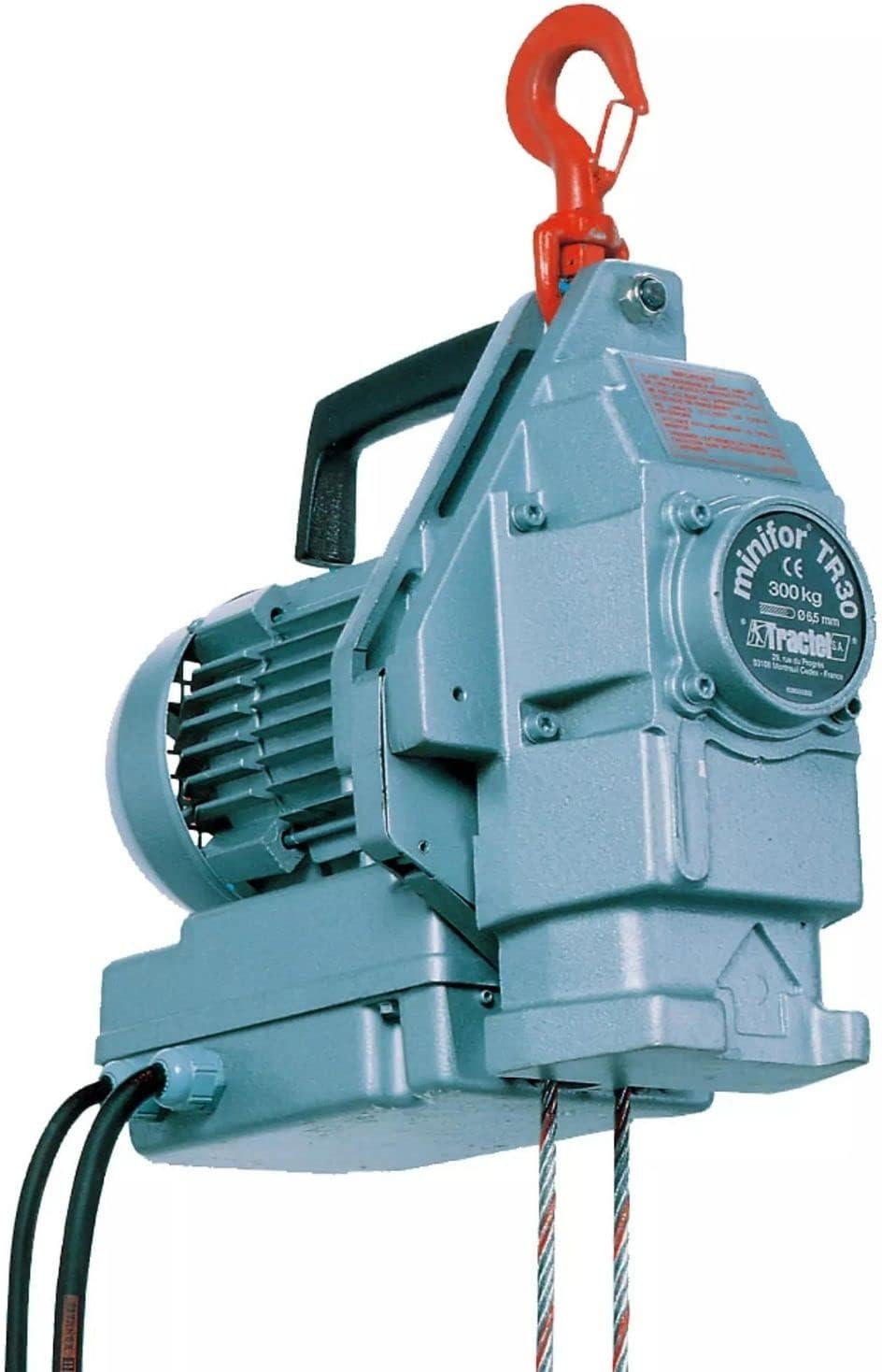

รูปที่ 3.1 : ด้านหน้า view of the Tractel Minifor TR30 Portable Electric Hoist.

รูปที่ 3.2: ด้านข้าง view of the Minifor hoist, showing its compact design and hanging configuration.

3.3 การเชื่อมต่อสายไฟ

Connect the hoist to a single-phase 115 V power supply. Ensure the power outlet is properly grounded and protected by a circuit breaker. Do not use extension cords that are not rated for the hoist's power requirements.

4. คู่มือการใช้งาน

The Minifor hoist is operated via a pendant control. Familiarize yourself with the controls before beginning any lifting operation.

4.1 การทำงานพื้นฐาน

• การยก: Press and hold the 'UP' button on the pendant control to raise the load. The hoist will lift at a speed of 17 feet per minute (FPM).
• การลด: Press and hold the 'DOWN' button on the pendant control to lower the load.
• การหยุด: Release the button to stop the hoist. The hoist will automatically brake and hold the load in position.

4.2 Load Capacity and Sheaving Kit

The direct load capacity of the TR30 model is 300 kg (660 lbs). For applications requiring higher capacity, a sheaving kit can be used to double the load capacity to 600 kg (1320 lbs). When using a sheaving kit, the lifting speed will be halved.

Figure 4.1: Minifor TR30 configurations, including direct lift and with optional sheave block kit, along with a table of dimensions, working load limits, and speeds.

4.3 การใช้งานทั่วไป

The Minifor hoist is highly versatile and suitable for a wide range of industrial and commercial applications, including construction, energy, transport, elevator maintenance, general industrial use, confined space operations, and entertainment sectors.

Figure 4.2: Various typical applications demonstrating the flexibility of the Minifor hoist in different lifting scenarios.

Figure 4.3: An operator using the Minifor hoist in an outdoor setting, demonstrating its portability and ease of use.

5. การบำรุงรักษา

Regular maintenance ensures the longevity and safe operation of your Minifor hoist.

• การตรวจสอบรายวัน: Before each use, visually inspect the hoist, power cable, pendant control, and especially the wire rope for any signs of wear, fraying, kinks, or damage. Check all connections and fasteners for tightness.
• การทำความสะอาด: Keep the hoist clean and free of dirt, dust, and debris. Use a dry cloth to wipe down the exterior. Do not use harsh chemicals or solvents.
• เชือกลวด: The Minifor uses an unlimited length of wire rope. Regularly inspect the entire length of the rope that passes through the hoist for damage. Replace the wire rope if any significant wear or damage is detected.
• การบริการระดับมืออาชีพ: It is recommended to have the hoist professionally inspected and serviced by a qualified technician at least once a year, or more frequently depending on usage intensity.

6 การแก้ไขปัญหา

This section addresses common issues you might encounter with your Minifor hoist.

For issues not listed here or if solutions do not resolve the problem, contact Tractel customer support or a certified service center.

7. ข้อมูลจำเพาะ

Detailed technical specifications for the Tractel Minifor TR30 Portable Electric Hoist.

8. ข้อมูลการรับประกัน

The Tractel Minifor Portable Electric Hoist comes with a รับประกัน 1 ปี. This warranty covers defects in materials and workmanship under normal use and service. For specific terms, conditions, and to make a warranty claim, please refer to the official warranty document included with your purchase or contact Tractel customer support.

9. การสนับสนุนลูกค้า

For technical assistance, spare parts, or service inquiries, please contact Tractel customer support. You can find contact information on the official Tractel webไซต์หรือผ่านตัวแทนจำหน่ายที่ได้รับอนุญาตของคุณ

แหล่งข้อมูลออนไลน์: Visit the official Tractel website for product updates, additional documentation, and FAQs.

ศูนย์บริการ: For repairs and professional maintenance, utilize authorized Tractel service centers to ensure genuine parts and qualified service.
