Abu Garcia Orra RF Fishing Reel Instruction Manual

การแนะนำ

This manual provides essential information for the proper setup, operation, and maintenance of your Abu Garcia Orra RF fishing reel. The Orra RF is designed as a rock fish reel for salty stage environments, offering robust performance and durability.

Please read these instructions carefully before using your reel to ensure optimal performance and longevity.

คำแนะนำการตั้งค่า

1. Attaching the Reel to a Fishing Rod

Align the reel foot with the reel seat on your fishing rod. Securely tighten the reel seat locking nut to prevent any movement during use. Ensure the reel is firmly attached before proceeding.

2. การม้วนสายเบ็ดตกปลา

The Orra RF features a deep spool design, allowing for ample line capacity. Attach your chosen fishing line to the spool using an appropriate knot. Wind the line onto the spool evenly, ensuring consistent tension. Avoid overfilling the spool, as this can lead to tangles and casting issues.

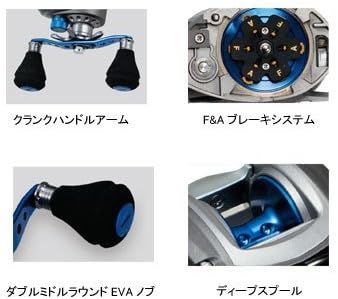

Image: Key Components of the Orra RF Reel

• Crank Handle Arm: The main arm connecting the handle knob to the reel's gear system.
• F&A Brake System: การภายใน view of the reel's braking mechanism, crucial for controlling spool rotation during casting.
• Double Middle Round EVA Knob: A comfortable, ergonomic handle knob made from EVA material for improved grip.
• Deep Spool: The large capacity spool designed to hold a significant amount of fishing line.

คำแนะนำการใช้งาน

1. การปรับระบบแรงต้าน

The Orra RF features a Carbon Matrix Drag system, providing smooth and consistent drag pressure. To adjust the drag, turn the star drag knob located next to the handle. Turn clockwise to increase drag tension and counter-clockwise to decrease it. Set the drag to approximately one-third of your line's breaking strength.

2. Using the Mechanical Brake

The mechanical brake, equipped with a click function, controls the initial spool rotation and helps prevent backlashes during casting. Adjust this knob to fine-tune your casting performance based on lure weight and wind conditions. A higher setting provides more resistance, while a lower setting allows for longer casts.

3. Casting and Retrieving

Engage the free spool lever for casting. After casting, re-engage the reel by turning the handle. The high strength brass drive gear and 6.4:1 gear ratio ensure efficient retrieval. Use the double middle round EVA knob for a comfortable and secure grip during retrieval.

การซ่อมบำรุง

1. การทำความสะอาดหลังการใช้งาน

After each use, especially in saltwater environments, rinse your reel with fresh water to remove salt, sand, and debris. Do not submerge the reel. Wipe it dry with a soft cloth.

2. การหล่อลื่น

Periodically apply a small amount of reel oil to moving parts such as the handle shaft, line roller, and bearings. Use reel grease on gears. Refer to a detailed reel schematic for specific lubrication points if performing a full disassembly.

3. การจัดเก็บ

Store your reel in a dry, cool place away from direct sunlight and extreme temperatures. Loosen the drag completely before storage to prolong the life of the drag washers.

การแก้ไขปัญหา

• Reel is stiff or grinding: This often indicates a need for cleaning and lubrication. Disassemble, clean all components, and re-lubricate with appropriate reel oil and grease. Check for any bent or damaged parts.
• Drag is inconsistent or slipping: Inspect the drag washers for wear or contamination. Clean or replace them as necessary. Ensure the drag knob is properly tightened.
• Backlashes during casting: Adjust the mechanical brake and/or centrifugal brake (if applicable) to provide more spool control. Ensure the spool is not overfilled with line and that the line is spooled evenly. Practice proper casting technique.
• ด้ามจับหลวม: Check the handle nut and screw for tightness. Tighten if necessary.

ข้อมูลจำเพาะ

การรับประกันและการสนับสนุน

For warranty information and customer support regarding your Abu Garcia Orra RF fishing reel, please refer to the official Abu Garcia webหรือติดต่อฝ่ายบริการลูกค้าโดยตรง โปรดเก็บหลักฐานการซื้อไว้เพื่อใช้ในกรณีที่ต้องการเคลมประกัน

เป็นทางการ Webเว็บไซต์: www.abugarcia.com

Contact information may vary by region. Please check the website for local support details.
