Thomas & Betts A615DE Octagon Ceiling Box

การแนะนำ

This manual provides essential information for the safe and proper installation and use of the Thomas & Betts A615DE 1/2&3/4 Octagon Ceiling Box. This product is designed to house electrical connections and support light fixtures or other electrical devices in ceiling applications. Please read all instructions carefully before beginning installation.

ข้อมูลด้านความปลอดภัย

WARNING: Risk of Electric Shock. Always turn off power at the circuit breaker or fuse box before installing or servicing this product. Improper installation can result in serious injury or death.

• All electrical work should be performed by a qualified electrician or in accordance with local electrical codes.
• Ensure the ceiling box is securely mounted to a structural member capable of supporting the combined weight of the box and any attached fixture.
• Do not exceed the maximum load capacity or cubic inch capacity of the box.
• สวมอุปกรณ์ป้องกันส่วนบุคคล (PPE) ที่เหมาะสม เช่น แว่นตานิรภัยและถุงมือระหว่างการติดตั้ง

สินค้าเกินview

The Thomas & Betts A615DE Octagon Ceiling Box is a durable plastic electrical enclosure. It features multiple knockouts for conduit entry and is designed for easy installation in various ceiling constructions.

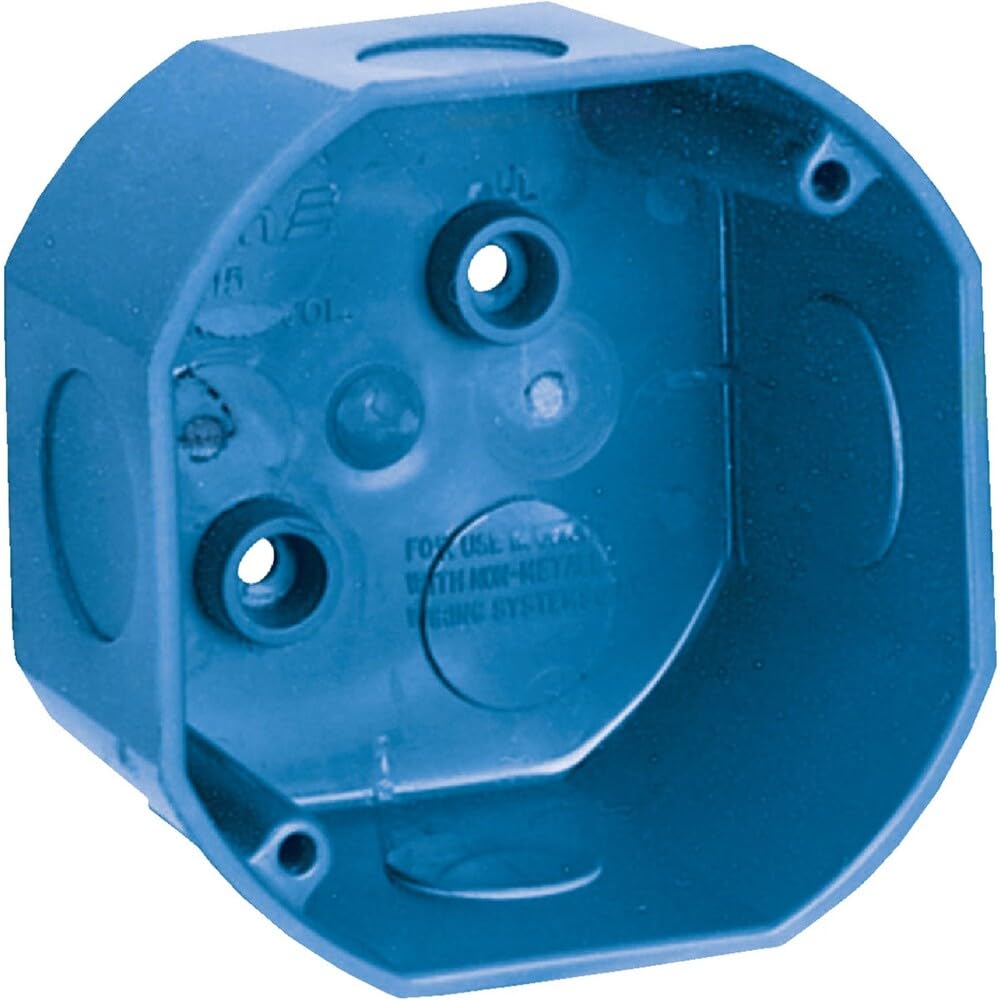

Image: Thomas & Betts A615DE Octagon Ceiling Box. This image displays the blue plastic octagon-shaped electrical box with various knockout points visible on its sides and bottom, designed for electrical conduit connections.

คุณสมบัติหลัก:

• Non-conductive plastic construction.
• Quick connect design for efficient installation.
• 20.5 cubic inch capacity.
• Knockouts for 1/2" and 3/4" conduit.
• 4" diameter x 2-1/8" depth.

การติดตั้งและการตั้งค่า

1. ปิดเครื่อง: Locate the circuit breaker or fuse controlling the area where the box will be installed and turn off the power. Verify power is off using a voltagอีผู้ทดสอบ
2. เลือกสถานที่: Choose a suitable location in the ceiling that is free from obstructions and allows for secure mounting to a joist or other structural support.
3. เตรียมการเปิด: If installing in an existing ceiling, cut an appropriate-sized hole for the octagon box. Ensure the hole is clean and smooth.
4. ติดตั้งกล่อง: Securely attach the octagon box to the ceiling joist or bracing using appropriate fasteners (screws, nails) that comply with local codes. Ensure the box is flush with the ceiling surface.
5. Remove Knockouts: Carefully remove the necessary knockouts for your electrical conduit or cable entry. Use a screwdriver or pliers to push out the desired knockout.
6. Run Wiring: Feed the electrical cables or conduit into the box through the opened knockouts. Ensure proper strain relief is provided for cables entering the box.
7. สร้างการเชื่อมต่อ: Strip the wire insulation and make all necessary electrical connections inside the box using appropriate wire connectors. Ensure all connections are tight and secure.
8. Install Fixture/Cover: Once wiring is complete, install the light fixture or cover plate onto the box, ensuring all wires are neatly tucked inside and not pinched.
9. คืนค่าพลัง: Turn the power back on at the circuit breaker or fuse box and test the installed device.

การดำเนินงาน

The Thomas & Betts A615DE Octagon Ceiling Box functions as a permanent enclosure for electrical wiring connections and as a mounting point for electrical fixtures. Once properly installed and wired, it requires no further operational input. Its primary role is to provide a safe and compliant housing for electrical components.

การซ่อมบำรุง

This electrical box is designed for long-term, maintenance-free operation once correctly installed. Periodic inspection of the installed box and connected fixtures is recommended to ensure continued safety and integrity of the electrical system. Look for any signs of damage, loose connections, or overheating. If any issues are detected, turn off power immediately and consult a qualified electrician.

การแก้ไขปัญหา

If an electrical issue arises in a circuit connected to this box, consider the following general troubleshooting steps:

• No Power to Fixture: Check the circuit breaker or fuse for the affected circuit. Ensure it is in the 'ON' position.
• การเชื่อมต่อหลวม: With power off, carefully inspect the wiring connections inside the box for any loose or corroded wires. Re-tighten as necessary.
• สายไฟชำรุด: Look for any signs of damaged insulation or frayed wires. Replace damaged wiring if found.
• วงจรไฟฟ้าเกินกำลัง: If the breaker trips frequently, the circuit may be overloaded. Consult an electrician to assess the load and potentially add new circuits.

Always ensure power is OFF before inspecting or working inside the electrical box.

ข้อมูลจำเพาะ

การรับประกันและการสนับสนุน

For warranty information or technical support regarding your Thomas & Betts A615DE Octagon Ceiling Box, please refer to the manufacturer's official webหรือติดต่อฝ่ายบริการลูกค้าโดยตรง โปรดเก็บใบเสร็จรับเงินไว้เป็นหลักฐานการซื้อ

ติดต่อผู้ผลิต: Thomas & Betts Official Webเว็บไซต์
