పరిచయం

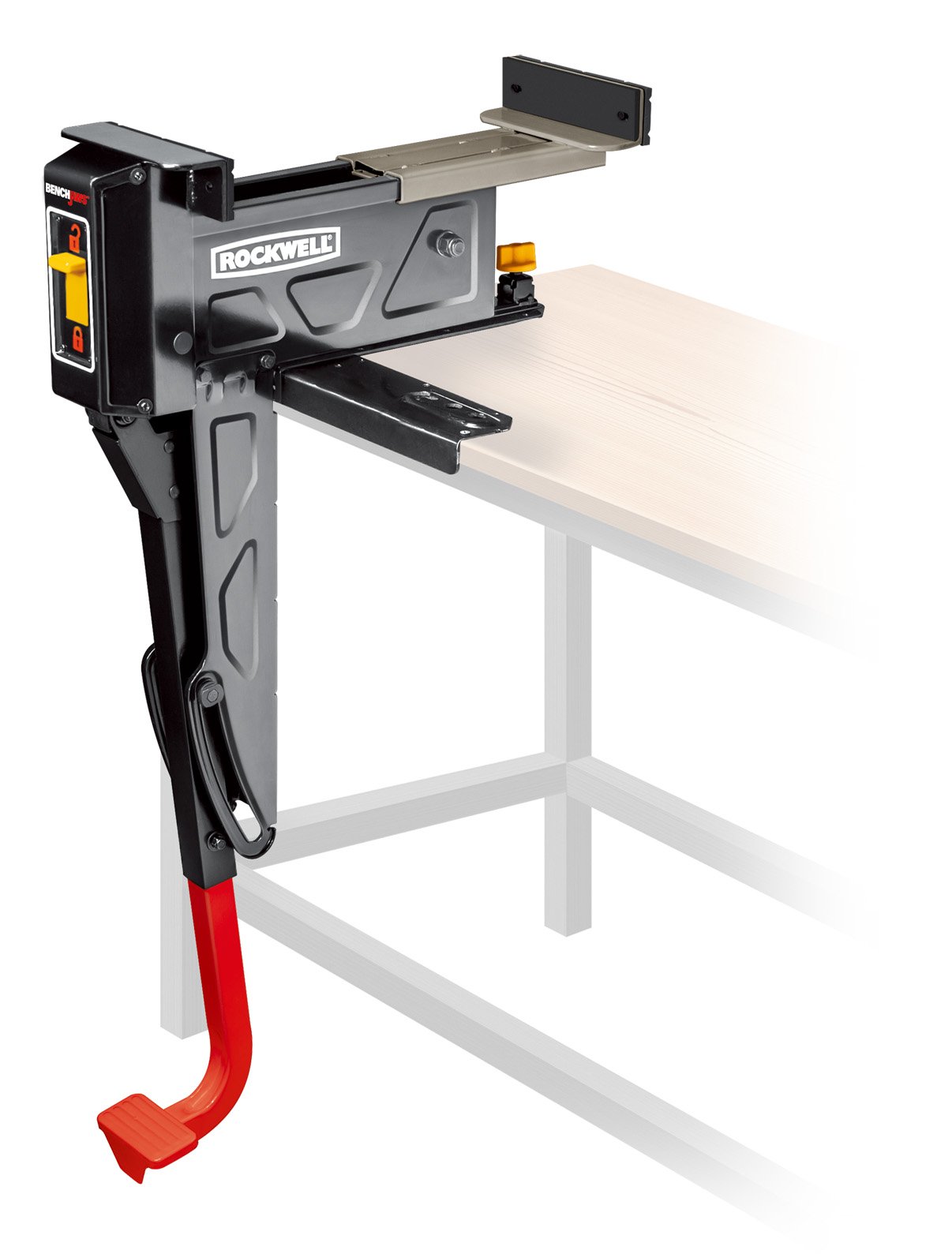

The Rockwell RK9006 BenchJaw is a hands-free bench vise and clamping station designed to enhance efficiency in securing workpieces. This innovative tool allows users to stabilize items with both hands while clamping with a foot pedal, providing precise control. It offers a substantial clamping range and force, making it suitable for various projects. This manual provides essential information for the safe and effective setup, operation, and maintenance of your BenchJaw.
భద్రతా సమాచారం
Always observe basic safety precautions when using the Rockwell BenchJaw. Failure to follow these instructions may result in injury or damage to the tool or workpiece.
- Read and understand all instructions before operating the BenchJaw.
- Ensure the BenchJaw is securely mounted to a stable workbench or work table before use.
- Wear appropriate personal protective equipment (PPE) such as safety glasses, gloves, and hearing protection, especially when working with power tools in conjunction with the vise.
- Do not exceed the maximum clamping force or weight capacity of the BenchJaw.
- చేతులు మరియు వేళ్లను cl నుండి స్పష్టంగా ఉంచండిamping jaws during operation.
- Inspect the BenchJaw for any damage or loose parts before each use. Do not operate if damaged.
- పని ప్రదేశం నుండి పిల్లలను మరియు ప్రేక్షకులను దూరంగా ఉంచండి.
- Use the correct mounting hardware. Some users have reported issues with included hardware; consider using high-quality M6x12 bolts with washers and lock washers for mounting, and M6x45 coach bolts with M6 nuts and flange nuts for other assembly points, if the provided hardware seems inadequate.
ప్యాకేజీ విషయాలు
అన్ప్యాక్ చేసేటప్పుడు అన్ని వస్తువులు ఉన్నాయని నిర్ధారించుకోండి:
- Rockwell RK9006 BenchJaw Unit
- మౌంటు బ్రాకెట్
- ఫుట్ పెడల్ అసెంబ్లీ
- Assembly Hardware (bolts, nuts, washers) - Note: Refer to Safety Information regarding hardware quality.
- ఇన్స్ట్రక్షన్ మాన్యువల్
సెటప్ మరియు ఇన్స్టాలేషన్
The BenchJaw is designed for secure mounting to a stable workbench or work table. Proper installation is crucial for safe and effective operation.
- మౌంటు స్థానాన్ని ఎంచుకోండి: Select a sturdy and stable workbench. The BenchJaw can be mounted to the top of a workbench or to a corner. Mounting to a corner allows for 180-degree repositioning of the vise.
- మౌంటు బ్రాకెట్ను భద్రపరచండి: Position the mounting bracket on your workbench. Mark the drilling points. Drill appropriate pilot holes for the mounting hardware. Secure the bracket firmly using robust bolts, washers, and lock washers. Ensure the bracket is flush and stable.
- Attach the BenchJaw Unit: Slide the BenchJaw unit onto the secured mounting bracket. Ensure it locks into place. The design allows for quick attachment and removal.
- Assemble the Foot Pedal: Attach the foot pedal assembly to the main BenchJaw unit according to the diagrams in the included manual. Ensure all connections are tight and secure.
- పరీక్ష స్థిరత్వం: cl ముందుamping any workpiece, gently test the stability of the mounted BenchJaw by applying pressure. Ensure there is no excessive movement or rattling. If rattling occurs between the bracket and the BenchJaw, small felt pads can be applied to the top of the mounting bracket to take up any slack.
ఆపరేటింగ్ సూచనలు
The BenchJaw's hands-free operation allows for greater control and efficiency.
- వర్క్పీస్ను ఉంచండి: Place the item you wish to clamp between the jaws of the BenchJaw. Use both hands to position it precisely.
- Engage the Foot Pedal: With your foot, press down on the foot pedal. This action will close the jaws, securing the workpiece. The hands-free design allows you to maintain optimal positioning of the workpiece until it is firmly clamped.
- Release the Workpiece: To release the workpiece, disengage the foot pedal. The jaws will open, allowing you to remove the item.
- Cl సర్దుబాటు చేస్తోందిampపరిధి: The BenchJaw offers a clamping range of up to 16 inches. For larger items, optional accessories such as the RW9207 extended jaw (sold separately) can increase the capacity to 24 inches.
- Repositioning the Vise: If mounted to a corner, the BenchJaw can be easily removed from its bracket and re-mounted at a 180-degree angle to accommodate different project orientations or bulky items.
- Specialized Clamping: For tapered or round objects, the RK9208 aligning jaw with clamping posts (sold separately) can be used to provide a secure hold without the need for shims.
నిర్వహణ
Regular maintenance ensures the longevity and optimal performance of your BenchJaw.
- శుభ్రపరచడం: After each use, wipe down the BenchJaw with a clean, dry cloth to remove dust, debris, and metal shavings. For stubborn grime, a mild detergent and water can be used, followed by thorough drying.
- సరళత: Periodically apply a light machine oil to moving parts, such as the clamping mechanism and pivot points, to ensure smooth operation.
- తనిఖీ: Regularly inspect all bolts, nuts, and connections for tightness. Tighten any loose fasteners. Check the jaws for wear or damage. Replace any worn or damaged components immediately.
- నిల్వ: When not in use, store the BenchJaw in a clean, dry environment to prevent rust and corrosion.
ట్రబుల్షూటింగ్
సాధారణ సమస్యలు మరియు వాటి పరిష్కారాల కోసం ఈ విభాగాన్ని చూడండి.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| BenchJaw feels unstable or rattles when in use. | Loose mounting hardware; gap between BenchJaw and mounting bracket; unstable workbench. | Ensure all mounting bolts are securely tightened. If a gap exists, apply small felt pads to the top of the mounting bracket to reduce slack. Verify your workbench is stable and heavy enough to support the clampశక్తి. |
| దవడలు cl లేదుamp సురక్షితంగా. | Workpiece too large; debris in clamping mechanism; worn jaws. | Ensure the workpiece is within the 16-inch clamping range (or 24-inch with extended jaws). Clean any debris from the jaws and mechanism. Inspect jaws for wear and replace if necessary. |
| Foot pedal is stiff or unresponsive. | Lack of lubrication; debris in pedal mechanism. | Apply light machine oil to the foot pedal pivot points and mechanism. Clean any visible debris. |
స్పెసిఫికేషన్లు
- మోడల్: RK9006
- బ్రాండ్: రాక్వెల్
- మెటీరియల్: మిశ్రమం ఉక్కు
- Clampపరిధి: Up to 16 inches (expandable to 24 inches with optional RW9207 extended jaw)
- Clampబలవంతంగా: Up to 2200 pounds (1 ton)
- మద్దతు బరువు: 220 పౌండ్ల వరకు
- ఉత్పత్తి కొలతలు (L x W x H): 54.1 x 24.89 x 31.5 సెం.మీ (21.3 x 9.8 x 12.4 అంగుళాలు)
- వస్తువు బరువు: 11.92 కిలోలు (26.28 పౌండ్లు)
- తయారీదారు: Positec USA
- UPC: 845534010510
వారంటీ మరియు మద్దతు
For warranty information, technical support, or to purchase accessories and replacement parts, please contact Rockwell customer service directly. Refer to the product packaging or the official Rockwell webఅత్యంత తాజా సంప్రదింపు వివరాల కోసం సైట్.
