1. Selelekela le Ho Fetaview
Thank you for choosing the FIRElood LH80-1-NS2 Digital Temperature Adjustable Wood Burning Kit. This kit is designed for pyrography enthusiasts and professionals, offering precise temperature control and a wide range of tips for various artistic applications. Please read this manual thoroughly before use to ensure safe and optimal operation.
Key features include a digital thermometer for accurate temperature display, an adjustable temperature range of 200~750℃ for versatile material compatibility, and two pyrographic pens with 36 interchangeable tips for diverse burning techniques.
Image: The FIRElood LH80-1-NS2 Wood Burning Kit, showcasing the main unit with digital display and two connected pyrography pens.
2. Litaelo tsa Tšireletso
Operating a wood burning tool involves high temperatures and potential hazards. Adhere to the following safety guidelines:
- Always work in a well-ventilated area to avoid inhaling fumes from burning materials.
- Keep flammable materials away from the heated pen and work surface.
- Do not touch the hot nibs or metal parts of the pen. Use pliers or a heat-resistant tool to change tips.
- Ensure the tool is placed on a stable, heat-resistant surface during use and cooling.
- Unplug the unit when not in use, when changing tips, or before cleaning.
- Boloka moo bana le liphoofolo tse ruuoang lapeng li fihlang teng.
- Wear appropriate safety glasses to protect your eyes from sparks or debris.
- Never leave the heated tool unattended.
3. Likahare tsa Sephutheloana
Netefatsa hore lintho tsohle li teng ka har'a sephutheloana sa hau:
- 1 x FIRElood LH80-1-NS2 Pyrography Station (Main Unit)
- 2 x Pyrography Pens (one wire-nib detailer, one solid-point pen)
- 30 x Wood Burning Wire Pen Tips (various shapes)
- 3 x Solid Copper Pen Tips
- 3 x Professional Pen Tips
- 1 x Sets'oants'o sa Pene se nang le Seponche se Hloekisang
- 1 x Mohala oa Matla
Image: The dual-pen pyrography station, showcasing the main unit, two pens, and a selection of the 36 included tips.
4. Seta
Follow these steps to set up your wood burning kit:
- Hlakola: Tlosa ka hloko likarolo tsohle tsa sephutheloana.
- Sebaka: Place the pyrography station on a stable, heat-resistant, and non-flammable surface. Ensure adequate ventilation.
- Connect Pens: Insert the connectors of the pyrography pens into the designated ports on the front of the main unit. Ensure they are securely fastened.
- Insert Nibs:
- Bakeng sa Wire-Nib Detailer: Loosen the two screws on the pen head, insert the desired wire nib, and tighten the screws to secure it. Ensure the nib is firmly in place and making good contact.
- Bakeng sa Solid-Point Pen: Insert the desired solid-point tip directly into the pen's heating element.
- Khokelo ea Matla: Plug the power cord into the back of the main unit, then plug the other end into a standard 110V electrical outlet.

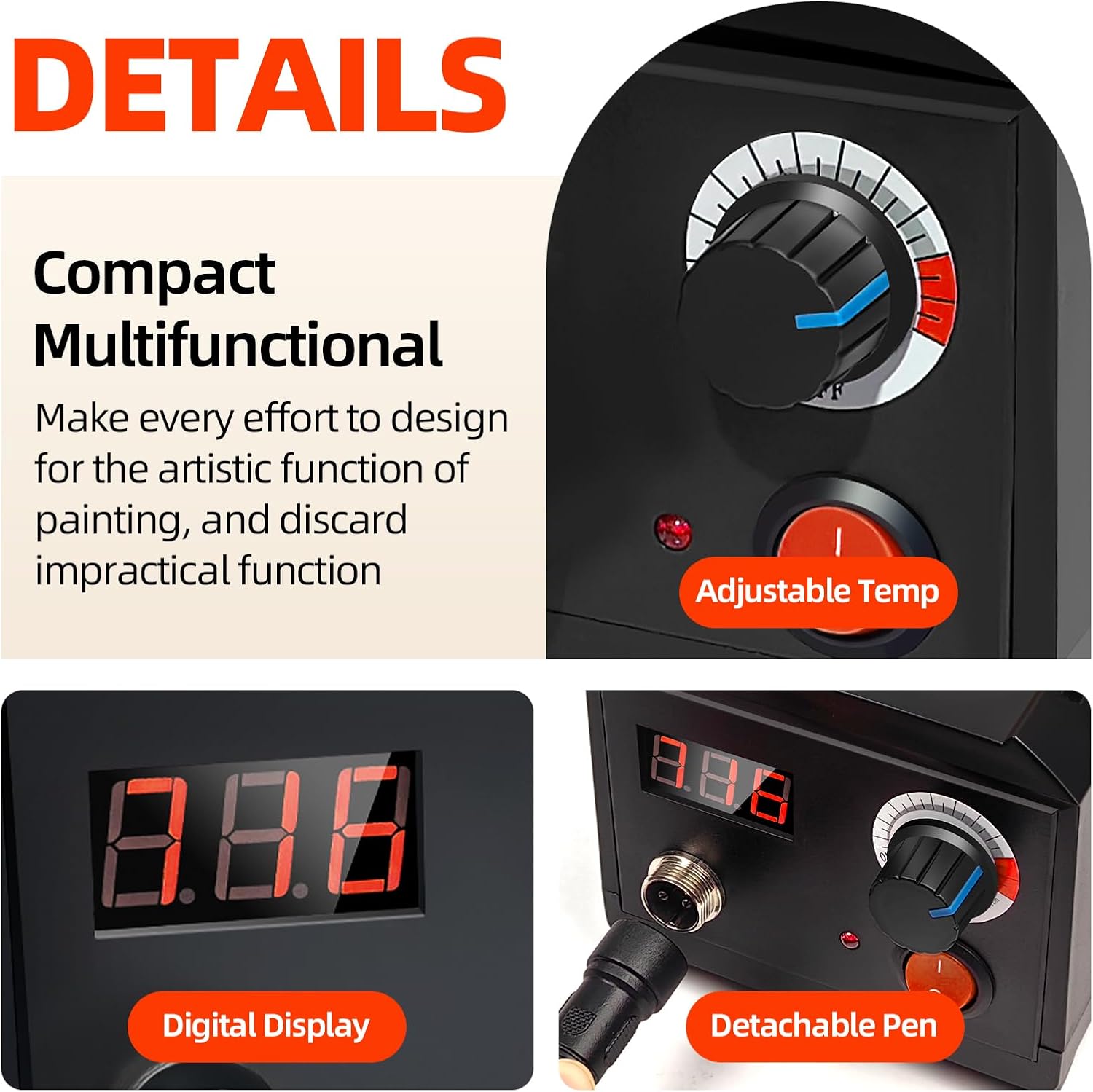

Setšoantšo: Ka botlalo view of the control unit, highlighting the adjustable temperature knob, digital display, and the detachable pen connection port.
5. Litaelo tsa Ts'ebetso
This section guides you through the operation of your wood burning kit.
5.1 Powering On and Temperature Adjustment
- Press the red power button on the front of the unit to turn it on. The digital display will illuminate.
- Rotate the temperature control knob to set your desired temperature. The digital display will show the current temperature, which will rapidly increase to the set value. The adjustable range is 200~750℃.
- Allow the pen to heat up for a few minutes until it reaches the set temperature. Heating time may vary depending on the selected temperature and nib type.

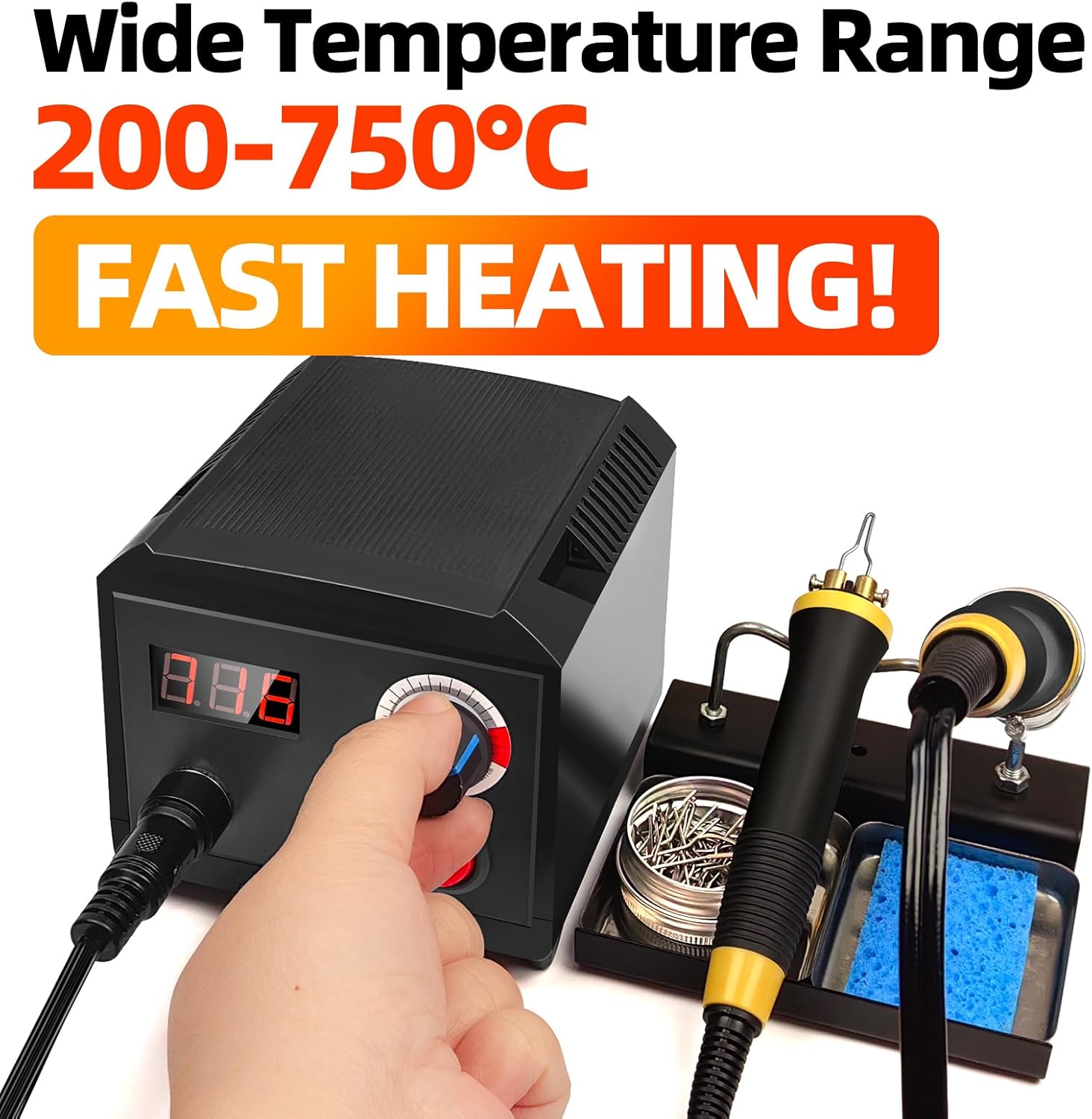

Image: A hand adjusting the temperature knob on the pyrography station, with the digital display showing the temperature and text indicating 'Wide Temperature Range 200-750°C' and 'FAST HEATING!'.
5.2 Using Different Nibs
The kit includes 36 different nibs for various effects:
- Wire Nibs: Ideal for fine lines, detailing, feathering, crosshatching, and intricate patterns. These heat up quickly and offer consistent burning.
- Solid Copper Pen Tips: Suitable for creating broader lines, shading, and filling in larger areas.
- Professional Pen Tips: Designed for precise drawing and rendering, depicting delicate and complex details.
Experiment with different nibs on scrap material to understand their unique characteristics and find the best fit for your project.
Image: A comparison showing the Wire-Nib Detailer used for fine outlining and feathering, and the Solid-Point Pen used for outlining, shading, and heat-transfer, demonstrating their distinct applications.
5.3 Working with Different Materials
Different types of wood and materials (e.g., leather, cork, gourds) have varying densities and moisture content, requiring different temperatures for optimal burning. Always test on a scrap piece of the same material before working on your final project.
- Softwoods (e.g., pine, basswood): Generally require lower temperatures.
- Hardwoods (e.g., oak, maple): May require higher temperatures.
- Letlalo: Typically requires lower temperatures and a lighter touch to avoid cutting through the material.
Adjust the temperature setting to a higher value if the burn color is too light, or lower it if the material burns too quickly or deeply.
Setšoantšo: Examples of pyrography artwork on different materials including leather, wood board, tree bark, and bamboo, demonstrating the versatility of the tool.
6. Tlhokomelo
Proper maintenance ensures the longevity and performance of your wood burning kit.
- Cleaning Nibs: Regularly clean the nibs using the included cleaning sponge (dampened, not wet) or fine-grit sandpaper to remove carbon buildup. Clean nibs ensure consistent heat transfer and precise lines. Always clean nibs when they are cool.
- Ho Hloekisa Diyuniti: Wipe the main unit with a soft, dry cloth. Do not use abrasive cleaners or immerse the unit in water.
- Polokelo: Store the kit in a dry, cool place, away from direct sunlight and moisture. Ensure all components are cool before storing.
- Tlhokomelo ea Mehala: Avoid kinking or bending the power cords excessively. Inspect cords for any damage before each use.
7. Ho rarolla mathata
If you encounter issues with your wood burning kit, refer to the following:
| Bothata | Lebaka le ka khonehang | Tharollo |
|---|---|---|
| Pene ha e futhumale | Power not connected; Pen not securely connected; Faulty nib; Unit malfunction | Check power cord and outlet; Ensure pen connector is fully inserted; Replace nib; Contact customer support if unit is faulty. |
| Inconsistent burning / Light marks | Nibs are dirty; Temperature too low; Material density | Clean nibs thoroughly; Increase temperature gradually; Test on scrap material to find optimal temperature for your specific material. |
| Pen gets too hot to hold | Prolonged use at high temperature; Faulty pen insulation | Take breaks during extended use; Ensure proper grip on the insulated handle; If issue persists, contact customer support. |
| Pontšo ea dijithale ha e sebetse | Power issue; Unit malfunction | Check power connection; Contact customer support. |
8. Litlhaloso
Technical specifications for the FIRElood LH80-1-NS2 Wood Burning Kit:
- Nomoro ea Mohlala: LH80-1-NS2
- Lebitso: MOTS'OANE
- Keletso Voltage: 110V
- Mefuta ea Mocheso o Fetohang: 200~750℃ (392~1382°F)
- Mofuta oa Pontšo: Dijithale
- Boima ba Ntho: Hoo e ka bang lik'hilograma tse 1.9 (0.86 lik'hilograma)
- Boholo ba Sehlahisoa: 4.37 x 4.45 x 3.74 inche (Tekanyetso e kholo)
- Number of Nibs: 36 (30 wire, 3 solid copper, 3 professional)
- Mmala: Ntsho
9. Tiisetso le Tšehetso
The FIRElood LH80-1-NS2 Wood Burning Kit comes with a Waranti ea lilemo tse 1 on the main unit (host). This warranty covers manufacturing defects under normal use.
For warranty claims, technical support, or any questions regarding the product, please contact the retailer or manufacturer directly. Please have your purchase receipt and model number (LH80-1-NS2) available when contacting support.
