Naicon Diloc Dune 9000 BTU Inverter Monosplit Air Conditioner User Manual

Model: D.DUNE09

1. Selelekela

Thank you for choosing the Naicon Diloc Dune 9000 BTU Inverter Monosplit Air Conditioner. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new air conditioning system. Please read this manual thoroughly before using the appliance and retain it for future reference.

This system features inverter technology, R32 refrigerant, integrated Wi-Fi, and offers cooling, heating (heat pump), and dehumidification functions with an A++/A+ energy rating. The kit includes an indoor unit (D.DUNE09), an outdoor unit (D.DUNE109+), and a Wi-Fi module (D.WIFI).

Naicon Diloc Dune 9000 BTU Inverter Monosplit Air Conditioner indoor and outdoor units

Image 1.1: Naicon Diloc Dune 9000 BTU Inverter Monosplit Air Conditioner, showing both indoor and outdoor units.

2. Boitsebiso ba Tšireletseho

Ka kopo ela hloko mehato e latelang ea ts'ireletso ho thibela kotsi kapa tšenyo ea sesebelisoa:

  • Kemiso ea Setsebi: Installation, maintenance, and repair must be performed by qualified personnel. Improper installation can lead to electric shock, fire, or water leakage.
  • Phepelo ea motlakase: Ensure the power supply matches the specifications of the unit. Do not use damaged power cords or plugs.
  • Sehatsetsi: This unit uses R32 refrigerant. Handle with care and ensure proper ventilation during installation and servicing. R32 is a mildly flammable refrigerant.
  • Bana le Batho ba Kotsing: Sesebelisoa sena se ka sebelisoa ke bana ba lilemo tse 8 ho ea holimo le batho ba nang le matla a fokotsehileng a 'mele, a kutlo kapa a kelello kapa ba hlokang boiphihlelo le tsebo haeba ba filoe tlhokomelo kapa taelo mabapi le tšebeliso ea sesebelisoa ka tsela e sireletsehileng le ho utloisisa likotsi tse amehang. . Bana ha baa lokela ho bapala ka sesebelisoa. Ho hloekisa le ho hlokomela basebelisi ha hoa lokela ho etsoa ke bana ntle le tlhokomelo.
  • Moea oa moea: Do not block the air inlet or outlet of the indoor or outdoor unit.
  • Ho hloekisa: Always disconnect the power supply before cleaning the unit. Use a soft, dry cloth for cleaning. Do not use water or chemical solvents directly on the unit.

3. Sehlahisoa Overview

The Naicon Diloc Dune air conditioner system consists of two main components:

3.1. Indoor Unit (Model: D.DUNE09)

The indoor unit is responsible for circulating conditioned air within your room. It houses the evaporator coil, fan, and control electronics.

Naicon Diloc Dune Indoor Unit

Image 3.1: The indoor unit of the Naicon Diloc Dune air conditioner.

3.2. Outdoor Unit (Model: D.DUNE109+)

The outdoor unit contains the compressor, condenser coil, and expansion valve. It dissipates or absorbs heat from the outside air.

Naicon Diloc Dune Outdoor Unit

Image 3.2: The outdoor unit of the Naicon Diloc Dune air conditioner.

3.3. Wi-Fi Module (Model: D.WIFI)

The integrated Wi-Fi module allows for remote control and monitoring of your air conditioner via a smartphone application.

4. Seta

4.1. Ho kenya

The installation of this monosplit air conditioning system requires specialized knowledge and tools. It is strongly recommended that you engage a certified HVAC professional for the installation process to ensure proper functioning, safety, and compliance with local regulations.

Key installation considerations include:

  • Selecting appropriate locations for both indoor and outdoor units.
  • Ensuring proper drainage for condensate.
  • Connecting refrigerant lines and electrical wiring correctly.
  • Vacuuming the refrigerant lines and checking for leaks.

4.2. Wi-Fi Setup

Your Diloc Dune air conditioner comes with integrated Wi-Fi for smart control. To set up the Wi-Fi functionality:

  1. Download the compatible smartphone application (e.g., Tuya Smart or Smart Life, as indicated by product features) from your device's app store (Apple App Store or Google Play Store).
  2. Ensure your air conditioner is powered on.
  3. Follow the in-app instructions to add your device. This typically involves putting the air conditioner into pairing mode (refer to the specific instructions provided with the Wi-Fi module or in the app for details on how to activate pairing mode on the indoor unit).
  4. Connect the air conditioner to your home Wi-Fi network.
Naicon Diloc Dune Air Conditioner Features and Wi-Fi Integration

Setšoantšo sa 4.1: Ho fetaview of Naicon Diloc Dune features, including Wi-Fi integration and compatibility with smart home platforms.

5. Litaelo tsa Ts'ebetso

Your Diloc Dune air conditioner can be operated using the supplied remote control or via the smartphone application once Wi-Fi is configured.

5.1. Mesebetsi ea Motheo

  • Mokhoa oa ho Pholisa: Reduces room temperature. Select the snowflake symbol on the remote.
  • Mokhoa oa ho futhumatsa: Increases room temperature (heat pump function). Select the sun symbol on the remote.
  • Mokhoa oa Dehumidifier: Reduces humidity in the air without significant temperature change. Select the water drop symbol.
  • Mokhoa oa Fan: Circulates air without cooling or heating. Select the fan symbol.

5.2. Mesebetsi e khethehileng

  • Theknoloji ea Inverter: The inverter compressor adjusts its speed to maintain a stable temperature, leading to energy efficiency and quieter operation.
  • Mosebetsi oa TURBO: Provides rapid cooling or heating to reach the desired temperature quickly.
  • Mosebetsi oa Auto: The unit automatically selects the operating mode (cooling, heating, or fan) based on the current room temperature and the set temperature.
  • Taolo ea Wi-Fi: Use the smartphone app to control the unit remotely, set schedules, and monitor status.

5.3. Tšebeliso ea Remote Control

Point the remote control directly at the indoor unit's receiver. Ensure there are no obstructions between the remote and the unit. The remote control typically allows you to:

  • Bulela/Koala yuniti.
  • Khetha mokhoa oa ho sebetsa.
  • Fetola litlhophiso tsa mocheso.
  • Control fan speed.
  • Set timer functions.
  • Activate special functions like TURBO or SLEEP mode.

6. Tlhokomelo

Regular maintenance ensures optimal performance and longevity of your air conditioner. Always disconnect the power supply before performing any maintenance.

6.1. Automatic Maintenance

The Diloc Dune air conditioner features an automatic maintenance function. This function helps to keep the internal components clean and reduce the growth of mold and bacteria. Refer to your specific model's detailed instructions for how this function operates and if it requires manual activation.

6.2. Tlhoekiso ea Sesefa

The air filters in the indoor unit should be cleaned regularly (typically every 2-4 weeks, depending on usage and air quality) to maintain air quality and unit efficiency.

  1. Bula karolo e ka pele ea yuniti ea kahare.
  2. Tlosa li-filters tsa moea.
  3. Hloekisa lifiltara u sebelisa vacuum cleaner kapa u li hlatsoe ka metsi a futhumetseng le sesepa se bobebe.
  4. Allow the filters to dry completely in a shaded area before reinstalling them.
  5. Koala phanele e ka pele.

6.3. Seasonal Checks

  • Setsi sa kantle: Ensure the outdoor unit is free from obstructions (leaves, debris) and that the coils are clean.
  • Ho ntša metsi: Check that the condensate drain line is clear and not blocked.
  • Tšebeletso ea Setsebi: Consider an annual professional service check-up to ensure all components are functioning correctly and to check refrigerant levels.

7. Ho rarolla mathata

Pele o ikopanya le lefapha la tšehetso ea bareki, ka kopo hlahloba mathata a tloaelehileng a latelang:

  • Yuniti ha e bulele: Check power supply, circuit breaker, and ensure the remote control batteries are not depleted.
  • Insufficient cooling/heating: Ensure filters are clean, doors/windows are closed, and the set temperature is appropriate. Check for obstructions around indoor/outdoor units.
  • Lerata le sa tloaelehang: Minor noises during operation are normal. If loud or unusual noises occur, power off the unit and contact a professional.
  • Water leakage from indoor unit: Check if the drain hose is blocked or kinked. Ensure the unit is installed level.
  • Mathata a khokahano ea Wi-Fi: Ensure your router is working, the Wi-Fi signal is strong, and the app is updated. Try re-pairing the device.

For persistent issues, contact a qualified service technician.

8. Litlhaloso

8.1. Litlhaloso tse akaretsang

  • Lebitso: Naicon
  • Model Number (Indoor Unit): D.DUNE09
  • Bokhoni ba ho Pholisa: 9000 BTU
  • Sehatsetsi: R32
  • Sehlopha sa Matla: A++/A+
  • SEER (Seasonal Energy Efficiency Ratio): 6.8
  • Sebopeho se Ikhethileng: Wi-Fi e lumelletsoe
  • Mmala: Bosoeu
  • Moqtage: 230V AC
  • Mofuta oa Sefe: Modern filter
  • Naha ea tlhaho: Italy

8.2. Litekanyo

  • Indoor Unit (D.DUNE09) Product Dimensions: 31P x 76.5L x 48.1H cm

8.3. Likarolo tsa Bohlokoa

  • Wi-Fi Included
  • Theknoloji ea Inverter
  • Dehumidifier Function
  • TURBO Mosebetsi
  • Mosebetsi oa Auto
  • Automatic Maintenance

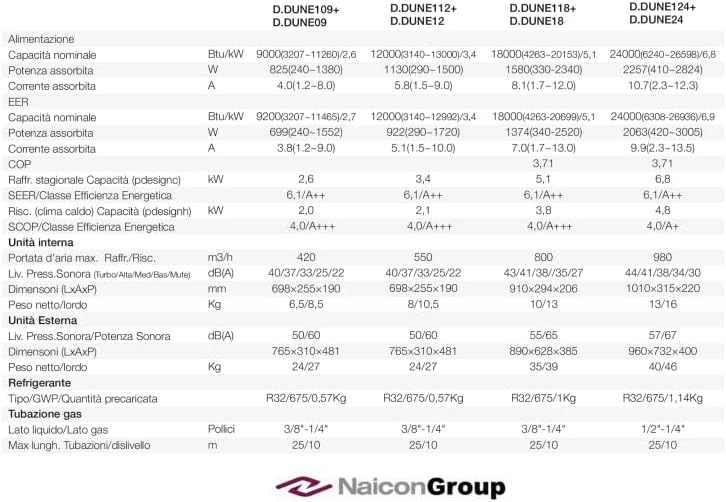

Naicon Diloc Dune Air Conditioner Technical Specifications Table

Image 8.1: Technical specifications table for Diloc Dune series, including D.DUNE09.

9. Tiisetso le Tšehetso

For warranty information and customer support, please refer to the documentation provided at the time of purchase or contact your retailer. General return policies for products purchased online may vary, typically allowing returns within a specific period if you change your mind or if the product is defective or damaged upon receipt. Always consult the specific terms and conditions of your purchase platform or retailer for detailed warranty and support procedures.
