SM1900M
4-20mA current type protection type temperature sensor
User Manual
File Version: V21.3.24

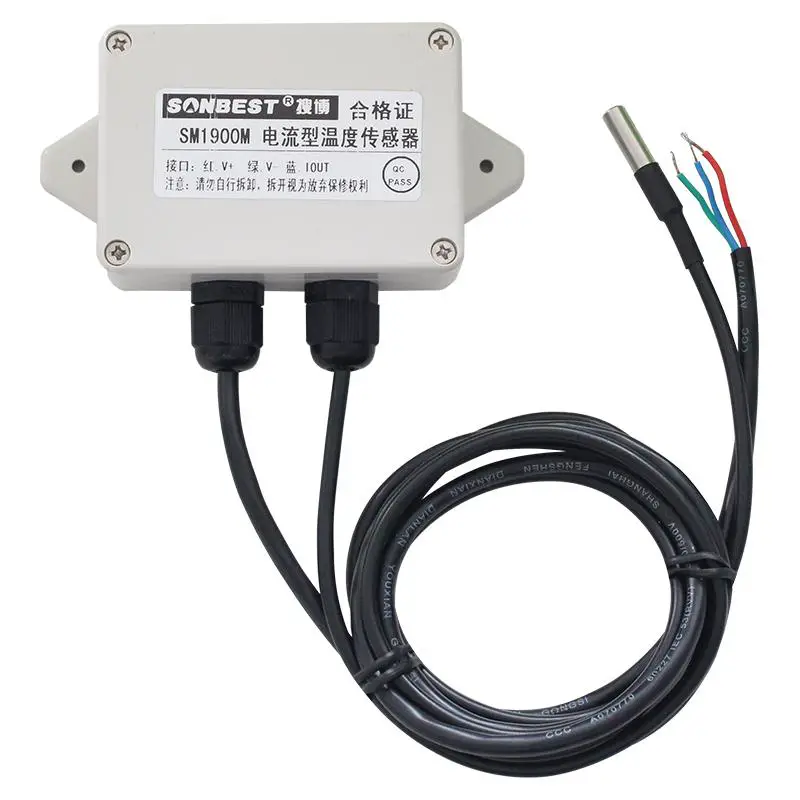

SONBEST SM1900M 4 20mA Current Type Protection Type Temperature Sensor - cover

SM1900M using the standard DC4-20mA current output signal, easy access to PLC, DCS, and other instruments or systems for monitoring temperature state quantities. The internal use of high -precision sensing core and related devices to ensure high reliability and excellent long-term stability, can be customized RS232, RS485, CAN,4-20mA, DC0~5V\10V, ZIGBEE, Lora, WIFI, GPRS and other output methods.

Technical Parameters

Technical parameter Parameter value
BrandSONBEST
Temperature measuring range-50℃~120℃
Temperature measuring accuracy±0.5℃ @25℃
Communication InterfaceDC4~20mA
PowerDC12~24V 1A
Running temperature-40~80°C
Working humidity5%RH~90%RH

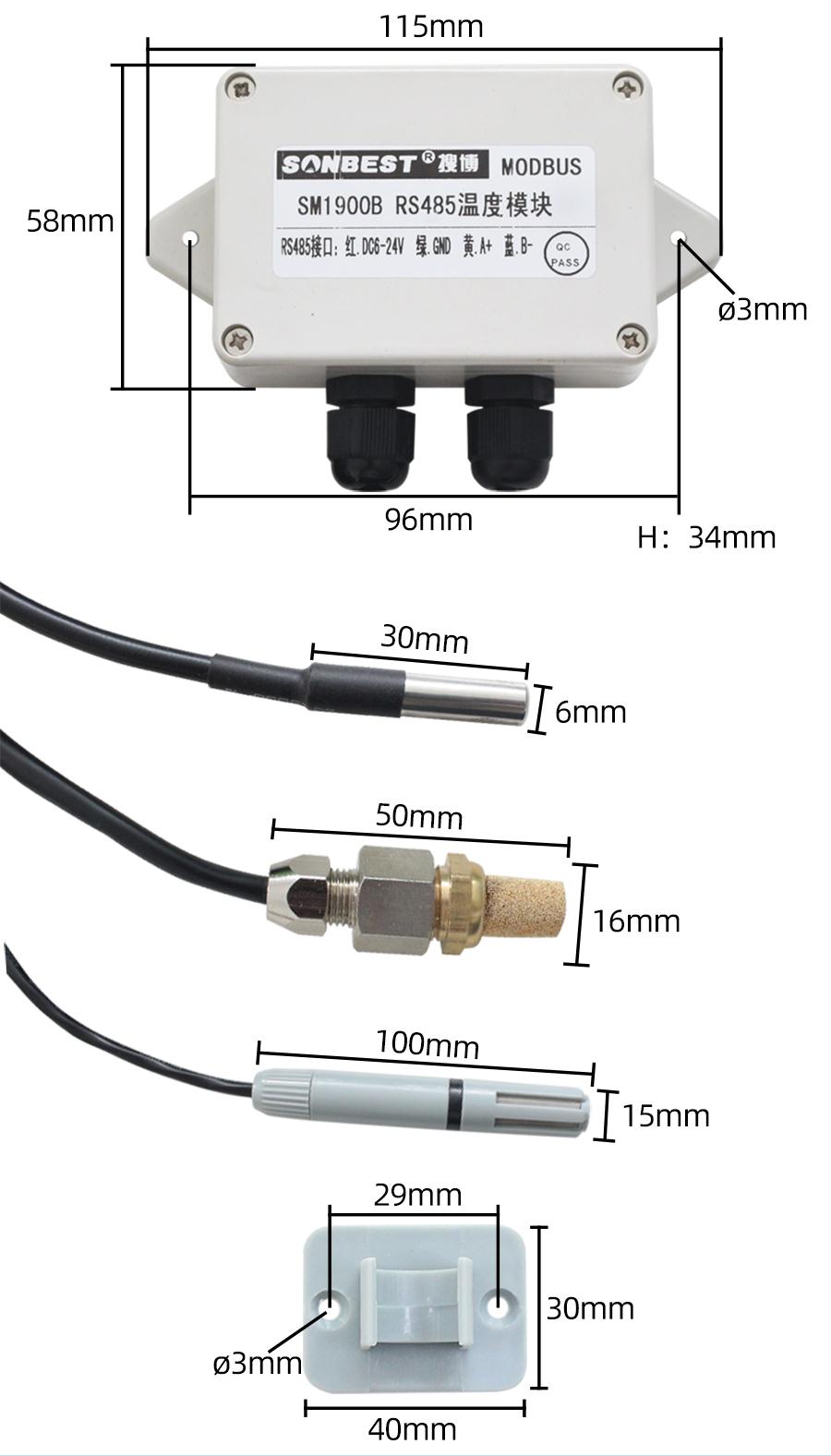

Product Size

SONBEST SM1900M 4 20mA Current Type Protection Type Temperature Sensor - overview

wiring?

SONBEST SM1900M 4 20mA Current Type Protection Type Temperature Sensor - wiring

Application solution

SONBEST SM1900M 4 20mA Current Type Protection Type Temperature Sensor - wiring 2

SONBEST SM1900M 4 20mA Current Type Protection Type Temperature Sensor - wiring 3

SONBEST SM1900M 4 20mA Current Type Protection Type Temperature Sensor - wiring 4

How to use?

SONBEST SM1900M 4 20mA Current Type Protection Type Temperature Sensor - How to use

SONBEST SM1900M 4 20mA Current Type Protection Type Temperature Sensor - How to use 2

SONBEST SM1900M 4 20mA Current Type Protection Type Temperature Sensor - How to use 3

Disclaimer
This document provides all information about the product, does not grant any license to intellectual property, does not express or imply, and prohibits any other means of granting any intellectual property rights, such as the statement of sales terms and conditions of this product, other issues. No iability is assumed. Furthermore, our company makes no warranties, express or implied, regarding the sale and use of this product, including the suitability for the specific use of the product, the marketability, or the infringement liability for any patent, copyright, or other intellectual property rights, etc. Product specifications and product descriptions may be modified at any time without notice.
