SOLEM WooBee Station Watering Program Installation Guide
OVERVIEW
The WooBee is an IP68 rated waterproof irrigation controller equipped with a display andoperating on a 9V battery or four 1.5V AAA batteries. It can be programmed via a Bluetooth®connection from a smartphone/tablet or using its keypad. It can control 1 to 6 9V latching solenoids and has a rain sensor and a water meter input.
Installation
Unscrew the battery cap and connect the 9V battery or the 4 x 1V5 AAA battery pack
CONFIGURATION OF THE BATTERY TYPE

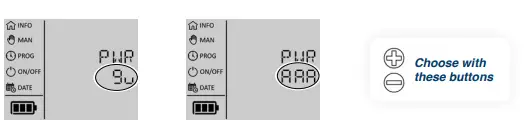

From the «Set time» menu, you can select the type of battery used:«9v» for a 9V battery or «AAA» for 1.5V AAA batteries. In order to do so…
Choose withthese buttons
OVERVIEW
Press 4 times to enter the setting mode (date, battery type).
Press 7 times to reach the choice of battery type
Press to confirm your choice.
Press to return to the main menu screen.
FIXATION
The WooBee can be directly installed on a solenoid valveusing its removable support on the back. It can also be securely mounted on a wall using the two fixing holes on the back.
Operation with Bluetooth
Download the MySOLEM app on your smartphone
or tablet from the App Store or Google Play.
PAIRING
1. Launch the MySOLEM app on your smartphone or tablet.
2. Tap on the « Add module » button or the « + » button.
3. Choose « WooBee » from the list of nearby controllers.
4. Follow the next steps as described in the application.
Notes :
Set a name and security key for your controller, then pres
B. Unlocking keypad
The manual unlocking of the WooBee keyboard is done with the following buttons:
C. Disable the key
To disable the key, go to « Product Information » by clicking on the icon
at the top right of the screen. Then, delete the key
Operation without Bluetooth
MANUAL CONTROL EXAMPLE
Find the configuration details on the installation guide at https://solem-irrigation.com/or on the MySOLEM app.
Valve wiring
Connect the valves
to 9V latching solenoids.
Sensor wiring
The WooBee has a sensor input + S – to connect a rain sensoror a water meter pre-equipped with a pulse sensor, only configurablewith the mobile application MySOLEM. By default, the sensor input isconfigured for the rain sensor. To change the sensor with the application, delete the active sensor.
WATER METER
Water budget (optionnel)
The Water Budget adds a percentage of time to the duration of each station. It is normally used when changing seasons. Ex: If you entered Station 1 = 1h on Program A and Station 2
= 0h30 on Program A, then enter a Water Budget 120 % for Program A. When the Program A starts, the stations 1 and 2 will be increased by 20%, (ex 1h12 for Station 1 and 0h36 for Station 2).
MONTHLY WATER BUDGET
The Monthly Water Budget allows you to add a percentage to the station time indicated in each of your programs. This means you can define a percentage for each month, enabling you to anticipate seasonal weather changes.
The idea is to take as a reference the watering time of each of your stations for the month of July, which will be the maximum watering time. For this month of July, you will define a Monthly Water Budget of 100%. The other months will have lower percentages.For example: March = 50%, May = 80%.
This Monthly Water Budget is added to the Water Budget indicated in the program.
SETTINGS
By default, if you don’t use it, the Monthly Water Budget is automatically set as 100% for every month of the year. To set up the Water Budget functionnality:
- Connect to the programmer by activating your phone’s
- Go to the product settings by clickingthe green gear at the top right of the screen.
- Click on « Monthly Water Budget ».
- Adjust the water budget for each
Once your changes have been made, submit the new settings by clicking on the « send » button for iOS or the arrow at the bottom right of the product’s main screen for Android phones
TECHNICAL CHARACTERISTICS
SPECIFICATIONS:
100% waterproof (IP68 rated)
Rain sensor or Water meter connection Master valve connection9V latching solenoid compatible
Maximum wiring length with solenoids: 30m Operating temperature: -10°C to 50°C3 years warranty
POWER SUPPLY:
9V 6AM6 or 6LR61 alkaline battery or 4 x 1.5V AAA alkaline batteries
OPPERATION:
Bluetooth® Smart 4.0 Low Energy Frequency band used and maximum emitted power: [2400-2483.5]Mhz, 1mW Permanent backup of the programs Backup of the internal clock in case of power failure < 30 seconds
DIMENSIONS:
Width : 10.5cm (3.94 inches) Height : 15cm (5.90 inches) Depth : 5cm (1.97 inches)
GENER AL INFORMATION
Indicates that the product uses Bluetooth® technology.
Affirms the goods’ conformity with European health, safety, and environmental protection standards.
Dispose this device separately. Do not dispose it along with household waste. Please use the collection and recycling points available in your country when your device is no longer of use.
Indicates that the product is shock resistant.
Indicates that the product is resistant to UV radiation.
Indicates that the product is waterproof.
EUROPE: DECLARATION OF CONFORMITY
Solem Electronique has declared that the WooBee irrigation controller complies with the essential requirements of the European directives:
Directives 2014/53/EU (RED):
Harmonized standards:
BLE standard: ETSI EN 300 328 v2.2.2
EMF standard: EN 62311 (2008) and recommendation 1999/519/CE EMC standard: EN 61000-3-2 (2019) / EN 61000-3-3 (2013 + A1/2019)
& ETSI EN 301 489-1 v1.1.1 & EN 301 489-17 v3.1.1
Electrical Safety Standard: EN 62368-1 : 2014
RoHS directive 2011/65/EU & amendment of directive (EU) 2015/863
Clapiers, 23/11/2023 SOLEM ELECTRONIQUE
ZAE La Plaine
5, rue Georges Besse 34830 Clapiers, FRANCE
Oliver Aussillous Industrial Manager
FCC NOTICE
Caution: the user that changes or modifications not expressly approved by the party reponsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, persuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference is not guarantee that interference will not occur in a particular installation. If this equipement does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct interference by one or more of the following measures:
- Reorient or relocate the receiving
- Increase the separation between the equipment and
- Connect the equipment into an outlet on circuit different from that to which the receiver is deconnected.
- Consult the dealer or an experienced radio/TV technicien for
This device complies with FCC RF radiation exposure limits set forth for general population. This device must be installed to provided a separation distance of a least 20cm from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter.
This class (B) digital apparatus complies with Canadian ICES-003.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
This device complies with Industry Canada license-exempt RSS standards). Operation is subject to the following two conditions:
- This device may not cause interference,
- This device must accept any interference, including interference that may cause undesired operation of the device.
This device complies with Industry Canada RF radiation exposure limits set forth for general population. This device must be installed to provide a separation distanceof a least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
