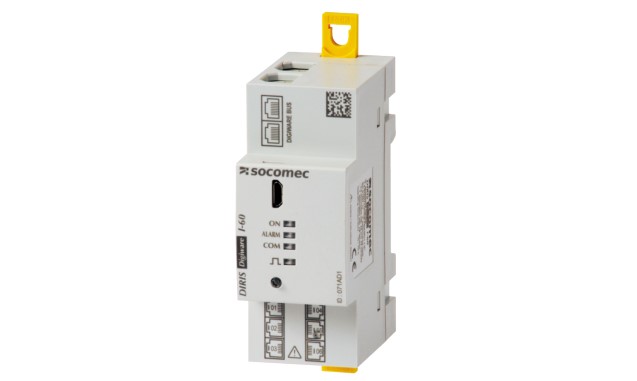

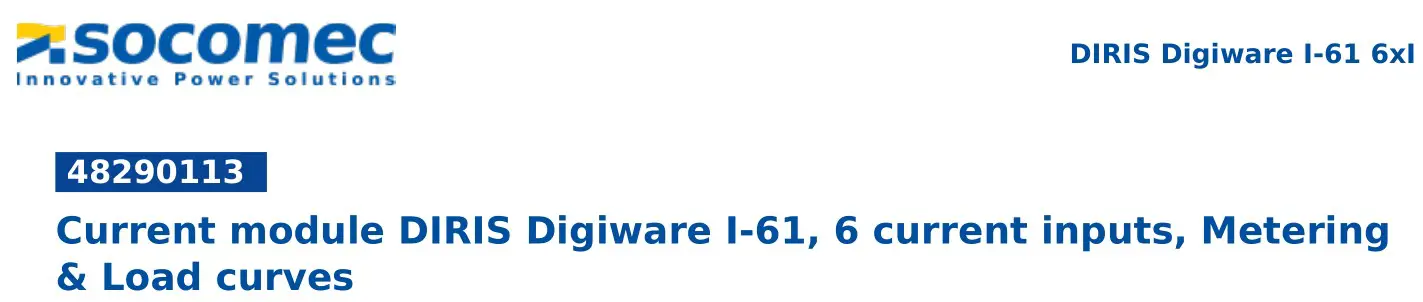

SOCOMEC I-61 Current Module DIRIS Digiware User Manual
DIRIS Digiware Iac modules measure consumption and monitor the installation as close as possible to loads. Their flexibility allows you to distribute the loads to meter or monitor independent current inputs (for example: 1 three-phase load or 3 single-phase loads).
Strong points
– Multi-circuit
– Accurate
– Compact
– Plug & Play
– Leading edge technology
– MID certified (for I-xxMID versions)
General characteristics
– Versions with 3, 4 or 6 RJ12 current inputs.
– Compatible with TE, TR/iTR and TF current sensors.
– DIN rail assembly.
Compliance with standards
– IEC 61557-12
– UL 61010 Guide PICQ File E257746
– ANSI C12.20
– EN 50470-1
– EN 50770-3
– Directive 2014/32/EU
Access to resources (ex: manuals)

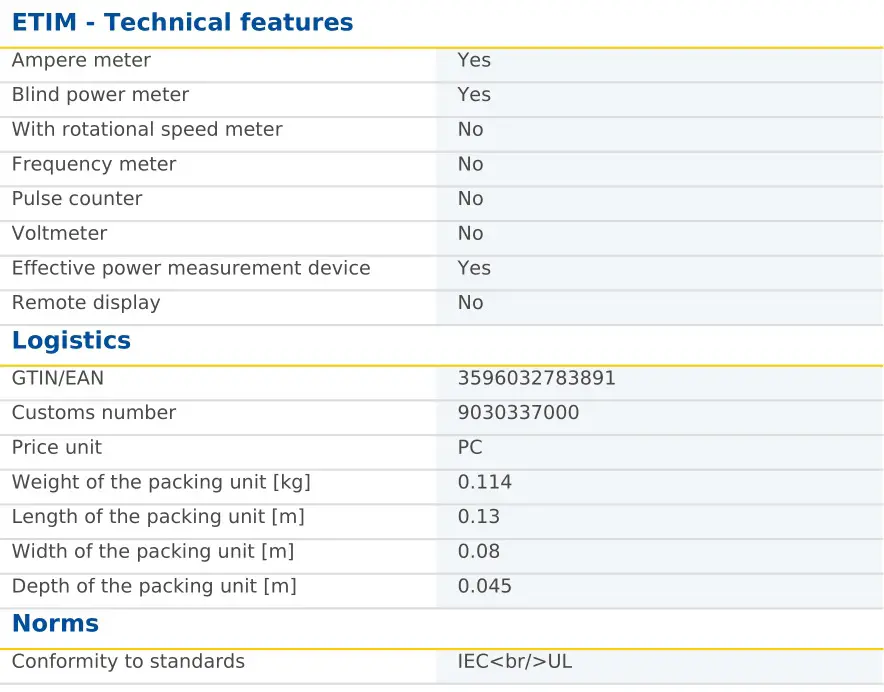

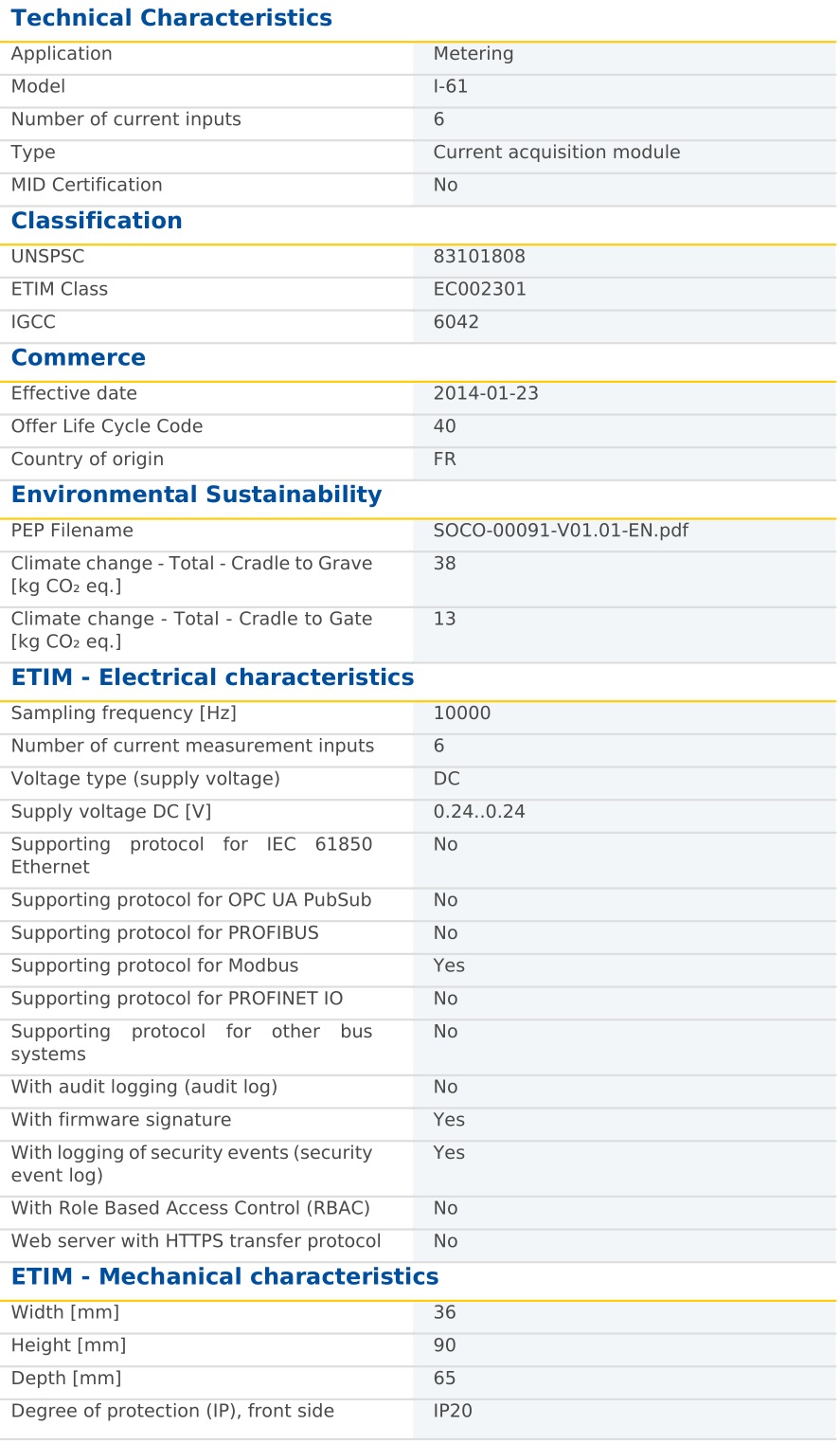

Technical Characteristics
Powered by TCPDF (www.tcpdf.org)
2025-05-21 13:13:36
https://www.socomec.co.uk/en-gb/reference/48290113
Documents / Resources
 | SOCOMEC I-61 Current Module DIRIS Digiware [pdf] User Manual 48290113, I-61 Current Module DIRIS Digiware, I-61, Current Module DIRIS Digiware, DIRIS Digiware, Digiware |
