Sparmax TC-620X Oil-Free Silent Compressor User Manual

1. Nhanganyaya

This manual provides essential information for the safe and efficient operation, setup, and maintenance of your Sparmax TC-620X Oil-Free Silent Compressor. Please read this manual thoroughly before using the compressor and retain it for future reference.

The Sparmax TC-620X is a professional-grade, oil-free airbrush compressor designed for versatility and quiet performance. It features a 2.5-liter air tank and is capable of operating two airbrushes simultaneously.

2. Mirayiridzo Yekuchengetedza

Always observe the following safety precautions to prevent injury or damage to the compressor:

• Kuchengetedzwa Kwemagetsi: Ensure the compressor is connected to a grounded outlet with the correct voltage (120 Volts). Do not operate with damaged cords or plugs.
• Kufefetedza Shandisa compressor munzvimbo ine mhepo inofefetera zvakanaka kudzivirira kupisa zvakanyanya.
• Pressure Release: Always release air pressure from the tank before performing maintenance or disconnecting accessories.
• Musungo wehunyoro: Regularly drain the moisture trap to prevent water buildup, which can affect air quality and compressor performance.
• Vana uye Zvipfuwo: Chengeta compressor kure nevana nezvipfuyo.
• Zvinotarisirwa Kushandiswa: Use the compressor only for its intended purpose of airbrushing.
• Zvakanatsiridzwa: Do not attempt to modify the compressor. Unauthorized modifications can be dangerous and void the warranty.

3. Zvigadzirwa Zvikamu uye Zvimiro

Familiarize yourself with the key components of your Sparmax TC-620X compressor:

Mufananidzo 1: Compressor overview highlighting airbrush holders, 2.5L air tank, and pressure switch (40/60 psi auto on/off).

Mufananidzo 2: Compressor details including the pressure regulator with gauge, moisture filter, and twin cylinder design.

• Airbrush Holders: Two integrated holders for convenience.
• Air Tank (2.5L): Provides ultra-steady airflow and includes a drain valve.
• Pressure Switch: Automatic on/off operation at 40/60 psi for consistent pressure.
• Pressure Regulator & Gauge: Allows for real-time display and adjustment of air pressure.
• Moisture Filter: Ensures cleaner air delivery by trapping moisture.
• Twin Cylinder: Stronger and steadier air output.

4. Setup Instructions

Follow these steps to set up your Sparmax TC-620X compressor:

1. Kuburitsa: Carefully remove all components from the packaging. Verify that all included items are present.
2. Kuiswa: Isa compressor panzvimbo yakagadzikana, yakaenzana munzvimbo ine mhepo yakanaka.
3. Component Assembly:
   • Attach the airbrush holders to the designated points on the compressor.
   • Connect the braided air hoses to the compressor's air outlets and to your airbrushes.
   • If necessary, use the provided airbrush adaptors to ensure compatibility with your airbrushes.
4. Power Connection: Plug the power cord into a grounded 120 Volt electrical outlet.
5. Kutanga Kuongorora: Before connecting an airbrush, turn on the compressor to ensure it builds pressure and the auto on/off switch functions correctly. The compressor should turn off around 60 psi and turn back on around 40 psi.

Mufananidzo 3: Included accessories: 2 Airbrush Holders, 2 Braided Hoses (3M), and 3 Airbrush Adaptors.

5. Operating Instructions

To operate your Sparmax TC-620X compressor:

1. Power On: Flip the power switch to the "ON" position. The compressor will begin to fill the air tank.
2. Pressure Adjustment: Use the pressure regulator knob to set the desired working pressure for your airbrush. The gauge will display the current pressure.
3. Airbrush Connection: Connect your airbrush(es) to the air hoses. The compressor supports up to two airbrushes simultaneously.
4. Tanga Airbrushing: Once the desired pressure is set, you can begin your airbrushing work. The compressor's auto on/off feature will maintain consistent pressure.
5. Power Off: After use, turn off the compressor by flipping the power switch to the "OFF" position.
6. Release Pressure: Disconnect your airbrush and release any remaining air pressure from the system by briefly opening the airbrush trigger or using the tank drain valve.

6. Kuchengeta

Kugadziriswa nguva dzose kunovimbisa kugara kwenguva refu uye kushanda zvakanaka kwecompressor yako:

• Musungo weKubvisa Hunyoro: After each use, or regularly depending on humidity, drain any accumulated moisture from the moisture trap and the air tank's drain valve. This prevents water from entering your airbrush and paint.
• Chenesa Kunze: Pukuta pasi kunze kwe compressor ne adamp jira rekubvisa guruva nemarara. Usashandise makemikari ane simba.
• Tarisa Hoses uye Kubatanidza: Periodically inspect air hoses for cracks or leaks and ensure all connections are secure.
• Kuchengeta: Chengetedza compressor munzvimbo yakachena, yakaoma kana isiri kushandiswa.
• Dhizaini Yeisina Mafuta: The Sparmax TC-620X is an oil-free compressor, requiring no lubrication of internal components.

7. Kugadzirisa matambudziko

Tarisa kuchikamu chino kune zvakajairika nyaya uye mhinduro dzadzo:

8. Zvinotsanangurwa

Technical specifications for the Sparmax TC-620X Oil-Free Silent Compressor:

• Model Number: TC-620X
• Brand: Sparmax
• Voltage: 120 Volts
• Kunobva Simba: Corded Electric
• Noise Level: 63 Decibel
• Maximum Power: 0.17 Horsepower
• Motor Horsepower: 0.1667 Horsepower
• Air Tank Capacity: 2.5 litres
• Air Flow Capacity: 32 litres paminiti
• Pressure Switch: Auto On/Off at 40/60 psi
• Rudzi rwezvinhu: Metal
• Inokurudzirwa Kushandiswa: Air Brushing
• Zvimwe Zvimiro: Lightweight, Silent Operation, Dual Airbrush Capability
• Zvinosanganisirwa Zvikamu: Air receiver tank, condensate trap, 2 airbrush holders, 2 braided hoses (3M), 3 airbrush adaptors.

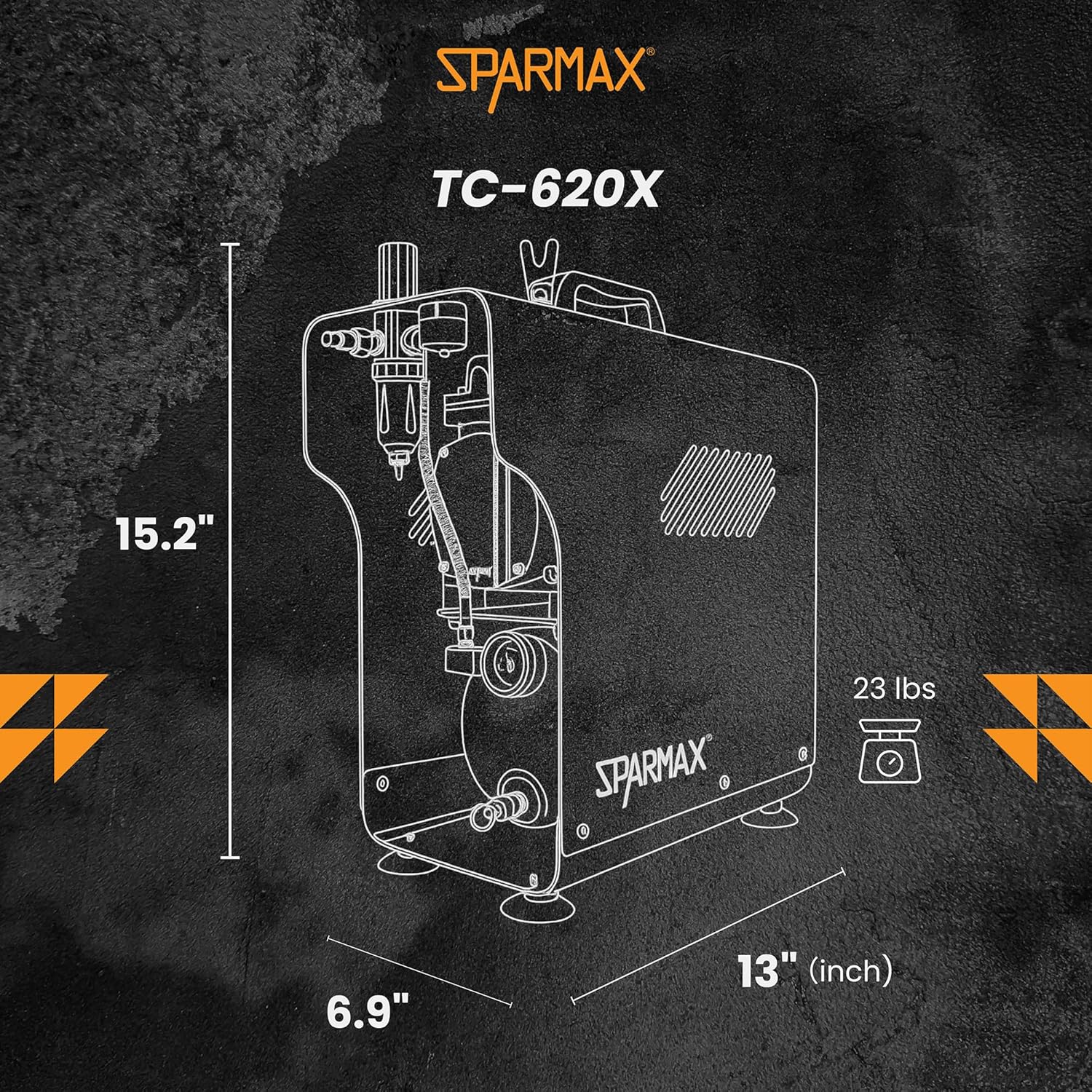

Mufananidzo 4: Compressor dimensions: Height 15.2", Length 13", Width 6.9". Weight: 23 lbs.

9. Warranty uye Tsigiro

For specific warranty information and customer support, please refer to the documentation provided with your purchase or contact your retailer or the official Sparmax website. Chengetedza humbowo hwako hwekutenga kune warranty claim.
