Somfy RMS 1000 Radio Kit yeTraditional Roller Shutters - Bhuku reMushandisi

1. Chigadzirwa Pamusoroview

The Somfy RMS 1000 Radio Kit is a complete solution designed to motorize traditional roller shutters. This kit allows for convenient control of your roller shutters using RTS radio technology and an included remote control. It is specifically engineered for shutters with a traditional box or tunnel installation.

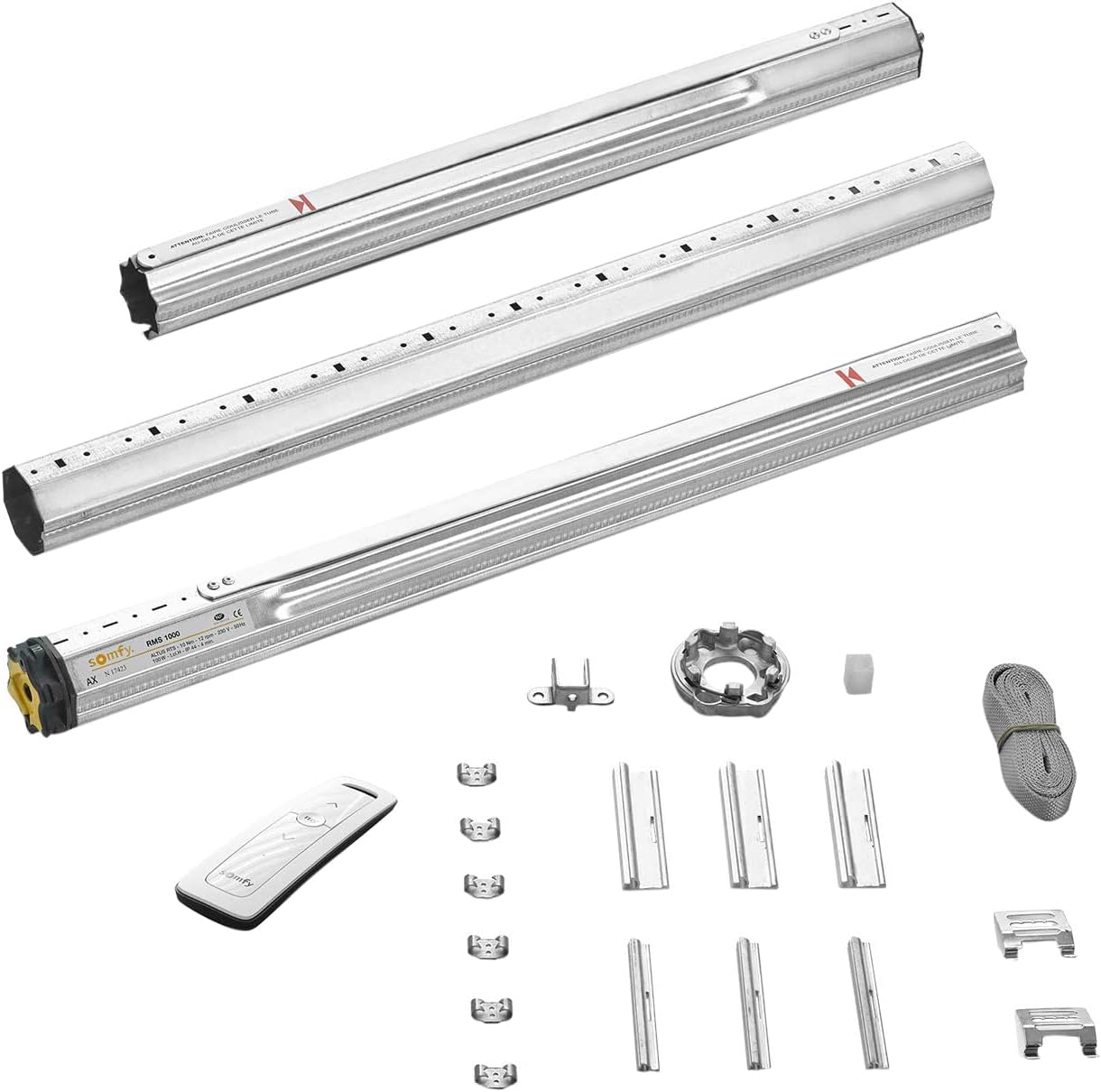

Figure 1: Somfy RMS 1000 Radio Kit components, including the motor, remote control, and various installation accessories.

Zvinokosha:

• Complete kit for motorizing roller shutters with a crank, typically mounted on the window frame.
• Compatible with windows up to a maximum area of 3.4 m². Refer to the sizing table for detailed compatibility.
• Suitable for blinds with PVC or aluminum slats.
• Designed for roller shutters with a traditional box or tunnel installation.
• Features a telescopic and octagonal Somfy motor shaft with a 60 mm diameter, supplied with all necessary fitting accessories.
• Utilizes RTS radio technology for remote control operation of the roller shutter.

2. Compatibility and Sizing

The RMS 1000 kit is designed for specific roller shutter dimensions and materials. Ensure your roller shutter falls within the compatible ranges to guarantee optimal performance and proper installation.

Figure 2: This chart illustrates the compatible curtain height and width ranges for the Somfy MS100/RMS1000 and MS200/RMS2000 motorization kits, based on an average curtain weight of 6 kg/m².

The RMS 1000 is suitable for roller shutters with PVC or aluminum slats. For larger windows or different configurations, please consult the RMS 2000 specifications.

3. Kuisa Nongedzo

Installation of the Somfy RMS 1000 kit requires careful attention to detail. It is recommended that installation be performed by a qualified professional or an experienced DIY enthusiast. Always ensure power is disconnected before beginning any installation work.

Types of Roller Shutter Boxes:

The RMS 1000 is designed for roller shutters with either a traditional box or a tunnel installation.

Figure 3: Tunnel box installation, where the shutter box is hidden within the wall.

Figure 4: Timber box installation, where the shutter is positioned behind the inner side of the lintel or surface mounted.

General Installation Steps (Consult full manual for details):

1. Kugadzirira: Disconnect power to the area. Remove the existing roller shutter mechanism.
2. Motor Assembly: Assemble the Somfy motor shaft with the appropriate adapters and crown, ensuring it fits the roller shutter tube.
3. Kukwidza: Insert the motor assembly into the roller shutter box. Secure the motor and the idle end support.
4. Kubatanidza Magetsi: Connect the motor to the power supply according to local electrical codes.
5. Shutter Attachment: Attach the roller shutter slats to the motor tube using the provided fasteners.
6. Limit Switch Adjustment: Power on the system and adjust the upper and lower limit switches using the remote control to define the shutter's travel range.
7. Remote Control Pairing: Pair the remote control with the motor.

4. Operating Instructions

The Somfy RMS 1000 is operated using the supplied RTS remote control. The remote allows for precise control over your roller shutter's movement.

Figure 5: A hand holding the Somfy remote control, demonstrating its use for adjusting the roller shutter.

Basic Mabasa:

• UP Button (^): Press to raise the roller shutter.
• DOWN Button (v): Press to lower the roller shutter.
• STOP/MY Button (my): Press briefly to stop the shutter at any desired position. A long press can be used to set or recall a favorite 'my' position.

For advanced programming, such as setting intermediate positions or connecting to a Somfy smart home system, refer to the detailed programming guide provided with your kit or available on the Somfy website.

5. Kuchengeta

The Somfy RMS 1000 motor is designed for long-term, maintenance-free operation. However, regular checks of the roller shutter system itself can help ensure its longevity and smooth performance.

• Clean Tracks: Periodically inspect and clean the roller shutter tracks to ensure there are no obstructions (e.g., dirt, debris, leaves) that could impede the shutter's movement.
• Ongorora MaSlats: Check the roller shutter slats for any damage, cracks, or misalignment that could affect operation.
• Magetsi: Ensure the power supply to the motor is stable and free from interruptions.
• Remote Control Battery: Replace the remote control batteries when the indicator light dims or the range decreases.

Do not attempt to lubricate the motor or internal components. If you suspect a mechanical issue with the motor, contact Somfy support or a certified technician.

6. Kugadzirisa matambudziko

If you encounter issues with your Somfy RMS 1000 system, try the following troubleshooting steps before contacting support.

If these steps do not resolve the issue, please contact Somfy customer support for further assistance.

7. Zvinyorwa zveUnyanzvi

Below are the detailed technical specifications for the Somfy RMS 1000 Radio Kit.

8. Warranty uye Tsigiro

Somfy products are known for their quality and reliability. The RMS 1000 kit typically comes with a 3-year warranty. Please refer to your purchase documentation for specific warranty terms and conditions.

Tsigiro yeVatengi:

Somfy is committed to providing excellent customer support. If you require assistance with installation, configuration, or troubleshooting, you can find answers to common questions on the official Somfy website or by contacting their dedicated support center.

Figure 6: Somfy provides dedicated support to assist customers with their products.

For the most up-to-date support information and contact details, please visit the official Somfy websaiti kana tarisa kune ruzivo rwekusangana rwunopihwa mune yako chigadzirwa kurongedza.
