This manual provides comprehensive instructions for the installation, operation, and maintenance of your Phlizon 165W Dimmable Full Spectrum Aquarium LED Light. Designed for both saltwater and freshwater aquariums, this light promotes healthy growth for fish, corals, and aquatic plants through its optimized full spectrum output and dimmable controls. Please read this manual thoroughly before use to ensure proper function and longevity of your device.
The Phlizon 165W Dimmable Full Spectrum Aquarium LED Light, featuring dual dimmer controls and a robust design.
Vaega Autu
- Fa'amalama ole Fusi Atoa: Includes Blue, Purple, Red, White, and Green light wavelengths. This combination supports various biological processes:
- Blue UV light: Promotes plant defense mechanisms.
- Purple light: Aids in sterilization and supports fish growth.
- White and Red light: Essential for coral reef development.
- Green light: Contributes to overall spectrum balance.
Detailed breakdown of the LED types and their wavelengths within the full spectrum light.
Illustrations of how different light spectrums (White/Red, Purple, Blue UV, Green) benefit various aquatic life and plants.
- Double Dimmer Control: Two independent dimmer knobs allow for separate adjustment of white and blue light channels. This feature enables users to gradually acclimate aquatic life to new lighting conditions and customize light intensity for day and night cycles.
- Gaioiina o filifili Daisy: Multiple light units can be linked together using a single power cord, simplifying wiring for larger aquarium setups.

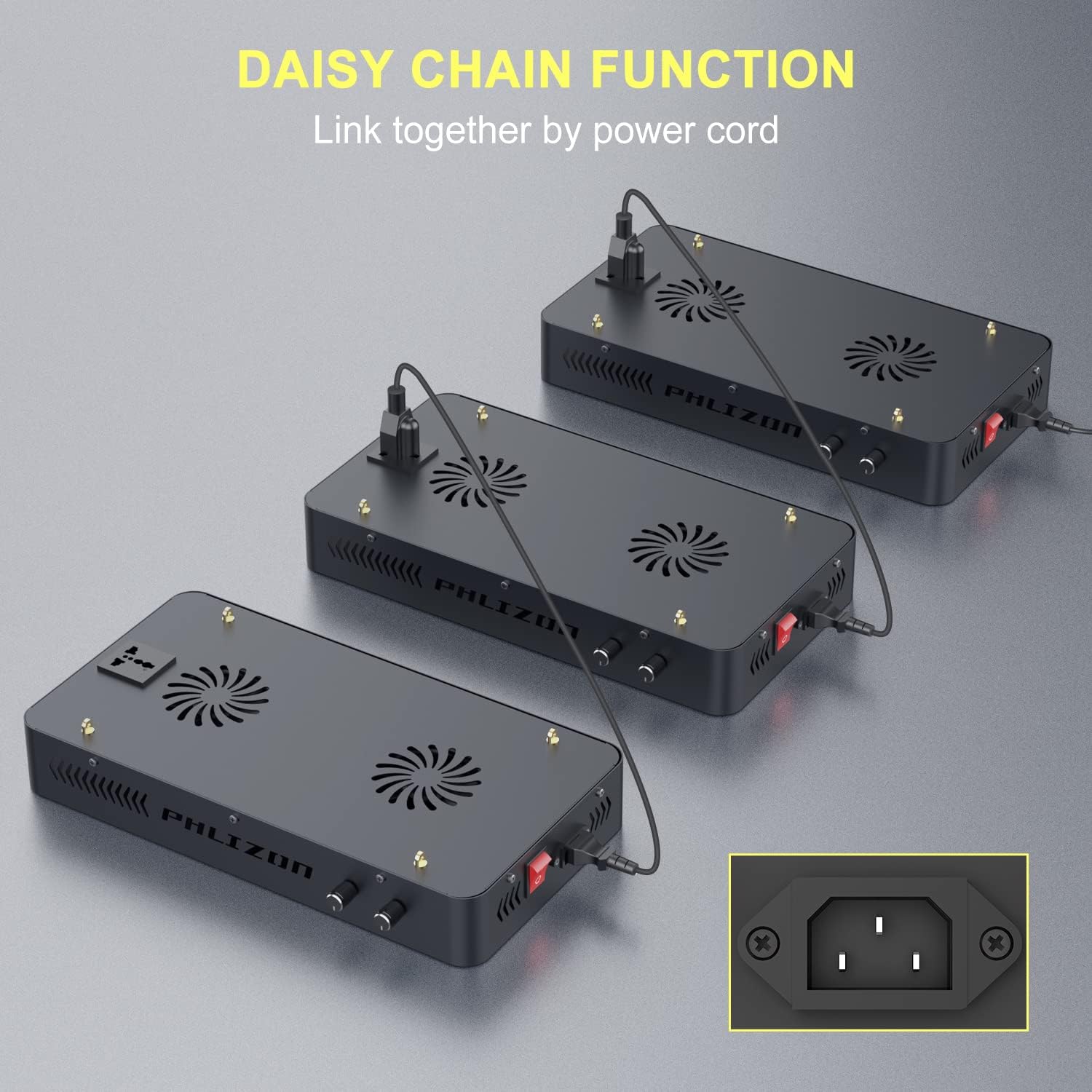

Illustration of multiple Phlizon LED lights connected using the daisy chain feature.
- Optimized for Aquatic Growth: Specifically designed to promote photosynthesis in aquatic plants, moss, and coral algae, thereby increasing oxygen levels in the water. Suitable for both freshwater and marine environments.
- Vaega Sili: Equipped with durable LEDs, efficient cooling fans, and a reliable LED driver for consistent performance and longevity.
Auiliili view of the light's high-quality components, including the two switch dimmer, cooling fan, LED driver, and durable LEDs.
Illustration highlighting the acrylic lenses and the integrated cooling system with fans for optimal performance.
O mea o lo'o i totonu
I le tatalaina o le afifi, faʻamautinoa o mea uma o loʻo lisiina i lalo o loʻo iai ma e leʻi faʻaleagaina:
- Phlizon 165W Aquarium LED Light Unit
- Hanger Kits (for suspension)
- US Plug Power Cord
Visual representation of the package contents: the LED light unit, hanger kits, and power cord.
Fa'amatalaga
Ua umaview of the Phlizon 165W LED light, including its dimensions and key electrical specifications.
| Uiga | Taua |
|---|---|
| Numera Fa'ata'ita'i | PH-A40 |
| Fua (LxWxH) | 15.7" x 8.3" x 2.4" (400mm x 210mm x 60mm) |
| Mea mamafa | 6.6 lbs (2.5 KG) |
| Fa'aaogaina Malosiaga Moni | 100 watts ±5% |
| Sao Voltage | 100-277V AC, 50-60Hz |
| Ituaiga Puna Malamalama | LED (Full Spectrum) |
| Numera o Punavai Malamalama | 220 |
| Tulaga ola | ≥50,000 itula |
| Metotia Pulea | Dimmer (2-way switching) |
| Mea | Umea (Alumi) |
| Suavai Tetee Level | Not Water Resistant (Indoor Use Only) |
Seti Faatonuga
- Tatalaina: Carefully remove the LED light unit and all accessories from the packaging. Inspect for any signs of damage during transit.
- Fa'amauina o le Malamalama:
Use the provided hanger kits to suspend the light above your aquarium. Ensure the mounting point is secure and can support the weight of the light unit (6.6 lbs). Adjust the height to achieve desired light intensity and coverage for your specific tank size and inhabitants.

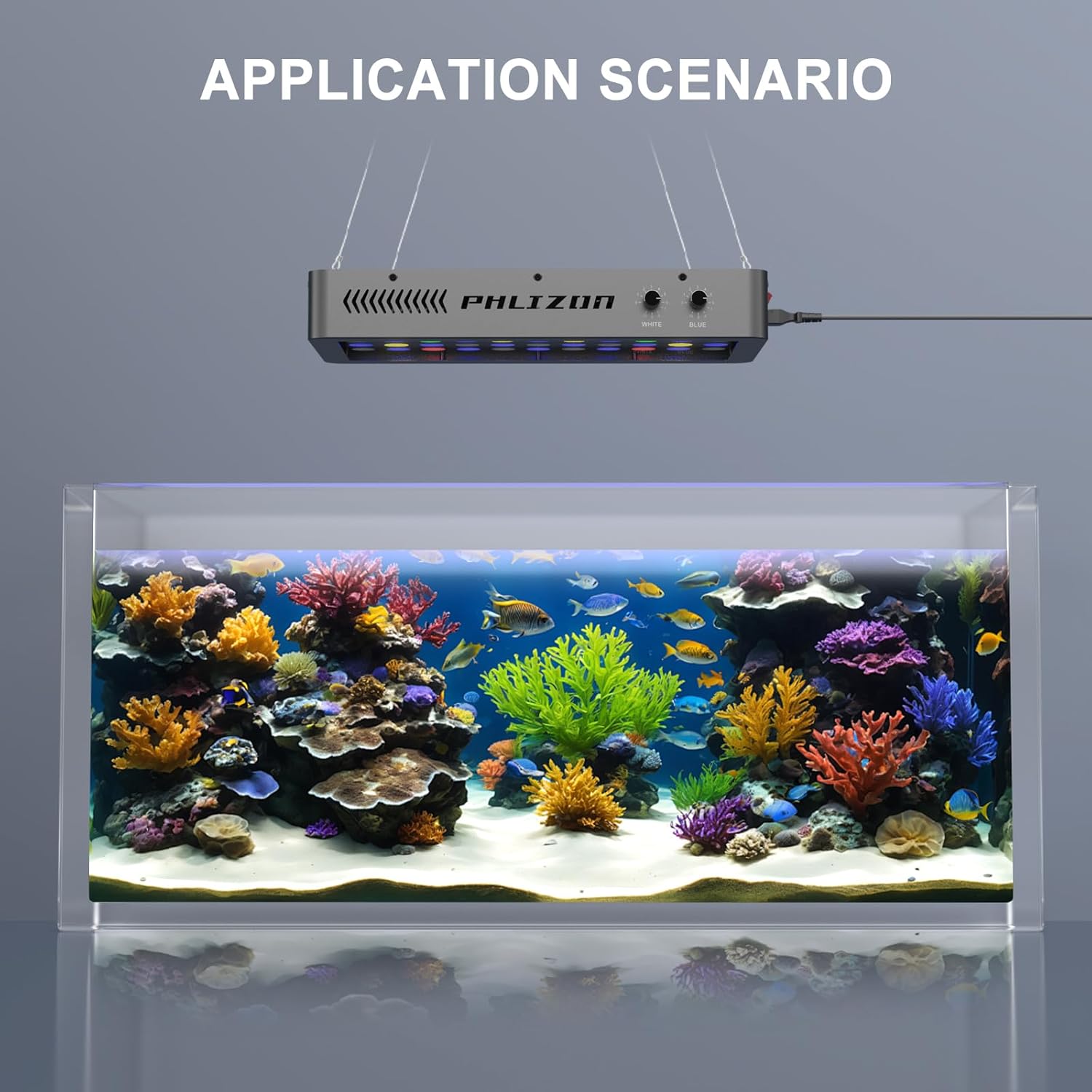

The Phlizon LED light suspended above an aquarium, demonstrating a typical application scenario.
- So'oga Malosi: Connect the US plug power cord to the light unit's power input port. Then, plug the power cord into a standard electrical outlet (100-277V AC).
- Daisy Chain Connection (Optional): If using multiple Phlizon 165W units, connect them in a daisy chain configuration using appropriate power linking cables (not always included, check package). This allows multiple lights to be powered from a single outlet.
- Tulaga Taiala: Refer to the table below for recommended light quantities based on tank size.
Chart indicating recommended number of 165W units for various aquarium sizes.
Fa'atonuga o Galuega
The Phlizon 165W LED light features dual dimmer controls for precise light management.
The two dimmer switches control the white and blue light channels independently, allowing for various lighting modes.
- Malosi/Pepe: Locate the main power switch on the side of the unit. Flip it to the 'ON' position to power the light. Flip to 'OFF' to turn off.
- Adjusting Light Intensity (Dimmer Controls):
- White Channel Dimmer: Rotate the knob labeled "WHITE" to adjust the intensity of the white and red LEDs from 0% to 100%.
- Blue Channel Dimmer: Rotate the knob labeled "BLUE" to adjust the intensity of the blue, purple, and green LEDs from 0% to 100%.
These two channels can be adjusted independently or simultaneously to create various lighting effects and suit the specific needs of your aquarium inhabitants.
- Recommended Light Cycles: The optimal light cycle varies depending on the type of aquarium (e.g., freshwater planted, saltwater reef). Research the specific needs of your aquatic life and adjust the light intensity and duration accordingly. Consider using an external timer for consistent on/off cycles.
Tausiga
Regular maintenance ensures optimal performance and extends the lifespan of your LED light.
- Fa'amamaina o le Vaega:
Before cleaning, always unplug the light from the power source. Use a soft, dry cloth to wipe the exterior of the light. For the acrylic lenses, use a slightly damp cloth to gently remove any salt creep or dust. Avoid abrasive cleaners or solvents that could damage the finish or lenses.
- Tausiga ili:
Periodically check the cooling fans for dust accumulation. If dust is present, gently clean the fan blades and vents with a soft brush or compressed air to ensure proper airflow and prevent overheating.
- Asiasiga:
Regularly inspect the power cord and hanger kits for any signs of wear or damage. Replace any damaged components immediately.
Fa'afitauli
| Fa'afitauli | Mafuaaga e ono tupu | Fofo |
|---|---|---|
| E le ola le moli. | No power, main switch off, faulty power cord. | Ensure power cord is securely plugged into both the light and the outlet. Check if the main power switch is in the 'ON' position. Test the outlet with another device. |
| One dimmer channel is not working. | Dimmer knob set to 0%, internal wiring issue. | Rotate the respective dimmer knob to increase intensity. If the issue persists, contact customer support. |
| Fans are noisy or not spinning. | Dust accumulation, fan obstruction, fan malfunction. | Unplug the unit and gently clean the fan blades and vents. Ensure no obstructions. If malfunction persists, contact customer support. |
| Light output seems dim. | Dimmer settings too low, dirty lenses. | Adjust both dimmer knobs to higher settings. Clean the acrylic lenses to remove any film or debris. |
Fa'amaonia ma Lagolago
Fa'amaonia: This Phlizon LED Aquarium Light comes with a 2-year warranty from the date of purchase. This warranty covers manufacturing defects and material faults under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper installation.
Lagolago tagata fa'atau: For technical assistance, warranty claims, or any questions regarding your Phlizon product, please contact Phlizon customer service through the retailer where the product was purchased or visit the official Phlizon website for contact information. Please have your model number (PH-A40) and purchase date ready when contacting support.
Mo nisi fa'amatalaga, e mafai ona e asiasi i le Phlizon Store on Amazon.
