SANITMAX 41.3" Battery-Powered Walk-Behind Floor Sweeper User Manual

1. Uvod

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your SANITMAX 41.3" Battery-Powered Walk-Behind Floor Sweeper, Model Sm1050b. Please read this manual thoroughly before operating the machine to ensure proper use and to prevent injury or damage.

2. Varnostna navodila

Always adhere to the following safety guidelines to prevent accidents and ensure safe operation.

Splošna varnost

• Pred uporabo preberite vsa navodila.
• Do not operate the sweeper in hazardous environments or near flammable liquids/gases.
• Otroke in nepooblaščene osebe držite stran od delovnega območja.
• Wear appropriate personal protective equipment (PPE) such as safety glasses and non-slip footwear.
• Pred uporabo se prepričajte, da so vsa varovala in varnostne naprave nameščene in pravilno delujejo.

Električna varnost

• Uporabljajte samo priloženi polnilnik baterij.
• Do not operate the sweeper with a damaged power cord or plug.
• Keep the charger and battery dry. Do not expose to rain or wet conditions.
• Unplug the charger from the outlet before performing any maintenance or cleaning.

Varnost baterije

• Ne povzročajte kratkega stika na sponkah baterije.
• Baterije ne izpostavljajte ekstremnim temperaturam ali neposredni sončni svetlobi.
• Baterije zavrzite v skladu z lokalnimi predpisi.

3. Identifikacija komponent in delov

Familiarize yourself with the main components of your SANITMAX floor sweeper.

Slika 3.1: Na splošno view of the SANITMAX floor sweeper with its included battery charger.

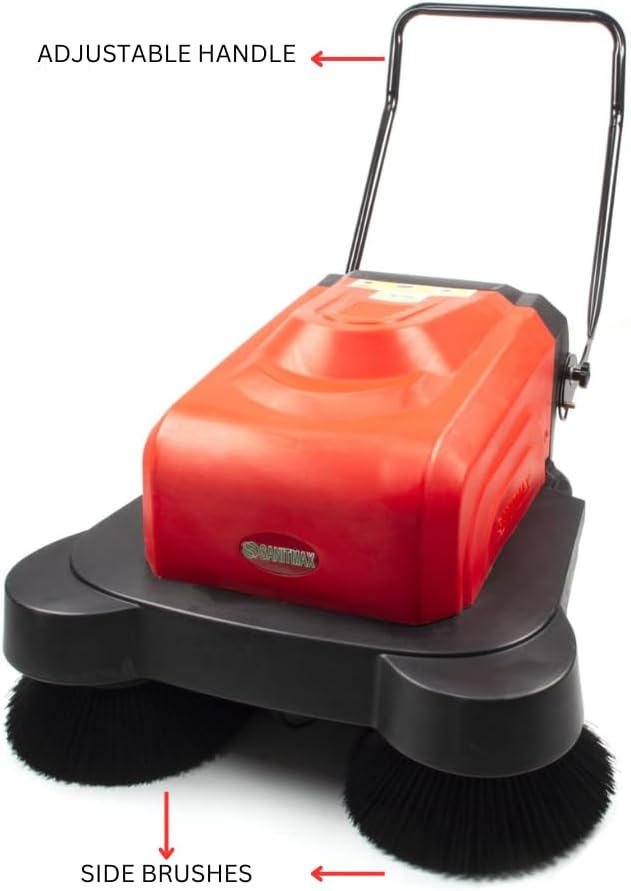

Figure 3.2: Key external components including the adjustable handle and side brushes.

Slika 3.3: Podrobno view of the control panel with battery capacity display, main brush switch, side brush switch, watering switch, and key ignition.

Slika 3.4: stran view highlighting the overload protection switches, charger interface, removable trash can, and water tank inlet.

Slika 3.5: Spodnja stran view showing the side brushes and the integrated water spray nozzles for dust suppression.

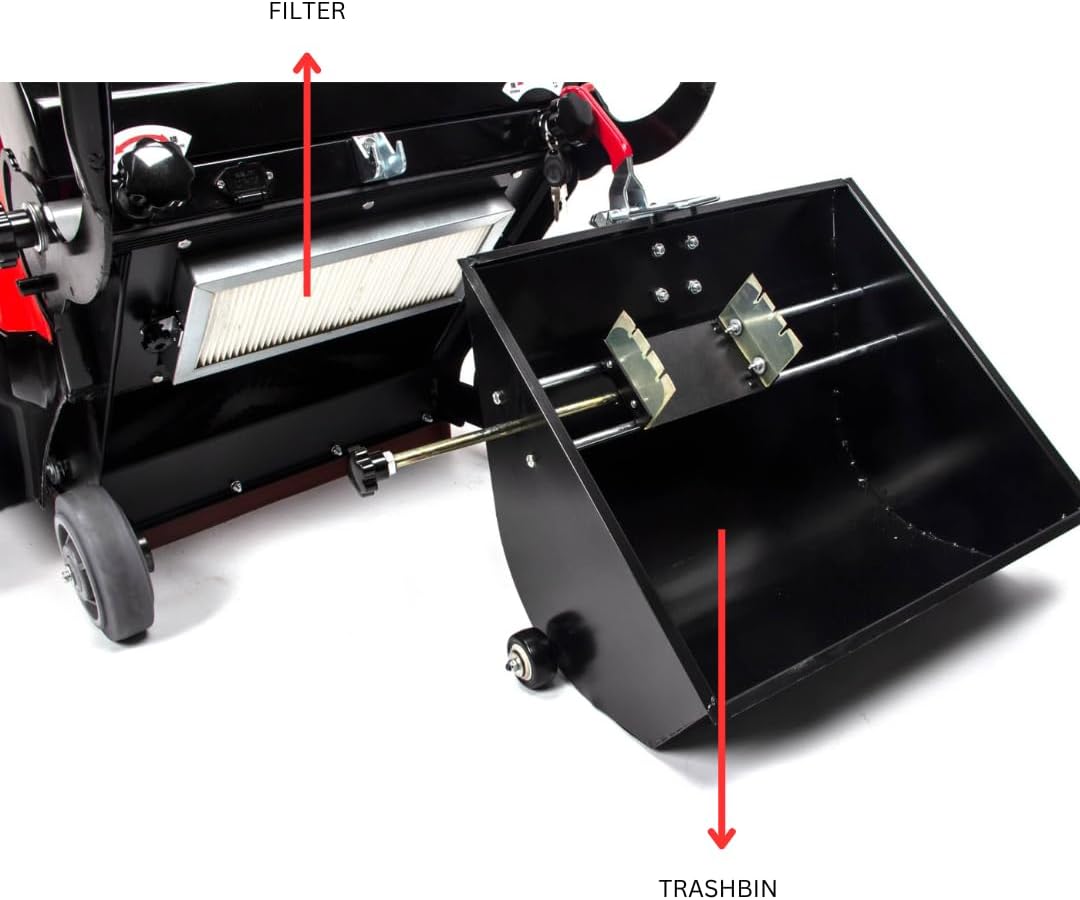

Slika 3.6: Notranji view revealing the air filter and the large capacity trashbin.

4. Nastavitev

Začetna montaža

1. Odpakirajte vse komponente iz embalaže.
2. Attach the adjustable handle to the main body of the sweeper, securing it with the provided fasteners. Ensure it is firmly in place.
3. Verify that the side brushes are correctly installed and rotate freely.
4. Ensure the trashbin is properly seated within its compartment.

Polnjenje baterije

1. Locate the charger interface on the side of the sweeper (refer to Figure 3.4).
2. Connect the provided battery charger to the charger interface.
3. Polnilnik priključite v standardno električno vtičnico.
4. Allow the battery to charge fully before first use. The battery capacity display on the control panel (Figure 3.3) will indicate the charge level. A full charge typically takes approximately 4 hours.
5. Once fully charged, disconnect the charger from both the sweeper and the outlet.

Polnjenje rezervoarja za vodo

1. Locate the water tank inlet (refer to Figure 3.4).
2. Open the cap and fill the tank with clean water. Do not overfill.
3. Po polnjenju dobro zaprite pokrov.

5. Navodila za uporabo

Starting the Sweeper

1. Prepričajte se, da je baterija dovolj napolnjena.
2. Insert the key into the ignition on the control panel (Figure 3.3) and turn it to the "ON" position.
3. Press the "Main Brush" switch to activate the main sweeping brush.
4. Press the "Side Brush" switch to activate the side brushes, which help sweep debris from edges and corners into the path of the main brush.
5. If dust suppression is desired, press the "Watering" switch to activate the water spray nozzles.

Operacija pometanja

• Push the sweeper forward at a steady, comfortable pace.
• Vsak prehod rahlo prekrivajte, da zagotovite popolno pokritost.
• For heavily soiled areas, a slower pace or multiple passes may be required.
• The sweeper is designed for hard floor surfaces such as concrete, tile, hardwood, and linoleum.

Stopping the Sweeper

1. Turn off the "Watering" switch, then the "Side Brush" switch, and finally the "Main Brush" switch.
2. Turn the key to the "OFF" position and remove it.

6. Vzdrževanje

Regular maintenance ensures optimal performance and extends the lifespan of your sweeper.

Emptying the Trashbin

• Empty the trashbin after each use or when it is full (refer to Figure 3.6).
• Pull out the trashbin, dispose of collected debris, and reinsert it securely.

Čiščenje filtra

• Regularly inspect and clean the air filter (refer to Figure 3.6).
• Remove the filter and gently tap it to dislodge dust. For deeper cleaning, use compressed air or wash with water if the filter type allows (consult product specifications for filter type). Ensure it is completely dry before reinstallation.

Pregled in zamenjava krtač

• Periodically check the main and side brushes for wear or damage.
• Replace brushes when bristles are significantly worn or damaged to maintain effective sweeping performance.

Skrb za baterijo

• Po vsaki uporabi baterijo vedno povsem napolnite.
• If storing the sweeper for an extended period, ensure the battery is fully charged and recharge it every 1-2 months to prevent deep discharge.

Generalno čiščenje

• Wipe down the exterior of the sweeper with a damp krpo.
• Ne uporabljajte ostrih kemikalij ali abrazivnih čistil.

7. Odpravljanje težav

Za pogoste težave in njihove rešitve glejte ta razdelek.

8. Specifikacije

Key technical specifications for the SANITMAX Sm1050b Floor Sweeper.

9. Garancija in podpora

For warranty information and customer support, please contact SANITMAX directly or refer to your purchase documentation.

• Vrne: This product typically offers a 30-day easy return policy. Please refer to your retailer's return policy for specific details.
• Proizvajalec: Sanitmax
• Storitev za stranke: For technical assistance, parts, or service, please visit the official SANITMAX store on Amazon or contact their customer support channels.
