DWVO Makeup Vanity with Stool Instruction Manual

Úvod

Ďakujem za nákupasing the DWVO Makeup Vanity with Stool. This manual provides essential information for the safe assembly, operation, and maintenance of your new vanity desk. Please read this manual thoroughly before beginning assembly or use, and retain it for future reference.

This modern vanity desk features app-controlled LED lighting, a built-in power strip, and ample storage solutions including drawers, a side hook, and a fabric pocket. It is designed to be versatile, serving as a makeup station, computer desk, or a stylish accent piece in your home.

Bezpečnostné informácie

• Vždy starostlivo dodržiavajte montážne pokyny.
• Pred použitím sa uistite, že všetky skrutky a upevňovacie prvky sú bezpečne utiahnuté.
• Nepreťažujte zásuvky ani police.
• Keep electrical components (LED lights, power strip) away from water.
• Use the included anti-tip hardware kit to secure the vanity to a wall, especially if children or pets are present. This prevents accidental tipping.
• Do not stand or sit on the vanity desk itself. The included stool is designed for seating.
• Unplug the power strip when not in use or during cleaning.

Obsah balenia

Before assembly, verify that all components listed in the packing list are present and undamaged. If any parts are missing or damaged, contact customer support immediately.

• Vanity Desk Components (Engineered Wood panels, Iron Frame parts)
• Padded Stool Components
• LED svetelný pás s diaľkovým ovládaním
• Vstavaný napájací kábel (2 AC zásuvky, 1 USB, 1 Type-C)
• Hardware Kit (screws, bolts, anti-tip kit)
• Bočný hák
• Fabric Pocket
• Návod na montáž

Nastavenie a montáž

Assembly is required for this product. It is recommended to assemble the vanity with two people. Clear a spacious area and lay out all components before starting.

Montážne kroky:

1. Rozbaľte a identifikujte časti: Carefully remove all components from the packaging. Refer to the included parts list and diagrams to identify each piece.
2. Zostavte rám: Begin by assembling the iron frame according to the diagrams in the separate assembly instructions. Ensure all connections are secure but do not fully tighten screws until the entire frame is assembled.
3. Pripevnenie drevených panelov: Secure the engineered wood panels to the assembled frame. This includes the tabletop, drawer sections, and any side panels.
4. Inštalácia zásuviek: Zostavte dve zásuvky a nainštalujte ich do určených otvorov. Uistite sa, že sa hladko posúvajú.
5. Inštalácia predlžovacích káblov a LED svetiel: Carefully place the built-in power strip into its recess. Attach the LED light strip to the designated area, typically along the underside of the upper shelf or back panel. Connect the LED lights to the power source.
6. Pripevnite bočné príslušenstvo: Install the interchangeable side hook and fabric pocket as desired.
7. Zostavte stoličku: Follow the separate instructions to assemble the padded stool.
8. Konečné utiahnutie: Keď sú všetky komponenty na svojom mieste, systematicky dotiahnite všetky skrutky a upevňovacie prvky. Nepreťahujte ich.
9. Zaistite pomocou súpravy proti prevráteniu: Attach the anti-tip hardware to the back of the vanity and to a wall stud, following the kit's instructions. This is a crucial safety step.

Figure 1: Product Dimensions. This diagram illustrates the overall dimensions of the vanity desk and the accompanying stool, providing measurements in both inches and centimeters for planning your space.

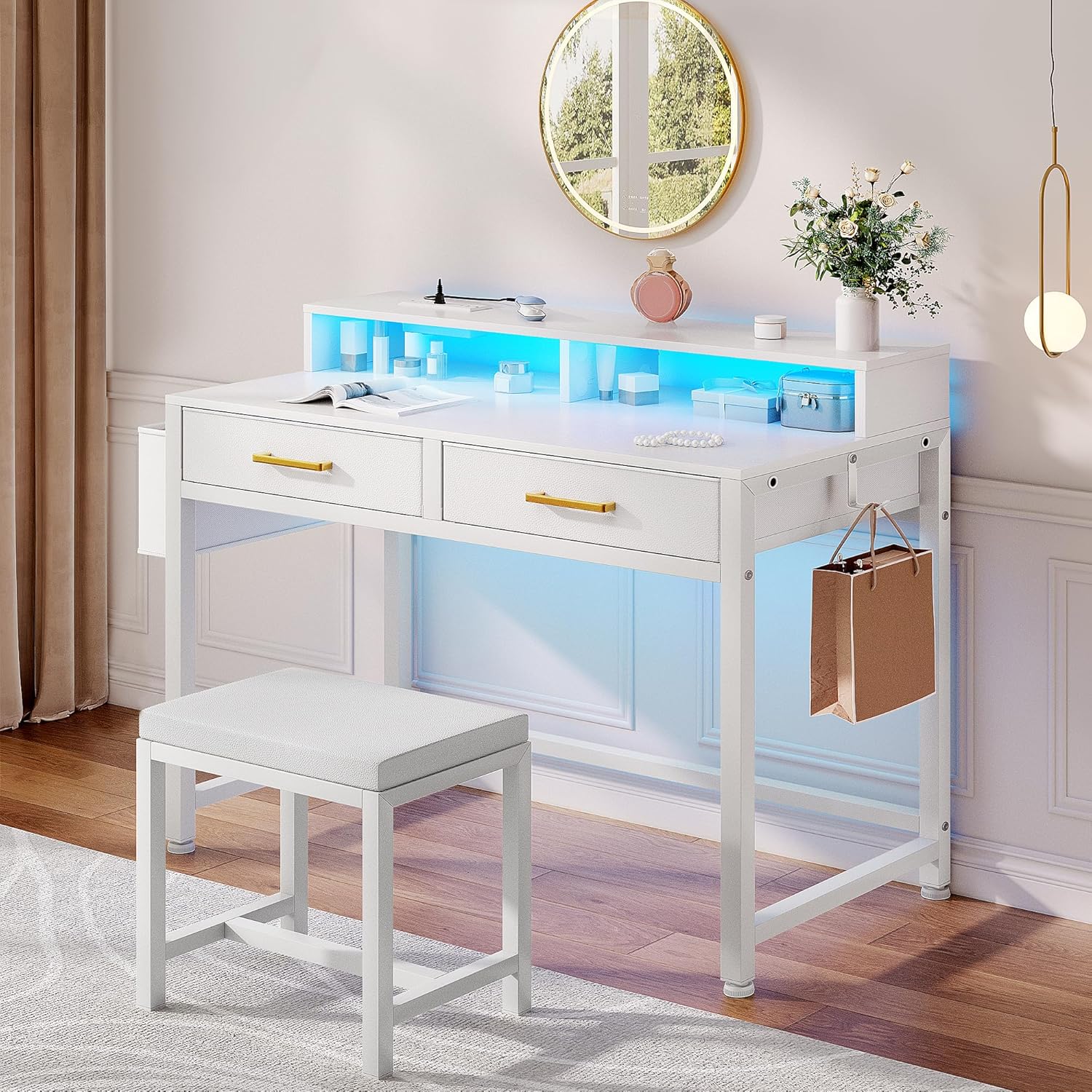

Figure 2: Assembled Vanity Desk. A complete view of the vanity desk and stool after assembly, showcasinjeho dizajn a vlastnosti.

Návod na obsluhu

Systém LED osvetlenia:

The vanity features an integrated LED light strip that can be controlled via a remote or a dedicated mobile application.

• Diaľkové ovládanie: Use the provided remote to turn the lights on/off, change colors (over 60,000 options), adjust brightness, set timing functions, and select dynamic modes.
• Ovládanie mobilnej aplikácie: Download the specified mobile application (refer to the LED light manual for QR code or app name). Connect the LED lights via Bluetooth or Wi-Fi as instructed in the app. The app allows for advanced control, including music synchronization and custom lighting scenes.

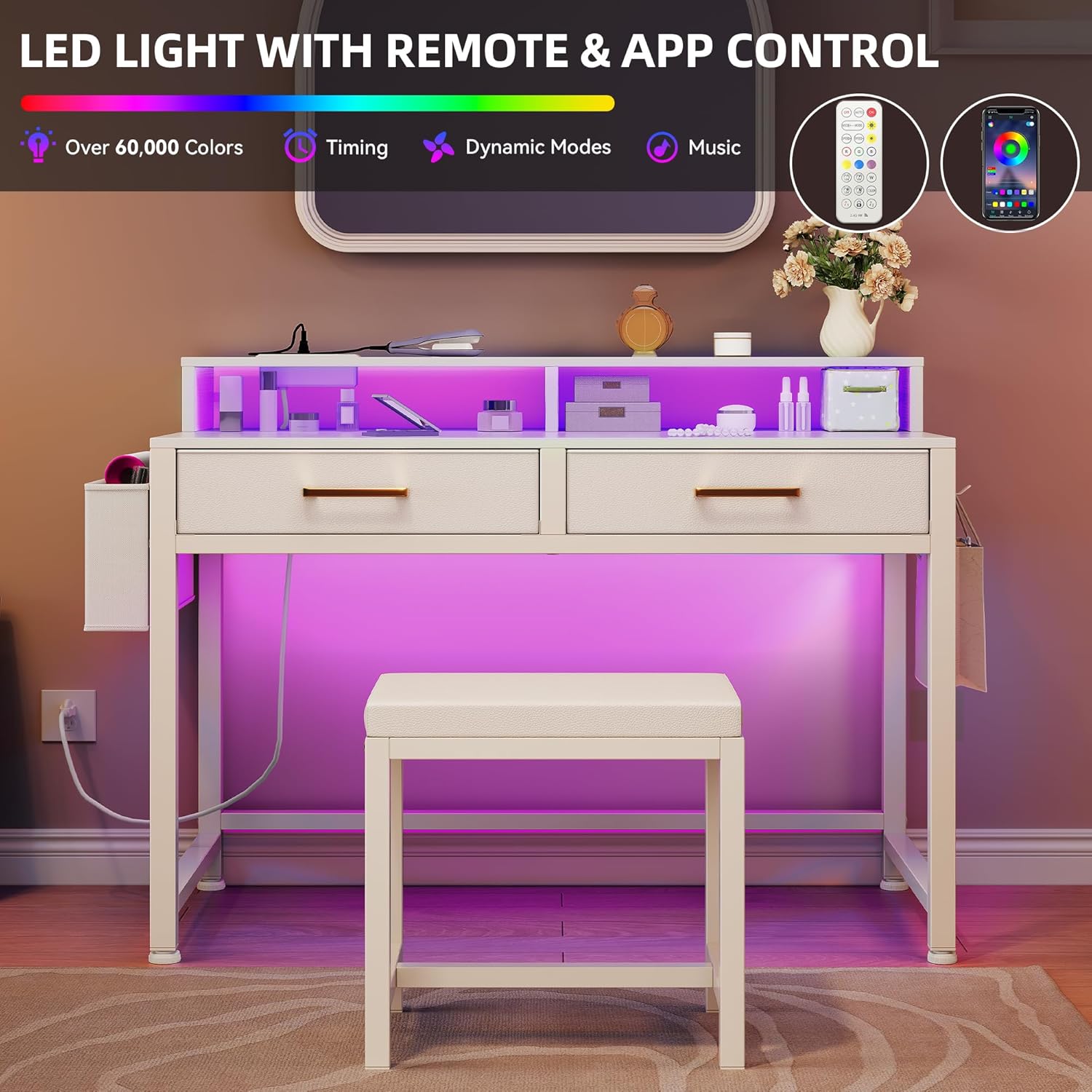

Figure 3: LED Light Control. This image highlights the various control options for the LED lighting, including remote and mobile application capabilities for color, timing, dynamic modes, and music synchronization.

Vstavaný napájací pásik:

The vanity includes a convenient power strip with multiple outlets for your electronic devices.

• AC zásuvky: Na pripojenie fénov na vlasy sú k dispozícii dve zásuvky s napätím 120 V/12 A AC.urlžehličky alebo iné malé spotrebiče.
• Porty USB a typu C: One 5V/2A USB port and one Type-C port are provided for charging smartphones, tablets, and other USB-powered devices.
• Napájací kábel: The power strip is connected via a 6.6-foot power cord. Plug this cord into a standard wall outlet.

Figure 4: Built-in Power Outlets. A detailed view of the integrated power strip, showing the AC outlets, USB port, and Type-C port, along with the power cord length.

Vlastnosti úložiska:

Utilize the various storage options to keep your items organized.

• Zásuvky: The two spacious drawers are ideal for storing makeup, accessories, and other personal items.
• Bočný hák: The interchangeable side hook can be used for hanging bags, headphones, or other items.
• Fabric Pocket: The fabric pocket provides additional storage for brushes, palettes, or smaller items.

Figure 5: Smart Storage. This image demonstrates the vanity's storage capabilities, including the two main drawers and the convenient side fabric pocket, designed for efficient organization.

Figure 6: Organized Storage. An overhead perspective showing the vanity with its drawers open, illustrating the ample space available for organizing various beauty and personal items.

Údržba a starostlivosť

• Čistenie: Povrchy utrite mäkkou, damp handričkou. Vyhnite sa agresívnym chemikáliám alebo abrazívnym čistiacim prostriedkom, ktoré môžu poškodiť povrchovú úpravu.
• Poprášenie: Regularly dust the vanity and stool with a dry, soft cloth.
• Úniky: Rozliate tekutiny ihneď vyčistite, aby ste predišli zafarbeniu alebo poškodeniu dreva.
• Spojovacie prvky: Pravidelne kontrolujte všetky skrutky a upevňovacie prvky, aby ste sa uistili, že sú pevne utiahnuté. V prípade potreby ich dotiahnite.
• LED svetlá: The LED lights are designed for long life and typically do not require replacement. If issues arise, consult the troubleshooting section.
• Napájací pásik: Ensure the power strip is kept dry and free of debris. Do not attempt to repair or modify the power strip.

Riešenie problémov

Špecifikácie

Záruka a podpora

DWVO stands behind the quality of its products. For specific warranty details, please refer to the warranty card included with your purchase or visit the official DWVO webstránky. Uschovajte si doklad o kúpe ako dôkaz o kúpe.

For technical assistance, missing parts, or any questions regarding your DWVO Makeup Vanity, please contact DWVO Customer Support:

• Online podpora: Navštívte DWVO Store on Amazon pre najčastejšie otázky a kontaktné informácie.
• Email: [Pozrite si obal produktu alebo oficiálne webstránka pre e-mailovú adresu]
• Telefón: [Pozrite si obal produktu alebo oficiálne webstránka s telefónnym číslom]

When contacting support, please have your model number (MADWVj9UFE) and purchase date ready.
