Retevis P2 GMRS Two-Way Radio

Koniec produktuview

The Retevis P2 is a professional-grade GMRS two-way radio designed for reliable and clear communication in various environments. Featuring IP68 waterproofing, noise cancellation, and a rugged build, it is suitable for industrial, warehouse, and outdoor use. This manual provides essential information for the proper setup, operation, and maintenance of your Retevis P2 radios.

Kľúčové vlastnosti

• IP68 vodotesný a prachotesný: Designed to withstand immersion in water for up to 2 hours and resist dust ingress, ensuring reliable operation in harsh conditions.
• Komunikácia na dlhé vzdialenosti: Provides strong signal penetration and stable call quality for clear long-distance communication.
• Zníženie hluku: Effectively reduces background noise for clear audio reception, even in noisy environments.
• Robustná konštrukcia: Built with a solid metal aluminum plate, designed to endure daily wear and accidental drops.
• Jednoduché párovanie: Quick pairing functionality allows for seamless communication with other compatible walkie-talkies (ensure same frequency and CTCSS/DCS).
• Veľkokapacitná batéria: Equipped with a 2500mAh battery, providing up to 16 hours of continuous operation.
• Nabíjanie typu C: Convenient Type-C charging interface for easy recharging.
• Bezpečnostné vlastnosti: Includes Man Down alarm and Emergency alarm functions for enhanced user safety.
• Prispôsobiteľné bočné tlačidlá: Side buttons can be programmed for various functions such as VOX, emergency alarm, power selection, and noise reduction.
• Viaceré funkcie: Supports 22 GMRS channels with 8 repeater channels, FM radio (24 channel storage), CTCSS/DCS codes, VOX hands-free operation, selected channel call, busy channel lock-out, and CHIRP programming.

Obsah balenia

Overte si, či sú vo vašom balení všetky nižšie uvedené položky:

• P2 Walkie Talkie (x2)
• Batéria (2x)
• Nabíjacia základňa (x2)
• Nabíjací kábel typu C (x2)
• Dátový kábel (x1)
• Používateľská príručka (x2)
• Spona na opasok (2x)
• Remienok na ruku (x2)

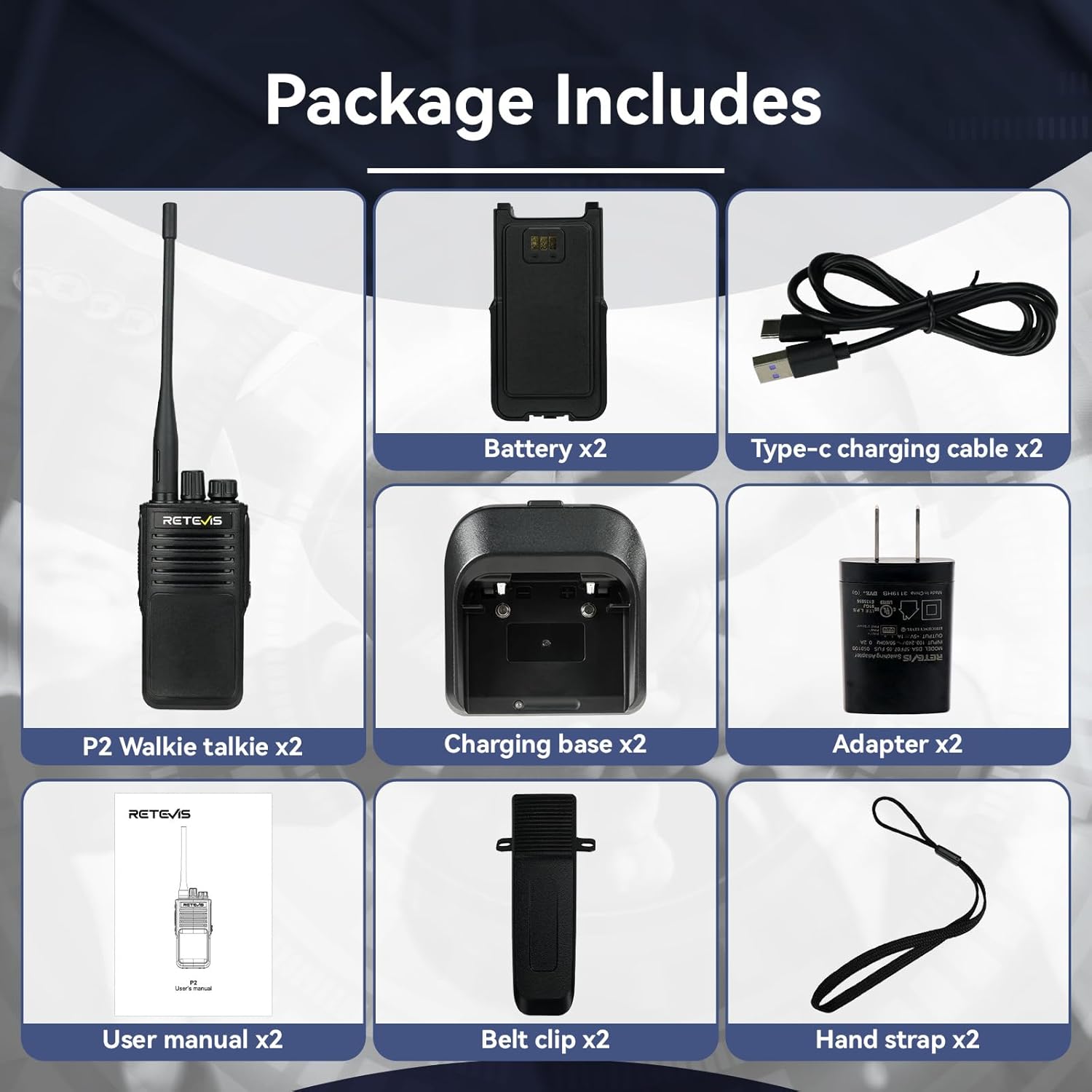

Image: All components included in the Retevis P2 Two-Way Radio package.

Schéma produktu a ovládacie prvky

Familiarize yourself with the various parts and controls of your Retevis P2 radio:

Image: Labeled diagram of the Retevis P2 radio's controls and ports.

• Kanálový gombík: Otočením vyberte požadovaný komunikačný kanál.
• Gombík napájania: Otočením zapnete/vypnete rádio a upravíte hlasitosť.
• VOX/Emergency Alarm Button (Upper Side Button): Short press for VOX function. Long press for Emergency Alarm.
• Tlačidlo PTT (Push-to-Talk): Stlačte a podržte pre vysielanie, uvoľnite pre príjem.
• Noise Canceling/Power Selection Button (Lower Side Button): Short press to turn noise reduction ON/OFF. Long press to switch between high and low power (distance).
• Audio/Earpiece Jack: For connecting external audio accessories like earpieces or microphones.
• Rozhranie nabíjania typu C: Na pripojenie nabíjacieho kábla typu C.

Nastavenie

1. Nainštalujte batériu: Zarovnajte batériu s kontaktmi na zadnej strane rádia a zasuňte ju na miesto, kým bezpečne nezacvakne.
2. Nabíjanie batérie: Place the radio into the charging base. Connect the Type-C charging cable to the charging base and a suitable power adapter. The indicator light on the charging base will show charging status. Ensure the battery is fully charged before first use.
3. Pripojenie antény: Anténu naskrutkujte v smere hodinových ručičiek na konektor antény na vrchu rádia, kým nie je pevne utiahnutá prstami. Nepreťahujte ju.
4. Attach Belt Clip/Hand Strap (Optional): Secure the belt clip to the back of the radio if desired. Attach the hand strap for added security.

Návod na obsluhu

1. Zapnutie/vypnutie: Rotate the Power Knob clockwise to turn the radio ON. Rotate counter-clockwise until it clicks to turn the radio OFF.
2. Úprava hlasitosti: After powering on, continue rotating the Power Knob to adjust the listening volume.
3. Vybrať kanál: Rotate the Channel Knob to select the desired communication channel (1-30). Ensure all radios in your group are on the same channel.
4. Prenos (Diskusia): To speak, press and hold the PTT (Push-to-Talk) button on the side of the radio. Speak clearly into the microphone, which is located near the PTT button. Release the PTT button to listen.
5. Prijímať (Počúvať): When the PTT button is not pressed, the radio is in receive mode. You will hear incoming transmissions on the selected channel.
6. Rýchle párovanie: To quickly pair with another Retevis P2 radio, ensure both radios are off. Press the third side button (VOX/Emergency Alarm) and the Power Knob simultaneously on channel 1 to turn on the walkie-talkie. This initiates a quick pairing sequence.
7. Using Side Button Functions:
   • VOX (Hlasom ovládaná ústredňa): Short press the upper side button. When VOX is active, the radio will transmit automatically when it detects your voice, without needing to press PTT.
   • Núdzový alarm: Long press the upper side button to activate the emergency alarm.
   • Zníženie hluku: Short press the lower side button to toggle noise reduction ON or OFF.
   • Switch Distance (Power Selection): Long press the lower side button to switch between high power (long range) and low power (short range).
8. Kódy CTCSS/DCS: For private communication within a channel, set the same CTCSS (Continuous Tone-Coded Squelch System) or DCS (Digitally Coded Squelch) codes on all radios in your group. Refer to advanced programming instructions for setting these codes.
9. Programovanie CHIRP: The Retevis P2 supports CHIRP software for advanced programming of channels, frequencies, and other settings. This allows for customization and compatibility with other radio brands (requires matching frequencies and CTCSS/DCS).

Image: Illustration of the easy pairing process between two Retevis P2 radios.

Image: Visual representation of the noise canceling feature of the Retevis P2 radio.

Image: Depiction of the long-range communication capability of the Retevis P2 radio.

Údržba

• Čistenie: Povrch rádia utrite mäkkou handričkouamp plátno. Nepoužívajte drsné chemikálie ani abrazívne čistiace prostriedky.
• Starostlivosť o batérie: Aby ste predĺžili životnosť batérie, vyhnite sa jej prebíjaniu alebo úplnému vybitiu. Rádio a batériu skladujte na chladnom a suchom mieste, keď ich dlhší čas nepoužívate.
• Vystavenie vode: Although IP68 rated, always ensure the Type-C charging port cover is securely closed when the radio is exposed to water or dust. After exposure to water, dry the radio thoroughly before charging.
• Ukladací priestor: Rádio skladujte na suchom a bezprašnom mieste mimo dosahu priameho slnečného žiarenia a extrémnych teplôt.

Image: The Retevis P2 radio submerged in water, highlighting its IP68 waterproof feature.

Image: Demonstration of the Retevis P2 radio's ruggedness and durability against drops.

Riešenie problémov

Špecifikácie

• Model: P2
• Hmotnosť položky: 2.42 libry
• Rozmery produktu: 1.65 x 2.36 x 4.45 palca
• Batérie: Potrebné sú 2 lítium-iónové batérie (sú súčasťou balenia)
• Výrobca: Retevis
• Farba: Čierna
• Počet kanálov: 30 (22 GMRS + 8 Repeater)
• Frekvenčný rozsah: GMRS
• Voltage: 7.4 volty (DC)
• Úroveň odolnosti voči vode: IP68 Vodotesný
• Kapacita batérie: 2500 mAh

Záruka a podpora

Retevis provides a comprehensive warranty for your P2 two-way radios:

• Záruka na telo rádia: 2 roky od dátumu nákupu.
• Záruka na príslušenstvo: 1 rok od dátumu nákupu.
• Pravidlá vrátenia tovaru: 30 dní na vrátenie bez udania dôvodu.

Po uplynutí záručnej doby sa stále ponúkajú údržbárske služby, pričom kupujúci hradí zodpovedajúce náklady.

For any inquiries, technical support, or warranty claims, please contact Retevis customer service through Amazon. We aim to reply within 12 hours.
