Sygonix SY-4599778 Surface-Mounted Code Lock Instruction Manual

1. හැඳින්වීම

The Sygonix SY-4599778 is a robust, surface-mounted code lock designed for secure access control. This device features a durable metal, vandal-resistant housing and is IP66 rated for weather resistance, making it suitable for both indoor and outdoor environments. Access can be granted via RFID card or a user-defined PIN code.

2 ආරක්ෂිත තොරතුරු

සාමාන්ය ආරක්ෂාව

• ස්ථාපනය සහ ක්රියාත්මක කිරීමට පෙර සියලු උපදෙස් ප්රවේශමෙන් කියවන්න.
• අනාගත යොමුව සඳහා මෙම අත්පොත තබා ගන්න.
• උපාංගය ඔබම වෙනස් කිරීමට හෝ අලුත්වැඩියා කිරීමට උත්සාහ නොකරන්න. සියලුම සේවා සුදුසුකම් ලත් පුද්ගලයින් වෙත යොමු කරන්න.
• Ensure the device is used within its specified operating conditions.

විදුලි ආරක්ෂාව

• The device operates on 18V/DC. Ensure the power supply matches this requirement.
• Disconnect power before performing any installation or wiring work.
• Wiring should be performed by a qualified electrician to prevent electrical hazards.
• කෙටි පරිපථ වැළැක්වීම සඳහා සියලුම සම්බන්ධතා ආරක්ෂිත සහ පරිවරණය කර ඇති බවට සහතික වන්න.

පාරිසරික සලකා බැලීම්

• The device has an IP66 rating, providing protection against dust ingress and powerful water jets.
• While weather-resistant, avoid submerging the device in water.
• Do not expose the device to extreme temperatures outside its specified operating range.

3. නිෂ්පාදන අවසන්view

විශේෂාංග

• Vandal-resistant metal housing for enhanced security.
• IP66 weather resistance for outdoor installation.
• Multiple access methods: RFID card or PIN code.
• Integrated keypad for code entry.

සංරචක

පැකේජයට සාමාන්‍යයෙන් පහත සඳහන් සංරචක ඇතුළත් වේ:

• Sygonix SY-4599778 Code Lock Unit (Keypad)
• සවි කරන ඉස්කුරුප්පු සහ බිත්ති ප්ලග්
• Allen Key for secure mounting
• Diode (for electrical protection)
• Wiring Cable (integrated)

රූපය 1: ඉදිරිපස view of the Sygonix SY-4599778 Code Lock, showing the numeric keypad and brand logo.

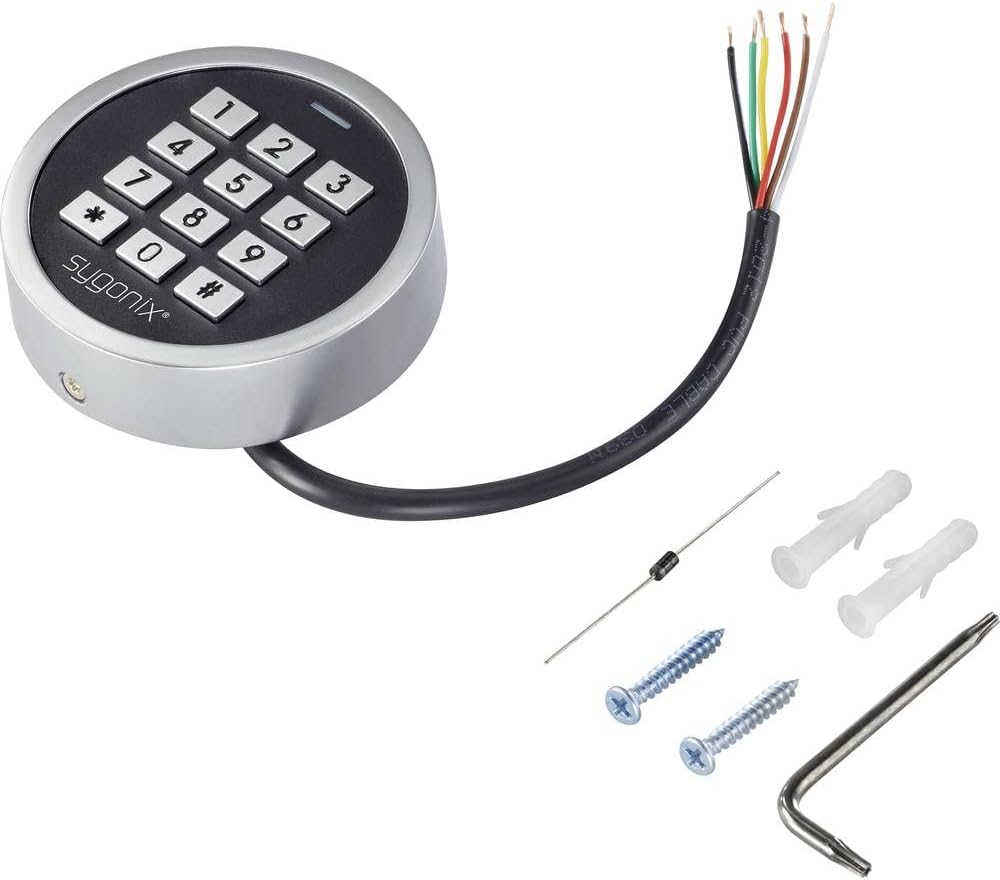

Figure 2: The Sygonix SY-4599778 Code Lock unit, displaying the integrated wiring cable, mounting screws, wall plugs, and a diode.

4. පිහිටුවීම සහ ස්ථාපනය

ඒකකය සවි කිරීම

1. Choose a suitable surface for mounting, ensuring it is flat and stable.
2. Use the back plate of the unit as a template to mark the drilling points for the mounting screws.
3. සලකුණු කර ඇති ස්ථානවල සිදුරු හාරන්න සහ සපයා ඇති බිත්ති පේනු ඇතුල් කරන්න.
4. Secure the back plate to the wall using the mounting screws.
5. Attach the main unit to the secured back plate, ensuring a snug fit. Use the Allen key to tighten any security screws if present.

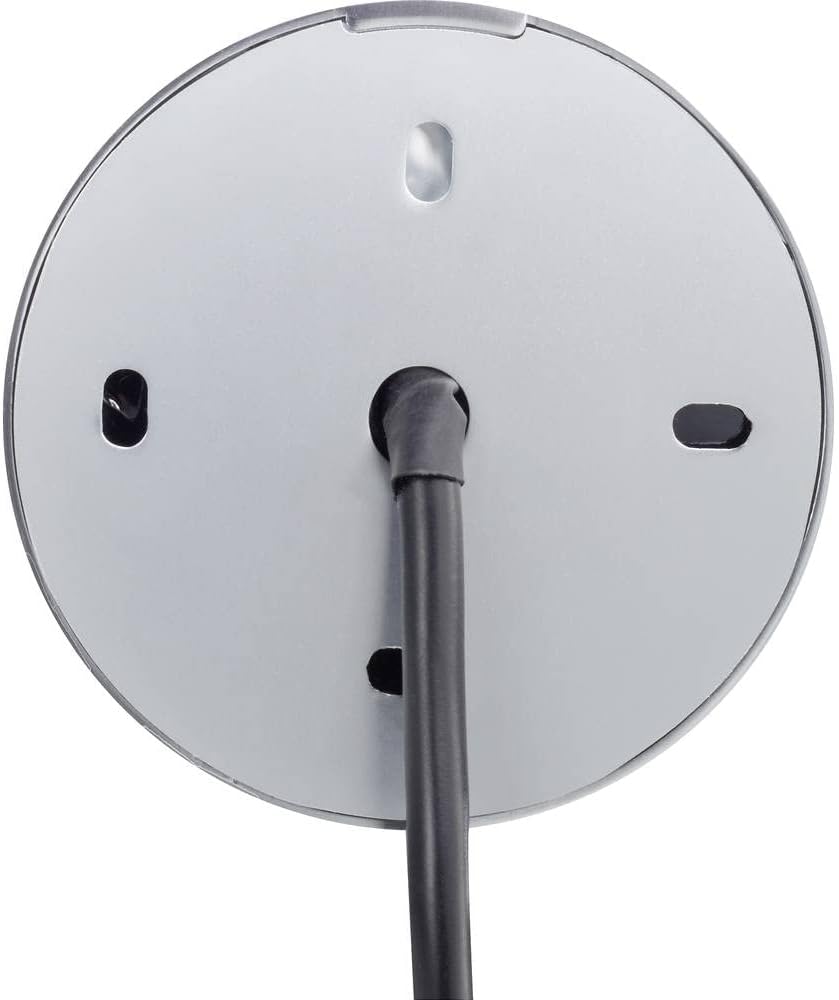

රූපය 3: පසුපස view of the code lock, illustrating the mounting points and the integrated wiring cable.

රැහැන් සම්බන්ධතා

The device requires an 18V/DC power supply. Connect the integrated wiring cable according to the following general guidelines. It is highly recommended that a qualified electrician performs the wiring.

• Identify the power input wires (typically red for positive, black for negative).
• Connect the provided diode to the power line as instructed in the detailed wiring diagram (not provided in this general manual, refer to product-specific diagram). The diode helps protect the circuit from reverse polarity.
• Connect the output wires (e.g., for electric strike, alarm) to the corresponding terminals of your access control system.
• සියලුම සම්බන්ධතා පරිවරණය කර පාරිසරික සාධක වලින් ආරක්ෂා කර ඇති බවට සහතික වන්න.
• After wiring, restore power to the unit. The unit should power on, indicated by an LED or audible signal.

5. මෙහෙයුම් උපදෙස්

This section outlines the basic operation and programming of the Sygonix SY-4599778 code lock. Specific programming steps may vary slightly; always refer to the detailed programming guide included with your product for precise instructions.

Initial Setup and Master Code

1. Upon first power-up, the device will be in a default state.
2. Enter the default master programming code (refer to your product's specific manual for this code, often a sequence like `*123456#`).
3. Change the default master code immediately for security purposes. Follow the prompts or specific key sequences to set a new master code.

Adding User PIN Codes

1. Enter the master programming code to enter programming mode.
2. Select the option to add a new user code (e.g., press `1` or a specific key).
3. Enter the desired new PIN code (typically 4-6 digits) and confirm it.
4. ක්‍රමලේඛන මාදිලියෙන් පිටවන්න.

RFID කාඩ්පත් එකතු කිරීම

1. Enter the master programming code to enter programming mode.
2. Select the option to add a new RFID card (e.g., press `2` or a specific key).
3. Present the RFID card to the reader area on the keypad. The unit will typically beep or flash to confirm registration.
4. ක්‍රමලේඛන මාදිලියෙන් පිටවන්න.

අගුලට ප්‍රවේශ වීම

ප්‍රවේශය ලබා ගැනීමට:

• Using a PIN Code: Enter your valid PIN code followed by the `#` key. The lock will activate (e.g., unlock an electric strike) for a set duration.
• Using an RFID Card: Present your registered RFID card to the reader area on the keypad. The lock will activate for a set duration.

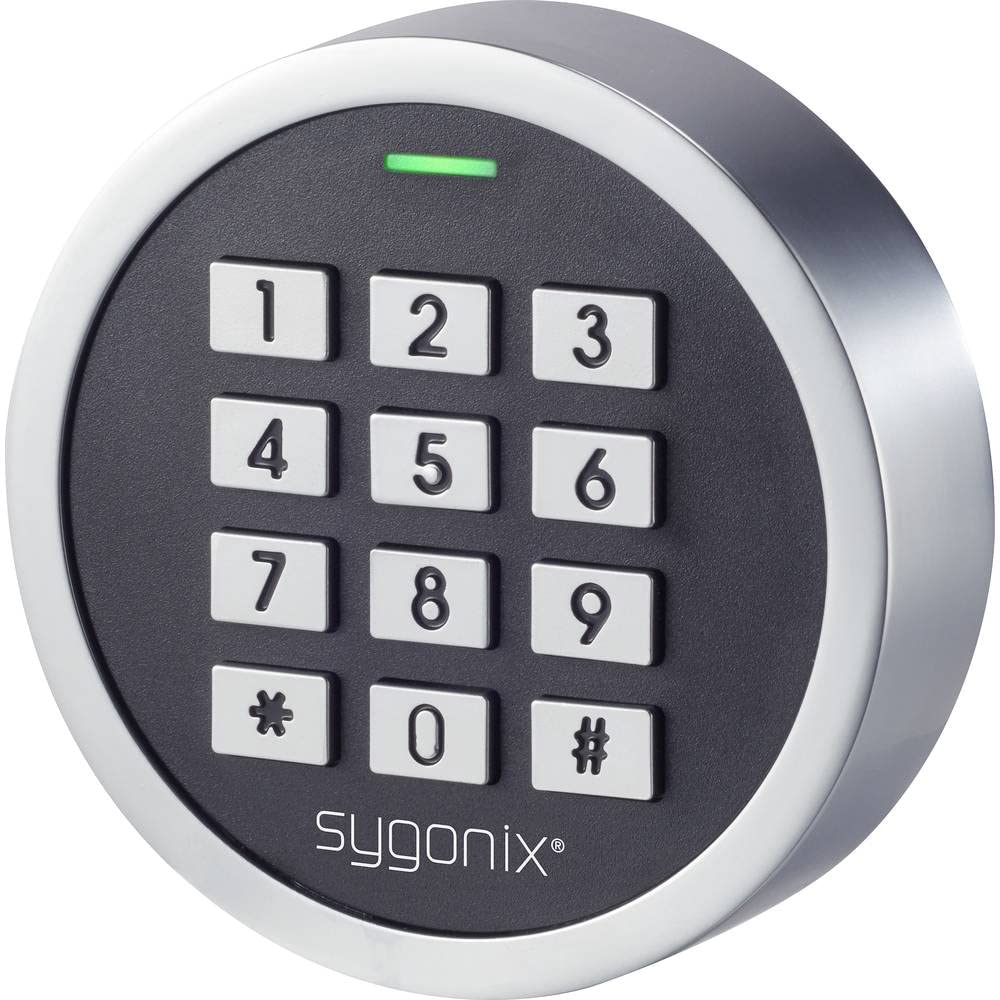

Figure 4: The code lock keypad with a green indicator light, typically indicating successful operation or entry into programming mode.

6. නඩත්තු කිරීම

පිරිසිදු කිරීම

• යතුරු පුවරුවේ මතුපිට මෘදු, d පිරිසිදු කරන්න.amp රෙදි.
• උල්ෙල්ඛ පිරිසිදු කරන්නන්, ද්‍රාවක හෝ රළු රසායනික ද්‍රව්‍ය භාවිතා නොකරන්න, මන්ද මේවා නිමාව හෝ ඉලෙක්ට්‍රොනික සංරචක වලට හානි කළ හැකිය.
• Ensure no liquid enters the internal components of the device.

පරීක්ෂා කිරීම

• Periodically inspect the unit for any signs of physical damage or wear.
• Check the mounting screws to ensure the unit remains securely attached to the surface.
• Verify that all wiring connections are intact and free from corrosion or damage.

7. දෝශ නිරාකරණය

If you encounter issues with your Sygonix SY-4599778 code lock, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact customer support or a qualified technician.

8. පිරිවිතර

9. වගකීම් සහ සහාය

වගකීම් තොරතුරු

The availability of spare parts for this product is typically 1 year from the date of purchase. For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or contact your retailer.

පාරිභෝගික සහාය

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact your point of purchase or the official Sygonix customer support channels. Contact information can usually be found on the product packaging or the manufacturer's official webඅඩවිය.
