VEVOR Soft Serve Ice Cream Machine User Manual

1. تعارف

Thank you for choosing the VEVOR Soft Serve Ice Cream Machine. This machine is designed for both domestic and commercial use, offering high efficiency and ease of operation. With a robust output of 22-30 liters per hour, dual 6-liter mixing hoppers, and 2-liter freezing cylinders, it can produce 150-200 servings of delicious soft serve ice cream per hour. This manual provides essential information for safe operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your machine.

Figure 1.1: VEVOR Soft Serve Ice Cream Machine (Model: BJH288SR2JB-Y)

2. حفاظتي هدايتون

Please read all safety instructions carefully before operating the machine. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• پڪ ڪريو ته مشين صحيح وولٽ سان گرائونڊ ٿيل پاور آئوٽليٽ سان ڳنڍيل آهيtagاي (220V/50Hz).
• مشين کي گلي هٿن سان يا گلي حالتن ۾ نه هلايو.
• آپريشن دوران ٻارن ۽ غير مجاز اهلڪارن کي مشين کان پري رکو.
• Never insert objects into the machine's openings.
• مشين کي صاف ڪرڻ، سار سنڀال ڪرڻ، يا جيڪڏهن اهو ڊگهي عرصي تائين استعمال نه ڪيو ويندو ته ان کان اڳ ان پلگ ڪريو.
• Do not attempt to repair the machine yourself. Contact qualified service personnel for assistance.
• مشين جي چوڌاري مناسب وينٽيليشن کي يقيني بڻايو وڃي ته جيئن وڌيڪ گرم ٿيڻ کان بچي سگهجي.
• Use only food-grade ingredients and maintain strict hygiene practices.

3. پراڊڪٽ ختمview

3.1. جزا

پيڪيج ۾ ھيٺيون شيون شامل آھن:

• 1 x Soft Serve Ice Cream Machine
• 1 x Cone Holder
• 1 x Accessory Kit (includes various nozzles, seals, and belts)
• 1 x استعمال ڪندڙ دستياب

Figure 3.1: Machine dimensions and included accessories.

3.2. اهم خاصيتون

• اعلي پيداوار: Produces 22-30 L/h, suitable for commercial demands.
• 3 ذائقو: Offers two single flavors and one mixed flavor.
• طاقتور ڪمپريسر: Equipped with a 1155W compressor for efficient and stable performance.
• Pre-Cooling Function: Maintains ingredient freshness in the hoppers overnight.
• One-Click Thawing: Simplifies the process of unfreezing the cylinder if it becomes too hard.
• Intelligent LCD Control Panel: Displays quantity, allows hardness adjustment, and features one-click cleaning.
• Air Pump (Puffing Tubes): Enhances ice cream texture and increases yield by 25-30%.

Figure 3.2: Intelligent LCD Control Panel for easy operation.

Figure 3.3: Pre-Cooling and Fresh-Keeping System.

4. وضاحتون

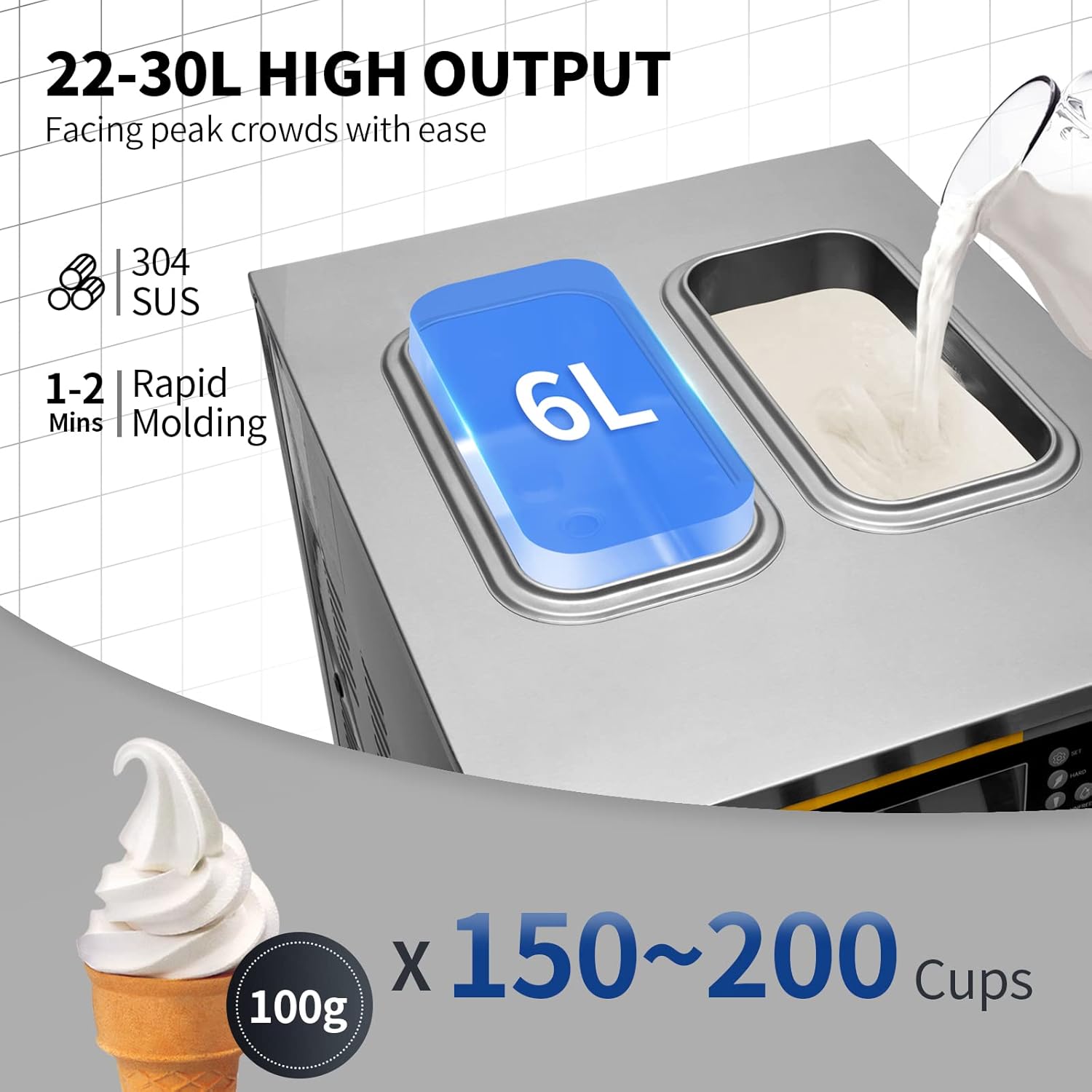

Figure 4.1: Dual 6L Hoppers for efficient production.

5. سيٽ اپ

1. پيڪنگ کولڻ: مشين کي احتياط سان ان جي پيڪنگ مان هٽايو. ڪنهن به شپنگ نقصان جي چڪاس ڪريو.
2. لڳائڻ: Place the machine on a stable, level surface. Ensure there is adequate space (at least 20 cm) around all sides for proper ventilation. Avoid placing it near heat sources or in direct sunlight.
3. پاور ڪنيڪشن: Connect the machine to a dedicated 220V/50Hz grounded power outlet. Ensure the power supply meets the machine's requirements.
4. شروعاتي صفائي: پهرين استعمال کان اڳ، کاڌي سان رابطي ۾ ايندڙ سڀني حصن کي چڱي طرح صاف ڪريو. تفصيلي هدايتن لاءِ "بحالي ۽ صفائي" سيڪشن جو حوالو ڏيو.
5. اجزاء کي گڏ ڪرڻ: Attach the cone holder and ensure all dispensing nozzles are correctly installed.

6. آپريٽنگ هدايتون

1. مرکب تيار ڪريو: Prepare your soft serve ice cream mix according to your recipe. Ensure the mix is well-stirred and free of lumps.
2. Fill Hoppers: Pour the prepared mix into the two 6-liter hoppers. Do not overfill. The machine will alert you if the mix level is low.
3. Start Freezing: Turn on the machine. On the LCD control panel, select the "Freeze" or "Production" mode. The machine will begin the freezing process. The first batch typically takes 13-16 minutes to reach optimal consistency.
4. Adjust Hardness: Use the control panel to adjust the hardness of the ice cream to your preference. A higher ratio setting typically results in harder ice cream.
5. پهچائڻ: Once the ice cream reaches the desired consistency (indicated on the display), place a cone or cup under the dispensing nozzle and pull the handle down to dispense.
6. Pre-Cooling (Overnight Storage): If you need to store the mix overnight, activate the "Keep Fresh" or "Pre-Cooling" function. This maintains the hoppers at a lower temperature, preserving the freshness of the ingredients.
7. One-Click Thawing: If the freezing cylinder becomes too hard or frozen, use the "Unfreeze" button on the control panel to initiate a thawing cycle, making it easier to dispense or clean.

Figure 6.1: Dispensing soft serve ice cream.

7. سار سنڀال ۽ صفائي

Regular cleaning and maintenance are crucial for hygiene, performance, and longevity of your machine.

7.1. Daily Cleaning (One-Click Cleaning)

1. Empty any remaining mix from the hoppers.
2. Fill the hoppers with warm water (around 40°C / 104°F) mixed with a small amount of food-grade detergent.
3. Press the "Wash" button on the control panel. The machine will agitate the cleaning solution within the freezing cylinders.
4. After a few minutes, dispense the cleaning solution through the nozzles into a bucket until clear water comes out.
5. Repeat with clean water to rinse thoroughly.
6. بند ڪريو ۽ مشين کي ختم ڪرڻ.

Figure 7.1: Initiate cleaning with the "Wash" button.

7.2. Weekly Deep Cleaning

For thorough cleaning, disassemble the dispensing assembly and freezing cylinders:

• مشين کي ختم ڪريو.
• Remove the dispensing handles, nozzles, and the front panel.
• Carefully pull out the augers (mixing shafts) from the freezing cylinders.
• Remove all O-rings and seals.
• Wash all disassembled parts with warm, soapy water using a soft brush. Rinse thoroughly.
• Sanitize all parts with a food-grade sanitizer solution.
• سڀني حصن کي ٻيهر گڏ ڪرڻ کان اڳ مڪمل طور تي هوا ۾ سڪي وڃڻ ڏيو.
• Lubricate all O-rings and moving parts with food-grade lubricant before reassembly.
• Reassemble all components carefully, ensuring all seals are correctly seated to prevent leaks.

8. مسئلا حل ڪرڻ

هي حصو عام مسئلن کي حل ڪري ٿو جيڪي توهان کي منهن ڏئي سگهن ٿا.

9. وارنٽي ۽ سپورٽ

VEVOR products are designed for durability and performance. For warranty information and technical support, please refer to the warranty card included with your purchase or visit the official VEVOR website. When contacting support, please have your model number (BJH288SR2JB-Y) and purchase details ready.

وڌيڪ مدد لاءِ، توهان Amazon تي VEVOR اسٽور جو دورو ڪري سگهو ٿا: ويور آفيشل اسٽور
