SIXTOP 4+64G Single DIN 7" Retractable Touchscreen Car Stereo User Manual

تعارف

This manual provides detailed instructions for the installation, operation, and maintenance of your SIXTOP 4+64G Single DIN 7-inch Retractable Touchscreen Car Stereo. Please read this manual thoroughly before using the product to ensure proper function and safety.

پيداوار جون خاصيتون

• سسٽم: Android 13 with RK3326S 4-core processor.
• ڏيکاريو: 7-inch IPS HD retractable touchscreen (1024x600 resolution).
• ياداشت: 4GB ريم + 64GB روم.
• رابطي: Wireless CarPlay & Android Auto, Mirror Link (wireless only), Bluetooth 5.0, WiFi.
• نيويگيشن: Built-in GPS module with support for online and offline maps.
• آڊيو: FM/RDS radio, EQ audio function, 4 x 45W output power, YD7388 power ampلائفائر چپ.
• داخلائون: Dual USB ports, AUX-IN, AHD/CVBS reverse input, external microphone support.
• ڪنٽرول: Steering wheel control support, split screen function, illuminated buttons.
• ملٽي ميڊيا: Supports various audio (APE/FLAC/WAV/MP3/WMA), video (MKV/RMVB/AVI/MP4/MDV), and image (PNG/JPEG/JPG/GIF/WBMP/BNP) formats.

سيٽ اپ ۽ تنصيب

The car stereo features a universal 1DIN design, compatible with most Single DIN vehicle slots. Careful wiring is essential for proper functionality.

پيڪيج مواد

پڪ ڪريو ته سڀئي شيون توهان جي پيڪيج ۾ شامل آهن:

Image: Included accessories such as USB cable, GPS antenna, rear camera input cable, power cable, radio antenna, RCA cable, user manual, microphone, rear camera, and mounting bracket.

وائرنگ جون هدايتون

The connection wires are provided bare, and an ISO plug is not included. You will need to either purchase a suitable ISO adapter for your vehicle or carefully cut and connect the car's existing wiring using appropriate connectors such as terminal blocks or Wago connectors. Ensure all connections are secure and correctly matched to avoid damage to the unit or vehicle electrical system.

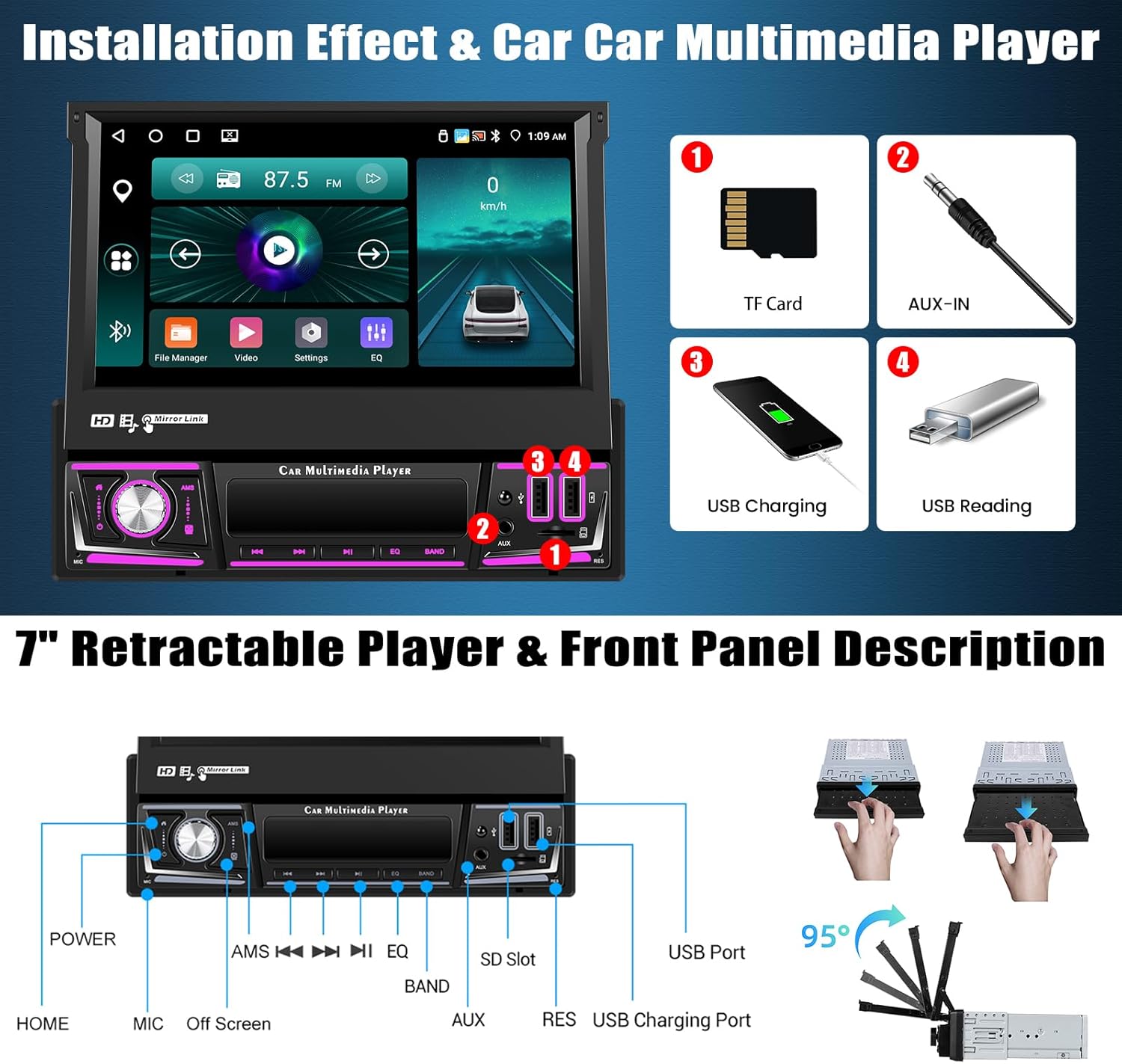

Image: Front panel description highlighting the retractable screen mechanism and various ports including TF card slot, AUX-IN, USB charging, and USB reading ports.

آپريٽنگ هدايتون

CarPlay & Android Auto / Mirror Link

Connect your smartphone wirelessly to access phone contacts, emails, notifications, maps, music, and videos directly on the car stereo screen. Voice commands are supported. Mirror Link functionality allows projecting your phone's screen onto the car stereo display (wireless connection only).

Image: Demonstrates the interface for Wireless CarPlay, Android Auto, and Mirrorlink, showing how phone applications and media are displayed on the car stereo.

Bluetooth & FM/RDS Radio

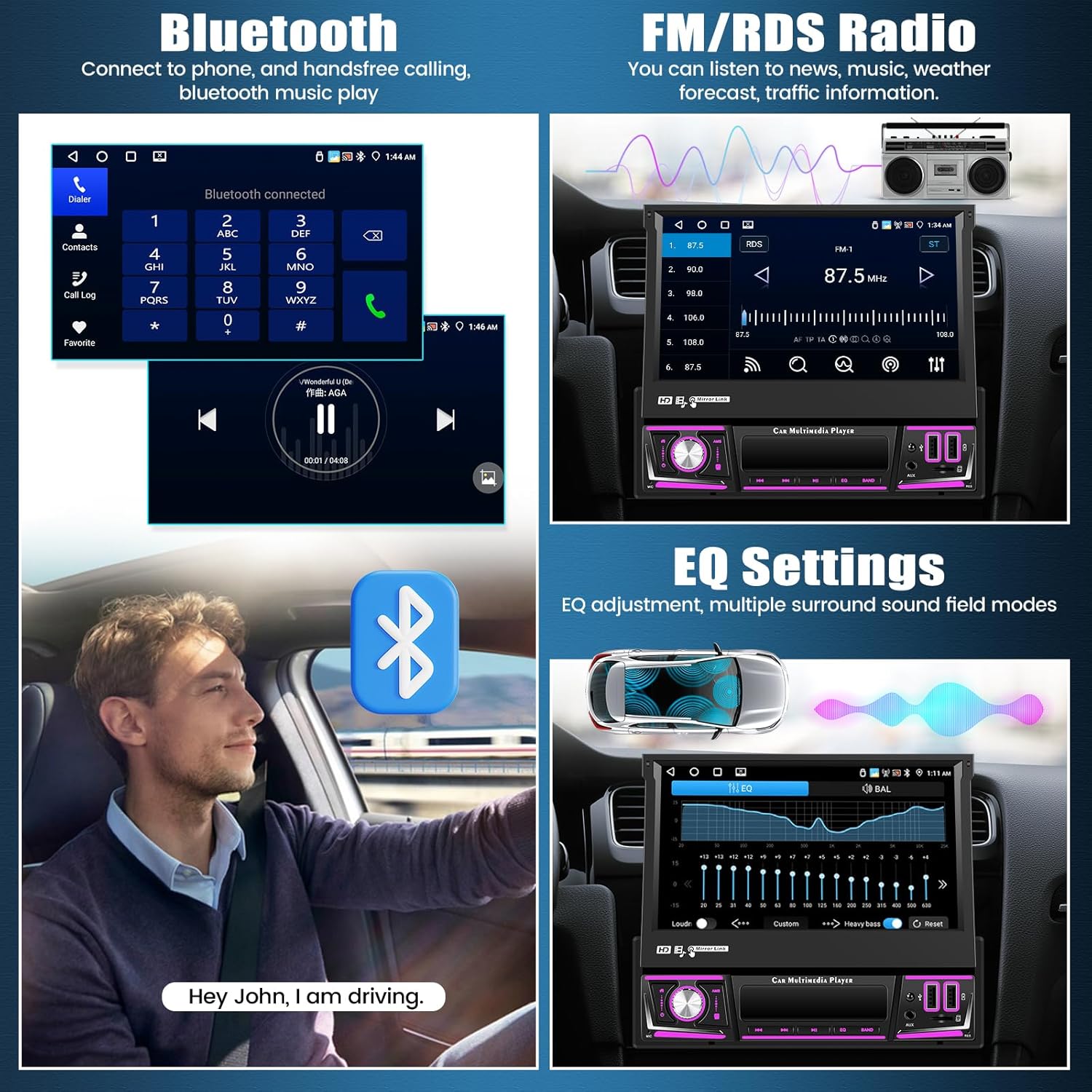

Utilize Bluetooth 5.0 for hands-free calling, contact synchronization, and wireless music streaming. The FM/RDS radio supports automatic, semi-automatic, and precise tuning to listen to your favorite stations, news, and traffic information.

Image: Illustrates the Bluetooth interface for phone calls and music, alongside the FM/RDS radio display for tuning into stations.

GPS Navigation & WiFi Function

The integrated GPS module supports both online and offline maps for accurate and easy navigation. Voice navigation and real-time traffic information are available. Connect to WiFi to access online videos, download applications, and browse the internet.

Image: Displays the GPS navigation interface with map details and a visual representation of the WiFi function with common application icons.

Steering Wheel Controls & Split Screen

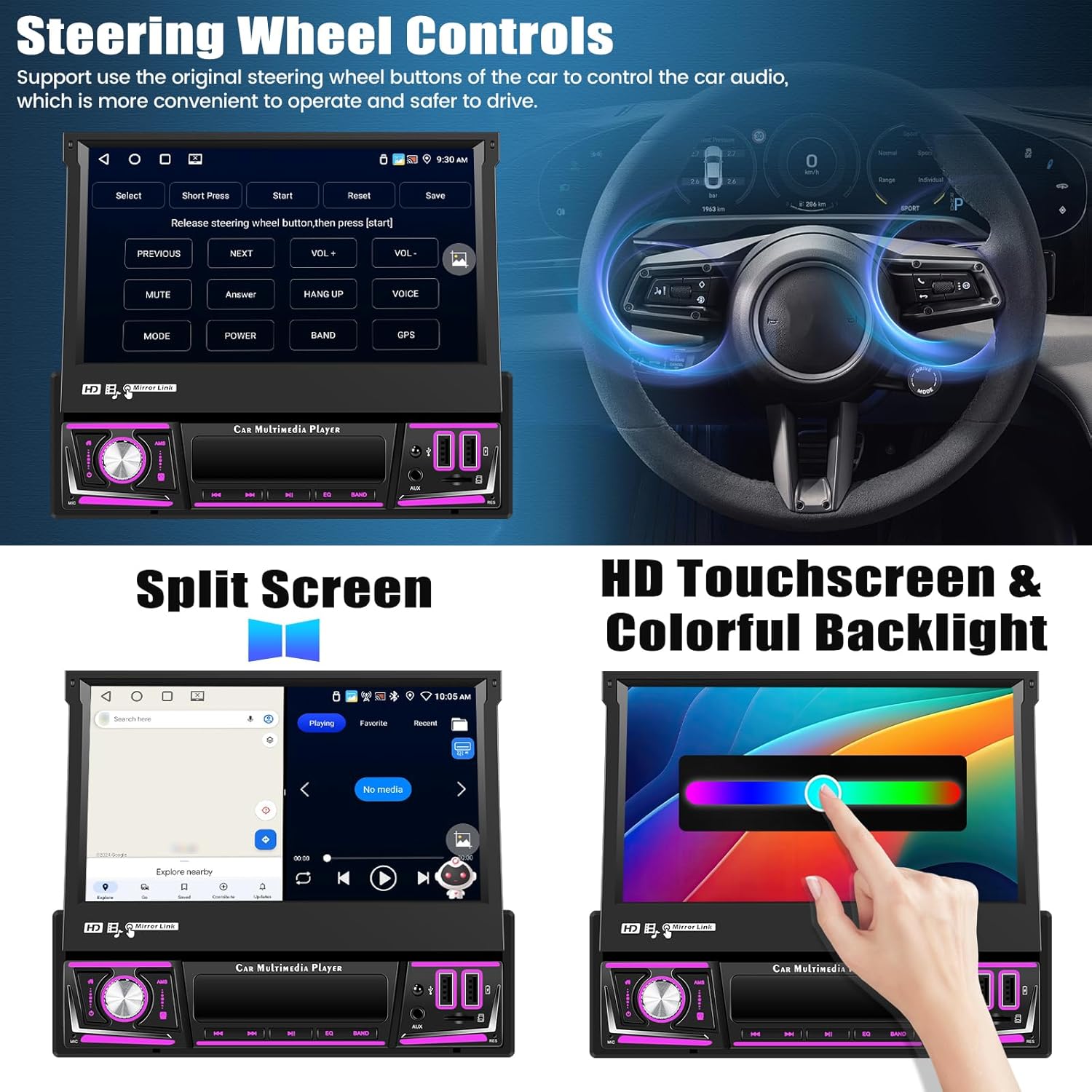

The unit supports existing steering wheel controls, allowing you to manage audio functions like changing songs, channels, and volume without taking your hands off the wheel. The split screen feature enables simultaneous use of two applications, with adjustable size and position, and easy switching via a swipe gesture.

Image: Demonstrates how to configure steering wheel controls and the functionality of the split screen mode, showing two apps running side-by-side.

ريورسنگ ڊسپلي

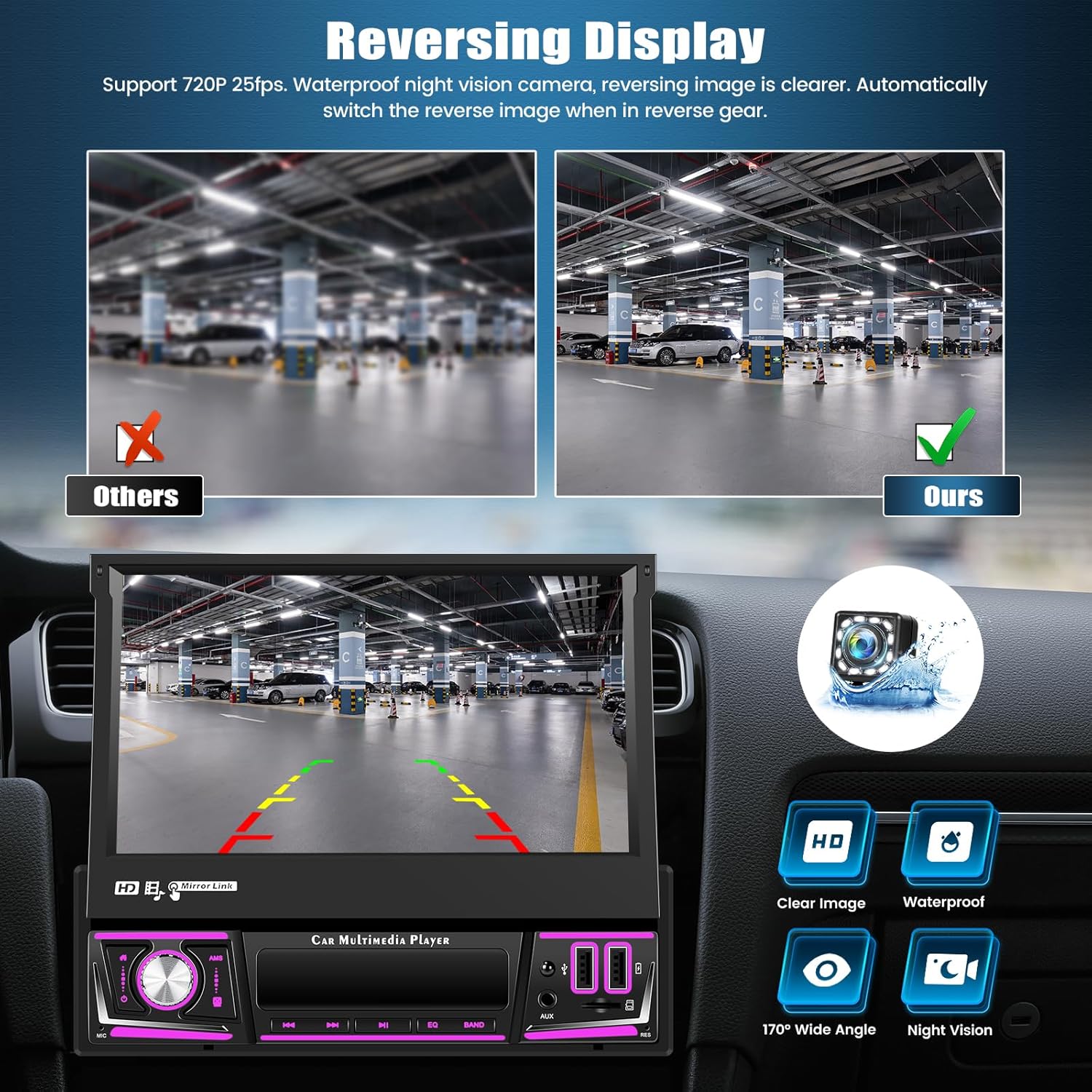

The car stereo supports a rearview camera (included), automatically switching to the reverse image when backing up. It supports AHD/CVBS formats, providing a clear view, even at night. Parking assist lines can be adjusted for convenience.

Image: Illustrates the clear reversing display provided by the included camera, highlighting features like HD resolution, waterproof design, wide-angle view, and night vision capabilities.

EQ آڊيو سيٽنگون

Adjust the equalizer parameters of the audio output to customize sound quality. This feature allows for personalized audio tuning for an enhanced listening experience.

اختياري افعال

The unit supports several optional functions to further enhance your driving experience:

• AI DSP: Eight mainstream sound effects specifically designed for automotive scenarios.
• ذهين وائس اسسٽنٽ: Control the device and access various functions using natural language voice commands (activation may be required).
• DVR (Digital Video Recorder): Connect an optional car recorder to record your journeys.
• DAB (Digital Audio Broadcasting): Support for digital radio broadcasting (requires optional DAB module).

Image: Displays the user interfaces for AI DSP sound effects, the intelligent voice assistant, an example of DVR integration, and the DAB radio connection screen.

وضاحتون

سار سنڀال

توهان جي ڪار اسٽيريو جي ڊگهي عمر ۽ بهترين ڪارڪردگي کي يقيني بڻائڻ لاءِ، انهن سار سنڀال جي هدايتن تي عمل ڪريو:

• صفائي: اسڪرين ۽ يونٽ کي صاف ڪرڻ لاءِ نرم، سڪل ڪپڙو استعمال ڪريو. رگڙيندڙ صاف ڪندڙن يا محلولن کان پاسو ڪريو.
• گرمي پد: نقصان کان بچڻ لاءِ يونٽ کي مخصوص درجه حرارت جي حد (-20 °C کان 75 °C) اندر هلايو.
• Retractable Screen: When not in use, retract the screen to protect it from dust and physical damage.
• سافٽ ويئر اپڊيٽ: ٺاهيندڙ جي چيڪ ڪريو website for any available software updates to improve performance and add new features.

مشڪلاتون

جيڪڏهن توهان کي پنهنجي ڪار اسٽيريو سان مسئلا درپيش اچن ٿا، ته هيٺ ڏنل عام مسئلن ۽ حلن جو حوالو ڏيو:

ڪابه بجلي ناهي / يونٽ آن نه ٿي رهيو آهي

• سڀني پاور ڪنيڪشنن کي چيڪ ڪريو ته جيئن پڪ ڪري سگهجي ته اهي محفوظ ۽ صحيح طرح سان وائر ٿيل آهن.
• Verify that the vehicle's fuse for the stereo is intact.

ڪو آواز

• پڪ ڪريو ته اسپيڪر تار صحيح طرح سان ڳنڍيل آهن ۽ شارٽ سرڪٽ نه آهن.
• Check volume levels and EQ settings.

اسٽيئرنگ ويل ڪنٽرول ڪم نه ڪري رهيا آهن

• Confirm that the steering wheel control wires are properly connected to the unit.
• Refer to the unit's settings for steering wheel control configuration.

ريڙههview ڪئميرا نه ڏيکاري رهيو آهي

• Check the camera's power and video input connections.
• Ensure the reverse gear signal wire is correctly connected to trigger the display.

Connectivity Issues (Bluetooth, WiFi, CarPlay/Android Auto)

• Ensure Bluetooth and WiFi are enabled on both the stereo and your device.
• For CarPlay/Android Auto, verify the connection type (wireless or wired) and ensure your phone is compatible.
• ڪار اسٽيريو ۽ پنهنجي موبائل ڊوائس ٻئي ٻيهر شروع ڪريو.

وارنٽي ۽ سپورٽ

SIXTOP is committed to providing quality products and customer satisfaction. Your product comes with the following support:

• وارنٽي: 2 Years repair or replacement.
• واپسي: 30 Day Replacement policy.
• ٽيڪنيڪل سپورٽ: حياتياتي ٽيڪنيڪل سپورٽ.
• جواب ڏيڻ جو وقت: 18 Hours Online Response for inquiries.

For any questions regarding product fitment or technical assistance, please contact our support team. You can typically find our contact information by navigating to the seller's page on the platform where you purchased the product and looking for an 'Ask a question' option.
