VEVOR Electric Automatic Gate Opener User Manual

پيداوار ختمview

The VEVOR Electric Automatic Gate Opener is designed to provide convenient and secure access for single swing gates. This robust system is suitable for various gate types, including chain link, tube, panel, vinyl, and wood gates. It features a powerful DC 24V motor, remote control operation, and safety features like an indication light and manual release key for power outages.

This model (MK1102M) is engineered to handle gates up to 5.5 meters (18 feet) in length and weighing up to 380 kg (837 lbs), offering reliable performance for residential, farm, and light commercial applications.

Image: All components included in the VEVOR Electric Automatic Gate Opener kit, including the linear actuator, control box, remote controls, warning light, and various mounting hardware.

حفاظتي هدايتون

• انسٽاليشن ۽ آپريشن کان پهريان سڀ هدايتون احتياط سان پڙهو.
• پڪ ڪريو ته سڀئي برقي ڪنيڪشن مقامي ضابطن ۽ ضابطن جي تعميل ڪن ٿا.
• Do not allow children to play near the gate opener or operate the remote control.
• آپريشن دوران هٿن ۽ ڪپڙن کي گيٽ ۽ اوپنر ميڪانيزم کان پري رکو.
• بجلي جي ناڪامي جي صورت ۾، گيٽ کي هلائڻ لاءِ دستي رليز ڪي استعمال ڪريو.
• Install warning signs on both sides of the gate for visibility.
• Ensure the gate is properly balanced and moves freely before installing the opener.

پيڪيج مواد

پڪ ڪريو ته هيٺ ڏنل سڀئي جزا توهان جي پيڪيج ۾ موجود آهن:

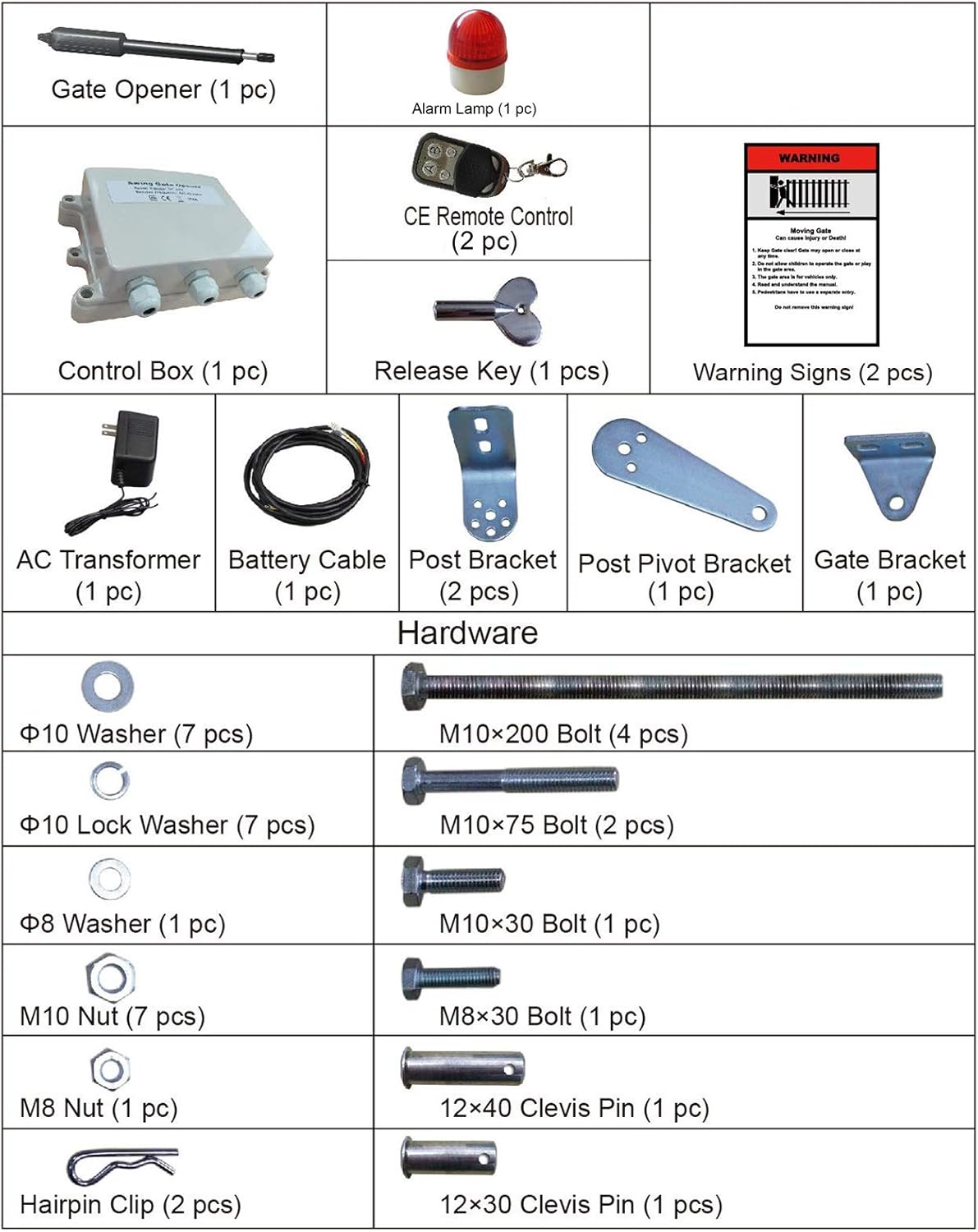

Image: Detailed diagram showing all parts included in the VEVOR Automatic Gate Opener kit, such as the gate opener unit, alarm lamp, remote controls, control box, release key, warning signs, AC transformer, battery cable, and various brackets and hardware.

سيٽ اپ ۽ تنصيب

Proper installation is crucial for the optimal performance and safety of your gate opener. It is recommended to have this installed by a qualified professional if you are not familiar with electrical and mechanical installations.

1. قبل از انسٽاليشن چيڪ

• Ensure your gate is structurally sound, balanced, and swings freely without obstruction.
• Confirm the gate dimensions and weight are within the opener's specifications (max 5.5m length, 380kg weight).
• Plan the wiring path for power supply (requires 2 x 12V DC batteries, not included).

2. Mounting the Actuator

The gate opener supports both push-to-open and pull-to-open installations. The mounting position will vary based on your gate's opening direction.

Image: An illustrative diagram demonstrating the two installation methods for the gate opener: "Pull-to-Open" where the gate is in the open position, and "Push-to-Open" where the gate is in the closed position. It shows the placement of the linear actuator, post bracket assembly, and gate bracket.

• Attach the post bracket assembly to a sturdy fence post or pillar.
• Attach the gate bracket to the gate frame.
• Connect the gate opener actuator to both brackets using the provided pins and hardware. Ensure the actuator is level.

3. برقي ڪنيڪشن

Connect the gate opener to the control box and power supply. The system requires a 24V DC power source, typically supplied by two 12V DC batteries connected in series (not included).

Image: A schematic diagram illustrating the power supply connections for the VEVOR Automatic Gate Opener. It shows the control box connected to the gate opener, optional solar panel, optional alarm lamp, optional electric lock, and the required 2x12V batteries (not included) with an adapter for charging.

• Connect the actuator wires to the designated terminals in the control box.
• Connect the battery cables to the control box and the 24V DC battery bank.
• Install the warning lamp and connect its wires to the control box.
• Ensure all connections are secure and waterproof.

آپريٽنگ هدايتون

1. ريموٽ ڪنٽرول آپريشن

The gate opener comes with two remote controls for convenient operation. The control distance is approximately 20-30 meters (65-98 feet).

Image: A hand holding a remote control inside a car, with a gate visible in the background, illustrating the quick remote control functionality of the gate opener.

• Press the designated button on the remote control to open or close the gate.
• The gate will automatically close after 60 seconds if no further action is detected.

2. دستي رليز

طاقت جي صورت ۾tage or system malfunction, the gate can be operated manually using the provided release key.

Image: A close-up of the gate opener showing the manual quick release switch, which can be accessed with the provided key in case of a power outage. This highlights the powerful motor and key feature.

• Locate the manual quick release switch on the actuator.
• Insert the release key and turn it to disengage the motor, allowing the gate to be moved by hand.
• Remember to re-engage the motor once power is restored or the issue is resolved.

سار سنڀال

Regular maintenance ensures the longevity and reliable operation of your VEVOR gate opener.

• مهيني: Inspect the gate and opener for any signs of wear, damage, or loose connections. Ensure the gate moves freely without resistance.
• ٽه ماهي: Clean the actuator arm and ensure it is free of debris. Check the battery terminals for corrosion and clean if necessary.
• سالانه: Lubricate moving parts of the gate and opener as recommended by the gate manufacturer. Check the alignment of the gate and opener.
• ڊيڄاريندڙ نشانيون: Periodically check the warning signs for visibility and ensure they are securely attached.

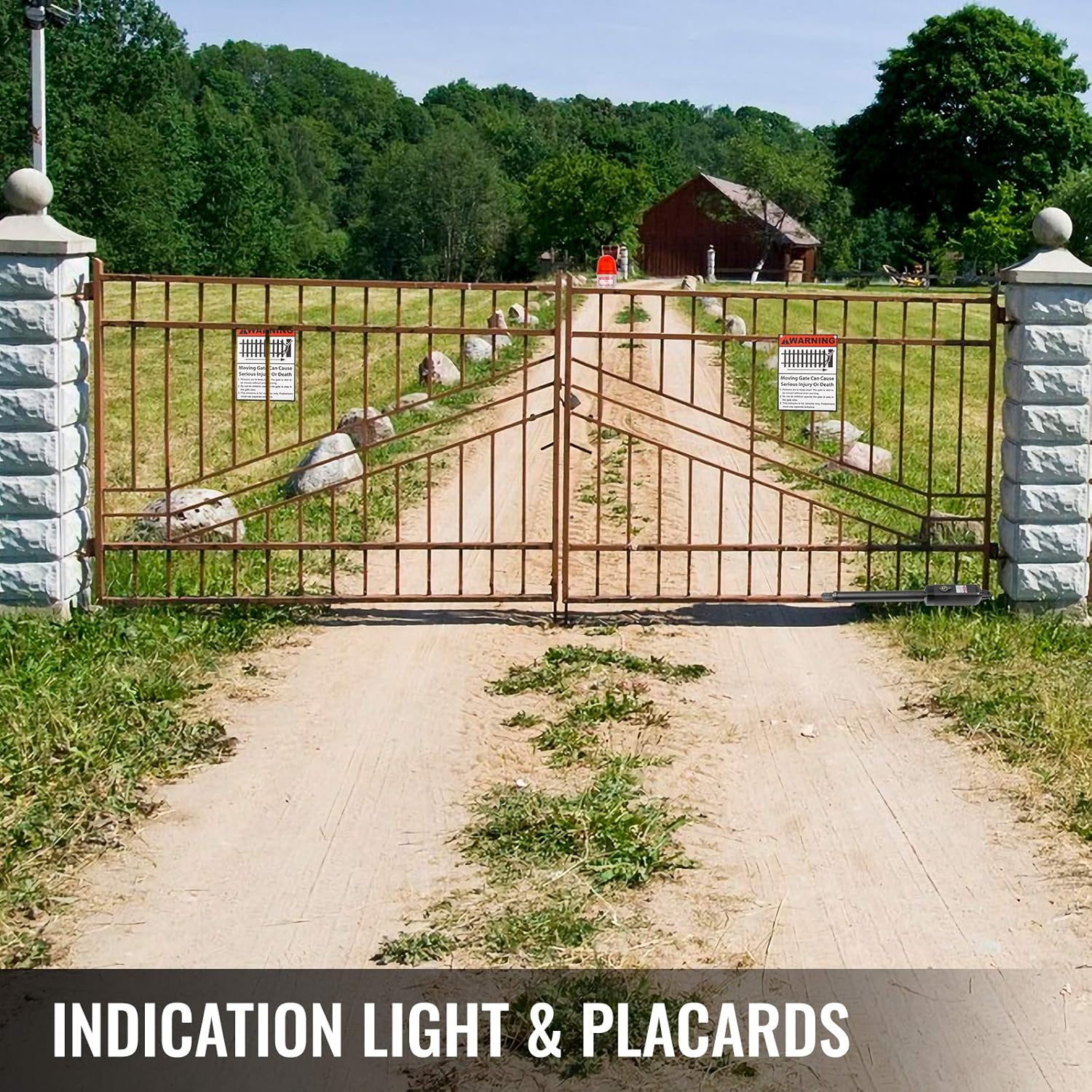

Image: A large metal gate with two warning signs prominently displayed on either side, and a red flashing light on the left pillar, emphasizing the importance of indication lights and placards for safety.

مشڪلاتون

جيڪڏهن توهان کي پنهنجي گيٽ اوپنر سان مسئلا درپيش اچن ٿا، ته هيٺ ڏنل عام مسئلن ۽ حلن جو حوالو ڏيو:

If the problem persists after attempting these solutions, contact VEVOR customer support or a qualified technician.

وضاحتون

Image: A table illustrating the compatibility of the gate opener with different gate types and sizes, showing maximum gate weight capacities for various gate lengths, indicating its versatility for different gates.

Image: A diagram showing the detailed dimensions of the VEVOR gate opener actuator, including its total length and the length of its extended and retracted parts, providing precise measurements for installation planning.

وارنٽي ۽ سپورٽ

VEVOR جون شيون عام طور تي معياري وارنٽي سان گڏ اينديون آهن. مھرباني ڪري پنھنجي پراڊڪٽ سان شامل وارنٽي ڪارڊ جو حوالو ڏيو يا سرڪاري VEVOR جو دورو ڪريو. webتفصيلي وارنٽي شرطن ۽ ضابطن لاءِ سائيٽ.

ٽيڪنيڪل سپورٽ، مسئلو حل ڪرڻ ۾ مدد، يا متبادل حصن بابت پڇا ڳاڇا ڪرڻ لاءِ، مھرباني ڪري VEVOR ڪسٽمر سروس سان رابطو ڪريو:

• Webسائيٽ: www.vevor.com
• اي ميل: مخصوص سپورٽ اي ميل لاءِ پنهنجي پراڊڪٽ دستاويزن جو حوالو ڏيو.
• فون: Refer to your product documentation for specific support phone numbers.

When contacting support, please have your model number (MK1102M) and purchase information ready.
