تعارف
Thank you for choosing the Rowenta Turbo Silence Extreme+ Stand Fan. This manual provides important information for the safe and efficient operation, maintenance, and troubleshooting of your fan. Please read it thoroughly before first use and keep it for future reference.
حفاظت جي ڄاڻ
باهه، بجليءَ جي جھٽڪي، يا زخم جي خطري کي گهٽائڻ لاءِ هميشه هيٺ ڏنل حفاظتي احتياطن تي عمل ڪريو:
- حجم کي يقيني بڻايو وڃيtage indicated on the fan's rating label matches your mains supply voltage.
- فين کي خراب ٿيل ڪنڊ يا پلگ سان نه هلايو. جيڪڏهن ڪنڊ خراب ٿي وئي آهي، ته ان کي ٺاهيندڙ، ان جي سروس ايجنٽ، يا ساڳئي طرح قابل ماڻهن طرفان تبديل ڪرڻ گهرجي ته جيئن خطري کان بچي سگهجي.
- Unplug the fan from the power outlet when not in use, before cleaning, or before performing any maintenance.
- Do not insert fingers or any other objects through the fan guard when it is operating.
- Keep the fan away from water or other liquids. Do not use it in bathrooms or other damp ماحول.
- هي اوزار استعمال ڪرڻ جو ارادو نه ڪيو ويو آهي ماڻهن (بشمول ٻارن سميت) گھٽ جسماني، حسي يا ذهني صلاحيتن سان، يا تجربو ۽ ڄاڻ جي کوٽ، جيستائين انهن جي حفاظت لاء ذميوار شخص طرفان اوزار جي استعمال بابت نگراني يا هدايت نه ڏني وئي آهي.
- ٻارن کي نگراني ڪرڻ گهرجي انهي کي يقيني بڻائڻ ته اهي اوزار سان راند نه ڪن.
- پنکڙي کي هڪ مستحڪم، هموار مٿاڇري تي رکو ته جيئن ان کي ٽپڻ کان روڪيو وڃي.
پيداوار ختمview ۽ اجزاء
The Rowenta Turbo Silence Extreme+ Stand Fan is designed to provide powerful yet quiet cooling for your home or office. It features Effitech motor technology for energy efficiency, 16 speed settings, and 3 automatic modes for personalized comfort.
Image: The Rowenta Turbo Silence Extreme+ Stand Fan shown with its accompanying remote control.
شامل اجزاء:
- Fan Unit (Motor, Blades, Guards)
- بنياد
- ٽيلي اسٽوپيڪ قطب
- ريموٽ ڪنٽرول
- پاور ڪنڊ
اسيمبلي
Follow these steps to assemble your Rowenta Turbo Silence Extreme+ Stand Fan:
- احتياط سان دٻي مان سڀئي حصا کوليو.
- Attach the telescopic pole to the fan base, ensuring it is securely fastened.
- Mount the fan motor unit onto the top of the telescopic pole.
- Assemble the front and rear fan guards, ensuring the blades are correctly positioned within the guards. Secure the guards with the provided fasteners.
- فين کي پلگ ان ڪرڻ کان اڳ پڪ ڪريو ته سڀئي ڪنيڪشن تنگ ۽ محفوظ آهن.
آپريٽنگ هدايتون
پاور آن / آف:
Plug the fan into a suitable power outlet. Press the power button on the control panel or remote control to turn the fan on or off.
رفتار ترتيب ڏيڻ:
The fan offers 16 selectable speeds. Use the '+' and '-' buttons on the control panel or remote control to increase or decrease the fan speed to your desired level of airflow.
Image: The fan demonstrating personalized refreshment with its 16 speed levels.
خودڪار طريقا:
Select from 3 automatic modes using the 'Mode' button:
- رات جو موڊ: Automatically reduces fan speed for quiet operation during sleep.
- خاموش موڊ: Provides optimal balance between noise level and performance, operating at a very low 32 dB(A).
- قدرتي هوا موڊ: Simulates natural wind patterns by varying fan speed.
Image: The fan operating particularly quietly, ideal for bedrooms, with a noise level of only 32 dB(A).
تڪليف
Press the oscillation button to activate or deactivate the automatic 120° oscillation feature, which distributes air across a wider area.
ٽائمر فنڪشن:
Set the fan to turn off automatically after a set period, up to 12 hours, using the timer button.
ريموٽ ڪنٽرول:
The compact remote control allows you to conveniently adjust all fan settings from a distance.

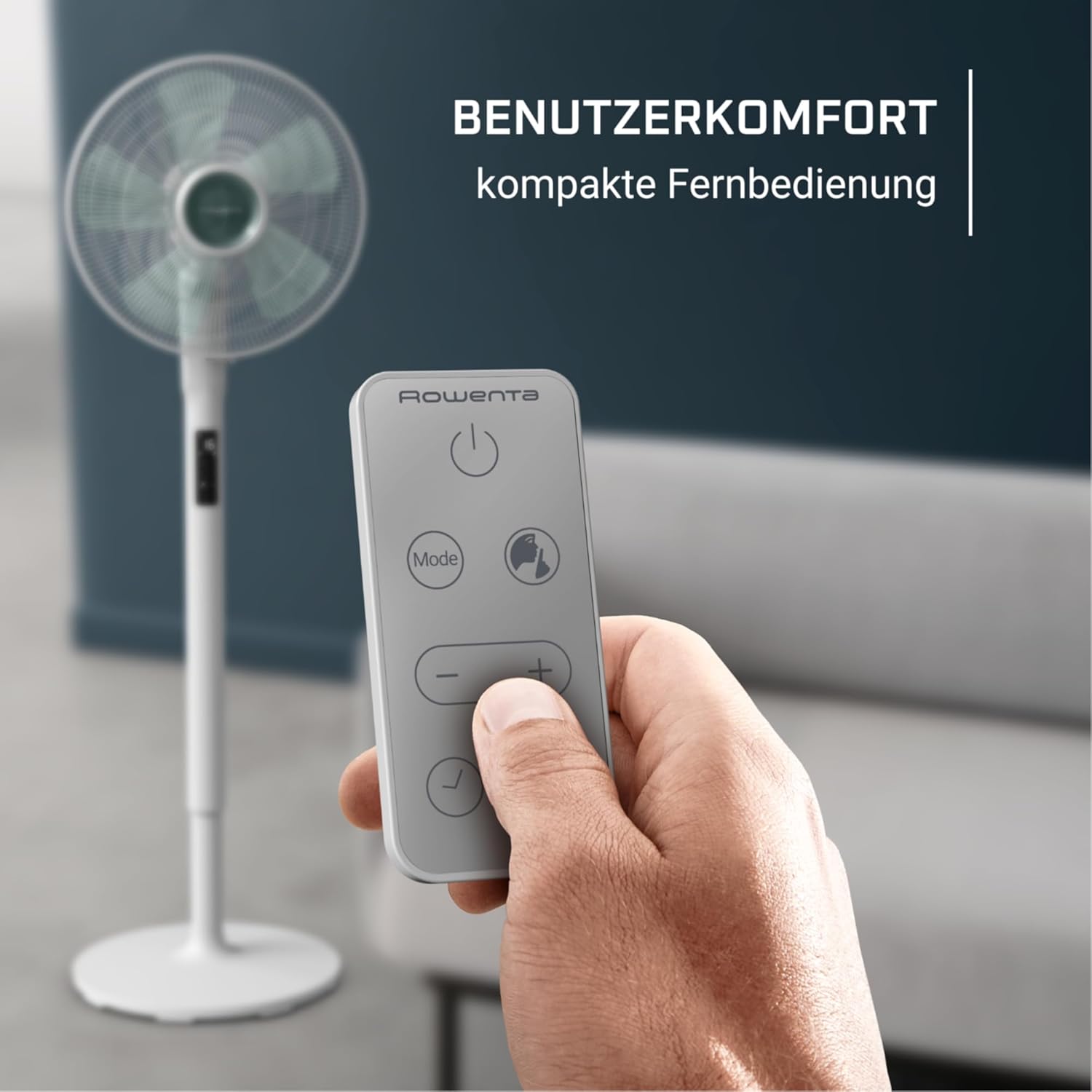

Image: A hand holding the compact remote control, highlighting user comfort and convenience.
اونچائي جي ترتيب:
Adjust the fan's height by loosening the height adjustment knob on the telescopic pole, setting the desired height, and then tightening the knob securely.
سار سنڀال ۽ صفائي
باقاعدي صفائي توهان جي پنکڙي جي ڪارڪردگي کي برقرار رکڻ ۽ ان جي عمر وڌائڻ ۾ مدد ڪندي.
- صفائي ڪرڻ کان اڳ هميشه فين کي پاور آئوٽليٽ مان ڪڍو.
- پنکڙي جي ٻاهرين مٿاڇري کي نرم، ڊي سان صاف ڪريوamp ڪپڙو. استعمال نه ڪريو abrasive cleaners يا solvents.
- For thorough cleaning of the fan blades, carefully remove the front guard according to the assembly instructions in reverse. Clean the blades with a soft cloth and reassemble the guard securely.
- پڪ ڪريو ته پنکڙي کي واپس لڳائڻ کان اڳ سڀئي حصا مڪمل طور تي سڪي ويا آهن.
مشڪلاتون
جيڪڏهن توهان کي پنهنجي پرستار سان مسئلا درپيش اچن ٿا، ته هيٺ ڏنل عام مسئلن ۽ حلن جو حوالو ڏيو:
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| پنکڙو نه ٿو هلي. | Not plugged in; Power outlet fault; Fan damaged. | Ensure fan is securely plugged in; Test outlet with another device; Contact customer support if damaged. |
| ڪمزور هوا جو وهڪرو. | Low speed setting; Dirty blades/guards. | Increase speed setting; Clean fan blades and guards. |
| غير معمولي شور. | Loose parts; Obstruction in fan blades. | Check for loose components and tighten; Ensure no objects are obstructing the blades. |
ٽيڪنيڪل وضاحتون
Below are the technical specifications for the Rowenta Turbo Silence Extreme+ Stand Fan:
| خاصيت | تفصيل |
|---|---|
| ماڊل نمبر | VU5890F0 |
| پيداوار جي ماپ | 43 x 46 x 134 سينٽي |
| پيداوار جو وزن | 4.48 ڪلوگرام |
| شور جي سطح | 32 ڊي بي (اي) |
| رفتار جو تعداد | 16 |
| خودڪار موڊس | Night, Silent, Natural Breeze |
| Oscillation Angle | 120 ° تائين |
| ٽائمر | 12 ڪلاڪ تائين |
| طاقت جو ذريعو | تار ٿيل برقي |
| خاص خاصيتون | Adjustable Height, Oscillating, Remote Controlled |
Image: The Effitech Motor, highlighting 65% energy savings for the same performance.
Image: Detailed dimensions of the Rowenta Turbo Silence Extreme+ Stand Fan.
وارنٽي ۽ ڪسٽمر سپورٽ
Your Rowenta Turbo Silence Extreme+ Stand Fan is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.
For technical assistance, spare parts, or warranty claims, please contact Rowenta customer support. You can find contact information on the official Rowenta website or in your product documentation. When contacting support, please have your model number (VU5890F0) and purchase date ready.
