Greenworks GD24X2LM46SPK4X Cordless Self-Propelled Lawn Mower

1. تعارف

Thank you for choosing the Greenworks GD24X2LM46SPK4X Cordless Self-Propelled Lawn Mower. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new lawn mower. Please read this manual thoroughly before first use and keep it for future reference.

Figure 1: Greenworks GD24X2LM46SPK4X Cordless Self-Propelled Lawn Mower.

2. حفاظت جي ڄاڻ

Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury when operating this product.

• ھدايت پڙھو: Read and understand all instructions before operating the lawn mower.
• علائقو صاف رکو: Keep children, bystanders, and pets away from the mowing area.
• مناسب لباس پائڻ: Always wear eye protection, long pants, and sturdy, non-slip footwear.
• استعمال ڪرڻ کان اڳ چڪاس ڪريو: Check the mower for damaged parts, loose fasteners, or any other condition that may affect its safe operation.
• Remove Battery When Not In Use: Always remove the battery pack when cleaning, servicing, or storing the mower.
• گندي حالتن کان بچڻ: گلي گاهه يا مينهن ۾ ڪٽڻ واري مشين نه هلايو.
• سلپ آپريشن: Exercise extreme caution when operating on slopes. Mow across the face of slopes, never up and down.

3. پيڪيج مواد

Ensure all items are present and undamaged upon unpacking:

• Greenworks GD24X2LM46SPK4X Lawn Mower Unit
• گھاس گڏ ڪرڻ وارو ٿيلهو (55 ليٽر گنجائش)
• پاسي ڊسچارج چوٽ
• ملچنگ پلگ
• Two (2) 24V 4Ah Lithium-ion Batteries (equivalent to 48V when used together)
• ڊبل پورٽ چارجر
• آپريٽر جو دستورالعمل

4. اسيمبلي ۽ سيٽ اپ

شروعاتي اسيمبلي ۽ تياري لاءِ انهن قدمن تي عمل ڪريو:

1. اسيمبليء جو انتظام:

   Unfold the upper and lower handles. Secure them in place using the quick-release clamps or knobs provided. Ensure the handles are firmly locked to prevent movement during operation.

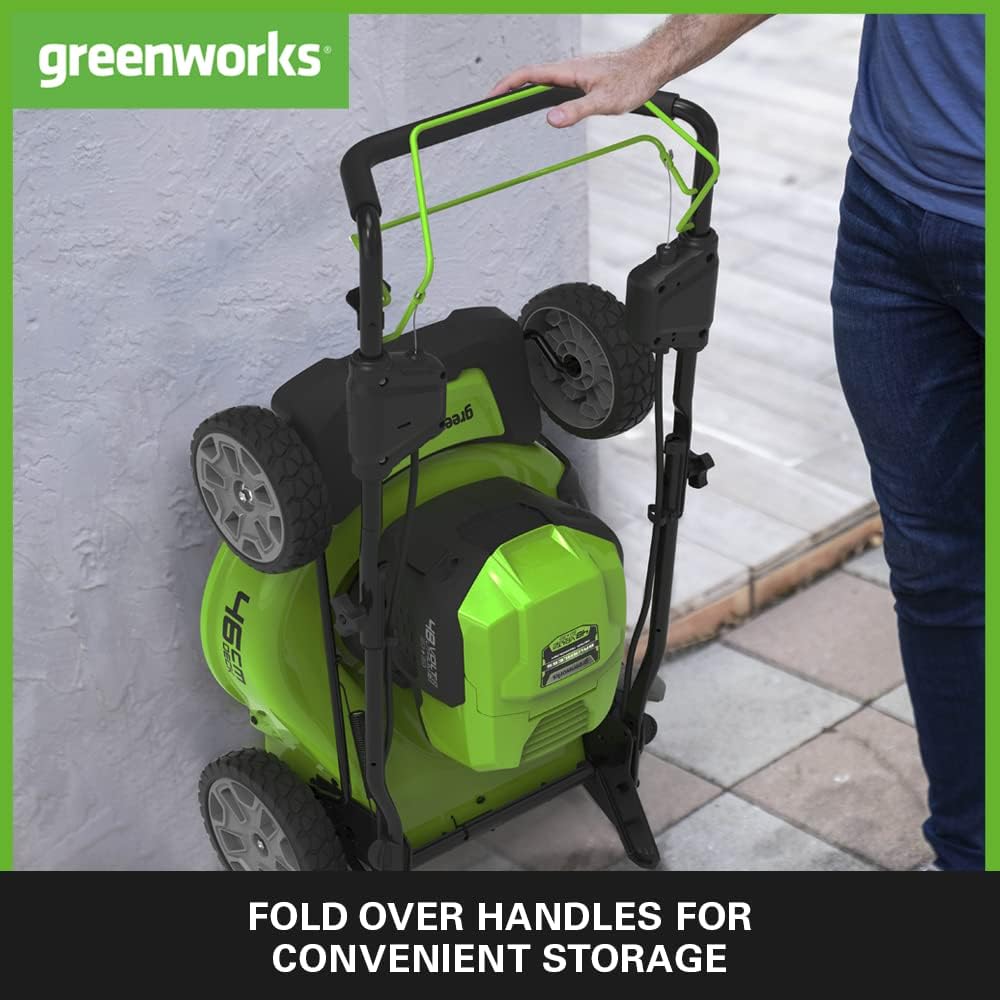

   Figure 2: Foldable handles for convenient storage.
2. Grass Collection Bag Installation:

   Assemble the grass collection bag if necessary. Lift the rear discharge flap and hook the grass bag onto the mower's frame.

3. Mulching Plug/Side Discharge Chute:

   For mulching, insert the mulching plug into the rear discharge opening. For side discharge, attach the side discharge chute to the side opening.

4. بيٽري چارج ڪرڻ:

   Insert both 24V 4Ah batteries into the dual port charger. Connect the charger to a power outlet. The indicator lights on the charger will show the charging status. Charge batteries fully before first use.

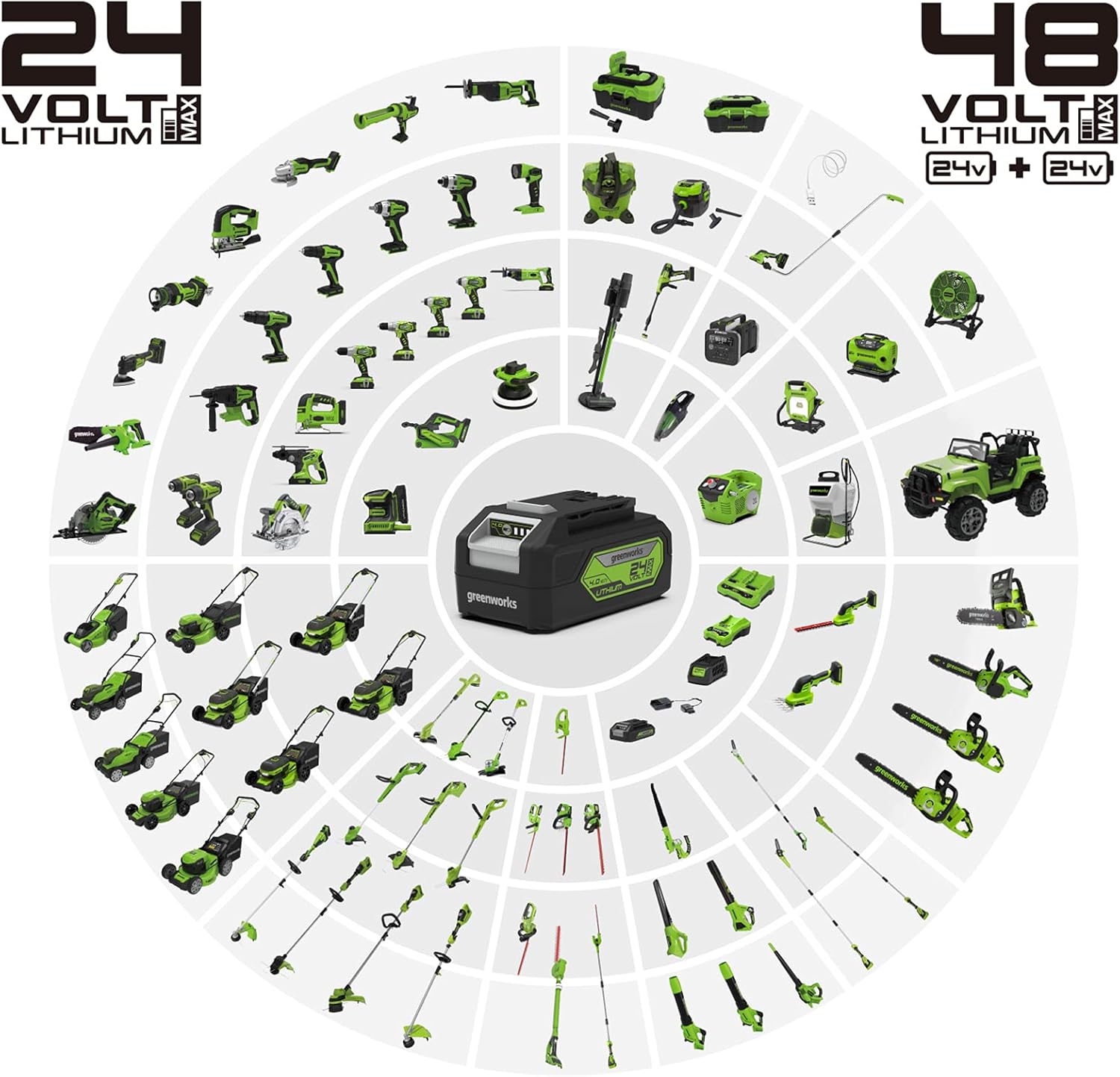

   Figure 3: Greenworks 24V and 48V battery system compatibility.

5. بيٽري لڳائڻ:

   Once charged, slide both batteries into the battery compartments on the mower until they click into place. Ensure they are securely seated.

5. آپريٽنگ هدايتون

Familiarize yourself with the mower's controls and functions before operation.

1. ڪٽڻ جي شروعات:

   Press and hold the safety button, then pull the bail switch lever towards the handle. Release the safety button once the motor starts. To stop, release the bail switch lever.

2. ڪٽڻ جي اوچائي کي ترتيب ڏيڻ:

   The mower features a central cutting height adjustment lever. Pull the lever outwards and move it to the desired height setting (25mm to 80mm). There are 7 height positions available.

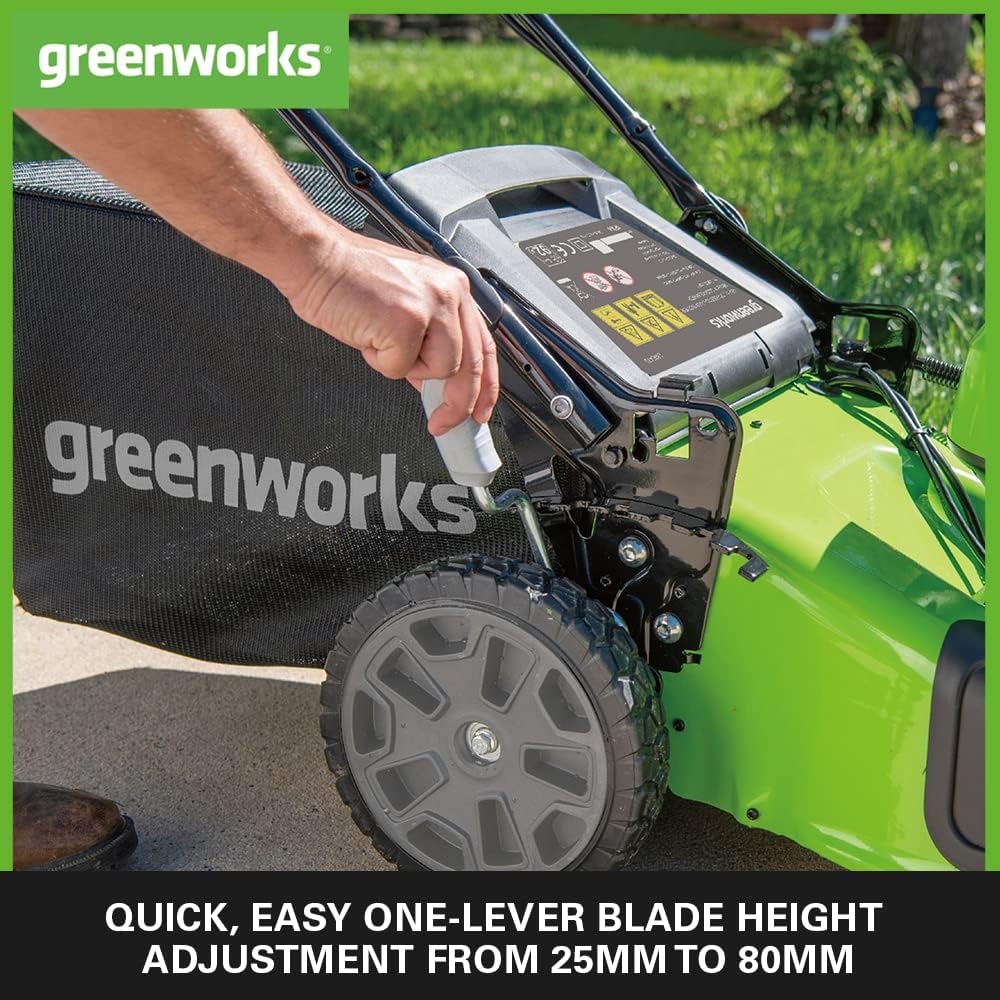

   Figure 4: Quick and easy one-lever blade height adjustment.

3. پاڻمرادو هلندڙ ڪم:

   To engage the self-propel function, pull the self-propel lever towards the handle. The mower will begin to move forward. Adjust the speed as needed. Release the lever to disengage.

4. ڪٽڻ جون ٽيڪنڪون:

   For best results, mow dry grass. Overlap cutting swaths slightly. Avoid overloading the motor by cutting excessively long or thick grass in one pass. The mower is designed to cover up to 480m² on a single charge.



   Figure 5: Mower capable of cutting lawns up to 480m² on a single charge.

5. 3-in-1 Functionality (Mulching, Bagging, Side Discharge):

   The mower offers versatile grass management options. Ensure the correct attachment (mulching plug, grass bag, or side discharge chute) is installed for your desired method.



   Figure 6: 3-in-1 functionality for mulching, collecting, or side ejecting clippings.

6. سار سنڀال

باقاعده سار سنڀال بهترين ڪارڪردگي کي يقيني بڻائي ٿي ۽ توهان جي ڪٽڻ واري مشين جي زندگي وڌائي ٿي.

• صفائي:

  After each use, remove the battery and clean the mower deck, blade, and grass bag. Use a damp cloth and mild soap. Do not use high-pressure water or immerse the mower in water.
• بلڊ جي چڪاس:

  Regularly inspect the blade for sharpness and damage. A dull blade can tear grass, leading to an unhealthy lawn. Replace or sharpen the blade as needed. Always wear heavy gloves when handling the blade.

• بيٽري جي سنڀال ۽ اسٽوريج:

  Store batteries in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, charge batteries to 40-60% capacity. Do not store fully discharged batteries.

• موٽر:

  The mower is equipped with a brushless motor, which requires minimal maintenance.



  Figure 7: Brushless motor for enhanced power and durability.

7. مسئلا حل ڪرڻ

عام مسئلن ۽ انهن جي حل لاءِ هن حصي جو حوالو ڏيو.

8. وضاحتون

9. وارنٽي ۽ سپورٽ

Greenworks products are manufactured to the highest quality standards. This product comes with a 3-year warranty, as indicated in the product description. For warranty claims, technical support, or to order replacement parts, please contact Greenworks customer service or visit their official webسائيٽ. وارنٽي جي تصديق لاءِ خريداري جو ثبوت رکو.

Figure 8: Enjoying your Greenworks lawn mower.
