KIOTI Tractor CK25, CK27, CK30, CK35 Hydro Filter Maintenance Kit User Manual

1. پراڊڪٽ ختمview

This maintenance kit provides a complete set of essential filters for your KIOTI CK25, CK27, CK30, or CK35 series tractor. Regular replacement of these filters is crucial for maintaining the longevity and optimal performance of your equipment.

مطابقت نوٽ: This kit is specifically designed for KIOTI Tractor models CK25, CK27, CK30, and CK35. It is نه compatible with newer CK10 series models such as CK2510, CK2610, CK3510, and CK4010.

2. ڪٽ اجزاء

The KIOTI Hydro Filter Maintenance Kit includes the following five (5) filters:

• ايئر فلٽر: Essential for protecting the engine from dust and debris.
• Engine Oil Filter (Part No. E6201-32443): Filters contaminants from the engine oil, ensuring clean lubrication.
• Fuel Filter (Part No. 84612-43160): Removes impurities from the fuel, protecting the fuel system and engine.
• Hydraulic Filter (Part No. T2185-38031): Cleans the hydraulic fluid, vital for smooth operation of hydraulic systems.
• HST Filter (Part No. T2195-38031): Filters the hydrostatic transmission fluid, critical for transmission health.

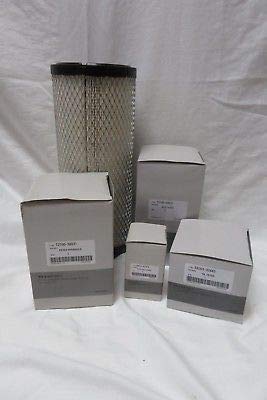

تصوير: مٿانview of the complete filter maintenance kit.

Image: Engine Oil Filter (Part No. E6201-32443) and its packaging.

Image: Fuel Filter (Part No. 84612-43160) and its packaging.

Image: Hydraulic Filter (Part No. T2185-38031) and its packaging.

Image: HST Filter (Part No. T2195-38031) and its packaging.

3. انسٽاليشن گائيڊ (سيٽ اپ)

Proper installation of filters is vital for the safe and efficient operation of your tractor. Always refer to your specific KIOTI tractor's official service manual for detailed, model-specific instructions and safety precautions.

عام لڳائڻ جا مرحلا:

1. حفاظت پهريون: Ensure the tractor is turned off, cooled down, and parked on a level surface with the parking brake engaged. Disconnect the battery if required by your tractor's manual.
2. فلٽر ڳوليو: Identify the location of each filter (air, engine oil, fuel, hydraulic, HST) on your specific CK series tractor model.
3. هٽائڻ جي تياري: Place drip pans or absorbent materials beneath the filters to catch any fluid spills.
4. پراڻا فلٽر هٽايو: Carefully unscrew or unclip the old filters. Be prepared for fluid drainage, especially for oil and hydraulic filters.
5. صاف چڙهڻ واري سطحون: Thoroughly clean the mounting surfaces where the new filters will be installed to ensure a proper seal.
6. نوان فلٽر تيار ڪريو: For oil and hydraulic filters, apply a thin film of clean oil to the rubber gasket of the new filter. For fuel filters, some models may require pre-filling with clean fuel. Consult your tractor's manual.
7. نوان فلٽر انسٽال ڪريو: Screw on or clip the new filters by hand until the gasket makes contact, then tighten according to the torque specifications in your tractor's manual. Do not overtighten.
8. ليڪ لاء چيڪ ڪريو: After installation, start the tractor and let it run for a few minutes. Check for any leaks around the newly installed filters.
9. Dispose of Old Filters: Dispose of used filters and fluids responsibly according to local environmental regulations.

4. آپريشن ۽ فنڪشن

Filters are critical components that protect your tractor's vital systems from contamination. Each filter in this kit performs a specific function:

• ايئر فلٽر: Prevents dust, dirt, and other airborne particles from entering the engine's combustion chamber, which can cause premature wear.
• Engine Oil Filter: Removes metallic particles, carbon deposits, and other impurities from the engine oil, ensuring clean lubrication for moving engine parts.
• ٻارڻ فلٽر: Traps contaminants such as dirt, rust, and water from the fuel before it reaches the fuel injectors or carburetor, preventing fuel system damage and ensuring efficient combustion.
• Hydraulic Filter: Cleans the hydraulic fluid, protecting sensitive hydraulic components like pumps, valves, and cylinders from abrasive particles and ensuring smooth and responsive hydraulic operation.
• HST Filter: Specifically designed for hydrostatic transmissions, this filter maintains the cleanliness of the transmission fluid, which is essential for the smooth and efficient transfer of power to the wheels.

Operating your tractor with clean, functional filters ensures maximum performance, fuel efficiency, and extends the lifespan of major components.

5. سار سنڀال جو شيڊول

Regular filter maintenance is key to the longevity and reliability of your KIOTI tractor. The frequency of filter replacement depends on usage, operating conditions, and the specific recommendations in your tractor's owner's manual. As a general guideline, consider the following:

• Engine Oil Filter: Typically replaced with every engine oil change, usually every 50-100 operating hours or annually, whichever comes first.
• ٻارڻ فلٽر: Often recommended for replacement every 200-400 operating hours or annually. In dusty or high-humidity environments, more frequent changes may be necessary.
• ايئر فلٽر: Inspect regularly (e.g., every 50 hours) and replace as needed, or at least annually. More frequent replacement is required in dusty conditions.
• Hydraulic Filter & HST Filter: These are often replaced less frequently than engine oil or fuel filters, typically every 200-400 operating hours or every 1-2 years, depending on the manufacturer's recommendations and fluid condition.

Always consult your specific KIOTI CK series tractor's owner's manual for the precise maintenance schedule and procedures.

6. عام مسئلن کي حل ڪرڻ

While filters are generally reliable, issues can arise if they are clogged, improperly installed, or the wrong type. Here are some common problems and potential solutions related to filters:

• Engine Performance Issues (Loss of Power, Rough Idling):
  ممڪن سبب: Clogged air filter or fuel filter.
  حل: Inspect and replace the air filter. Replace the fuel filter and bleed the fuel system if necessary.
• Hydraulic System Malfunctions (Slow Operation, Weak Lift):
  ممڪن سبب: Clogged hydraulic filter or HST filter.
  حل: Replace the hydraulic and/or HST filter. Check hydraulic fluid levels.
• Engine Overheating or Excessive Wear:
  ممڪن سبب: Clogged engine oil filter leading to poor oil circulation.
  حل: Replace the engine oil filter and engine oil.
• Fluid Leaks Around Filters:
  ممڪن سبب: Improperly tightened filter, damaged gasket, or incorrect filter type.
  حل: Ensure the filter is tightened to specifications. Check the gasket for damage and ensure it's properly seated. Verify the correct filter part number was used.
• Difficulty Starting Engine:
  ممڪن سبب: Severely clogged fuel filter restricting fuel flow.
  حل: Replace the fuel filter and ensure the fuel system is properly primed.

If troubleshooting steps do not resolve the issue, or if you are unsure about any procedure, it is recommended to consult a qualified KIOTI service technician.

7. مصنوعات جي وضاحت

This filter kit is designed to meet or exceed the specifications for KIOTI CK25, CK27, CK30, and CK35 series tractors.

Note: Always cross-reference these part numbers with your tractor's specific requirements to ensure compatibility.

8. وارنٽي ڄاڻ

Specific warranty details for this filter maintenance kit are not provided within the product description. For information regarding warranty coverage, terms, and conditions, please refer to the original product packaging or contact the manufacturer, KIOTI, directly.

9. ڪسٽمر سپورٽ

For technical assistance, specific installation queries, or any other support related to your KIOTI tractor or this maintenance kit, please contact KIOTI customer service or an authorized KIOTI dealer. They can provide expert guidance and ensure you receive accurate, up-to-date information for your specific tractor model.
