Sharp KC-A50EU-W Air Purifier

1. تعارف

This manual provides essential information for the safe and efficient operation of your Sharp KC-A50EU-W Air Purifier. This device is designed to improve indoor air quality by filtering dust, pollen, mold spores, and odors, while also offering humidification using Plasmacluster ion technology. Please read these instructions thoroughly before use and retain them for future reference.

اهم حفاظتي ڄاڻ

• هميشه پڪ ڪريو ته يونٽ هڪ مستحڪم، سطحي سطح تي رکيل آهي.
• هوا جي داخل ٿيڻ يا نڪرڻ وارن وينٽس کي نه روڪيو.
• يونٽ کي پاڻي ۽ نمي کان پري رکو.
• صفائي ڪرڻ يا ڪنهن به سار سنڀال ڪرڻ کان اڳ يونٽ کي ان پلگ ڪريو.
• يونٽ کي پاڻ مرمت ڪرڻ جي ڪوشش نه ڪريو. قابل سروس اهلڪارن سان رابطو ڪريو.

2. پراڊڪٽ ختمview

The Sharp KC-A50EU-W is an advanced air purifier and humidifier designed for rooms up to 38 m². It features Plasmacluster ion technology to neutralize airborne pollutants and a multi-stagفلٽريشن سسٽم.

شڪل 2.1: سامهون view of the Sharp KC-A50EU-W Air Purifier, showing the main body and air outlet.

اهم خاصيتون:

• Plasmacluster Ion Technology: Releases positive and negative ions to clean the air.
• نمي ڪرڻ جو ڪم: Adds moisture to the air for improved comfort.
• High Air Circulation: Efficiently processes air in rooms up to 38 m².
• ملٽي-ايسtagاي فلٽريشن: Includes a HEPA filter for fine particles and an odor filter.
• خاموش آپريشن: Designed for minimal noise output.

3. سيٽ اپ

3.1 کولڻ

1. احتياط سان ان جي پيڪنگنگ مان هوا صاف ڪندڙ کي هٽايو.
2. سڀ حفاظتي مواد ۽ پلاسٽڪ جون ٿيلهيون هٽايو.
3. ٽرانزٽ دوران ڪنهن به نقصان جي جانچ ڪريو. جيڪڏهن خراب ٿي وڃي، ته ڪم نه ڪريو ۽ پنهنجي پرچون ڪندڙ سان رابطو ڪريو.

3.2 لڳائڻ

For optimal performance, place the air purifier in a location where air can circulate freely. Avoid placing it directly against walls or furniture. Ensure it is on a flat, stable surface. The unit is suitable for floor areas up to 24 square meters (as per specifications, though product description states 38m², use the more conservative spec for placement advice).

شڪل 3.1: پاسي view of the air purifier, showing the air intake grille. Ensure this area is unobstructed.

3.3 فلٽر لڳائڻ

Before first use, ensure all filters are correctly installed and any protective plastic packaging has been removed from them. Refer to the maintenance section for detailed filter handling.

4. آپريٽنگ هدايتون

The control panel allows you to manage the various functions of your air purifier.

شڪل 4.1: Close-up of the control panel, showing buttons for power, fan speed, Plasmacluster, and humidification.

4.1 پاور آن/آف

• بجلي جي تار کي هڪ مناسب بجلي جي آئوٽليٽ (220V) ۾ لڳايو.
• کي دٻايو آن/بند button to turn the unit on. The unit will start in a default mode.
• کي دٻايو آن/بند يونٽ کي بند ڪرڻ لاء ٻيهر بٽڻ.

4.2 فين اسپيڊ ايڊجسٽمينٽ

استعمال ڪريو پکي جي رفتار button to cycle through different fan settings (e.g., Low, Medium, High, Auto). The current setting will be indicated on the display or by indicator lights.

4.3 Plasmacluster Ion Operation

کي دٻايو CLEAN ION SHOWER ON button to activate the Plasmacluster ion generator. This function helps to remove airborne viruses, bacteria, and odors. An indicator light will confirm activation.

4.4 Humidification Function

• پڪ ڪريو ته پاڻي جي ٽانڪي صاف پاڻي سان ڀريل آهي.
• کي دٻايو CLEAN AIR & HUMIDIFY ON button to activate the humidification function.
• The unit will automatically maintain a comfortable humidity level.
• The humidity level may be displayed on the control panel.

4.5 چائلڊ لاڪ

To prevent accidental operation, press and hold the چائلڊ لاڪ button for 3 seconds to activate or deactivate the child lock function.

5. سار سنڀال

Regular maintenance ensures optimal performance and extends the life of your air purifier. Always unplug the unit before cleaning or performing maintenance.

5.1 فلٽر جي صفائي ۽ متبادل

The Sharp KC-A50EU-W uses multiple filters that require periodic cleaning or replacement.

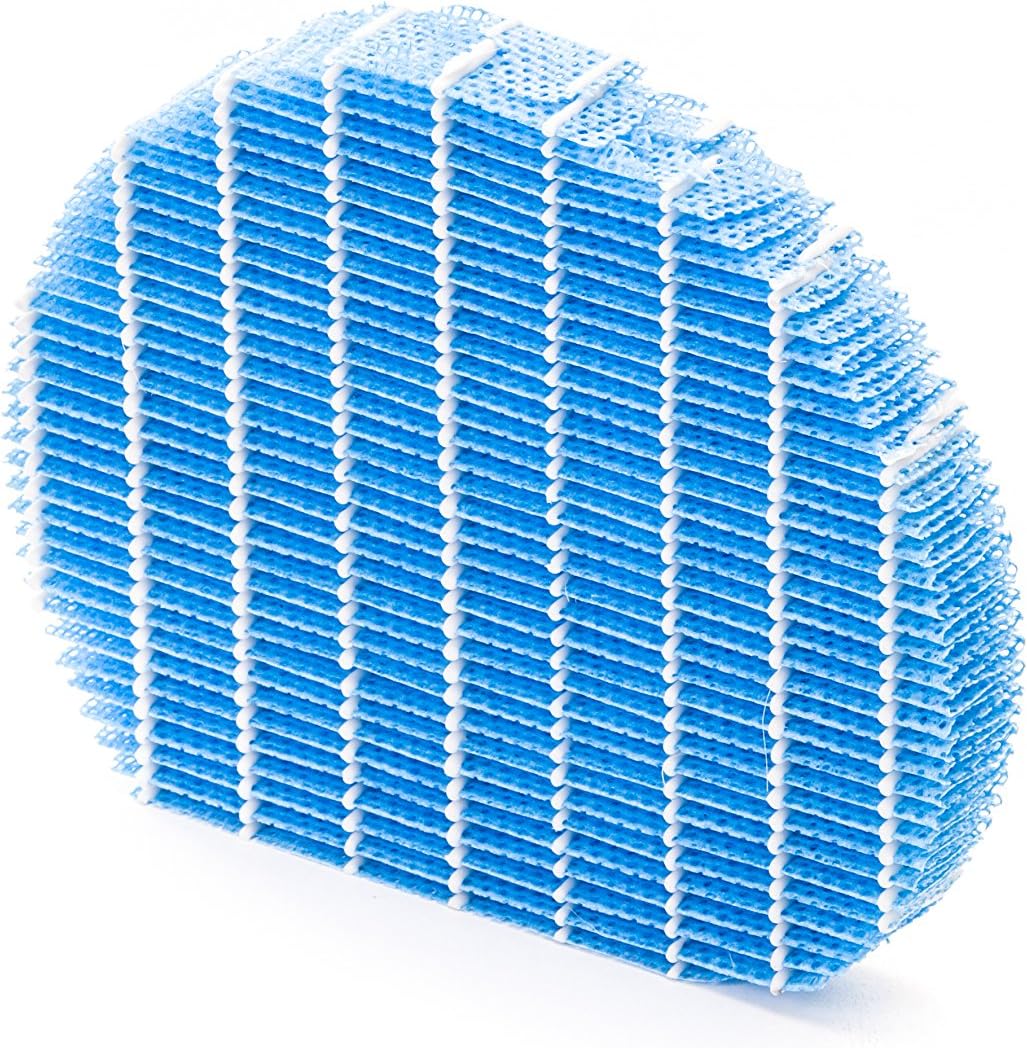

شڪل 5.1: Example of a humidifying filter component, which requires regular cleaning.

• پري فلٽر: Clean regularly (e.g., monthly) by vacuuming or washing with water. Allow to dry completely before reinstallation.
• HEPA فلٽر: This filter captures fine dust and allergens. It cannot be washed and must be replaced. The replacement interval can vary, but typically ranges from 2 to 5 years depending on usage and air quality. Monitor the filter's condition; if it appears significantly discolored (e.g., black instead of white), replace it immediately.
• Deodorizing Filter (Activated Carbon): This filter removes odors. It can often be washed periodically (e.g., every few months) to refresh its effectiveness. Allow to dry completely. Replace when odors persist after cleaning.
• Humidifying Filter: If using the humidification function, clean the humidifying filter and its tray at least every 4 weeks to prevent mold and bacteria growth. Use a mild detergent and rinse thoroughly.

5.2 پاڻي جي ٽانڪي جي صفائي

For units with humidification, clean the water tank regularly (e.g., weekly) to prevent mineral buildup and bacterial growth. Use a soft brush and mild detergent, then rinse thoroughly with clean water.

5.3 ٻاهرئين صفائي

يونٽ جي ٻاهرئين حصي کي نرم سان صاف ڪريو، ڊيamp ڪپڙو. استعمال نه ڪريو abrasive cleaners يا solvents.

6. مسئلا حل ڪرڻ

If you encounter issues with your Sharp KC-A50EU-W, refer to the following common problems and solutions.

جيڪڏهن انهن حلن جي ڪوشش ڪرڻ کان پوءِ به مسئلو برقرار رهي، مهرباني ڪري ڪسٽمر سپورٽ سان رابطو ڪريو.

7. وضاحتون

• ماڊل نمبر: KC-A50EU-W
• ٺاهيندڙ: تيز
• رنگ: اڇو
• پيداوار جي ماپ (L x W x H): 24 x 69 x 2.5 سينٽي
• شيء جو وزن: 9.2 ڪلوگرام (9200 گرام)
• طاقت جو ذريعو: 220V
• فلٽر جو قسم: هيپا
• سفارش ٿيل فلور ايريا: 24 چورس ميٽر
• شور جي سطح: 49 ڊيسيبل
• مواد: پلاسٽڪ
• اصليت جو ملڪ: جاپان

8. وارنٽي ۽ سپورٽ

For warranty information and customer support, please refer to the warranty card included with your product or visit the official Sharp webتوهان جي علائقي لاءِ سائيٽ. خريداري جي ثبوت طور پنهنجي خريداري جي رسيد رکو.
