Sharp CD-DH950P

Sharp CD-DH950P 240W Mini-Component System User Manual

Model: CD-DH950P

1. تعارف

This manual provides essential instructions for the safe and efficient operation of your Sharp CD-DH950P 240W Mini-Component System. This system features a 5-disc CD changer, a cassette deck, an iPod/iPhone docking station, a USB host for digital audio playback, and an AM/FM tuner. Please read this manual thoroughly before using the system and retain it for future reference.

2. حفاظت جي ڄاڻ

  • طاقت جو ذريعو: يونٽ کي صرف مخصوص وولٽ جي AC آئوٽليٽ سان ڳنڍيوtage.
  • وينٽيليشن: مناسب هوا جي وهڪري کي يقيني بڻايو. هوا جي وهڪري جي سوراخن کي بند نه ڪريو.
  • پاڻي ۽ نمي: Do not expose the unit to rain, moisture, or dripping/splashing liquids.
  • گرمي: يونٽ کي گرمي جي ذريعن جهڙوڪ ريڊيئيٽر، گرمي رجسٽر، اسٽو، يا ٻين سامان کان پري رکو جيڪي گرمي پيدا ڪن ٿا.
  • صفائي: صفائي ڪرڻ کان اڳ يونٽ کي ڀت جي آئوٽليٽ مان ڪڍو. نرم، سڪل ڪپڙو استعمال ڪريو.
  • خدمت ڪرڻ: ھن پراڊڪٽ کي پنھنجي خدمت ڪرڻ جي ڪوشش نه ڪريو. س servني خدمتن جو حوالو ڏيو قابل سروس اهلڪارن کي.

3. پيڪيج مواد

تصديق ڪريو ته توھان جي پيڪيج ۾ ھيٺيون شيون شامل آھن:

  • Main Unit (CD-DH950P)
  • کاٻي اسپيڪر
  • صحيح ڳالهائيندڙ
  • بيٽرين سان ريموٽ ڪنٽرول
  • AM لوپ اينٽيننا
  • ايف ايم وائر اينٽيننا
  • پاور ڪنڊ

4. سيٽ اپ

4.1 اسپيڪرز کي ڳنڍڻ

Connect the speaker wires from the main unit to the corresponding terminals on the back of each speaker. Ensure correct polarity (red to red, black to black) for optimal sound quality. The left speaker connects to the left speaker output, and the right speaker to the right speaker output.

4.2 Connecting the Antennas

  • ايف ايم انٽنا: Connect the supplied FM wire antenna to the FM antenna terminal on the rear of the main unit. Extend the wire for better reception.
  • ايم اينٽيننا: Connect the supplied AM loop antenna to the AM antenna terminals on the rear of the main unit. Position the antenna for best reception.

4.3 پاور ڪنيڪشن

Plug the power cord into the AC IN jack on the rear of the main unit, then plug the other end into a standard AC wall outlet.

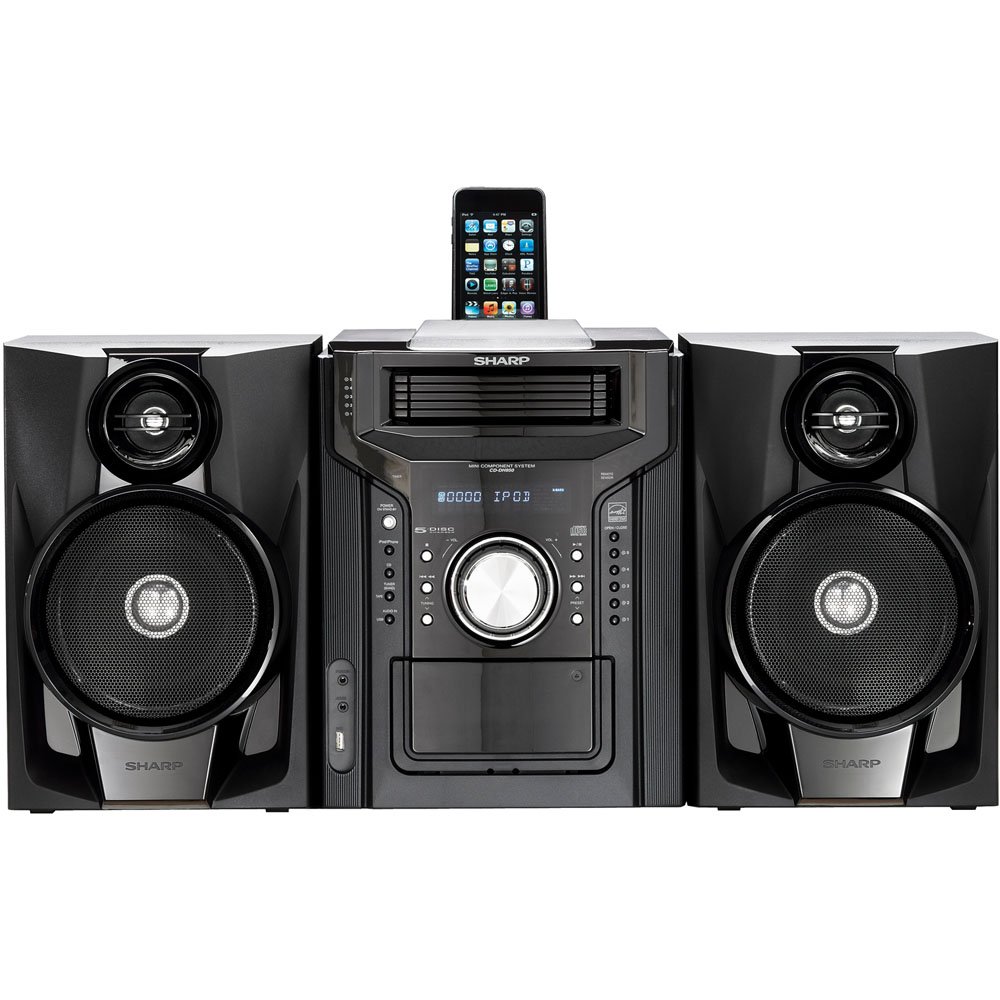

Sharp CD-DH950P Mini-Component System with an iPhone docked on top

شڪل 4.3.1: مجموعي طور view of the Sharp CD-DH950P Mini-Component System, showing the main unit flanked by two speakers, with an iPhone docked on top of the main unit.

5. آپريٽنگ هدايتون

5.1 پاور آن/آف ۽ واليوم ڪنٽرول

  • کي دٻايو پاور يونٽ کي آن يا آف ڪرڻ لاءِ فرنٽ پينل يا ريموٽ ڪنٽرول تي بٽڻ.
  • گھمايو حجم سامهون واري پينل تي نوب يا استعمال ڪريو ويل +/- آواز جي سطح کي ترتيب ڏيڻ لاءِ ريموٽ ڪنٽرول تي بٽڻ.

5.2 سي ڊي پلے بیک

This system features a 5-disc CD changer.

  1. کي دٻايو کوليو/ بند ڪريو سي ڊي ٽري کولڻ لاءِ بٽڻ دٻايو.
  2. Place up to five CDs on the disc trays, label side up.
  3. دٻايو کوليو/ بند ڪريو ٻيهر ٽري کي بند ڪرڻ لاء.
  4. کي دٻايو CD سي ڊي فنڪشن چونڊڻ لاءِ بٽڻ دٻايو.
  5. کي دٻايو راند/روڪ پلے بیک شروع ڪرڻ لاءِ بٽڻ.
  6. استعمال ڪريو SKIP buttons to navigate between tracks or discs.

5.3 ڪيسٽ ڊيڪ آپريشن

  1. کي دٻايو TAPE OPEN/CLOSE button to open the cassette deck.
  2. هڪ ڪيسٽ ٽيپ داخل ڪريو.
  3. کي دٻايو ٽيپ button to select the cassette function.
  4. دٻايو راند ڪريو پلے بیک شروع ڪرڻ لاءِ.
  5. To record, ensure the source is selected (e.g., CD, Tuner) and press the رڪارڊ button on the cassette deck.

5.4 iPod/iPhone Docking

The system includes a top-mounted docking slot for compatible iPod and iPhone devices (30-pin connector).

  1. Carefully place your iPod or iPhone into the docking slot.
  2. The system will automatically switch to iPod/iPhone mode or you may need to press the آئي پوڊ / آئي فون بٽڻ
  3. Use the system's controls or your device's controls to play music. The device will also charge while docked.

5.5 USB Host Playback

Connect a USB storage device containing MP3 or WMA audio fileسامهون واري پينل تي USB پورٽ ڏانهن.

  1. USB ڊوائيس کي USB پورٽ ۾ داخل ڪريو.
  2. کي دٻايو USB button to select the USB function.
  3. Use the playback controls to navigate and play files.

5.6 ايم/ايف ايم ٽيونر

  1. کي دٻايو ٽيونر button to select AM or FM radio.
  2. استعمال ڪريو ٽيوننگ +/- اسٽيشن تي دستي طور تي ٽيون ڪرڻ لاءِ بٽڻ.
  3. To auto-scan, press and hold the ٽيوننگ +/- بٽڻ
  4. To store a preset, tune to the desired station, then press ياداشت ان کان پوءِ هڪ اڳواٽ مقرر ٿيل نمبر.

5.7 آڊيو ان پٽ

Connect an external audio device (e.g., MP3 player, smartphone) to the AUDIO IN jack on the front panel using a 3.5mm stereo cable.

  1. Connect your device to the AUDIO IN jack.
  2. کي دٻايو آڊيو اندر هن ذريعو کي چونڊڻ لاءِ بٽڻ دٻايو.
  3. پنهنجي ڳنڍيل ڊوائيس تان پلے بیک ڪنٽرول ڪريو.

6. سار سنڀال

6.1 يونٽ جي صفائي

Wipe the exterior of the unit with a soft, dry cloth. Do not use abrasive cleaners, waxes, or solvents. Ensure the unit is unplugged before cleaning.

6.2 CD and Cassette Care

  • Handle CDs by their edges to avoid fingerprints and scratches. Clean discs with a soft, lint-free cloth from the center outwards.
  • Store cassette tapes away from strong magnetic fields and direct sunlight.

7. مسئلا حل ڪرڻ

مسئلوممڪن سببحل
طاقت نه آهيبجلي جي تار ڳنڍيل نه آهي؛ بجلي جو آئوٽليٽ خراب آهي.پڪ ڪريو ته پاور ڪنڊ محفوظ طور تي پلگ ان ٿيل آهي؛ هڪ مختلف آئوٽليٽ آزمايو
آواز ڪونهيVolume too low; Speakers not connected; Incorrect source selectedIncrease volume; Check speaker connections; Select correct input source
سي ڊي نه پئي هلي.Disc inserted incorrectly; Disc is dirty or scratchedInsert disc correctly (label side up); Clean or replace disc
ناقص ريڊيو استقبالAntenna not positioned correctly; Weak signalAdjust position of AM/FM antennas; Try auto-tuning or manual fine-tuning
iPod/iPhone not charging/playingDevice not properly docked; Device not compatible (e.g., newer connector)Re-dock the device; Note that this system uses a 30-pin connector, newer devices may require an adapter (not included)

8. وضاحتون

  • برانڊ: تيز
  • ماڊل: CD-DH950P
  • ڪل ٻاڦ پاور: 240 Watts RMS (85W/ch FTC)
  • اسپيڪر جي ترتيب: 2.1 چينل
  • سپورٽ ٿيل آڊيو فارميٽ: CD، MP3، WMA
  • سگنل کان شور جو تناسب: 100 ڊي بي
  • مطابقت رکندڙ ڊوائيسز: MP3 Player, Smartphone (via 30-pin dock or USB/Audio In)
  • طول و عرض (L x W x H): 27.6 x 13.6 x 13.5 انچ
  • شيء جو وزن: 24.4 پائونڊ
  • UPC: 074000369863، 074000369290

9. وارنٽي ڄاڻ

This product is covered by a 1-year limited warranty from the date of purchase. Please refer to the warranty card included with your product for full terms and conditions, or contact Sharp customer service for details.

10. سپورٽ

For further assistance, technical support, or service inquiries, please contact Sharp customer service. Contact information can typically be found on the Sharp official webسائيٽ يا توهان جي پراڊڪٽ سان مهيا ڪيل دستاويزن ۾.
