NCoder Nebula
inspiredqaccess
Installation guide
ECxx NCoder USB Ethernet Connection
ECxx…. series
Conexionado
IMPORTANT: The product requires the use of the provided power supply adapter for a correct product operation.
Electrical characteristics
| SALTO BLUEnet CHARACTERISTICS | |
| Frecuency Range | 2400 Mhz to 2483,5 Mhz |
| Standard | Bluetooth 4.2 Compliant |
| Tx Power | 8dBm |
| Indoor Range | 10-15m* |
| *Depending upon installed environment. To ensure correctoperation, do not install the device near a metalic surface. | |
| CABLE REQUIREMENTS | |
| USB | USB 2.0 Male USB A to Male USB B |
| OPERATING CHARACTERISTICS | |||
| Min. | Max. | Unit | |
| Temperature | 5 | 50 | °C |
| Humidity | 9 | 95 | % |
| RFID CHARACTERISTICS | ||||
| Min. | Cen. | Max. | Unit | |
| RFID frecuency | – | 13,56 | – | Mhz |
| POWER CONSUMPTION | ||
| Typ. | Max. | Unit |
| 150 | 300 | mA |
INITIALIZATION IN NEBULA
The initialization is done through the Nebula App. For more information, see the Nebula user guide:
https://support.saltosystems.com/nebula/index.html
Installation example
| COMMUNICATION WITH PPD |  |
| KEY PROCESSED SUCCESSFULLY |  |
| KEY PROCESSING |  |

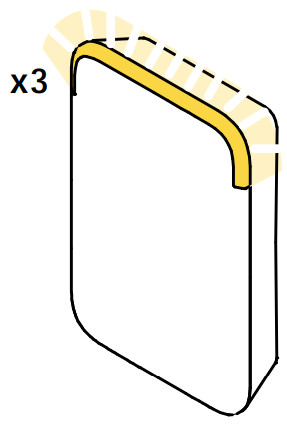

| NCODER STARTUP |  |

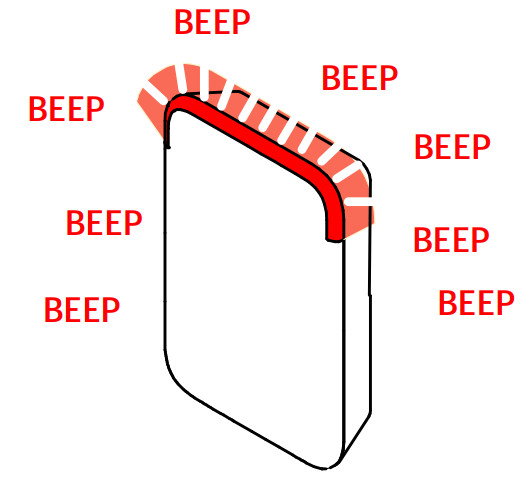

| AILURE OF THE OPERATION |  |
All contents current at time of publication.
SALTO Systems S.L. reserves the right to change availability of any
item in this catalog, its design, construction, and/or materials.
© 2021 SALTO Systems S.L.
227508-ED1.-11/08/2022
