This document provides essential information for the installation, operation, and maintenance of your new replacement refrigerator ice maker. Designed for dependable ice production, this unit ensures a consistent supply of ice for your household needs. Please read this manual thoroughly before installation and use.

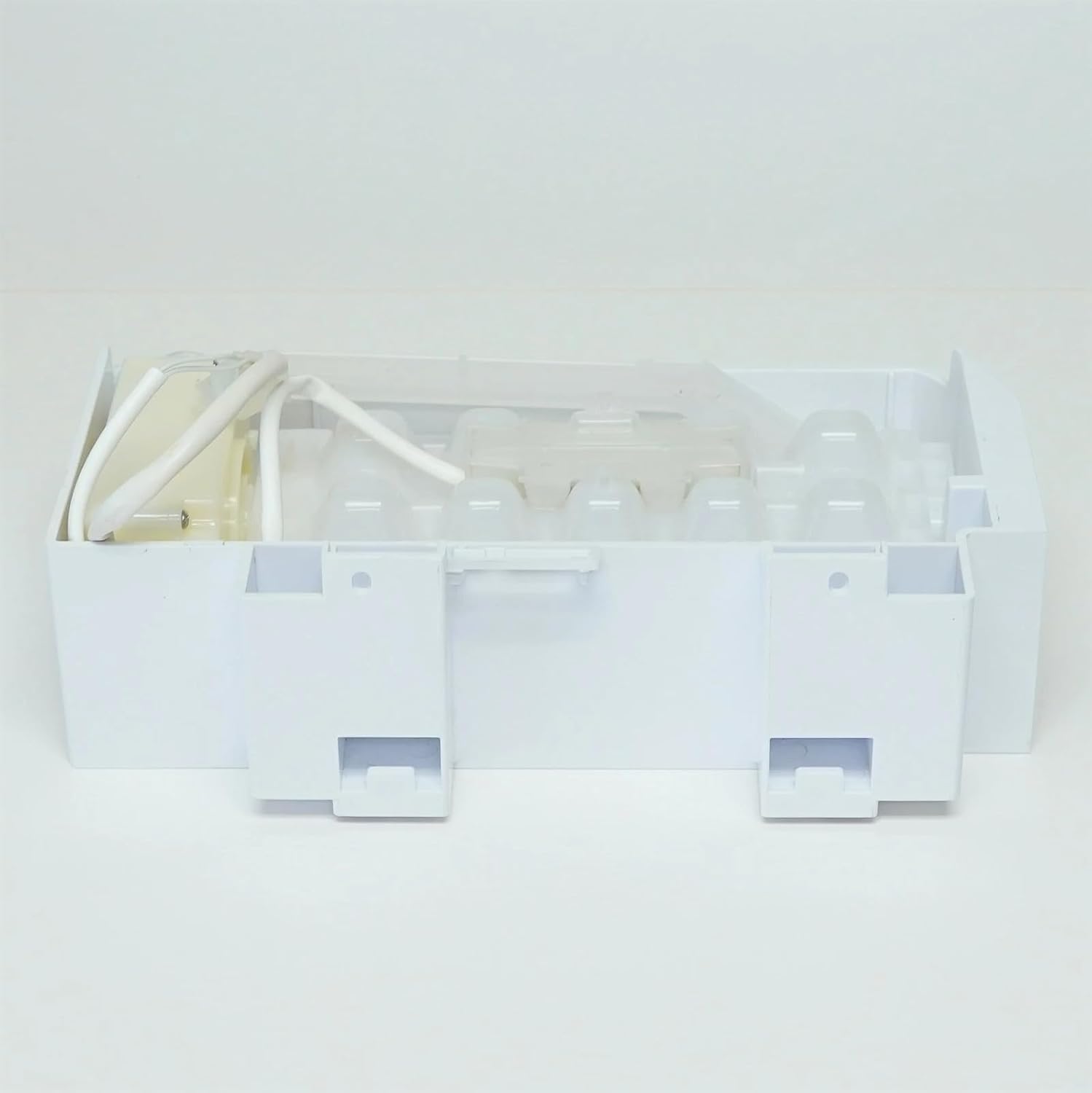

Рисунок 1: Передняя часть view of the Refrigerator Ice Maker unit.
The ice maker is a crucial component within your refrigerator's freezer compartment, responsible for automatically producing and dispensing ice. This replacement part is engineered to meet the specifications required for compatible Kenmore refrigerator models, ensuring proper fit and function.
2. Совместимость
This refrigerator ice maker is compatible with the following Kenmore models. Please verify your refrigerator's model number before proceeding with installation.
- 106.4651332710
- 106.4651339710
- 106.4651773510
- 106.4651783413
- 106.51132213
- 106.51133213
- 106.51134213
- 106.51135610
- 106.51139213
- 106.51139214
- 106.51332710
- 106.51332716
- 106.51335710
- 106.51335713
- 106.51335714
- 106.51335716
- 106.51339710
- 106.51339713
- 106.51339716
- 106.51762510
- 106.51762511
- 106.51763510
- 106.51763511
- 106.51764510
- 106.51764511
- 106.51769510
- 106.51769511
- 106.51769512
- 106.51772510
- 106.51773510
- 106.51779510
- 106.51779511
- 106.51782412
- 106.51782413
- 106.51783412
- 106.51783413
3. Содержимое упаковки
При открытии упаковки убедитесь, что все компоненты на месте и не повреждены.
- 1x Refrigerator Ice Maker Unit
The ice maker unit includes the main housing, ice mold tray, and necessary electrical connections for installation.
Рисунок 2: Наклонный view of the ice maker, showing its compact design.
4. Настройка и установка
Before beginning the installation process, ensure you have the necessary tools (e.g., screwdriver, pliers) and follow all safety precautions.
Меры предосторожности:
- Always unplug the refrigerator from the power outlet before attempting any repairs or installations.
- Перекройте подачу воды в холодильник.
- При необходимости используйте соответствующие средства индивидуальной защиты, например перчатки.
Этапы установки:
- Отключите электроэнергию и воду: Unplug the refrigerator and turn off the water supply valve to prevent electric shock or water leakage.
- Доступ к старому льдогенератору: Open the freezer door and locate the existing ice maker. Depending on your model, you may need to remove an ice bucket or a cover panel.
- Удалить старый льдогенератор: Carefully disconnect the electrical harness from the old ice maker. There may be a locking tab that needs to be pressed. Unscrew any mounting screws or release clips holding the ice maker in place. Gently pull the old ice maker out of the freezer compartment.
- Установка нового льдогенератора: Align the new ice maker with the mounting brackets or screw holes in the freezer. Secure it in place using the original screws or clips.
- Connect Electrical Harness: Carefully plug the electrical harness into the new ice maker. Ensure it clicks into place for a secure connection.
- Восстановление подачи электроэнергии и воды: Turn the water supply back on and plug the refrigerator back into the power outlet.
- Начальный тест: Listen for the water fill cycle. The ice maker should begin its first cycle within a few hours. Discard the first few batches of ice to ensure cleanliness and proper function.
Figure 3: Detail of the electrical connector, which must be securely attached.
5. Инструкция по эксплуатации
Once installed, the ice maker operates automatically. It fills with water, freezes the water into cubes, and then ejects the ice into the ice bucket.
- Первое использование: After installation, it may take 12-24 hours for the ice maker to produce its first full batch of ice.
- Производство льда: The ice maker will continue to produce ice until the ice bucket is full, at which point a shut-off arm or sensor will stop production.
- Контроль уровня льда: Do not obstruct the ice maker's shut-off arm or sensor, as this will prevent it from stopping ice production, potentially leading to overflow.
Рисунок 4: Сверху вниз view illustrating the ice mold tray where water is frozen into cubes.
6. Техническое обслуживание
Регулярное техническое обслуживание помогает обеспечить долгий срок службы и эффективную работу вашего льдогенератора.
- Уборка: Periodically empty and clean the ice bucket with mild soap and warm water. Rinse thoroughly and dry completely before returning it to the freezer.
- Фильтр для воды: Если в вашем холодильнике есть фильтр для воды, убедитесь, что он заменяется в соответствии с рекомендациями производителя, чтобы поддерживать качество воды и предотвратить образование минеральных отложений в льдогенераторе.
- Линия воды: Inspect the water supply line to the ice maker occasionally for kinks, leaks, or blockages.
7. Поиск Неисправностей
If your ice maker is not functioning as expected, refer to the following common issues and solutions:
| Проблема | Возможная причина | Решение |
|---|---|---|
| Нет производства льда | Refrigerator unplugged or water supply off; Kinked water line; Ice maker shut-off arm/sensor obstructed; Freezer temperature too high. | Ensure refrigerator is plugged in and water supply is on; Check water line for kinks; Clear any obstructions from the shut-off arm/sensor; Verify freezer temperature is set to 0°F (-18°C) or colder. |
| Небольшие или полые кубики льда | Low water pressure; Clogged water filter; Partially frozen water line. | Check household water pressure; Replace water filter; Thaw water line if frozen (unplug refrigerator for several hours). |
| Лед имеет неприятный вкус или запах. | Old ice; Unclean ice bucket; Food odors in freezer; Old water filter. | Discard old ice; Clean ice bucket; Store strong-smelling foods in airtight containers; Replace water filter. |
| Ice maker making unusual noises | Normal operation sounds (filling, ejecting); Loose components. | Some sounds are normal; If persistent or loud, check for loose components or contact support. |
If the problem persists after attempting these solutions, it may indicate a more complex issue. Please refer to the support section for further assistance.
8. Технические характеристики
| Атрибут | Ценить |
|---|---|
| Размеры продукта (Д x Ш x В) | 1" x 1" x 1" (приблизительно) |
| Название модели | Холодильник Ice Maker |
| Бренд | Общий |
| Производитель | bietvn |
| Ватtage | 50.00 Вт |
| Емкость | 6.8 Liters (of ice production) |
9. Поддержка клиентов и гарантия
This high-quality refrigerator ice maker is built for durability and reliable ice production, offering long-lasting performance. We are committed to quality and customer satisfaction.
For any questions, concerns, or assistance with your product, please contact our support team. We are available to provide fast, expert support.
While specific warranty details are not provided in this manual, your purchase is backed by our commitment to quality. Please retain your proof of purchase for any warranty claims or support inquiries.
