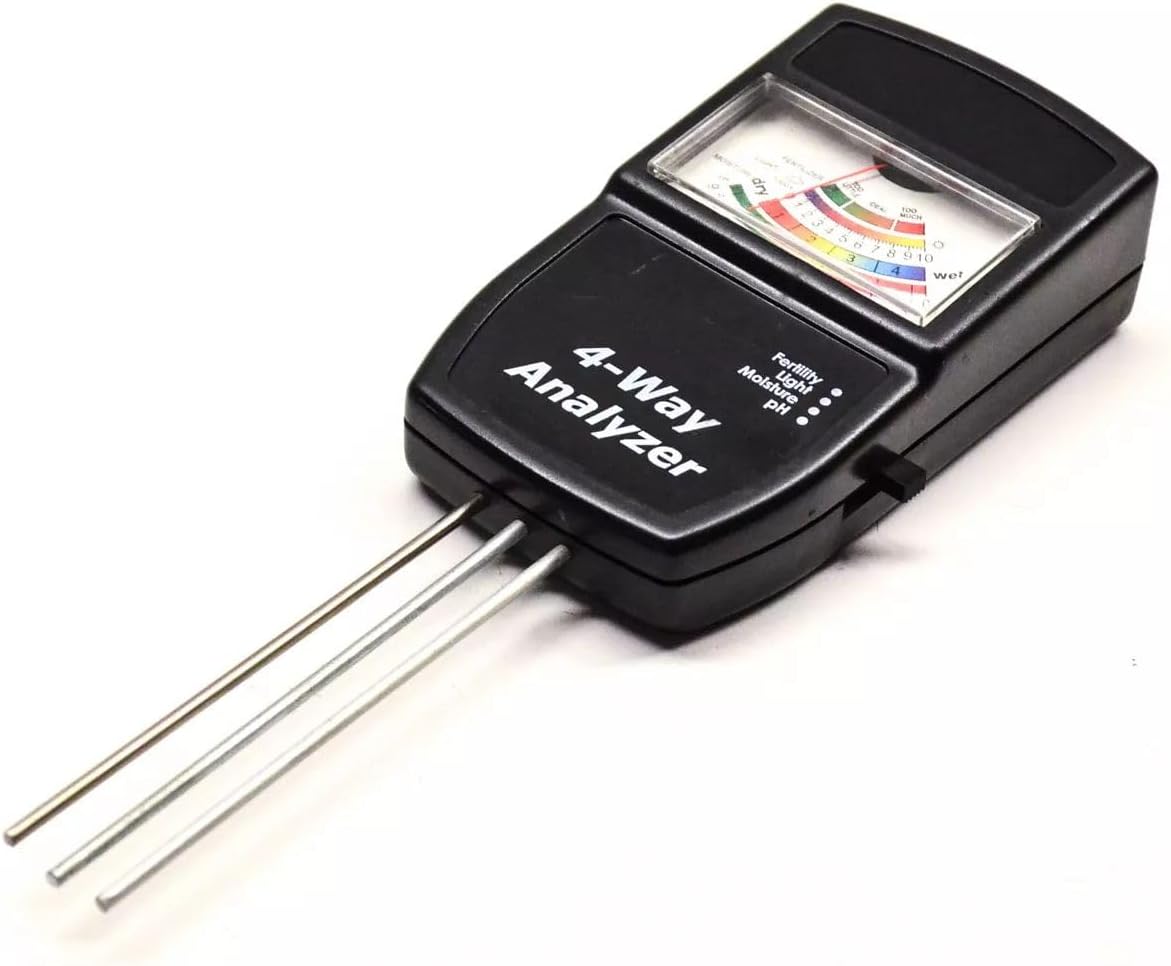

Rapitest D491.822 4-Way Soil Analyzer User Manual

Введение

The Rapitest D491.822 4-Way Soil Analyzer is a versatile tool designed to help gardeners and plant enthusiasts understand their soil conditions better. This device provides quick and accurate readings for four critical soil parameters: soil moisture, pH level, light intensity, and soil fertility. By regularly monitoring these factors, you can optimize growing conditions for your plants, leading to healthier growth and better yields.

Настраивать

1. Распаковка: Carefully remove the soil analyzer from its packaging. Inspect the device for any visible damage.
2. Подготовка зонда: Ensure the three metal probes at the bottom of the unit are clean and free from debris. For initial use, gently wipe them with a clean, dry cloth.
3. Батарейки не требуются: This analyzer operates without batteries for moisture, pH, and fertility measurements, utilizing the soil's natural properties. The light sensor is also passive.

Инструкция по эксплуатации

For accurate readings, always ensure the probes are clean before each use. Avoid forcing the probes into hard soil, which could damage them.

Общее использование:

• Insert the probes vertically into the soil to a depth of approximately 2/3 of their length. Ensure full contact with the soil.
• Compact the soil gently around the probes to ensure good contact.
• Wait for a few minutes (typically 1-5 minutes, depending on the test) for the needle to stabilize before taking a reading.

1. Moisture Test:

• Set the selector switch (if present, or simply observe the moisture scale).
• Insert probes into the soil.
• Read the moisture level on the scale, typically ranging from "Dry" to "Wet".
• Кончик: Test at various depths and locations for a comprehensive understanding of soil moisture.

2. pH Test:

• Set the selector switch to pH.
• Insert probes into moist soil. Ensure the soil is adequately moist for an accurate pH reading.
• Wait for 1-5 minutes for the needle to stabilize.
• Read the pH value on the scale, typically from 3.5 (acidic) to 9.0 (alkaline).
• Кончик: For best results, test soil that has been watered 24 hours prior.

3. Light Test:

• Point the light sensor (located on the top of the unit) towards the light source.
• Read the light intensity on the scale, typically indicating "Low", "Nor" (Normal), or "High" light levels.
• Кончик: This test does not require probes to be in the soil.

4. Fertility Test:

• Set the selector switch to Fertility.
• Insert probes into moist soil.
• Wait for 1-5 minutes for the needle to stabilize.
• Read the fertility level on the scale, typically indicating "Too Little", "Ideal", or "Too Much".
• Примечание: This test measures the total nitrogen, phosphorus, and potassium (NPK) content in the soil.

Обслуживание

• Очистка зондов: After each use, wipe the metal probes thoroughly with a clean, dry cloth to remove any soil residue. Do not use abrasive materials or harsh chemicals.
• Хранилище: Store the analyzer in a cool, dry place, away from direct sunlight and extreme temperatures. Keep the probes clean and protected.
• Избегайте погружения в воду: Do not immerse the main unit in water or any other liquid. The device is not waterproof.

Поиск неисправностей

Технические характеристики

• Тип продукта: 4-Way Soil Analyzer
• Функции: Measures Soil Moisture, pH, Light Intensity, and Soil Fertility (NPK)
• Диапазон влажности: 1 (Dry) - 10 (Wet)
• Диапазон pH: 3.5 (Acidic) - 9.0 (Alkaline)
• Диапазон освещения: Низкий, нормальный, высокий
• Fertility Range: Too Little, Ideal, Too Much
• Длина зонда: Примерно 20 см (7.9 дюймов)
• Источник питания: Passive (no batteries required)
• Материал: Прочный пластикasing, metal probes

Гарантия и поддержка

This product is manufactured to high-quality standards. For information regarding warranty coverage, technical support, or replacement parts, please refer to the original product packaging or contact the retailer from whom the product was purchased. Keep your purchase receipt as proof of purchase.

Для получения дополнительной помощи вы также можете обратиться на официальный сайт производителя. website or contact their customer service department, if available, using the contact details provided with your product.
