1. Введение
Thank you for choosing the SPORTNOW Wall-Mounted Basketball Hoop. This product is designed for both indoor and outdoor use, providing a durable and adjustable basketball experience for players of all ages and skill levels. This manual provides essential information for safe installation, operation, and maintenance of your new basketball hoop.
Figure 1: The SPORTNOW Wall-Mounted Basketball Hoop, featuring a clear backboard, steel hoop, and red, white, and blue net.
Основные характеристики:
- Practical Wall Mounting: Easily attaches to concrete, brick walls, or wood, suitable for indoor and outdoor areas like gyms, garages, or house walls.
- Высота Регулируемая: The backboard height can be adjusted by up to 50 cm to accommodate players of various ages and skill levels.
- Secure Flexibility: The spring-loaded basketball hoop provides flexible response under stress, minimizing damage risk and enhancing player safety.
- Ударопрочная конструкция: Features a 110 cm wide shatterproof backboard, a sturdy steel hoop, and a tear-resistant net, designed for intensive play.
2. Информация по технике безопасности
Перед сборкой и использованием, пожалуйста, внимательно ознакомьтесь со всеми предупреждениями и инструкциями по технике безопасности. Несоблюдение этих инструкций может привести к серьезным травмам или повреждению имущества.
- Наблюдение взрослых: Дети всегда должны находиться под присмотром взрослых во время игры в баскетбольное кольцо.
- Правильная установка: Ensure the hoop is securely mounted to a sturdy wall capable of supporting its weight and the forces exerted during play. Refer to the "Setup / Installation" section for detailed instructions.
- Проверьте перед использованием: Before each use, check all bolts, nuts, and connections for tightness. Ensure the backboard, hoop, and net are in good condition. Do not use if any part is damaged or loose.
- Нет подвешивания: Do not hang on the rim or any part of the backboard structure. This can cause serious injury and damage the product.
- Чистая область: Ensure the playing area around the hoop is clear of obstacles and hazards.
- Погодные условия: If used outdoors, be aware of weather conditions. Strong winds or storms can damage the hoop or cause it to detach from the wall.
3. Содержимое упаковки
Перед началом сборки убедитесь, что все перечисленные ниже детали присутствуют и не повреждены. Если какие-либо детали отсутствуют или повреждены, не приступайте к сборке и обратитесь в службу поддержки клиентов.
- 1 x Basketball Hoop (Rim)
- 1 x Backboard
- 1 х Чистый
- Крепежные элементы (винты, болты и т. д.)

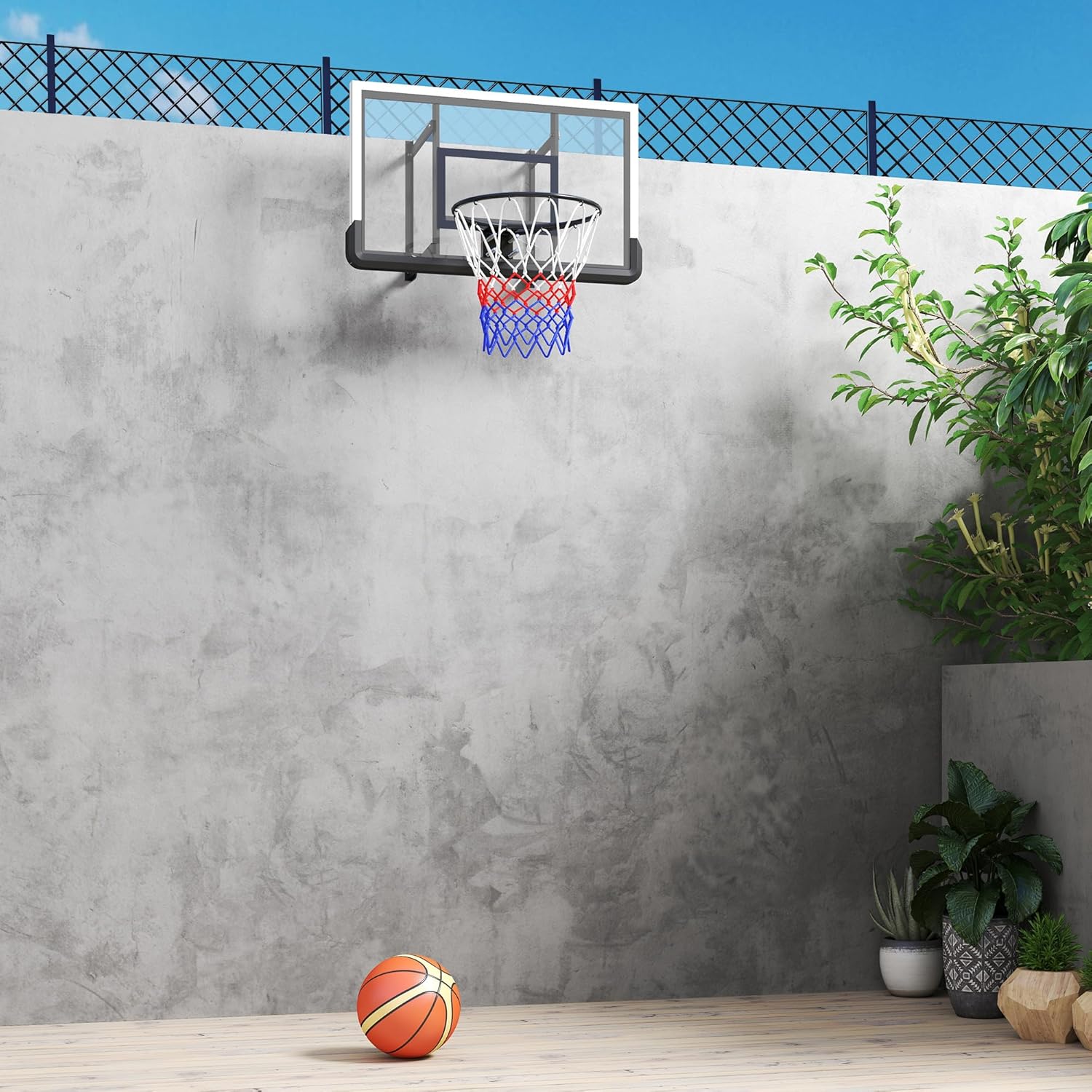

Figure 2: The SPORTNOW Basketball Hoop mounted outdoors, showing the complete setup. This image also implies the components included in the package.
4. Настройка / Установка
This basketball hoop is designed for wall mounting. Proper installation is crucial for safety and product longevity. It is recommended that two adults perform the installation.
Необходимые инструменты (не входят в комплект):
- Drill with appropriate drill bits for your wall type (concrete, brick, wood)
- Уровень
- Измерительная лента
- Набор гаечных ключей или головок
- Карандаш для маркировки
Этапы установки:
- Выберите место: Select a sturdy wall (concrete, brick, or solid wood) that can safely support the weight of the basketball hoop and withstand the forces of play. Ensure there is ample clear space around the installation area.
- Отметьте точки бурения: Hold the backboard assembly against the wall at the desired height. Use a level to ensure it is straight. Mark the positions for the mounting holes with a pencil.
- Отверстия для сверления: Using the appropriate drill bit for your wall material, drill holes at the marked points. Ensure the depth and diameter of the holes match the provided mounting hardware.
- Прикрепите монтажные кронштейны: Secure any separate mounting brackets to the wall using the provided screws and anchors (if applicable).
- Монтажный узел задней панели: Carefully lift the backboard assembly and align its mounting points with the drilled holes or attached brackets. Insert the provided bolts and tighten them securely with a wrench. Do not overtighten, but ensure there is no wobble.
- Attach Hoop and Net: If the hoop and net are not pre-attached, follow the specific instructions to secure the steel hoop to the backboard and then attach the net to the hoop.
- Окончательная проверка: Double-check all connections for tightness and stability. Gently pull on the hoop to ensure it is firmly secured to the wall.
Figure 3: Illustration of the wall mounting process, showing the included fastening screws and how the hoop attaches to the wall.
Figure 4: The basketball hoop installed on an outdoor wall, demonstrating its use by two players.
5. Инструкция по эксплуатации
Регулировка высоты:
The backboard height can be adjusted by up to 50 cm to suit different players. To adjust the height, locate the two pins on the support structure behind the backboard. Remove these pins, slide the backboard up or down to the desired height, and reinsert the pins securely to lock it in place. Ensure both pins are fully engaged before use.

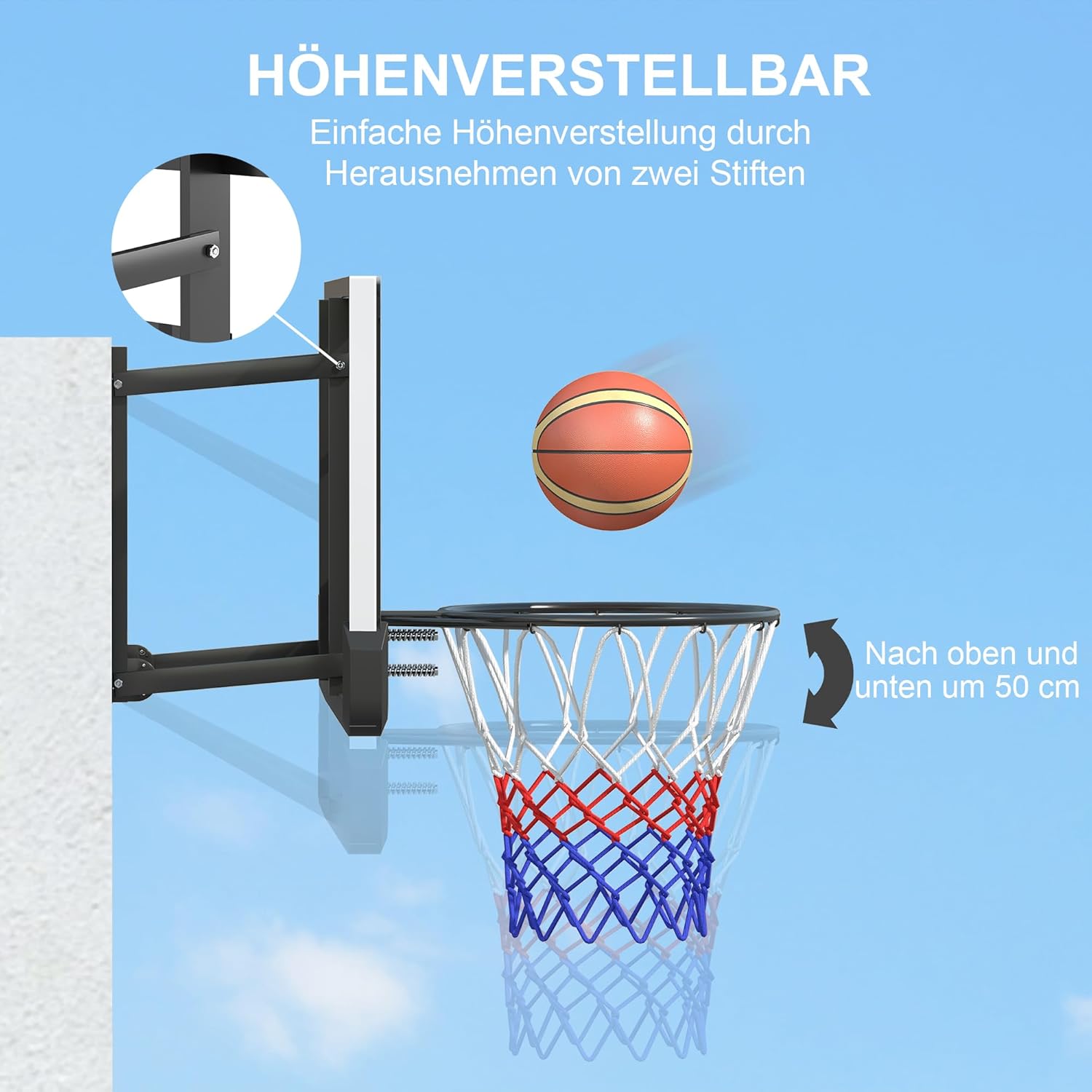

Figure 5: Diagram illustrating the height adjustment mechanism, showing how the backboard can be moved up or down by 50 cm.
Spring-Loaded Hoop:
The basketball hoop features a spring-loaded mechanism. This design allows the rim to flex downwards under pressure, reducing stress on the backboard and mounting structure, and minimizing the risk of damage during dunks or aggressive play. The rim will return to its original position once the pressure is released.
Figure 6: Visual representation of the spring-loaded hoop, demonstrating its ability to bend under pressure to reduce damage risk.
6. Техническое обслуживание
Regular maintenance will ensure the longevity and safe operation of your basketball hoop.
- Уборка: Clean the backboard and frame with a soft cloth and mild soap and water. Avoid abrasive cleaners or solvents that could damage the materials. Rinse thoroughly and dry.
- Проверка оборудования: Periodically check all bolts, nuts, and screws for tightness. Retighten any loose fasteners to prevent wobbling or detachment.
- Проверка сети: Inspect the net for any tears or fraying. Replace the net if it shows signs of significant wear to ensure continued playability.
- Предотвращение ржавчины: For outdoor use, regularly inspect metal parts for signs of rust. If rust appears, clean the affected area and apply a rust-inhibiting paint or coating.
- Storage (if applicable): If storing the hoop for extended periods, especially in harsh weather, consider covering it or disassembling it if feasible to protect it from elements.
7. Поиск Неисправностей
If you encounter any issues with your basketball hoop, refer to the common problems and solutions below. If the problem persists, please contact customer support.
| Проблема | Возможная причина | Решение |
|---|---|---|
| Hoop feels wobbly after installation. | Mounting bolts are not sufficiently tightened or wall material is not strong enough. | Ensure all mounting bolts are securely tightened. If the wall material is weak, consider reinforcing it or choosing a different mounting location. |
| Механизм регулировки высоты застрял. | Pins are jammed or mechanism is dirty. | Clean the adjustment mechanism and pins. Apply a silicone-based lubricant if necessary. Ensure pins are fully retracted before attempting to slide. |
| Сетка порвана или повреждена. | Normal wear and tear or excessive force. | Replace the net with a compatible replacement. |
| Backboard appears scratched or cloudy. | Improper cleaning or exposure to harsh elements. | Clean with a soft cloth and mild soap. Avoid abrasive materials. Minor scratches may be polished with plastic-specific polish. |
8. Технические характеристики
Detailed specifications for the SPORTNOW Wall-Mounted Basketball Hoop (Model A61-066V00BK).
| Особенность | Спецификация |
|---|---|
| Номер модели | А61-066В00БК |
| Backboard Dimensions (L x W) | 110 см x 70 см (43.3" x 27.6") |
| Диаметр пялец | Ø45 cm (Ø17.7") |
| Габаритные размеры изделия (Г x Ш x В) | 28 см x 110 см x 70 см (11" x 43.3" x 27.6") |
| Масса | 11.5 кг (25.3 фунта) |
| Материал | Alloy Steel (Frame), High-strength Plastic (Backboard) |
| Цвет | Черный |
| Диапазон регулировки высоты | Up to 50 cm (19.7") |
| Тип крепления | Настенное крепление |
| Предполагаемое использование | В помещении и на открытом воздухе |

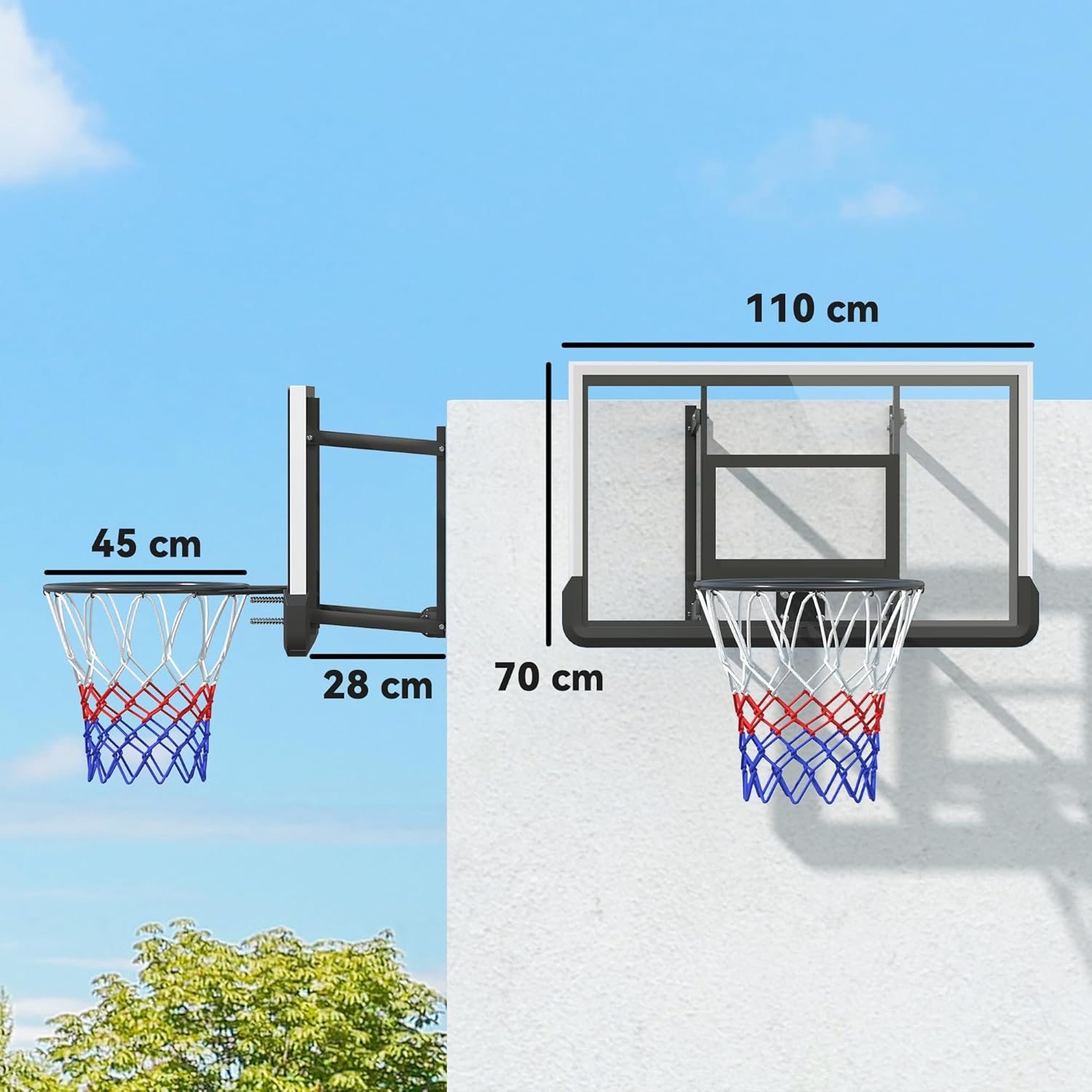

Figure 7: Detailed dimensions of the basketball hoop and backboard.
9. Гарантия и поддержка
SPORTNOW products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the product packaging or the retailer's webсайт для получения информации о конкретных условиях гарантии.
For technical support, missing parts, or warranty claims, please contact the retailer or SPORTNOW customer service directly. Have your model number (A61-066V00BK) and purchase information ready when contacting support.
Онлайн поддержка: Visit the official SPORTNOW webСайт с часто задаваемыми вопросами, информацией о регистрации продукта и контактными данными.
Поддержка по электронной почте: [Insert general support email if available, otherwise omit or state "Refer to website"]
Поддержка по телефону: [Insert general support phone if available, otherwise omit or state "Refer to website"]
