SONGMICS UHSR175E01 Heavy-Duty Extendable Clothes Rack with Wheels User Manual

1. Введение

Thank you for choosing the SONGMICS UHSR175E01 Heavy-Duty Extendable Clothes Rack. This manual provides essential information for the safe assembly, operation, and maintenance of your new clothes rack. Please read these instructions carefully before use and retain them for future reference.

2. Инструкции по технике безопасности

• Перед сборкой убедитесь, что все детали на месте и не повреждены. Не используйте, если какие-либо детали отсутствуют или сломаны.
• Assemble the rack on a soft, flat surface to prevent scratches.
• Do not exceed the maximum load capacity of 330 lb (150 kg) to prevent structural damage or injury.
• Distribute weight evenly on the hanging rail and bottom bars.
• Не допускайте детей и домашних животных во время сборки.
• Регулярно проверяйте все соединения и крепежные элементы, чтобы убедиться в их надежности.
• Use the wheel brakes when the rack needs to remain stationary to prevent unintended movement.

3. Настройка и сборка

The SONGMICS UHSR175E01 clothes rack features a tool-free assembly design, allowing for quick setup and disassembly.

3.1 Этапы сборки

1. Распакуйте все компоненты и сверьте их со списком деталей (в данном документе он не прилагается, см. на упаковке).
2. Connect the vertical support poles to the base frame, ensuring the spring-button mechanism locks securely into place.
3. Attach the top hanging rail to the vertical support poles, again ensuring the spring-button mechanism engages.
4. Ensure all wheels are properly attached to the base frame.

Figure 3.1: Tool-Free Assembly. This image illustrates the simple, tool-free assembly process using a spring-button mechanism to connect the rack components. The rack can be easily disassembled for storage.

3.2 Disassembly for Storage

To disassemble, press the spring buttons and carefully separate the components. The rack can be stored compactly, for example, under a bed or in a corner, when not in use.

4. Инструкция по эксплуатации

4.1 Extending the Hanging Rail

The top hanging rail is extendable, providing additional space for garments and accessories. Each end of the rail can be extended by approximately 7.9 inches (20 cm), increasing the total width from 63 inches (160 cm) to 78.7 inches (200 cm).

Figure 4.1: Extendable Rail Feature. This image highlights the extendable ends of the hanging rail, which provide an additional 7.9 inches (20 cm) of space on each side. It also shows the reinforced 1 mm thick steel tubes for enhanced durability.

4.2 Utilizing Load Capacity

Constructed with 1 mm thick steel tubes and heavy-duty PP casters, this rack is designed to support a significant load. The maximum static load capacity for the entire rack is 330 lb (150 kg). Ensure weight is distributed evenly across the hanging rail and the two bottom bars.

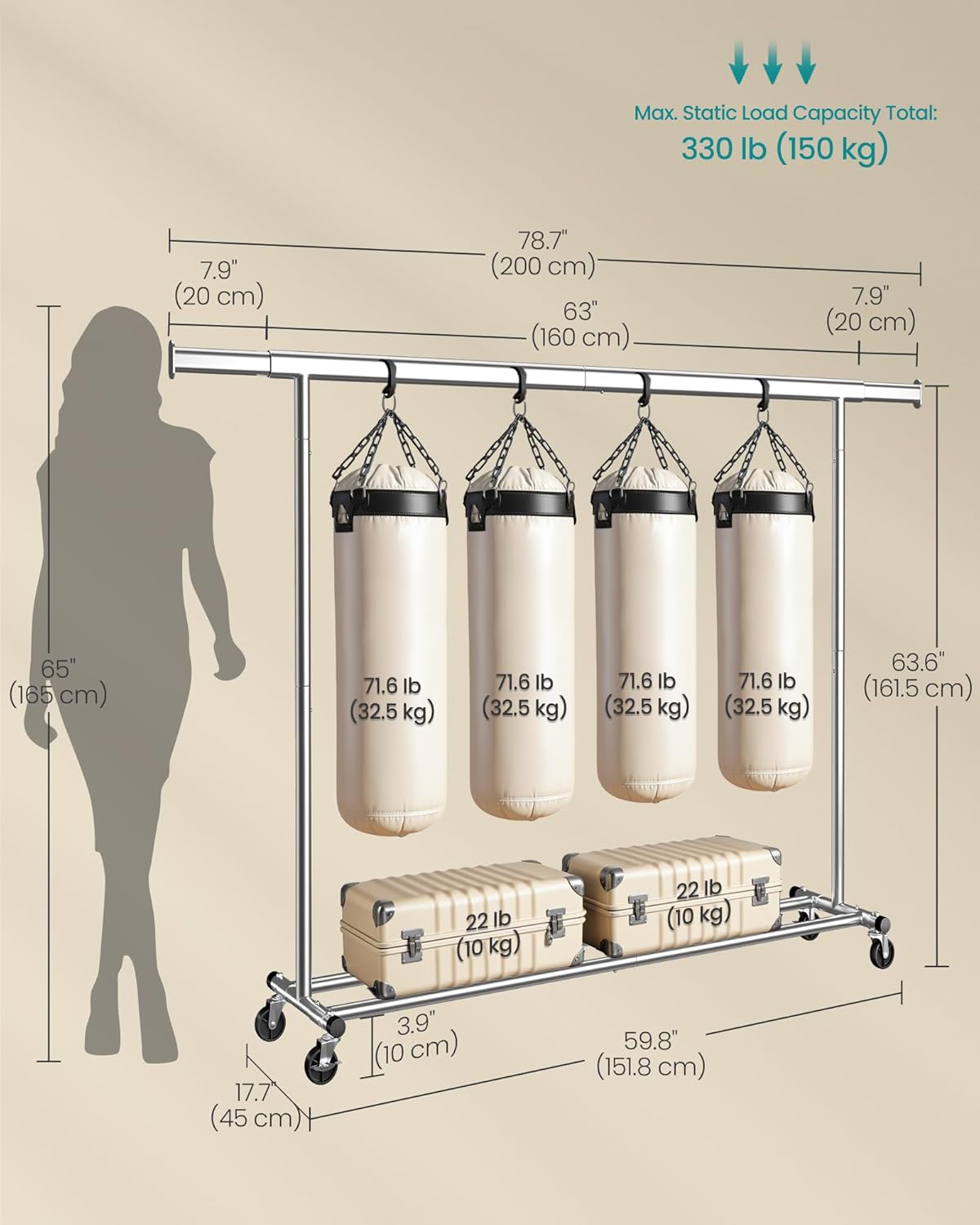

Figure 4.2: Load Capacity and Dimensions. This diagram visually represents the maximum static load capacity of 330 lb (150 kg) and provides detailed dimensions of the clothes rack, including height, depth, and adjustable width.

4.3 Мобильность и устойчивость

The rack is equipped with four 360° swivel wheels for easy movement. Two of these wheels include brakes, allowing you to lock the rack securely in place when needed. To move the rack, unlock the brakes. To stabilize, engage the brakes on the two lockable wheels.

Figure 4.3: Easy Movement and Stability. This image demonstrates the functionality of the 360° swivel wheels, highlighting the lockable feature for secure positioning and effortless movement of the rack.

4.4 Универсальные применения

The design of this clothes rack, including its two bottom bars, makes it suitable for various organizational needs. It can be used in bedrooms, coatrooms, laundry areas, or even outdoors due to its powder-coated steel construction.

Figure 4.4: Versatile Use Cases. This image displays the clothes rack in four different environments: a store, a laundry room, a closet, and a bedroom, illustrating its adaptability for various storage and organizational purposes.

5. Техническое обслуживание

• Уборка: Протрите стальную раму мягкой тряпкой.amp Ткань. Избегайте использования абразивных чистящих средств и едких химикатов, которые могут повредить покрытие.
• Инспекция: Periodically check all connections, screws, and the wheel mechanisms for tightness and proper function. Tighten any loose parts as necessary.
• Уход за колесами: Keep the wheels free of debris (hair, lint, etc.) to ensure smooth movement.
• Хранилище: If storing for an extended period, disassemble the rack and store it in a dry place to prevent rust or damage.

6. Поиск Неисправностей

• Стойка нестабильна: Ensure all connections are fully engaged and tightened. Verify that the weight is evenly distributed. Check if the floor surface is level.
• Колеса не катятся плавно: Check for debris (hair, lint) caught in the wheels. Clean the wheels if necessary. Ensure wheel brakes are disengaged.
• Difficulty extending/retracting rail: Ensure no clothes or objects are obstructing the rail mechanism. Apply gentle, even pressure.
• Отсутствующие или поврежденные детали: Do not attempt to assemble or use the product. Contact customer support for assistance.

7. Технические характеристики

8. Гарантия и поддержка

For warranty information or customer support, please refer to the documentation included with your purchase or visit the official SONGMICS website. If you encounter any issues or have questions regarding your product, please contact SONGMICS customer service directly.
