Руководство пользователя портативного кондиционера

1. Введение и окончаниеview

Thank you for choosing the Generic Portable Air Conditioner. This compact and versatile unit is designed to provide a comfortable environment by combining cooling, humidification, and air purification functions. Its lightweight design and easy-to-carry handle make it ideal for use in various settings, including your home, office, or during outdoor activities. This manual provides essential information for the safe and efficient operation of your new portable air conditioner.

Figure 1.1: The portable air conditioner in operation, demonstrating its cooling effect.

Key features include a multi-functional design suitable for dry environments, an easy-to-use push-button control panel, a large-capacity water tank for extended use, and an energy-saving, ultra-quiet operation that minimizes disturbance.

Figure 1.2: The portable air conditioner provides a comfortable environment for relaxation.

2. Настройка и первоначальное использование

2.1 Распаковка

Осторожно извлеките все компоненты из упаковки. Убедитесь, что у вас есть следующее:

• 1x Portable Air Conditioner (Chiller)
• 1x Data Cable (for charging/power)
• 1x Руководство пользователя (этот документ)

2.2 Зарядка устройства

Before first use, fully charge the built-in battery using the provided data cable. Connect the data cable to the unit's charging port and a compatible USB power source (e.g., wall adapter, computer USB port). The charging indicator light will show the charging status.

2.3 Заполнение резервуара для воды

For cooling and humidification, the unit requires water. The large-capacity water tank can hold up to 1600 ml (54 oz) of water.

1. Найдите резервуар для воды на устройстве.
2. Откройте крышку резервуара для воды.
3. Carefully pour clean, cool water into the tank. Do not exceed the maximum fill line.
4. For enhanced cooling, you may add ice cubes to the ice box compartment within the water tank.
5. Плотно закройте крышку резервуара для воды.

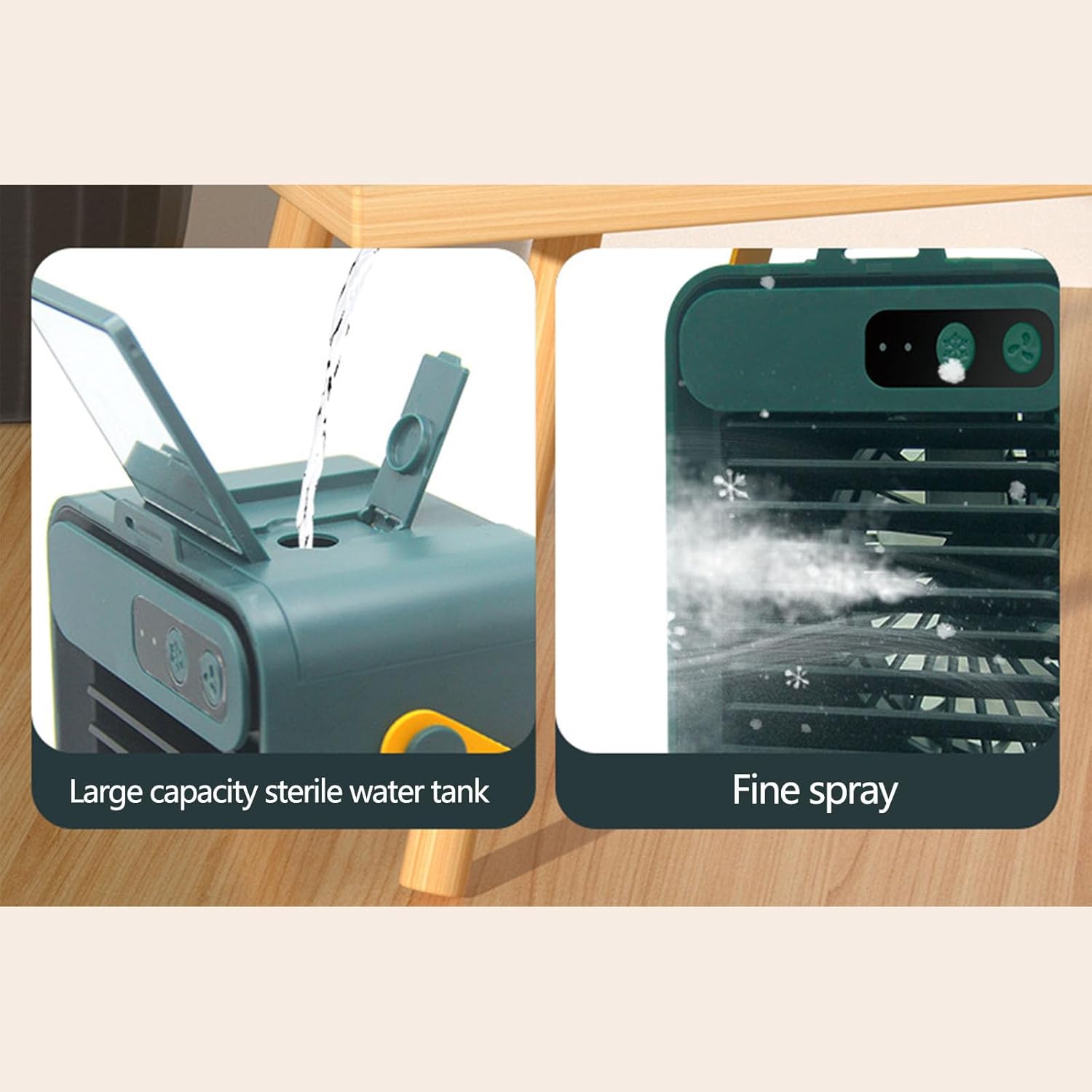

Figure 2.1: Filling the large capacity water tank and observing the fine spray.

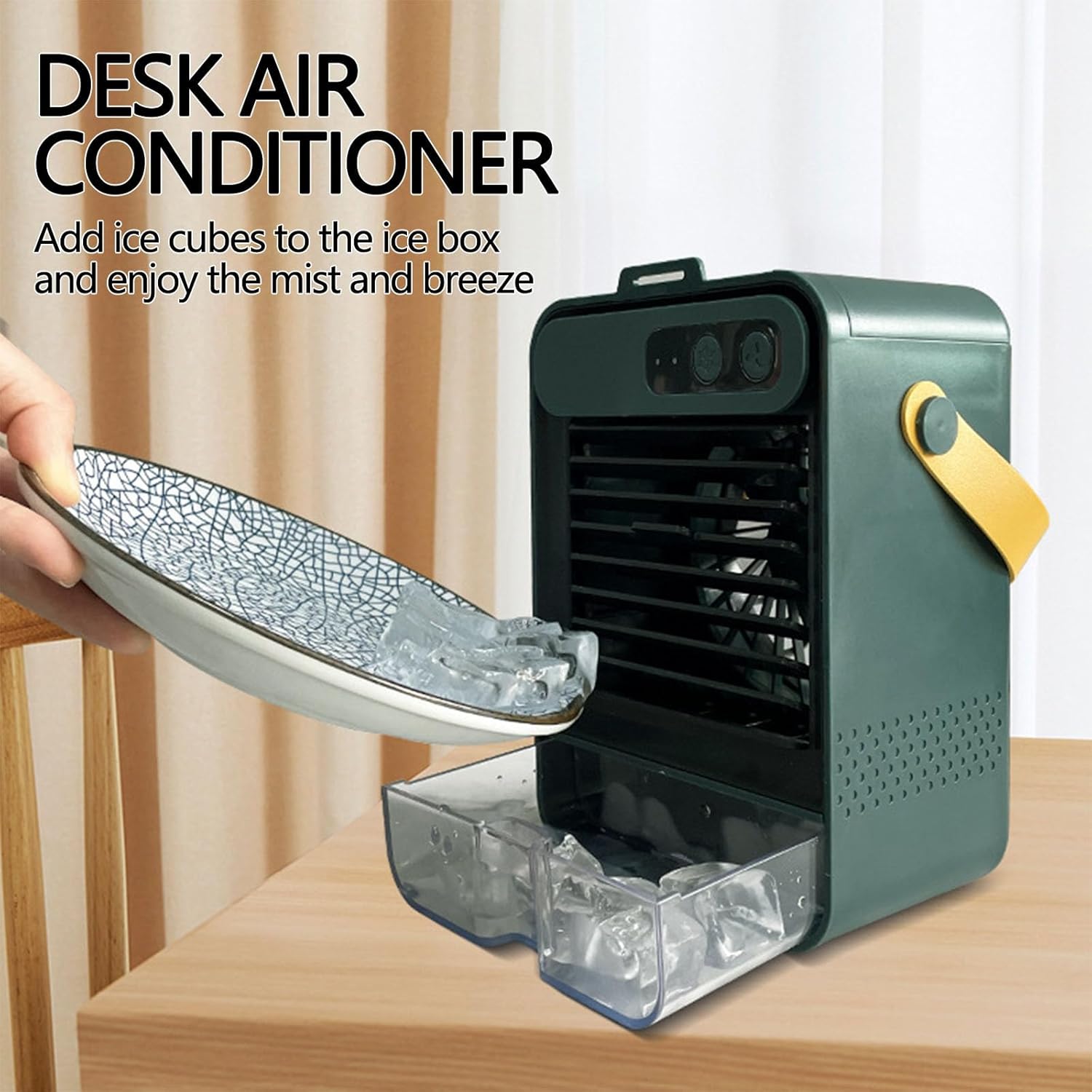

Figure 2.2: Adding ice cubes to the unit for enhanced cooling effect.

3. Инструкция по эксплуатации

3.1 Включение/выключение питания

Чтобы включить или выключить устройство, нажмите кнопку питания на панели управления.

3.2 Регулировка скорости вентилятора

The unit features multiple fan speed settings to suit your comfort needs. Press the fan speed button to cycle through the available modes:

• First Gear (Sleep Wind): Gentle and comfortable, ideal for quiet environments or during sleep.
• Second Gear (Natural Wind): Refreshing and natural, suitable for office or study.
• Third Gear (Super Gale): Powerful airflow for rapid cooling in hot weather.

Figure 3.1: Fan speed settings and their corresponding airflow.

3.3 Регулировка направления воздушного потока

The front grid of the unit is adjustable, allowing you to direct the cool air as needed. Manually adjust the grid to achieve your desired airflow direction.

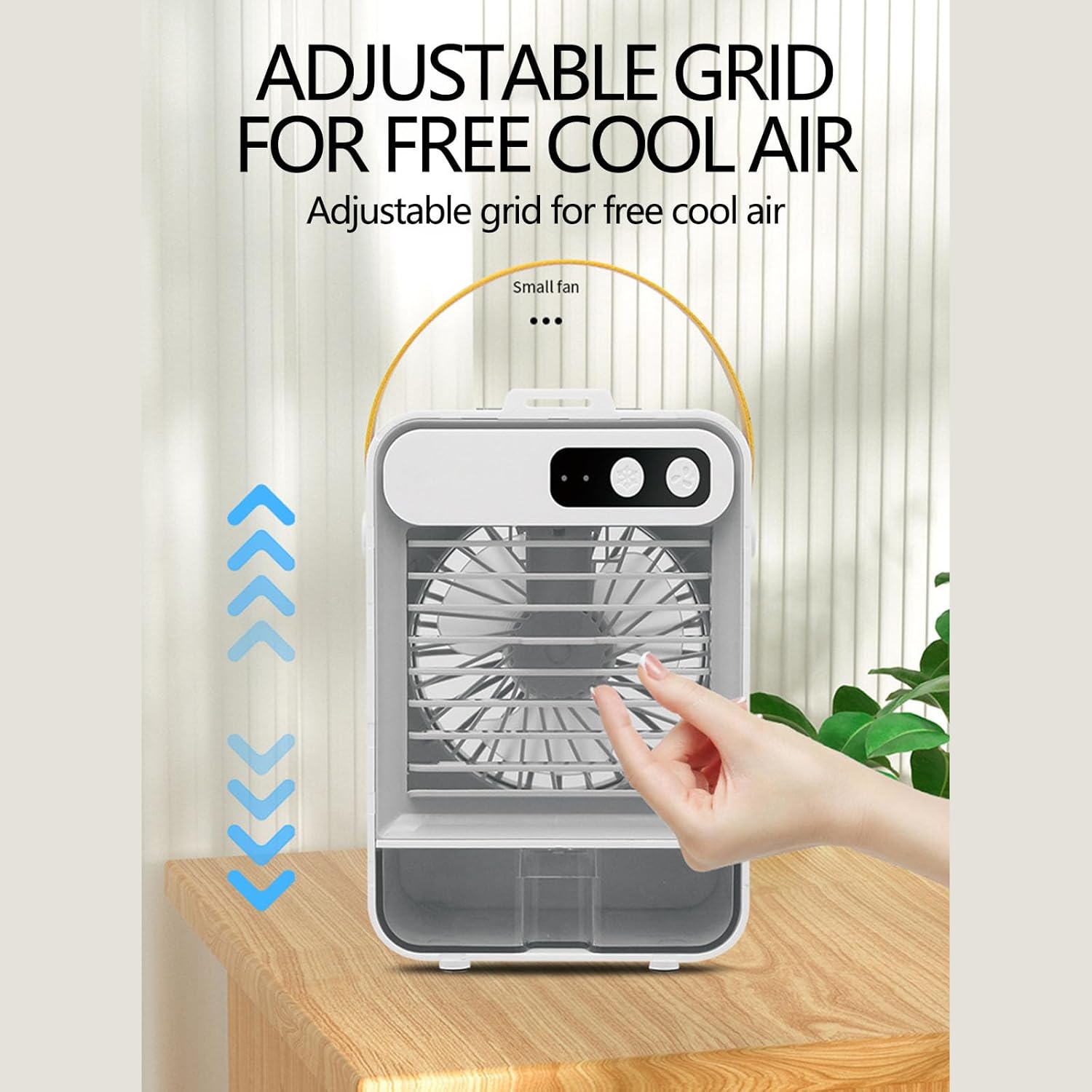

Figure 3.2: Adjusting the front grid for customized airflow.

3.4 Особенности

• Автоматическое отключение: The unit may have an automatic shut-off feature for safety or when the water level is low.
• Индикатор низкого уровня воды: An indicator will alert you when the water tank needs refilling.
• Бесшумная работа: Designed for low noise output (approximately 50 dB), ensuring minimal disturbance.

Figure 3.3: The unit's low noise level ensures a peaceful environment.

4. Техническое обслуживание

Регулярное техническое обслуживание обеспечивает оптимальную производительность и долговечность вашего мобильного кондиционера.

4.1 Очистка резервуара для воды

To prevent mold or mildew buildup, it is recommended to clean the water tank regularly, especially if the unit is used frequently or with tap water.

1. Выключите и отсоедините устройство от сети.
2. Вылейте остатки воды из бака.
3. Протрите внутреннюю поверхность бака мягкой тканью с использованием слабого моющего средства.
4. Тщательно промойте чистой водой.
5. Перед заправкой или хранением устройства дайте резервуару полностью высохнуть на воздухе.

4.2 Внешняя очистка

Протрите внешнюю поверхность устройства мягкой тряпкой.amp Ткань. Не используйте абразивные чистящие средства или растворители.

5. Поиск Неисправностей

If you encounter issues with your portable air conditioner, refer to the following common problems and solutions:

6. Технические характеристики

7. Информация о гарантии

This Generic Portable Air Conditioner comes with a Гарантия 1 год from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, please refer to the documentation provided at the time of purchase or contact customer support.

8. Поддержка клиентов

For any questions, technical assistance, or warranty inquiries, please contact the manufacturer, BaiCER, or the seller from whom you purchased the product. Please have your model number (mini ac unit for bedroom-BaiCER) and purchase details ready when contacting support.
