1. Введение
This user manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your Lemorele Wireless Video Transmitter and Receiver System. This system is designed to provide a seamless, cable-free solution for transmitting high-definition video and audio, enhancing your home entertainment, business presentations, and educational experiences.
Что в коробке:
- 1 x HDMI Wireless Transmitter (TX)
- 1 x HDMI Wireless Receiver (RX)
- 2 x Antennae
- 1 х 25 см кабель HDMI
- 2 зарядных кабеля USB-C
- 1 x Fixed Needle (for reset/pairing)
- 1 х Руководство пользователя
2. Продукт закончилсяview
The Lemorele Wireless HDMI kit consists of a Transmitter (TX) and a Receiver (RX), designed for high-quality wireless video and audio transmission. The system supports 1080P HD quality and offers a transmission range of up to 164 feet (50 meters) in optimal conditions. It features 2.4/5G dual-band technology for stable connections and versatile HDMI + VGA dual output options on the receiver.
Figure 2.1: Lemorele Wireless HDMI Transmitter and Receiver Kit.
Основные характеристики:
- Удобство Plug-and-Play: No software installation required for basic operation.
- 1080P HD Quality & 164ft Range: Supports 1080P wireless transmission up to 50 meters with high-performance chips and dual antennas.
- 2.4/5G Dual-Band: Intelligent frequency switching for fast and reliable transmission.
- HDMI + VGA Dual Output: Receiver offers both HDMI single-screen and HDMI+VGA dual-screen outputs.
- Поддержка нескольких передатчиков: Connect up to 8 transmitters to a single receiver for easy switching in collaborative environments.
- Широкое применение: Suitable for home entertainment, business presentations, and educational settings.
3. Настройка
Follow these steps to set up your Lemorele Wireless Video Transmitter and Receiver System:
- Подключите приемник (RX):
Connect the Lemorele Receiver (the larger unit with two antennas) to your display device (TV, projector, monitor) using an HDMI cable. Ensure the receiver is powered via the provided USB-C cable connected to a power source (e.g., USB port on your display or a USB power adapter).
- Подключите передатчик (TX):
Connect the Lemorele Transmitter (the smaller, round unit with an integrated HDMI cable) to your source device (laptop, TV box, Blu-ray player, DVR) via its HDMI connector. Power the transmitter using the provided USB-C cable if your source device's HDMI port does not provide sufficient power.
- Автоматическое подключение:
The transmitter and receiver are designed for plug-and-play operation. Once both units are powered on and connected, they should automatically establish a wireless connection within seconds. The indicator lights on both devices will confirm a successful connection.
- Driver Installation (First Use for some systems):
For certain computer systems (e.g., Windows or Mac OS), a driver may need to be installed for the first use. When the transmitter is connected to your computer, it may appear as a CD Drive (G:) or similar, containing the necessary UDisplay driver. Double-click to run the installer and follow the on-screen prompts.

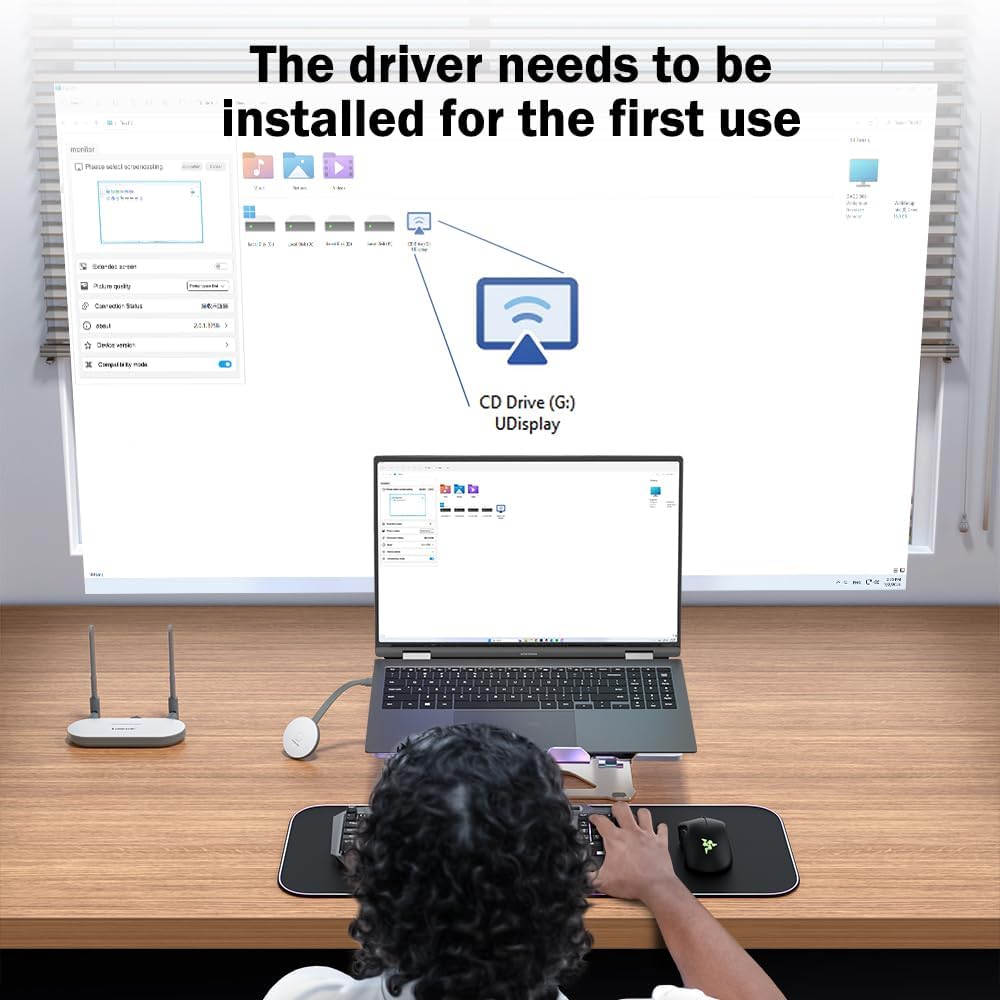

Figure 3.1: Driver installation interface for first-time use on some systems.
Figure 3.2: Connection Diagram showing TX input from various devices and RX output to display devices.
4. Инструкция по эксплуатации
4.1 Включение/выключение питания
Both the Transmitter (TX) and Receiver (RX) are powered via USB-C. They will power on automatically when connected to a power source. To power off, simply disconnect the USB-C power cable.
4.2 Wireless Transmission and Range
The system supports 1080P Full HD resolution and can transmit signals up to 164 feet (50 meters) in an open, unobstructed environment. Performance may vary based on environmental factors such as walls, obstacles, and other wireless interference.
Figure 4.1: Illustration of the 50-meter (164 feet) transmission range.
4.3 Dual-Band Technology (2.4G/5G)
The Lemorele system utilizes intelligent 2.4G and 5G dual-band technology to ensure stable and fast image and video transmission. It automatically selects the optimal frequency band for the best performance.
Figure 4.2: The system supports both 2.4G and 5G wireless transmission for stability.
4.4 HDMI + VGA Dual Output
The Receiver (RX) unit is equipped with both HDMI and VGA output ports, along with an audio output. This allows for flexible display options, including HDMI single-screen output or simultaneous HDMI and VGA dual-screen output, ideal for presentations requiring multiple displays.
4.5 Multiple Transmitters to One Receiver
The Lemorele Wireless HDMI kit supports connecting up to 8 transmitters (TX) to a single receiver (RX). This feature is highly beneficial for business meetings, collaborative discussions, or educational settings, allowing multiple users to easily switch their display to the main screen without re-cabling. Simply press the button on the desired transmitter to switch the active source.
Figure 4.3: Multiple TX units (up to 8) can connect to a single RX for easy content sharing.
5. Техническое обслуживание
Proper care and maintenance will ensure the longevity and optimal performance of your Lemorele Wireless Video Transmitter and Receiver System.
- Уборка: Use a soft, dry cloth to clean the surfaces of the transmitter and receiver. Avoid using liquid cleaners or aerosols, as they may damage the internal components.
- Хранилище: Если устройство не используется в течение длительного времени, храните его в прохладном, сухом месте, вдали от прямых солнечных лучей и экстремальных температур.
- Умение обращаться: Handle the devices with care. Avoid dropping them or subjecting them to strong impacts, which can cause internal damage.
- Вентиляция: Ensure proper ventilation around the receiver unit, especially during prolonged use, to prevent overheating.
6. Поиск Неисправностей
If you encounter issues with your Lemorele Wireless Video Transmitter and Receiver System, please refer to the following common problems and their solutions:
| Проблема | Возможная причина | Решение |
|---|---|---|
| Нет сигнала на дисплее. | Incorrect connection, no power, or out of range. |
|
| Flickering or unstable image. | Interference, weak signal, or environmental factors. |
|
| Нет звука. | Настройки звука, проблема с кабелем. |
|
| Transmitter not recognized by computer. | Driver not installed or USB power issue. |
|
7. Технические характеристики
| Особенность | Деталь |
|---|---|
| Размеры продукта | 5 x 2.63 x 0.7 дюйма (приемник) |
| Вес товара | 15.5 унции |
| Номер модели | HDMI TX + HDMI RX (G52R1) |
| Технология связи | Беспроводной HDMI-кабель |
| Тип разъема | HDMI, VGA, аудиовыход |
| Разрешение | 1080p |
| Частота беспроводной связи | 2.4G / 5G Dual-Band |
| Максимальный диапазон передачи | 164ft (50 meters) (line of sight) |
| Максимальное количество передатчиков на один приемник | До 8 |
| Входная мощность | USB-C |
Figure 7.1: Product dimensions of the Lemorele Wireless HDMI Kit components.
8. Гарантия и поддержка
Lemorele stands behind the quality of its products. Your Wireless Video Transmitter and Receiver System comes with the following:
- Гарантия: Гарантия 12 месяцев с момента покупки.
- Техническая поддержка: Для данного продукта предоставляется пожизненная техническая поддержка.
- Обслуживание клиентов: Professional online service is available 7 days a week, 24 hours a day, for both pre-sales and after-sales inquiries.
For support, please refer to the contact information provided on the product packaging or the official Lemorele webсайт.
