Nictemaw Electric Vegetable Slicer

1. Введение

Thank you for choosing the Nictemaw Electric Vegetable Slicer. This powerful 250W appliance is designed to simplify your food preparation tasks, offering versatile cutting, grating, and grinding capabilities. With its 5 interchangeable stainless steel drums, you can effortlessly process a variety of ingredients, from vegetables and fruits to cheese and nuts.

This manual provides essential information on the safe operation, setup, maintenance, and troubleshooting of your new electric vegetable slicer. Please read it thoroughly before first use and keep it for future reference.

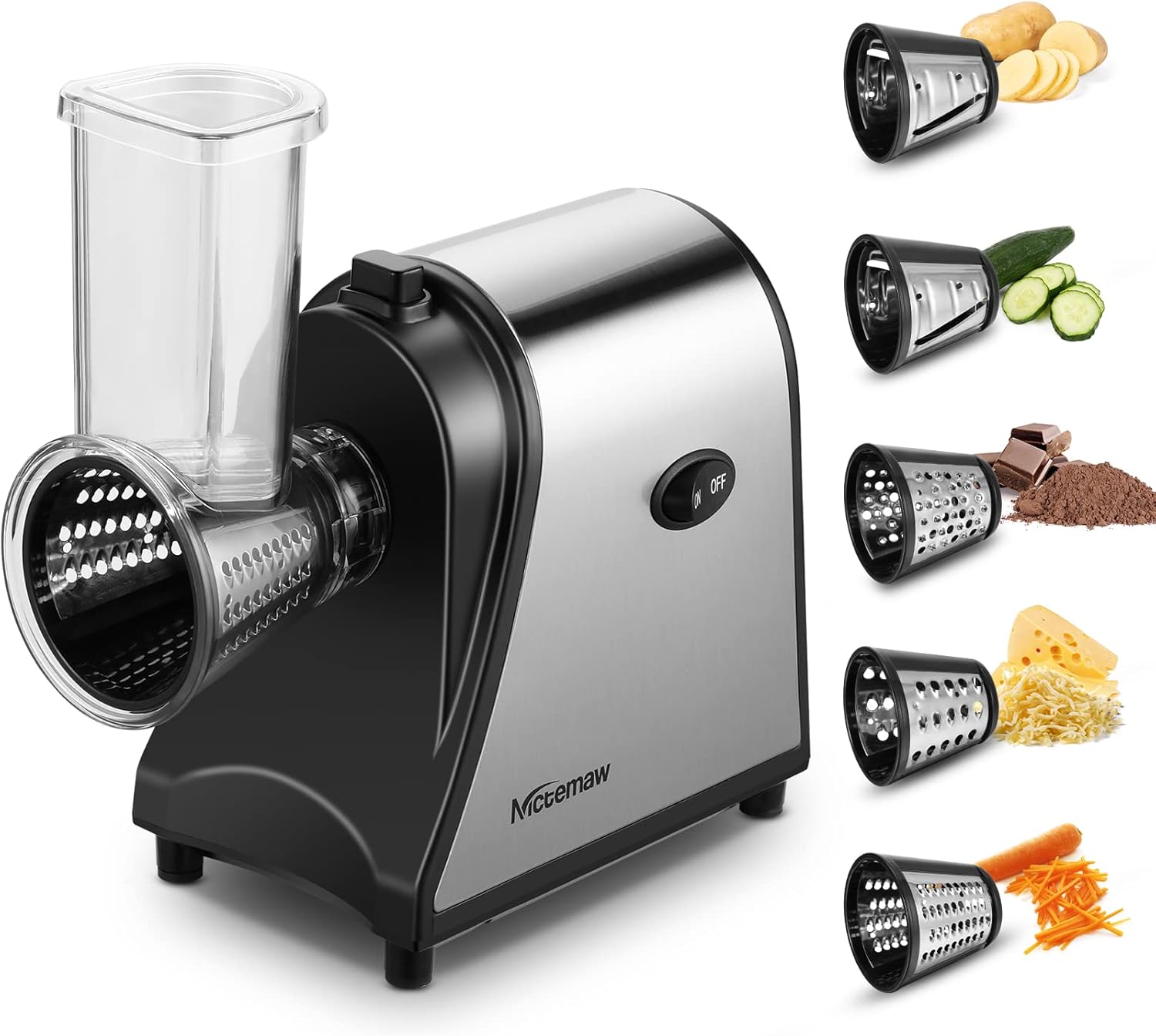

Image: The Nictemaw Electric Vegetable Slicer with its main unit and five interchangeable cutting drums displayed.

2. Инструкции по технике безопасности

Для обеспечения безопасной эксплуатации и предотвращения повреждения прибора или травм, пожалуйста, соблюдайте следующие меры предосторожности:

• Перед чисткой, сборкой или разборкой деталей всегда отключайте прибор от розетки.
• Keep hands and utensils away from the cutting blades during operation. Use the food pusher provided.
• Не погружайте моторный блок в воду или другую жидкость. Очистите с помощьюamp только ткань.
• This appliance is not intended for use by children or persons with reduced physical, sensory, or mental capabilities unless supervised by a responsible adult.
• Во время использования убедитесь, что прибор установлен на устойчивой, ровной и сухой поверхности.
• Не используйте прибор, если шнур питания или вилка повреждены, если прибор неисправен или упал. Обратитесь в службу поддержки клиентов за помощью.
• Избегайте обработки очень твердых продуктов, так как это может повредить лезвия или двигатель.
• The blades are sharp. Handle them with extreme care during assembly, disassembly, and cleaning.

3. Продукт закончилсяview

Familiarize yourself with the components of your Nictemaw Electric Vegetable Slicer:

Image: A detailed diagram showing the labeled parts of the Nictemaw Electric Vegetable Slicer.

1. Vegetable Pusher: Used to safely push food into the feed tube.
2. Fasten Button: Secures the feed tube to the main body.
3. On/Off/R Switch: Power control switch. 'R' likely indicates a reverse function for clearing jams.
4. Тело: The main motor unit of the appliance.
5. Gear Box Head: The mechanism that drives the cutting drums.
6. Feed Tube: Where food is inserted for processing.
7. Fine Shredder: For finely shredded ingredients like carrots or potatoes.
8. Chopped Blade: For chopping or dicing.
9. Thin Slicers: For thin slices of vegetables or fruits.
10. Thick Slices: For thicker slices of vegetables or fruits.
11. Coarse Shredder: For coarsely shredded ingredients, such as cheese.

4. Настройка

Follow these steps to set up your electric vegetable slicer for first use:

1. Чистые компоненты: Before first use, wash all detachable parts (feed tube, vegetable pusher, cutting drums) in warm, soapy water. Rinse thoroughly and dry completely. The main body should be wiped with a damp ткань.
2. Attach Feed Tube: Press the fixed button on the main body and insert the feed tube into the machine.
3. Secure Feed Tube: Turn the feed tube counter-clockwise to tighten and secure it firmly to the main unit.
4. Insert Cutting Drum: Select the desired cutting drum and insert it into the feed tube opening, ensuring it clicks into place.
5. Позиционное устройство: Place the assembled appliance on a stable, flat, and dry surface. Ensure there is enough space around it for ventilation and operation.

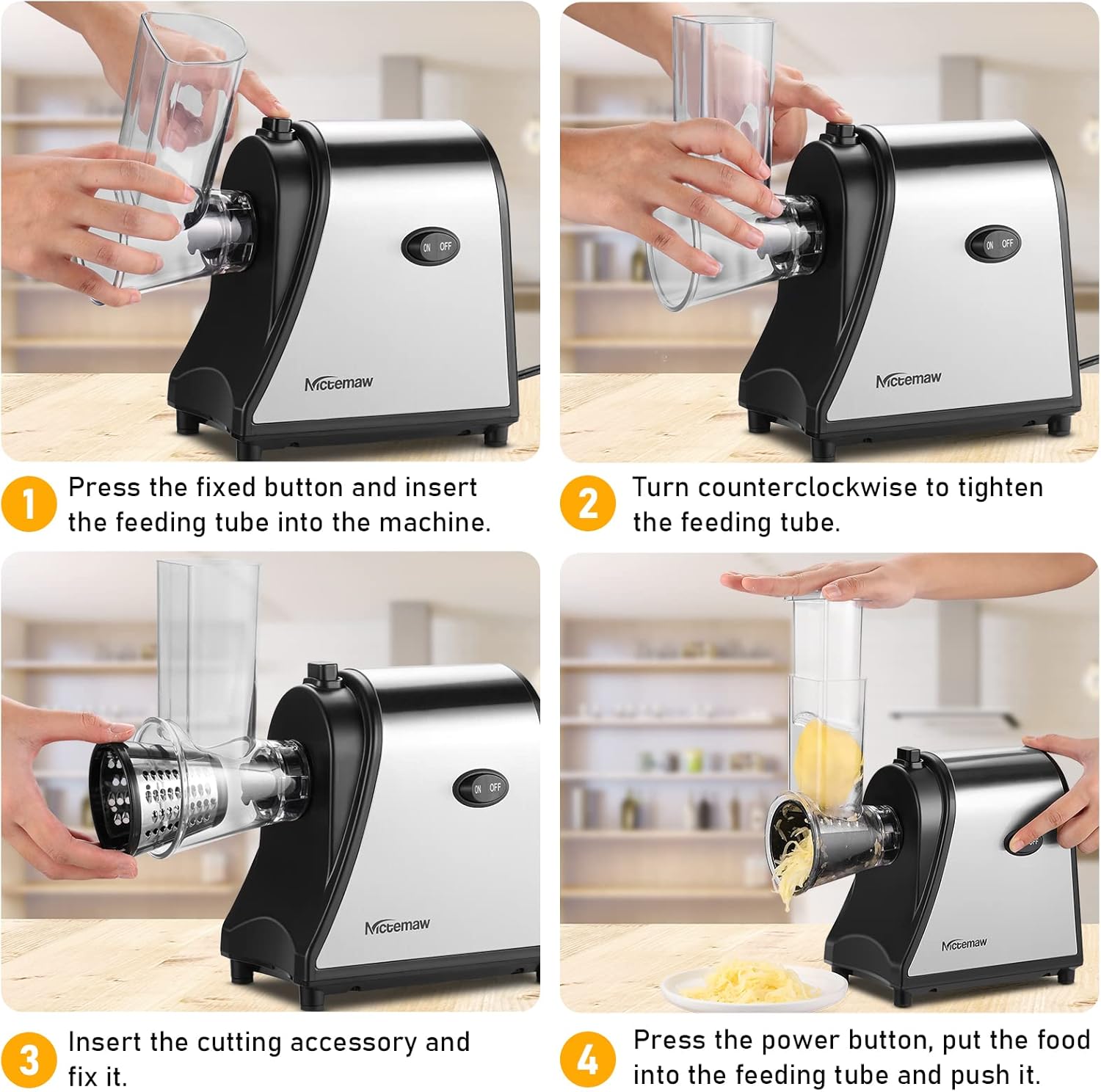

Image: A four-panel illustration demonstrating the assembly steps: inserting the feed tube, tightening it, inserting a cutting drum, and placing food into the feed tube.

5. Инструкция по эксплуатации

Once the appliance is set up, you can begin processing your ingredients:

1. Подготовьте ингредиенты: Cut food into pieces that fit easily into the feed tube. For best results, ensure ingredients are firm.
2. Разместить контейнер: Position a bowl or container under the discharge chute to collect the processed food.
3. Включение питания: Plug the appliance into a suitable power outlet. Press the 'On' button to start the motor.
4. Feed Food: Carefully place the prepared food into the feed tube. Use the vegetable pusher to gently guide the food towards the rotating blade. Do not force the food.
5. Процесс: The appliance will quickly slice, shred, or grate the food, discharging it into your container.
6. Выключение: Once finished, press the 'Off' button and unplug the appliance from the power outlet.

Using Different Cutting Drums:

• Thin Slicers: Ideal for cucumbers, potatoes, and other vegetables for salads or chips.


  Image: Thin Slicers blade with examples of finely processed nuts, peanuts, and chocolate.

• Thick Slices: Suitable for carrots, eggplants, or loofah for stir-fries or thicker cuts.


  Image: Thick Slices blade with examples of sliced carrots, eggplant, and loofah.

• Fine Shredder: Excellent for finely shredded potatoes, carrots, or cabbage for coleslaw or hash browns.


  Image: Fine Shredder blade with examples of shredded potato, carrot, and onion.
• Coarse Shredder: Best for grating cheese, chocolate, or nuts.


  Image: Coarse Shredder blade with an example of shredded cheese.

• Chopped Blade: For general chopping tasks.


  Image: Chopped Blade with examples of chopped cucumber, potato, and lotus root.

6. Техническое обслуживание и чистка

Proper maintenance ensures the longevity and optimal performance of your appliance:

• Разборка: After use, unplug the appliance. Disassemble the feed tube and the cutting drum by reversing the assembly steps.
• Cleaning Blades and Tube: The cutting drums, feed tube, and vegetable pusher are dishwasher safe. Alternatively, they can be washed by hand with warm, soapy water and a brush to remove food residue. Rinse thoroughly.
• Очистка основного корпуса: Протрите основной блок двигателя с помощьюamp ткань. Не погружайте его в воду.
• Сушка: Перед повторной сборкой или хранением убедитесь, что все детали полностью высохли.
• Хранилище: Храните прибор и его принадлежности в чистом, сухом месте, вдали от прямых солнечных лучей и в недоступном для детей месте.

Image: A hand washing one of the cutting drums under running water, demonstrating the ease of cleaning.

7. Поиск Неисправностей

If you encounter any issues with your Nictemaw Electric Vegetable Slicer, please refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Nictemaw customer support.

8. Технические характеристики

Technical details for the Nictemaw Electric Vegetable Slicer:

Image: A diagram illustrating the precise dimensions of the Nictemaw Electric Vegetable Slicer and its various cutting drums.

9. Гарантия и поддержка

Nictemaw products are manufactured with high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official Nictemaw webсайт.

If you require technical assistance, have questions about your product, or need to report a defect, please contact Nictemaw customer support. Our team is dedicated to providing you with the best possible service.

Please have your model number (NIC*5527_1) and purchase information ready when contacting support.
