1. Введение
This instruction manual provides detailed guidance for the safe and proper installation, operation, and maintenance of your DELAVIN 56-60" W x 59" H Frameless Sliding Bathtub Door. Please read all instructions thoroughly before beginning installation or use to ensure optimal performance and safety.
2. Информация по технике безопасности
WARNING: Improper installation or use can lead to serious injury or product damage.
- Во время установки всегда используйте соответствующие средства индивидуальной защиты (СИЗ), включая защитные очки и перчатки.
- Обращайтесь со стеклянными панелями с особой осторожностью. Закаленное стекло, хотя и прочное, может разбиться при ударе по краям или углам.
- Ensure the installation surface (walls, tub/shower base) is structurally sound and level.
- Do not attempt to cut the glass panels.
- Two or more people are recommended for installation due to the weight and size of the glass panels.
- Перед использованием убедитесь, что все крепежные элементы надежно затянуты.
3. Содержимое упаковки
Перед началом установки убедитесь, что все компоненты присутствуют и не повреждены. Если какие-либо детали отсутствуют или повреждены, обратитесь в службу поддержки клиентов.
- Панели из закаленного стекла (стационарные и раздвижные)
- Stainless Steel Top Guide Bar
- Solid Stainless Steel Rollers
- Stainless Steel Handle (can also serve as towel rack)
- Bottom/Side Seal Strips
- Монтажное оборудование (винты, анкеры и т. д.)
- Руководство по установке
4. Технические характеристики
| Особенность | Деталь |
|---|---|
| Бренд | ДЕЛАВИН |
| Номер модели | W707B |
| Размеры | 0.32 x 60 x 59 inches (Adjustable Width: 56-60 inches W x 59 inches H) |
| Толщина стекла | 5/16" (8mm) Certified Clear Tempered Glass |
| Материал рамы | Нержавеющая сталь |
| Цвет | Матовый черный |
| Вес товара | 109.5 фунта |
| Требуется сборка | Да |
5. Настройка и установка
Installation of the DELAVIN Frameless Sliding Bathtub Door requires careful attention to detail. Refer to the included step-by-step instructions and diagrams in the official Руководство по установке (PDF) для всестороннего руководства.
Основные рекомендации по установке:
- Измерение: Accurately measure your shower space. The adjustable width of 56-60 inches allows for flexibility. If your shower space is less than 58 inches, the upper guide rail may need to be cut.
- Реверсивная конструкция: The door is reversible and can be installed to slide to the right or the left, adapting to your bathroom layout.
- Надежное крепление: The fixed glass panel is secured to the bottom track and screwed to the wall. Ensure all mounting points are firm and stable.
- Установка шкива: When installing the pulleys, ensure they are tightened securely on the glass, especially on the sliding glass panel, to prevent loosening and potential falling of the door.
- Защита стекла: The frameless design means there are no frames around the glass edges. A plastic strip is included to protect the wall from direct contact with the glass.
Figure 5.1: Overall Dimensions and Measurements.
Figure 5.2: Easy Installation with Reversible Opening.
6. Инструкция по эксплуатации
The DELAVIN Frameless Sliding Bathtub Door is designed for smooth and effortless operation.
- To open or close the door, gently slide the movable glass panel along the top guide bar using the stainless steel handle.
- The large solid stainless steel rollers ensure quiet and smooth gliding.
- Integrated stoppers prevent the door from hitting the wall or frame when fully opened or closed.
- The bottom and side seal strips effectively prevent water splashes and leaks, keeping your bathroom floor dry.
Figure 6.1: Smooth Sliding Rollers.

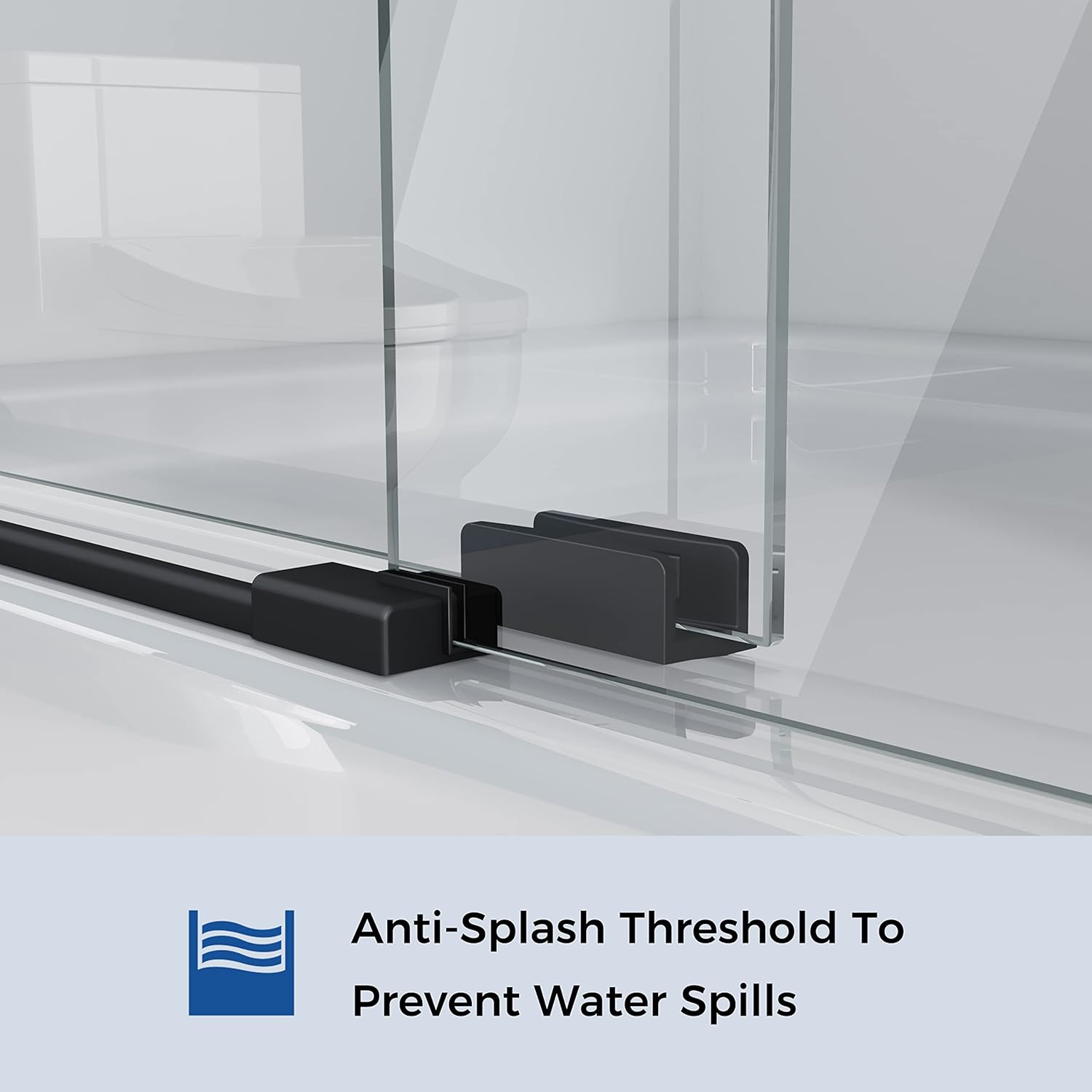

Figure 6.2: Anti-Splash Threshold.
7. Техническое обслуживание
Regular cleaning and maintenance will prolong the life and appearance of your shower door.
- Очистка стекла: The tempered glass is designed to be easy to clean. Use a soft cloth and a non-abrasive glass cleaner or a mixture of white vinegar and water. Wipe down the glass after each use to prevent water spots and soap scum buildup.
- Рама и фурнитура: Clean the stainless steel frame and hardware with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the matte black finish or cause rust.
- Rollers and Tracks: Periodically inspect the rollers and top guide bar for any debris or buildup that might impede smooth operation. Clean as necessary.
- Уплотнения: Check the bottom and side seal strips for wear or damage. Replace if necessary to maintain water-tightness.
8. Поиск Неисправностей
If you encounter any issues with your DELAVIN shower door, refer to the following common solutions:
| Проблема | Возможная причина/решение |
|---|---|
| Дверь не скользит плавно. | Debris in the track or on rollers. Clean the top guide bar and rollers. Rollers may be loose; ensure they are securely tightened. |
| Water leakage from enclosure | Seal strips are worn or improperly installed. Check the condition and placement of bottom/side seal strips and replace if damaged. Ensure the anti-splash threshold is correctly positioned. |
| Glass panel appears loose or wobbly | Mounting hardware or pulley connections are loose. Re-tighten all screws and ensure pulleys are firmly secured to the glass. |
| Scratches on the rolling bar | Caused by abrasive contact. Handle with care during installation and cleaning. Avoid dragging metal objects across the bar. |
If the problem persists after attempting these solutions, please contact DELAVIN customer support.
9. Гарантия и поддержка
DELAVIN is committed to providing high-quality products and excellent customer service. Your DELAVIN shower door comes with a 30-day easy return policy.
Обращение в службу поддержки:
If you experience any issues with your product, please follow these steps to contact us:
- Go to your order history where your order is listed.
- Select "Problem with order" and choose the relevant topic.
- Click "Contact seller."
Please attach pictures that prove the problem with the product and describe the issue in detail. We will respond to your inquiry within 24 hours and provide a solution, such as quickly replacing damaged or missing parts.
Figure 9.1: Customer Support Process.
