Audiobank AP15 Digital Bass Processor Instruction Manual

1. Заview

The Audiobank AP15 is a 1/2 DIN car audio digital bass processor designed to enhance and restore low-frequency information in your car audio system. It accurately recreates and injects missing bass notes, providing efficient bass equalization and maximum control for your subwoofer. This unit is engineered to deliver improved bass performance and sound quality.

2.Основные характеристики

• Digital Bass Maximizer and Restoration Processor
• Accurately recreates and injects low-frequency information into the signal path
• Efficient bass equalization circuit for maximum bass control
• Includes a dash-mount remote control for convenient bass level adjustment
• Integrated subsonic filter
• Lighted bass restoration display
• Frequency response: 10-10000Hz output
• Input noise rejection: 60dB

3. Компоненты продукта

Figure 1: Audiobank AP15 Digital Bass Processor with included remote bass knob.

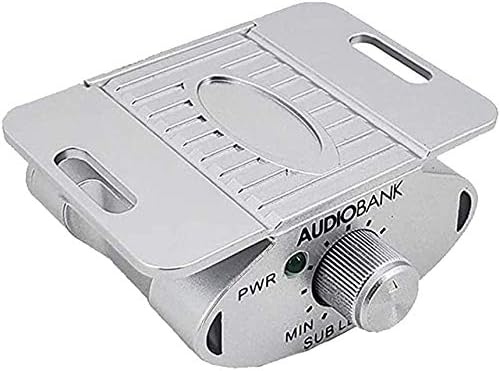

Figure 2: Dash-mount remote control for bass level adjustment.

The package includes the AB-AP15 Bass Processor, a dash-mount Bass Knob, and a user manual.

4. Настройка и установка

Правильная установка имеет решающее значение для оптимальной работы системы. Рекомендуется, чтобы установку выполнял квалифицированный специалист по автозвуку.

4.1 Подключение проводки

Refer to the diagram below for typical wiring connections. Ensure all connections are secure and properly insulated.

Figure 3: Rear panel connections of the Audiobank AP15.

1. Подключение питания: Connect the +12V terminal to a constant +12V power source from your vehicle's battery. Connect the GND terminal to a solid chassis ground point.
2. Дистанционное включение: Connect the REM terminal to the remote turn-on output of your head unit or amplifier. This will turn the AP15 on and off with your audio system.
3. Аудиовход: Connect the balanced input (L/R) from your head unit's RCA outputs or a line output converter (if using speaker-level inputs) to the AP15's input terminals.
4. Аудиовыход: Connect the output (L/R) from the AP15 to the RCA inputs of your ampлифер(ы).
5. Пульт дистанционного управления: Connect the included dash-mount bass knob to the "DASH REM" port on the AP15 using the provided cable.

4.2 Монтаж

The Audiobank AP15 is a 1/2 DIN unit, designed for flexible mounting. Choose a location that is dry, well-ventilated, and away from direct heat or moisture. Secure the unit using appropriate screws and mounting hardware.

5. Инструкция по эксплуатации

The AP15 features several controls to fine-tune your bass experience.

Figure 4: Top panel controls of the Audiobank AP15.

• Управление WIDE: This knob adjusts the width of the bass restoration effect. Turning it clockwise increases the range of frequencies affected by the bass restoration.
• Управление SWEEP: This knob allows you to select the center frequency for the bass restoration. Adjust it to target the specific low frequencies you wish to enhance.
• Bass Control Knob (Dash Remote): Use the remote knob to conveniently adjust the overall bass level from your driving position.
• Переключатель субзвукового фильтра: The AP15 includes a subsonic filter to protect your subwoofers from damaging ultra-low frequencies. Select the desired cutoff frequency (35Hz, 50Hz, or 80Hz) using the switch.
• Светодиод питания: Указывает, что устройство включено.
• Bass Restoration Display: The lighted display provides a visual indication of the bass restoration activity.

Start with the WIDE and SWEEP controls at their minimum settings and gradually increase them while listening to your audio to find the optimal bass enhancement for your system and preferences. Use the dash remote for real-time adjustments.

6. Техническое обслуживание

• Содержите устройство в чистоте и не допускайте попадания пыли. Для чистки используйте мягкую сухую ткань.
• Избегайте воздействия на устройство экстремальных температур, влаги или прямых солнечных лучей.
• Убедитесь, что все соединения надежно закреплены. Периодически проверяйте проводку на наличие признаков износа или повреждений.
• Не пытайтесь самостоятельно вскрывать устройство или производить ремонт, так как это аннулирует гарантию.

7. Поиск Неисправностей

8. Технические характеристики

9. Гарантия и поддержка

For warranty information and technical support, please refer to the documentation included with your purchase or contact Audiobank customer service. Keep your proof of purchase for any warranty claims.

Для получения дополнительной помощи посетите Audiobank brand store on Amazon.
