1. Продукт закончилсяview
The HOMIDEC Modular Portable Wardrobe provides a versatile and customizable storage solution for your home. Constructed from durable resin panels, this wardrobe is designed for easy assembly and offers ample space for organizing clothes, shoes, toys, and other items. Its modular design allows for various configurations to suit different needs and spaces.
2. Содержимое упаковки
Перед началом сборки убедитесь, что все перечисленные ниже компоненты присутствуют в вашей упаковке. Если какие-либо детали отсутствуют или повреждены, обратитесь в службу поддержки клиентов.
- PP Panels (various sizes for base, side, back, and top)
- Doors (35x35cm, white and patterned)
- ABS Connectors (for joining panels)
- Foot Connectors (for the base)
- Hanging Rails (for clothes)
- Door Magnets (for securing doors)
- Door Connectors (for attaching doors)
- Mallet (for securing connections)
- Hook (for external hanging)
3. Инструкция по сборке
Follow these steps carefully to assemble your HOMIDEC Modular Portable Wardrobe. Ensure each panel is fully inserted into the bottom of the connectors for maximum stability.
Видеоруководство по сборке
Для наглядного руководства, пожалуйста, обратитесь к видеороликам по установке, представленным ниже:
Step-by-Step Written Guide:
- Постройте базу: Connect the base panels (35x45cm) using the foot connectors. Ensure the connectors are installed with the round face outwards and panels are fully inserted.
Figure 3: Proper insertion of a panel into a foot connector for the base. - Assemble Side and Back Panels: Attach the side panels (35x45cm) and back panels (35x35cm) to the base using the ABS connectors. Work upwards, ensuring each panel is securely fitted.

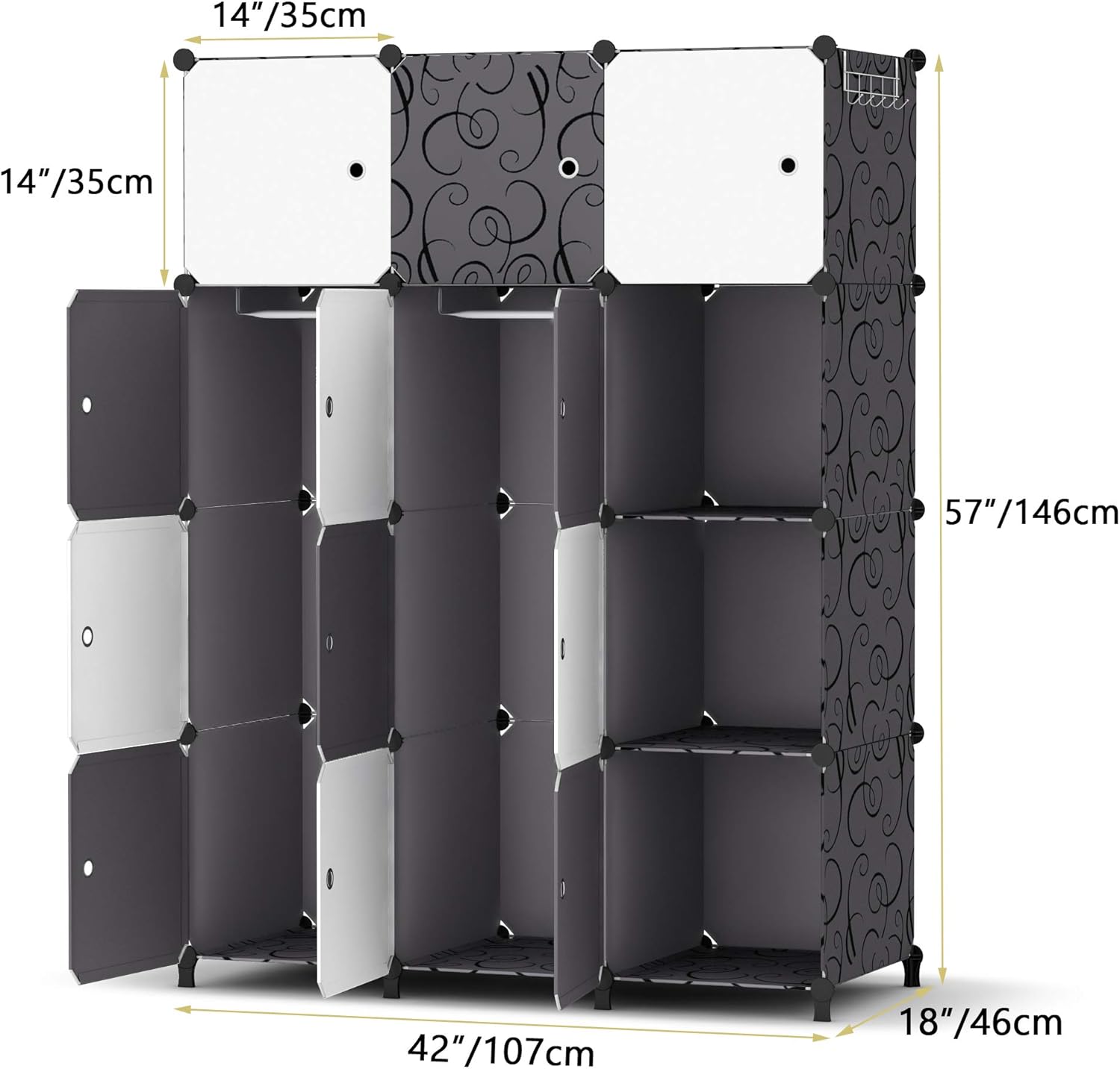

Figure 4: Dimensions of the wardrobe, illustrating how panels connect to form cubes. - Install Top Panels: Place the top panels (35x45cm) onto the upper connectors to complete the cube structure. If you do not need to hang clothes, you can add all top panels in this step to create additional shelves.
- Установить двери: Attach the door connectors to the panels where doors are desired. Then, snap the doors (35x35cm) into place. Secure the door magnets to ensure doors close properly.
- Install Hanging Rails: For sections intended for hanging clothes, insert the hanging rails into the designated slots within the connectors.
- Установить хуки: Attach the external hook to any desired panel edge for hanging hats, bags, or other accessories.
After completing all steps, use the provided mallet to gently tap all connectors, ensuring they are fully seated and the structure is firm.
4. Инструкция по эксплуатации
The HOMIDEC Modular Portable Wardrobe is designed for straightforward use. Each cube can hold up to 10 kg of weight.
- Открытие и закрытие дверей: Gently pull the door handle to open. The integrated door magnets will keep the doors securely closed when not in use.
- Расположение предметов: Utilize the individual cubes for folded clothing, shoes, or accessories. The hanging rails are suitable for garments that require hanging, such as shirts, dresses, or coats.
- Настройка: The modular design allows you to reconfigure the cubes as needed. You can create taller sections for long garments or more shelves for folded items.
5. Техническое обслуживание и уход
Чтобы обеспечить долговечность и красивый внешний вид вашего гардероба, следуйте этим простым правилам ухода:
- Уборка: The resin panels are waterproof, moisture-proof, mold-proof, and dust-proof. For daily cleaning, simply wipe the surfaces with a damp ткань. Избегайте использования абразивных чистящих средств или агрессивных химикатов.
Figure 7: The waterproof surface of the resin panels makes cleaning easy. - Проверка устойчивости: Periodically check all panel connections to ensure they remain secure. If any connections feel loose, use the mallet to re-seat them firmly.
- Распределение веса: Distribute weight evenly across the cubes and avoid placing excessively heavy items in a single cube to prevent sagging or damage.
6. Поиск Неисправностей
If you encounter any issues with your wardrobe, please refer to the following common solutions:
- Issue: The wardrobe feels unstable or wobbly.
Solution: This is typically caused by panels not being fully inserted into the connectors. Use the provided mallet to firmly tap all connectors until each panel is securely seated. Ensure the base is level.
- Issue: Doors do not close properly or leave gaps.

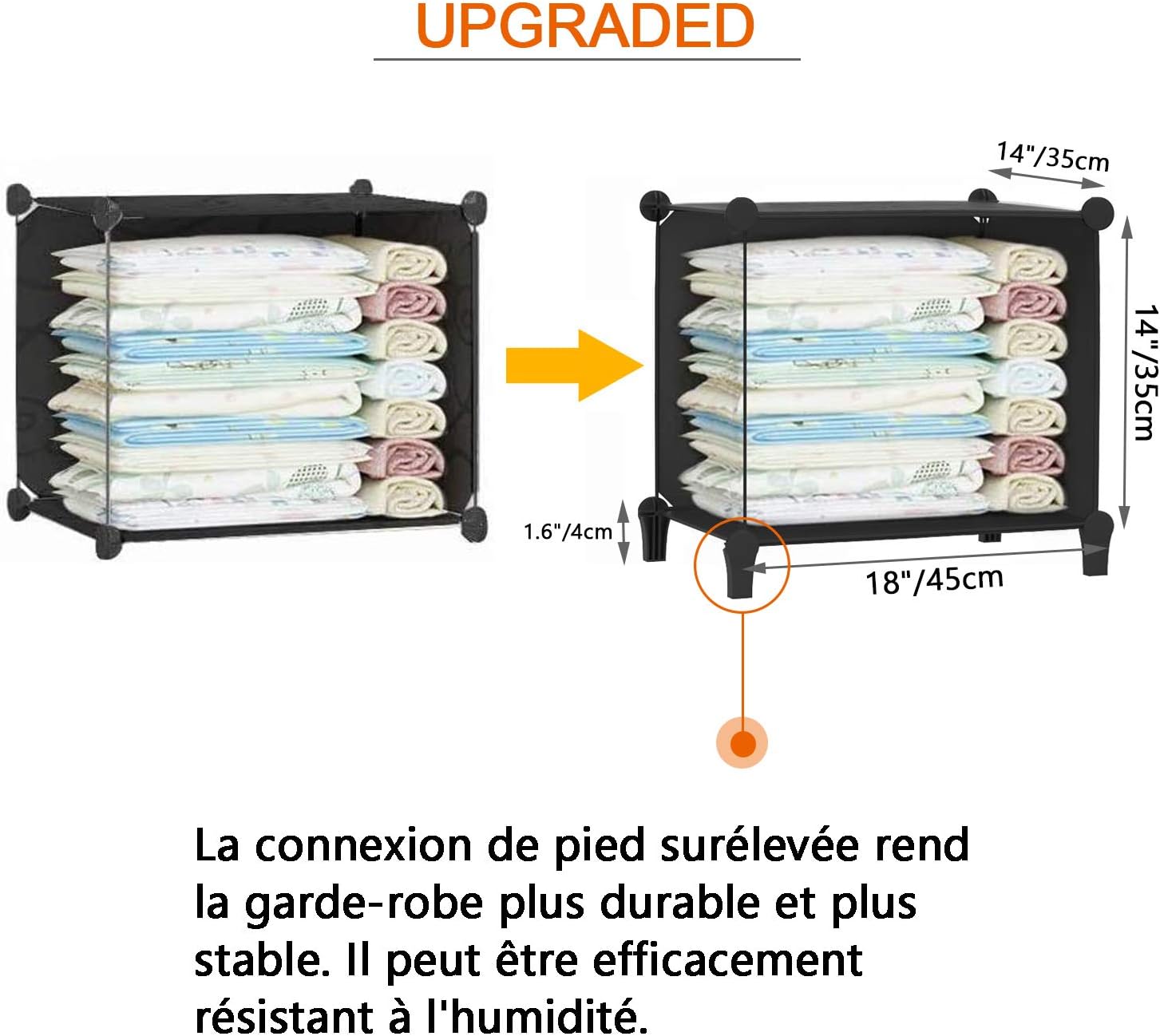

Solution: Check that the door magnets are correctly installed and aligned with the corresponding metal plates on the panels. Also, ensure the panels forming the cube are fully connected and the cube itself is not distorted. The upgraded deeper cubes are designed to prevent this issue.
- Issue: Panels are bending or sagging.
Solution: Each cube has a maximum weight capacity of 10 kg. Ensure you are not exceeding this limit. Redistribute heavier items across multiple cubes or remove excess weight.
7. Технические характеристики
| Бренд | ХОМИДЕК |
| Модель | zep-20221030-1 |
| Материал | Смола |
| Цвет | Черно-белое |
| Габаритные размеры (ДхШхВ) | 142 x 45 x 142 см (прибл. 56 x 18 x 56 дюйма) |
| Вес товара | 10.5 Килограмма |
| Специальная характеристика | Portable, Modular |
| Cube Weight Capacity | Up to 10 kg per cube |
8. Гарантия и поддержка
HOMIDEC is committed to providing high-quality products and customer satisfaction.
- Гарантия: This product comes with a 30-day risk-free money-back guarantee and a 24-month warranty.
- Служба поддержки клиентов: If you are not completely satisfied or have any questions regarding assembly, operation, or parts, please contact our customer service team. Refer to your purchase documentation for specific contact details.
